Oberton HF Treiber 1,4"
Oberton - High End Lautsprecherchassis aus Bulgarien
Oberton HF Treiber 1,4"
Oberton
Oberton D3644 16 Ohm
1.4" Throat diameter
44 mm (1.75 in.) voice coil
80 W Program Power Capacity (2-20 kHz)
109 dB Sensitivity (1 -5 kHz)
Frequency range 0.8 - 20 kHz
New phase plug design
Copper inductance ring for extended response
Vented suspension
Very low distortion
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (2-20 kHz) Program Power Capacity (2-20 kHz)Sensitivity (1-5 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8/16 Ohms7.46/12.45 Ohms5.75/10.48 Ohms40 W80 W109 dB0.8 - 20 kHz1.2 kHz or higher 12 dB/oct.min44 mm (1.75 in.)1.75 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
sandwich polyester AluminiumKapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
121 mm66 mm4 x M6 on 101,6 mm (4 in.) diameter2.3 kg
Oberton
Oberton D3644 8 Ohm
1.4" Throat diameter
44 mm (1.75 in.) voice coil
80 W Program Power Capacity (2-20 kHz)
109 dB Sensitivity (1 -5 kHz)
Frequency range 0.8 - 20 kHz
New phase plug design
Copper inductance ring for extended response
Vented suspension
Very low distortion
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (2-20 kHz) Program Power Capacity (2-20 kHz)Sensitivity (1-5 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8/16 Ohms7.46/12.45 Ohms5.75/10.48 Ohms40 W80 W109 dB0.8 - 20 kHz1.2 kHz or higher 12 dB/oct.min44 mm (1.75 in.)1.75 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
sandwich polyester AluminiumKapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
121 mm66 mm4 x M6 on 101,6 mm (4 in.) diameter2.3 kg
Oberton

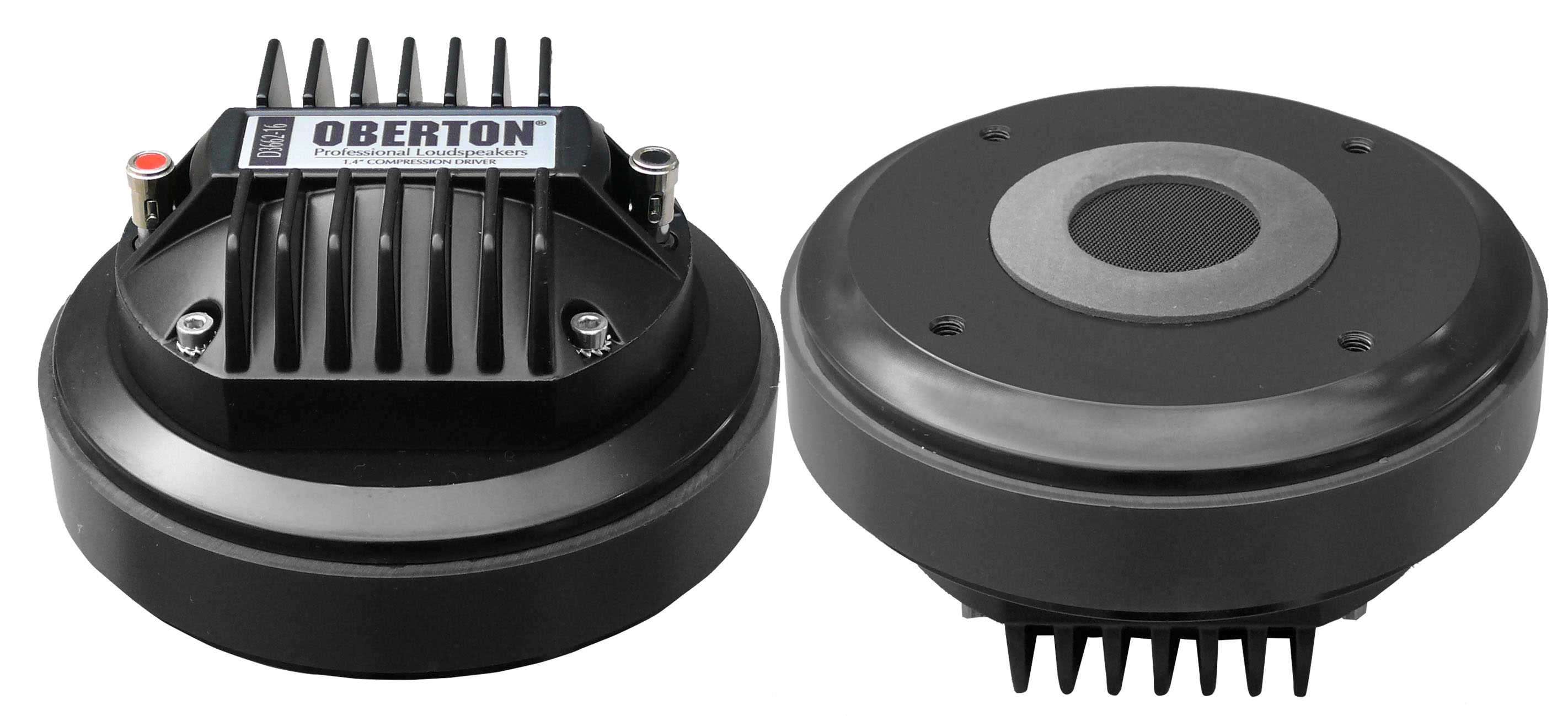

Oberton D3662 16 Ohm
1.4" Throat diameter
62 mm (2,5 in.) voice coil
130 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (2-15 kHz)
Frequency range 0,8 - 18 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (2-15 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8 / 16 Ohms7.09 / 12,97 Ohms5.37 / 10.56 Ohms65 W130 W109 dB0,8 - 18 kHz1.2 kHz or higher 12 dB/oct.min62 mm (2.5 in.)1.7 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
sandwich polyester Aluminium Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
145 mm80.7 mm4 x M6 on 101,6 mm (4 in.) diameter3,65 kg
Oberton
Oberton D3662 8 Ohm
1.4" Throat diameter
62 mm (2,5 in.) voice coil
130 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (2-15 kHz)
Frequency range 0,8 - 18 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (2-15 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8 / 16 Ohms7.09 / 12,97 Ohms5.37 / 10.56 Ohms65 W130 W109 dB0,8 - 18 kHz1.2 kHz or higher 12 dB/oct.min62 mm (2.5 in.)1.7 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
sandwich polyester Aluminium Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
145 mm80.7 mm4 x M6 on 101,6 mm (4 in.) diameter3,65 kg
Oberton
Oberton D3671 16 Ohm
1.4" Throat diameter
72 mm (2,85 in.) voice coil
150 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (2-15 kHz)
Frequency range 0,5 - 15 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (2-15 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8/16 Ohms7.8/12 Ohms6.5/10 Ohms75 W150 W109 dB0,5 - 15 kHz0,8 kHz or higher 12 dB/oct.min72 mm (2,85 in.)1,6 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
sandwich polyester Aluminium Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
156 mm83.5 mm4 x M6 on 101,6 mm (4 in.) diameter4,2 kg
Oberton
Oberton D3671 8 Ohm
1.4" Throat diameter
72 mm (2,85 in.) voice coil
150 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (2-15 kHz)
Frequency range 0,5 - 15 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (2-15 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8/16 Ohms7.8/12 Ohms6.5/10 Ohms75 W150 W109 dB0,5 - 15 kHz0,8 kHz or higher 12 dB/oct.min72 mm (2,85 in.)1,6 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
sandwich polyester Aluminium Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
156 mm83.5 mm4 x M6 on 101,6 mm (4 in.) diameter4,2 kg
Oberton
Oberton D3673 16 Ohm
1.4" Throat diameter
72 mm (2,85 in.) voice coil
160 W Program Power Capacity (1-20 kHz)
110.5 dB Sensitivity (2-15 kHz)
Frequency range 0,6 - 17 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (2-15 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8/16 Ohms7.8/12 Ohms6.5/10 Ohms80 W160 W110,5 dB0,6 - 17 kHz0,8 kHz or higher 12 dB/oct.min72 mm (2,85 in.)1,85 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
sandwich polyester Aluminium Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
180 mm83 mm4 x M6 on 101,6 mm (4 in.) diameter6,9 kg
Oberton
Oberton D3673 8 Ohm
1.4" Throat diameter
72 mm (2,85 in.) voice coil
160 W Program Power Capacity (1-20 kHz)
110.5 dB Sensitivity (2-15 kHz)
Frequency range 0,6 - 17 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (2-15 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8/16 Ohms7.8/12 Ohms6.5/10 Ohms80 W160 W110,5 dB0,6 - 17 kHz0,8 kHz or higher 12 dB/oct.min72 mm (2,85 in.)1,85 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
sandwich polyester Aluminium Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
180 mm83 mm4 x M6 on 101,6 mm (4 in.) diameter6,9 kg
Oberton
Oberton D71CN 16 Ohm
1.4" Throat diameter
72 mm (2,85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
108.5 dB Sensitivity (1 - 10 kHz)
Frequency range 0,5 - 17.5 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1-10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8 / 16 Ohms8.35 / 11.7 Ohms6.73 / 10 Ohms100 W200 W108.5 dB0,5 - 17.5 kHz1 kHz or higher 12 dB/oct.min72 mm (2,85 in.)1,6 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
Carbon compositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
156 mm83 mm4 x M6 on 101,6 mm (4 in.)diameter4.2 kg
Oberton
Oberton D71CN 8 Ohm
1.4" Throat diameter
72 mm (2,85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
108.5 dB Sensitivity (1 - 10 kHz)
Frequency range 0,5 - 17.5 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1-10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8 / 16 Ohms8.35 / 11.7 Ohms6.73 / 10 Ohms100 W200 W108.5 dB0,5 - 17.5 kHz1 kHz or higher 12 dB/oct.min72 mm (2,85 in.)1,6 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
Carbon compositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
156 mm83 mm4 x M6 on 101,6 mm (4 in.)diameter4.2 kg
Oberton
Oberton D71CT 16 Ohm
1.4" Throat diameter
72 mm (2,85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
108.5 dB Sensitivity (1 - 10 kHz)
Frequency range 0,5 - 18 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1-10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8 / 16 Ohms8.4 / 11.6 Ohms6.79 / 10 Ohms100 W200 W108.5 dB0,5 - 18 kHz1 kHz or higher 12 dB/oct.min72 mm (2,85 in.)1,6 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
Cotton compositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
156 mm83 mm4 x M6 on 101,6 mm (4 in.)diameter4.2 kg
Oberton
Oberton D71CT 8 Ohm
1.4" Throat diameter
72 mm (2,85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
108.5 dB Sensitivity (1 - 10 kHz)
Frequency range 0,5 - 18 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1-10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8 / 16 Ohms8.4 / 11.6 Ohms6.79 / 10 Ohms100 W200 W108.5 dB0,5 - 18 kHz1 kHz or higher 12 dB/oct.min72 mm (2,85 in.)1,6 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
Cotton compositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
156 mm83 mm4 x M6 on 101,6 mm (4 in.)diameter4.2 kg
Oberton

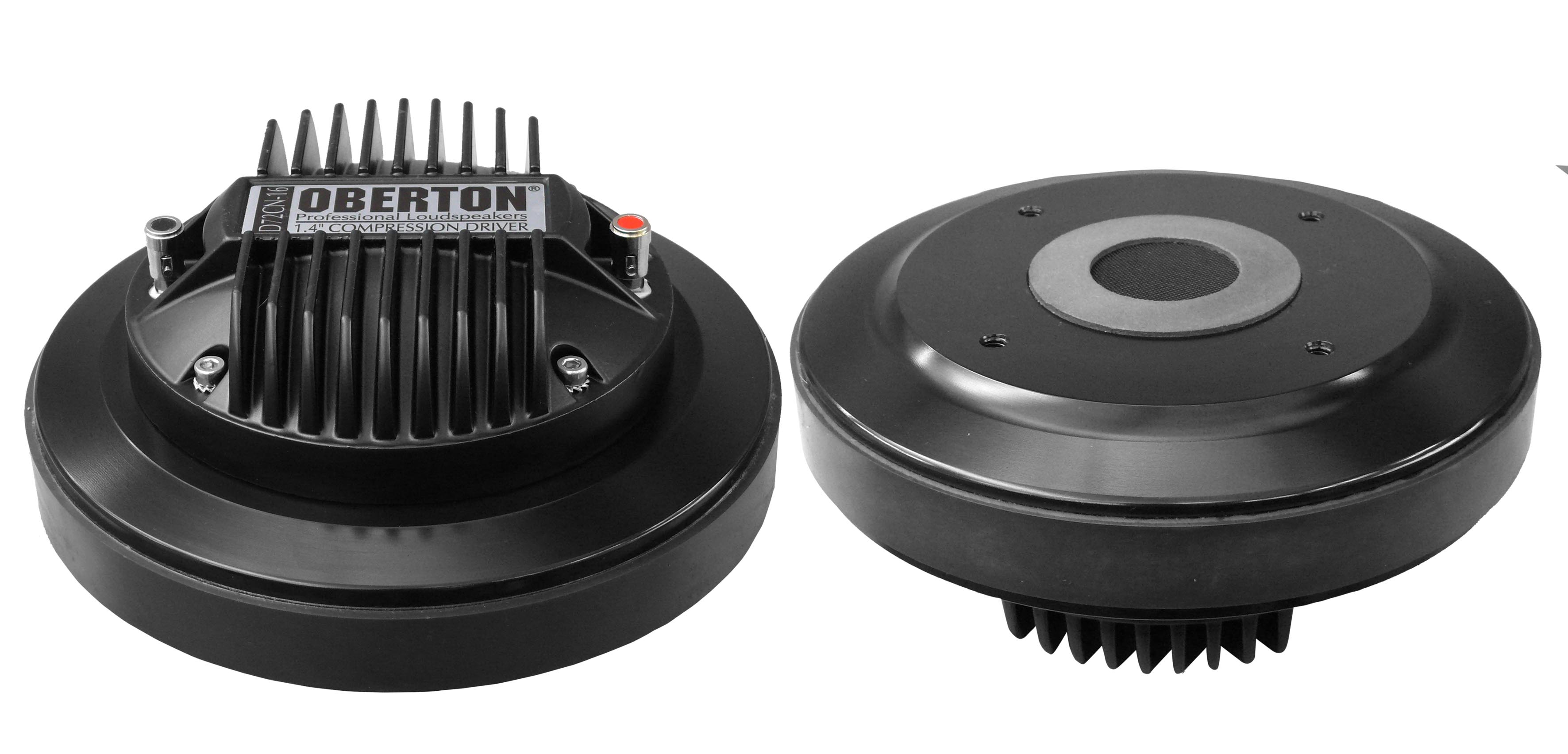

Oberton D72CN 16 Ohm
1.4" Throat diameter
72 mm (2,85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (1-10kHz)
Frequency range 0,5 - 18 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1-10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8 / 16 Ohms8.48 / 11.7 Ohms6.78 / 10 Ohms100 W200 W109 dB0,5 - 18 kHz1 kHz or higher 12 dB/oct.min72 mm (2,85 in.)1,85 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
Carbon compositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
180 mm81.5 mm4 x M6 on 101,6 mm (4 in.)diameter6.9 kg
Oberton
Oberton D72CN 8 Ohm
1.4" Throat diameter
72 mm (2,85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (1-10kHz)
Frequency range 0,5 - 18 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1-10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8 / 16 Ohms8.48 / 11.7 Ohms6.78 / 10 Ohms100 W200 W109 dB0,5 - 18 kHz1 kHz or higher 12 dB/oct.min72 mm (2,85 in.)1,85 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
Carbon compositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
180 mm81.5 mm4 x M6 on 101,6 mm (4 in.)diameter6.9 kg
Oberton
Oberton D72CT 16 Ohm
1.4" Throat diameter
72 mm (2,85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
109.5 dB Sensitivity (1-10kHz)
Frequency range 0,5 - 18 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1-10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8 / 16 Ohms8.46 / 11.7 Ohms6.72 / 10 Ohms100 W200 W109.5 dB0,5 - 18 kHz1 kHz or higher 12 dB/oct.min72 mm (2,85 in.)1,85 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
Cotton compositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
180 mm81.5 mm4 x M6 on 101,6 mm (4 in.)diameter6.9 kg
Oberton
Oberton D72CT 8 Ohm
1.4" Throat diameter
72 mm (2,85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
109.5 dB Sensitivity (1-10kHz)
Frequency range 0,5 - 18 kHz
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1-10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.)8 / 16 Ohms8.46 / 11.7 Ohms6.72 / 10 Ohms100 W200 W109.5 dB0,5 - 18 kHz1 kHz or higher 12 dB/oct.min72 mm (2,85 in.)1,85 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
Cotton compositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
180 mm81.5 mm4 x M6 on 101,6 mm (4 in.)diameter6.9 kg
Oberton
Oberton ND3662 16 Ohm
1.4" Throat diameter
62 mm (2.5 in.) voice coil
130 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (2-15 kHz)
Frequency range 0.8 - 18 kHz
Neodymium magnetic structure
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (2-15 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 8 / 16 Ohms 7.06 / 14.10 Ohms5.37 / 10.5665 W 130 W109 dB 0,8 - 18 kHz 1.2 kHz or higher 12 dB/oct.min 62 mm (2,5 in.)1.9 T
THIELE-SMALL PARAMETERS
Diaphragm Voice coil material Voice coil former
sandwich polyester AluminiumKapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
115 mm 70 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,00 kg
Oberton
Oberton ND3662 8 Ohm
1.4" Throat diameter
62 mm (2.5 in.) voice coil
130 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (2-15 kHz)
Frequency range 0.8 - 18 kHz
Neodymium magnetic structure
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (2-15 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 8 / 16 Ohms 7.06 / 14.10 Ohms5.37 / 10.5665 W 130 W109 dB 0,8 - 18 kHz 1.2 kHz or higher 12 dB/oct.min 62 mm (2,5 in.)1.9 T
THIELE-SMALL PARAMETERS
Diaphragm Voice coil material Voice coil former
sandwich polyester AluminiumKapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
115 mm 70 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,00 kg
Oberton

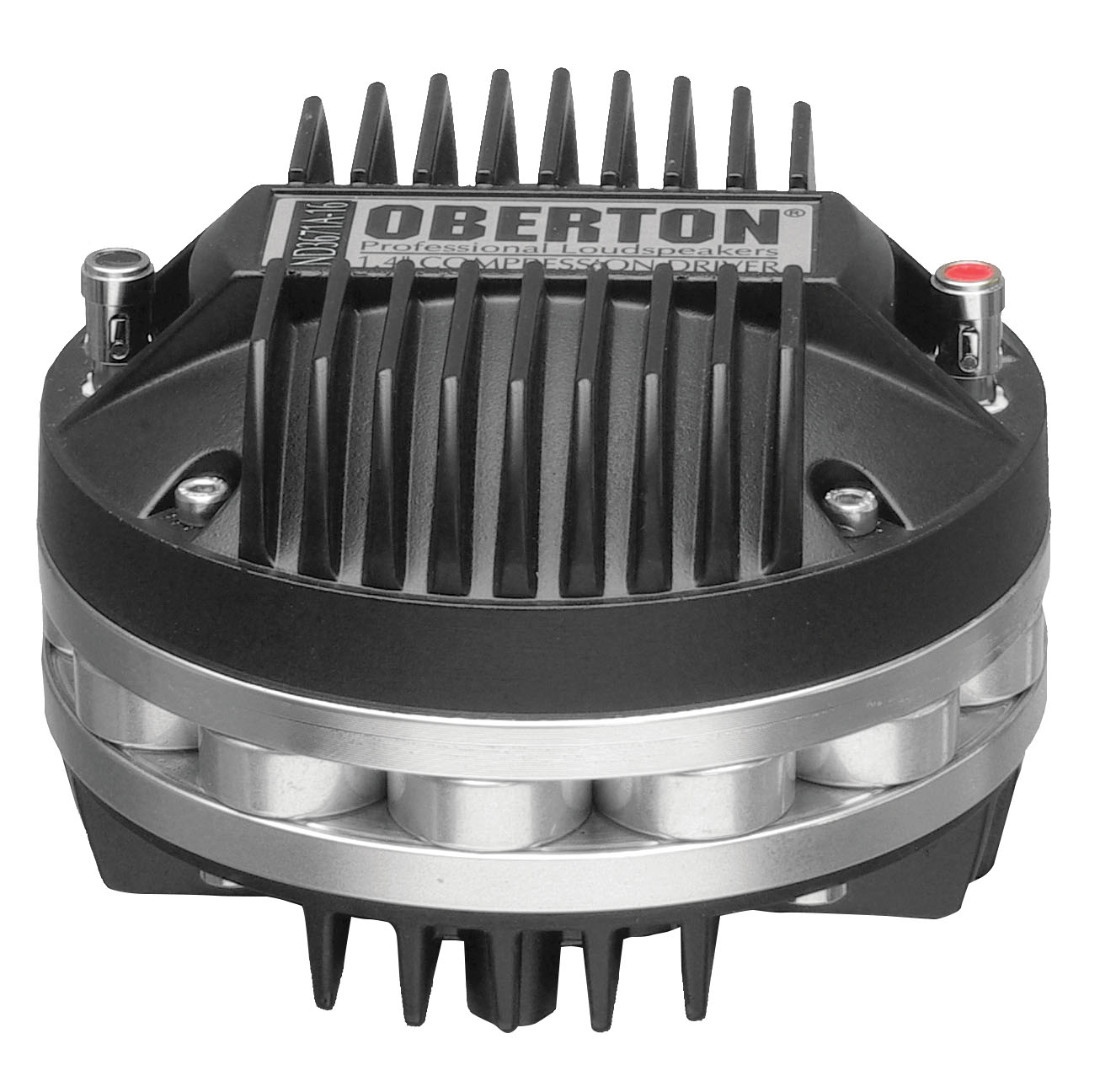

Oberton ND3671A 16 Ohm
1.4" Throat diameter
72 mm (2.85 in.) voice coil
150 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (2-15 kHz)
Frequency range 0.8 - 16 kHz
Neodymium magnetic structure
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (2-15 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 8/16 Ohms 7.8/12 Ohms 6.5/10 Ohms 75 W 150 W109 dB 0,8 - 16 kHz 1 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 1.95 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
sandwich polyester Aluminium Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
130 mm 89 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,85 kg
Oberton
Oberton ND3671A 8 Ohm
1.4" Throat diameter
72 mm (2.85 in.) voice coil
150 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (2-15 kHz)
Frequency range 0.8 - 16 kHz
Neodymium magnetic structure
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (2-15 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 8/16 Ohms 7.8/12 Ohms 6.5/10 Ohms 75 W 150 W109 dB 0,8 - 16 kHz 1 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 1.95 T
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former
sandwich polyester Aluminium Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
130 mm 89 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,85 kg
Oberton

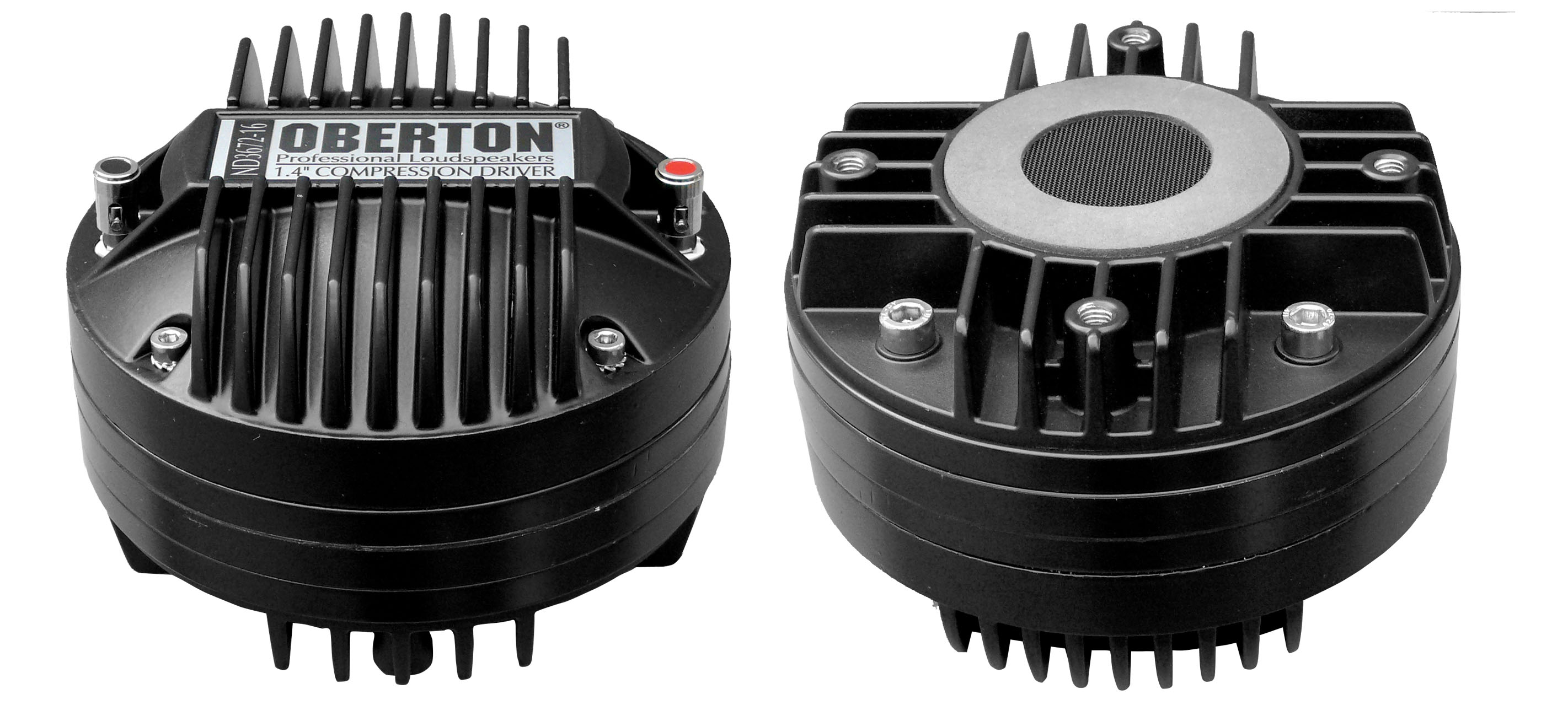

Oberton ND3672 16 Ohm
1.4" Throat diameter
72 mm (2.85 in.) voice coil
150 W Program Power Capacity (1-20 kHz)
110 dB Sensitivity (2-15 kHz)
Frequency range 0.6 - 16 kHz
Neodymium magnetic structure
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (2-15 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 8/16 Ohms 7.8/12 Ohms 6.5/10 Ohms 75 W 150 W110 dB 0,6 - 16 kHz 0,8 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 2,1 T
THIELE-SMALL PARAMETERS
Diaphragm Voice coil material Voice coil former
sandwich polyester Aluminium Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
130 mm 87 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,95 kg
Oberton
Oberton ND3672 8 Ohm
1.4" Throat diameter
72 mm (2.85 in.) voice coil
150 W Program Power Capacity (1-20 kHz)
110 dB Sensitivity (2-15 kHz)
Frequency range 0.6 - 16 kHz
Neodymium magnetic structure
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (2-15 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 8/16 Ohms 7.8/12 Ohms 6.5/10 Ohms 75 W 150 W110 dB 0,6 - 16 kHz 0,8 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 2,1 T
THIELE-SMALL PARAMETERS
Diaphragm Voice coil material Voice coil former
sandwich polyester Aluminium Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
130 mm 87 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,95 kg
Oberton
Oberton ND72CN 16 Ohm
1.4" Throat diameter
72 mm (2.85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
110 dB Sensitivity (1-10 kHz)
Frequency range 0.5 - 18.5 kHz
Neodymium magnetic structure
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1 - 10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 8 / 16 Ohm8,28 / 12,12 Ohm6,7 / 9,5 Ohm100 W 200 W110 dB 0,5 - 18,5 kHz 1 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 2,1 T
THIELE-SMALL PARAMETERS
Diaphragm Voice coil material Voice coil former
Carbon CompositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
130 mm 87 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,95 kg
Oberton
Oberton ND72CN 8 Ohm
1.4" Throat diameter
72 mm (2.85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
110 dB Sensitivity (1-10 kHz)
Frequency range 0.5 - 18.5 kHz
Neodymium magnetic structure
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1 - 10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 8 / 16 Ohm8,28 / 12,12 Ohm6,7 / 9,5 Ohm100 W 200 W110 dB 0,5 - 18,5 kHz 1 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 2,1 T
THIELE-SMALL PARAMETERS
Diaphragm Voice coil material Voice coil former
Carbon CompositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
130 mm 87 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,95 kg
Oberton
Oberton ND72CT 16 Ohm
1.4" Throat diameter
72 mm (2.85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (1-10 kHz)
Frequency range 0.5 - 18 kHz
Neodymium magnetic structure
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1 - 10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 8 / 16 Ohms 8,41 / 11.7 Ohms 6,79 / 10 Ohms 100 W 200 W109 dB 0,5 - 18 kHz 1 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 2,1 T
THIELE-SMALL PARAMETERS
Diaphragm Voice coil material Voice coil former
Cotton CompositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
130 mm 89 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,95 kg
Oberton
Oberton ND72CT 8 Ohm
1.4" Throat diameter
72 mm (2.85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (1-10 kHz)
Frequency range 0.5 - 18 kHz
Neodymium magnetic structure
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1 - 10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 8 / 16 Ohms 8,41 / 11.7 Ohms 6,79 / 10 Ohms 100 W 200 W109 dB 0,5 - 18 kHz 1 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 2,1 T
THIELE-SMALL PARAMETERS
Diaphragm Voice coil material Voice coil former
Cotton CompositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
130 mm 89 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,95 kg
Oberton
Oberton ND72HB 16 Ohm
1.4" Throat diameter
72 mm (2.85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (1-10 kHz)
Frequency range 0.5 - 19 kHz
Neodymium magnetic structure
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1 - 10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 8 / 16 Ohms 8,51 / 12.5 Ohms 6,78 / 10 Ohms 100 W 200 W109 dB 0,5 - 19 kHz 1 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 2,1 T
THIELE-SMALL PARAMETERS
Diaphragm Voice coil material Voice coil former
Carbon HybridCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
130 mm 89 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,95 kg
Oberton
Oberton ND72HB 8 Ohm
1.4" Throat diameter
72 mm (2.85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
109 dB Sensitivity (1-10 kHz)
Frequency range 0.5 - 19 kHz
Neodymium magnetic structure
Special anti-corrosion coating
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1 - 10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 8 / 16 Ohms 8,51 / 12.5 Ohms 6,78 / 10 Ohms 100 W 200 W109 dB 0,5 - 19 kHz 1 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 2,1 T
THIELE-SMALL PARAMETERS
Diaphragm Voice coil material Voice coil former
Carbon HybridCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
130 mm 89 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,95 kg
Oberton
Oberton NDC72CN 16 Ohm
1.4" Throat diameter
72 mm (2.85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
111 dB Sensitivity (1-10 kHz)
Frequency range 0.8 - 18 kHz
Neodymium magnetic structure
Special anti-corrosion coating
Ultra compact design - OD 110 mm
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1 - 10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 16 Ohms 12.7 Ohms 10 Ohms 100 W 200 W111 dB 0,8 - 18 kHz 1 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 1.9 T
THIELE-SMALL PARAMETERS
Diaphragm Voice coil material Voice coil former
Carbon compositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
110 mm 58.5 mm 4 x M6 on 101,6 mm (4 in.) diameter 1.87 kg
Oberton
Oberton NDC72CN 8 Ohm
1.4" Throat diameter
72 mm (2.85 in.) voice coil
200 W Program Power Capacity (1-20 kHz)
111 dB Sensitivity (1-10 kHz)
Frequency range 0.8 - 18 kHz
Neodymium magnetic structure
Special anti-corrosion coating
Ultra compact design - OD 110 mm
SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz)Sensitivity (1 - 10 kHz)Frequency range Recommended crossoverVoice coil diameterFlux density
36 mm (1.4 in.) 16 Ohms 12.7 Ohms 10 Ohms 100 W 200 W111 dB 0,8 - 18 kHz 1 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 1.9 T
THIELE-SMALL PARAMETERS
Diaphragm Voice coil material Voice coil former
Carbon compositeCCAW Kapton™
MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight
110 mm 58.5 mm 4 x M6 on 101,6 mm (4 in.) diameter 1.87 kg
