Oberton 6,5" Treiber

Oberton 6B15092 db 1W / 1m average sensitivity 38 mm high temperature cooper voice coil 300 W AES program power Ferrite 121 mm magnet structure Epoxy anti-corrosion coating of top and back plates of magnet structure Oberton 6B150 8 Ohm SPECIFICATIONS Nominal Diameter Impedance Minimum ImpedancePower Capacity AES ¹Program Power ²Sensitivity Frequency RangeVoice Coil Diameter Voice Coil Material Voice Coil FormerV. C. Winding DepthMagnet Gap DepthCone Material Basket Magnet Flux Density 6.5"/170 mm 8 Ohm6.4 Ohm150 W300 W(200-2000 Hz) 92 dB/W/m60 - 3000 Hz38 mm CooperKapton™ 14 mm7 mmPaper with glassfiberDie cast aluminiumFerrite 1.2 T THIELE-SMALL PARAMETERS 6B150 Fs Qms Qes Qts Vas Mms Re Sd Xmax* Cms BL  Le at 1kHz 55.04 Hz4.720.3110.29214.61 Litres16.38 grams5.60 Ohms127 cm2± 5.5 mm0.51 mm/N10.11 T.m0.79 mH MOUNTING INFORMATION Overall DiameterBaffle Hole Diameter Mounting HolesBolt Circle DiameterOverall DepthNet Weight 185 mm145 mm4 eliptic 5.5/6.5 mm170/172 mm83.5 mm2.41 kg

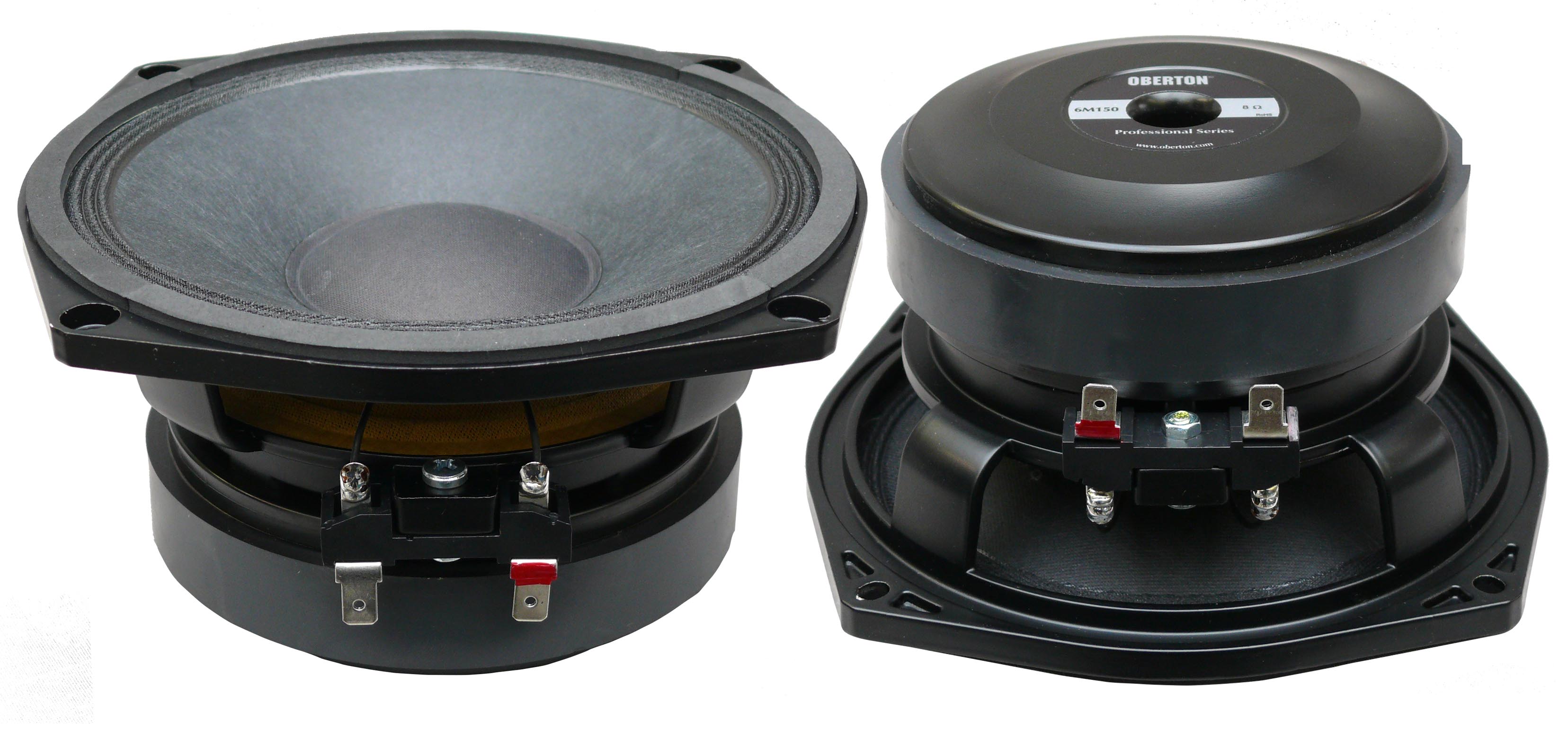

Oberton 6M15096 db 1W / 1m average sensitivity 44 mm high temperature cooper voice coil 300 W AES program power Ferrite 121 mm magnet structure Epoxy anti-corrosion coating of top and back plates of magnet structure Oberton 6M150 8 Ohm SPECIFICATIONS Nominal Diameter Impedance Minimum ImpedancePower Capacity AES ¹Program Power ²Sensitivity Frequency RangeVoice Coil Diameter Voice Coil Material Voice Coil FormerV. C. Winding DepthMagnet Gap DepthCone Material Basket Magnet Flux Density 6.5"/170 mm 8 Ohm7 Ohm150 W300 W(500-5000 Hz) 96 dB/W/m200 - 5000 Hz44 mm AluminiumKapton™ 8 mm7 mmPaper Die cast aluminiumFerrite 1.2 T THIELE-SMALL PARAMETERS 6M150 Fs Qms Qes Qts Vas Mms Re Sd Xmax* Cms BL  Le at 1kHz 115.1 Hz5.460.4570.4225.35 Litres10.22 grams6.21 Ohms139 cm2± 2.25 mm0.187 mm/N10.02 T.m0.438 mH MOUNTING INFORMATION Overall DiameterBaffle Hole Diameter Mounting HolesBolt Circle DiameterOverall DepthNet Weight 185 mm145 mm4 eliptic 5.5/6.5 mm170/172 mm85.8 mm2.47 kg

Oberton 6NB15092 db 1W / 1m average sensitivity 38 mm high temperature voice coil 300 W AES program power Water protected cone (front) Epoxy anti-corrosion coating of top and back plates of magnet structure Oberton 6NB150 8 Ohm SPECIFICATIONS Nominal Diameter Impedance Minimum ImpedancePower Capacity AES ¹Program Power ²Sensitivity Frequency RangeVoice Coil Diameter Voice Coil Material Voice Coil FormerV. C. Winding DepthMagnet Gap DepthCone Material Basket Magnet Flux Density 6.5"/170 inch/mm8 Ohm 6.35 Ohm150 W300 W(200-2000 Hz) 92 dB/W/m60 – 3000 Hz38 mmCooperKapton™14 mm6 mmPaper with glassfiberDie cast aluminiumNeodymium1.37 T THIELE-SMALL PARAMETERS 6NB150 Fs Qms Qes Qts Vas Mms Re Sd Xmax* Cms BL  Le at 1kHz 62.32 Hz5.220.2960.289.3 Litres15.72 grams5.57 Ohms127 cm2±5.5 mm0.415 mm/N10.77 T.m0.65 mH MOUNTING INFORMATION Overall DiameterBaffle Hole Diameter Mounting HolesBolt Circle DiameterOverall DepthNet Weight 185 mm145 mm4 elliptic 5.5 / 6.5 mm172 mm78.5 mm1.29 kg

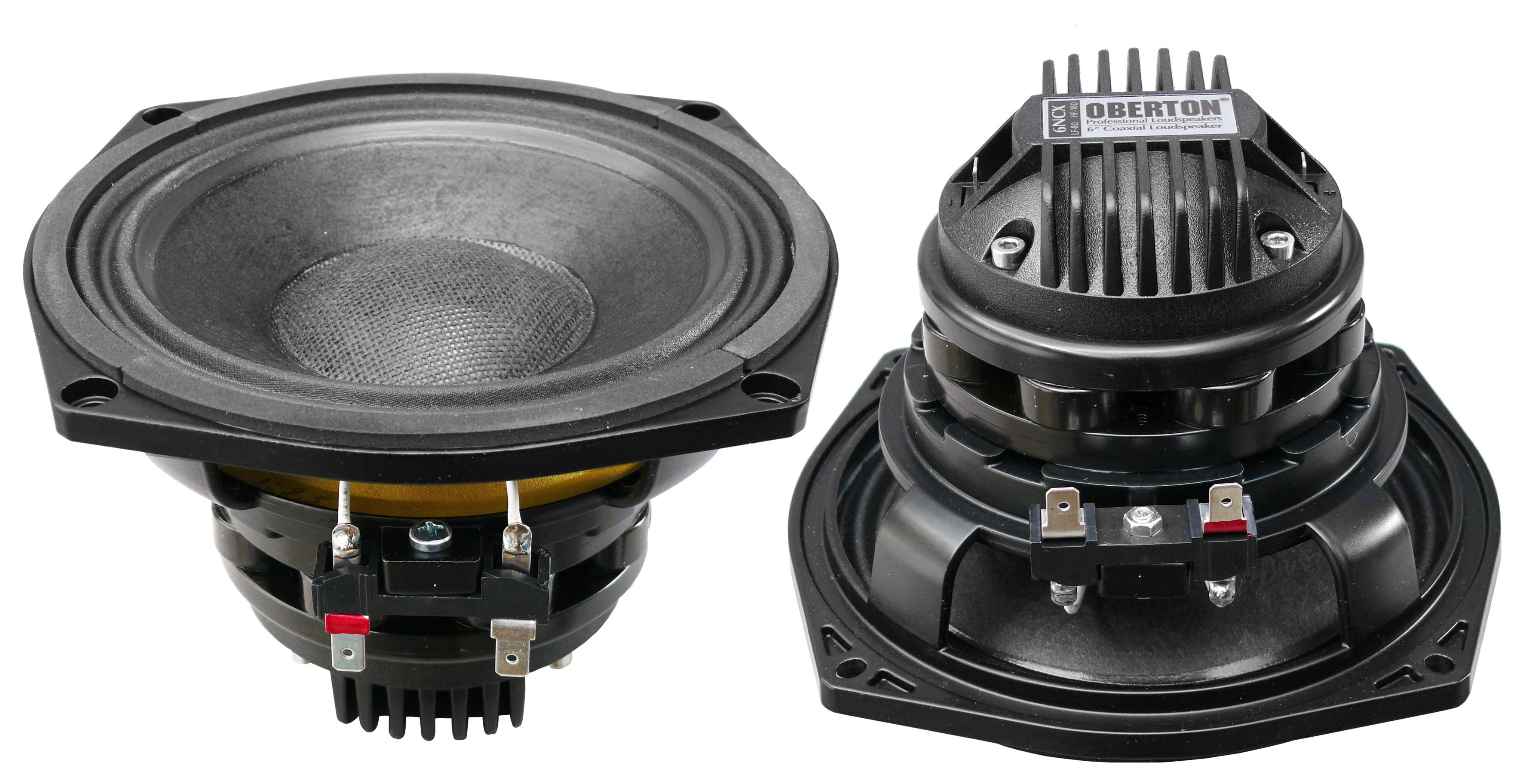

Oberton 6NCX92 db SPL 1W / 1m ( LF ) average sensitivity 44 mm ( 1.75”) high temperature voice coil ( LF ) 300 W AES program power ( LF ) Double aluminium demodulating rings Single neodymium magnet assembly Water protected cone 1” exit HF neodymium compression driver 38 mm (1.5”) HF high temperature voice coil 80 degrees nominal dispersion Epoxy anti-corrosion coating of top and back plates of magnet structure Very light weight Oberton 6NCX 8 Ohm SPECIFICATIONS Nominal diameter Impedance Minimum impedance LFFrequency rangeDispersion angleLF unitSensitivity (200-1000 Hz)Power Capacity AES ¹Program Power ²Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding DepthMagnet Gap DepthCone Material Basket Magnet Flux DensityHF unitMinimum impedance HFDC resistance Sensitivity (2-15 kHz)Power capacity (1-20 kHz)Program powerVoice coil diameterWinding materialDiaphragm material Flux density 170 mm (6.5 in)LF 8 Ohm /HF 16 Ohm6.17 Ohm75 - 18000 Hz80 deg92 dB150 W300 W44 mm (1.75 in)Copper Clad Aluminiumlassfiber13 mm7 mm.Paper with glassfiberDie Cast AluminiumNeodymium0.97 T10.12 Ohms8.93 Ohms103 dB30 W60 W38 mm (1.5 in)Copper Clad AluminiumSandwich polyester1.84 T THIELE-SMALL PARAMETERS 6NCX Fs Qms Qes Qts Vas Mms Re Sd Xmax* Cms BL  Le at 1kHz 89.11 Hz6.480.3860.3647.01 L10.91 g5.4 Ohms131 cm2± 4.75 mm0.268 mm/N9,66 T.m0.349 mH MOUNTING INFORMATION Overall diameter Depth Baffle hole diameterBolt circle diameterMounting holesNet weight 185 mm (7.28 in)104.8 mm145 mm171 mm4 x elliptic 5.5 mm/6.5 mm1.6 kg

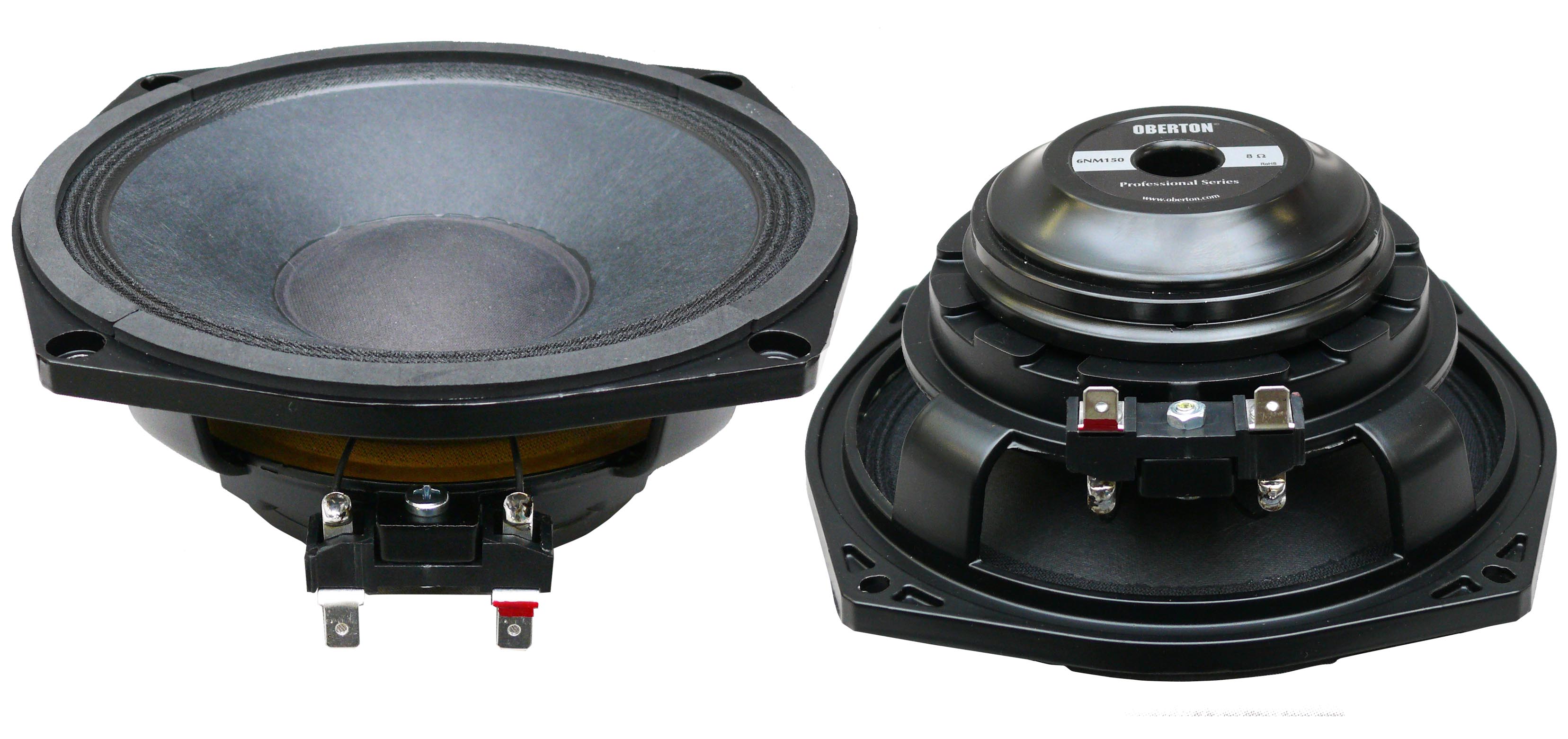

Oberton 6NM15097 db 1W / 1m average sensitivity 44 mm high temperature voice coil 300 W AES program power Epoxy anti-corrosion coating of top and back plates of magnet structure Oberton 6NM150 8 Ohm SPECIFICATIONS Nominal Diameter Impedance Minimum ImpedancePower Capacity AES ¹Program Power ²Sensitivity Frequency RangeVoice Coil Diameter Voice Coil Material Voice Coil FormerV. C. Winding DepthMagnet Gap DepthCone Material Basket Magnet Flux Density 6.5"/170 inch/mm8 Ohm 7.22 Ohm150 W300 W(500-5000 Hz) 97 dB/W/m200 – 5000 Hz44 mmAluminiumKapton™8 mm7 mmPaper Die cast aluminiumNeodymium1.42 T THIELE-SMALL PARAMETERS Fs Qms Qes Qts Vas Mms Re Sd Xmax* Cms BL  Le at 1kHz 124 Hz5.960.4030.3774.00 Litres11.08 grams6.25 Ohms139 cm2± 2.25 mm0.148 mm/N11.58 T.m0.30 mH MOUNTING INFORMATION Overall DiameterBaffle Hole Diameter Mounting HolesBolt Circle DiameterOverall DepthNet Weight 185 mm145 mm4 elliptic 5.5 / 6.5 mm172 mm71.8 mm1.07 kg

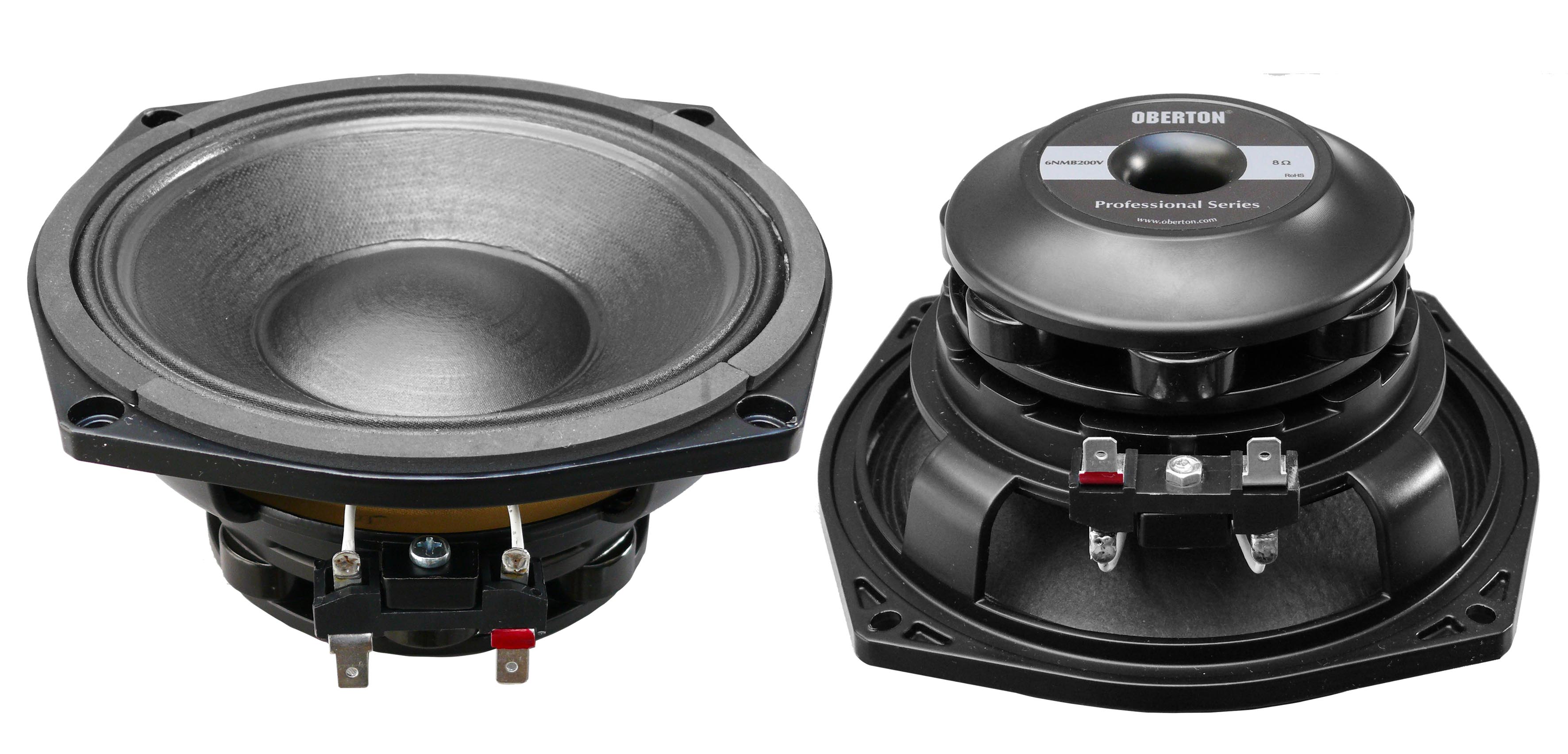

Oberton 6NMB200V96 db 1W / 1m average sensitivity 51 mm high temperature voice coil 400 W AES program power Double aluminium demodulating rings for lower distortion and inductance and improved transient response Water protected cone (front) Epoxy anti-corrosion coating of top and back plates of magnet structure Oberton 6NMB200V 8 Ohm SPECIFICATIONS Nominal Diameter Impedance Minimum ImpedancePower Capacity AES ¹Program Power ²Sensitivity Frequency RangeVoice Coil Diameter Voice Coil Material Voice Coil FormerV. C. Winding DepthMagnet Gap DepthCone Material Basket Magnet Flux Density 6.5"/170 inch/mm16 Ohm 12.48 Ohm200 W400 W(200-3000 Hz) 96 dB/W/m200 – 5000 Hz51 mmAluminiumGlass fiber12.5 mm7 mmPaper with carbon fibersDie cast aluminiumNeodymium1.37 T THIELE-SMALL PARAMETERS 6NMB200V Fs Qms Qes Qts Vas Mms Re Sd Xmax* Cms BL  Le at 1kHz 79.00 Hz 5.82 0.279 0.267 9.53  Litres 12.19 grams 10.70 Ohms 139 cm2 ± 4.5 mm 0.333 mm/N 15.22 T.m 0.383 mH MOUNTING INFORMATION Overall DiameterBaffle Hole Diameter Mounting HolesBolt Circle DiameterOverall DepthNet Weight 185 mm145 mm4 elliptic 5.5 / 6.5 mm170/172 mm81.8 mm1.62 kg
