Oberton 6M150 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
93,00 €*
|
| Bis 4 |
92,50 €*
|
| Bis 6 |
92,00 €*
|
| Ab 7 |
91,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11511
Produktinformationen "Oberton 6M150 8 Ohm"
- Oberton 6M150
- 96 db 1W / 1m average sensitivity
- 44 mm high temperature cooper voice coil
- 300 W AES program power
- Ferrite 121 mm magnet structure
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 6M150 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
6.5"/170 mm 8 Ohm 7 Ohm 150 W 300 W (500-5000 Hz) 96 dB/W/m 200 - 5000 Hz 44 mm Aluminium Kapton™ 8 mm 7 mm Paper Die cast aluminium Ferrite 1.2 T |
THIELE-SMALL PARAMETERS 6M150
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
115.1 Hz 5.46 0.457 0.422 5.35 Litres 10.22 grams 6.21 Ohms 139 cm2 ± 2.25 mm 0.187 mm/N 10.02 T.m 0.438 mH |

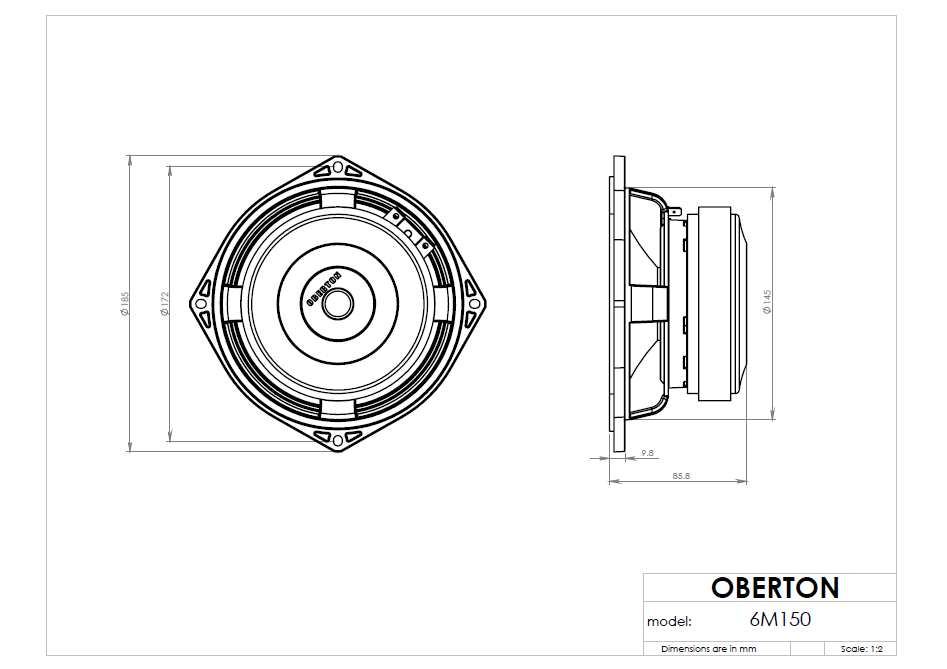

MOUNTING INFORMATION
| Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
185 mm 145 mm 4 eliptic 5.5/6.5 mm 170/172 mm 85.8 mm 2.47 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 6" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,41 - 0,50 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
