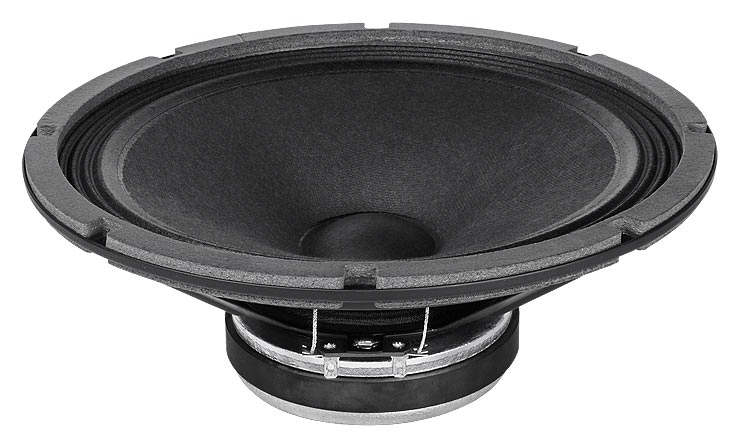

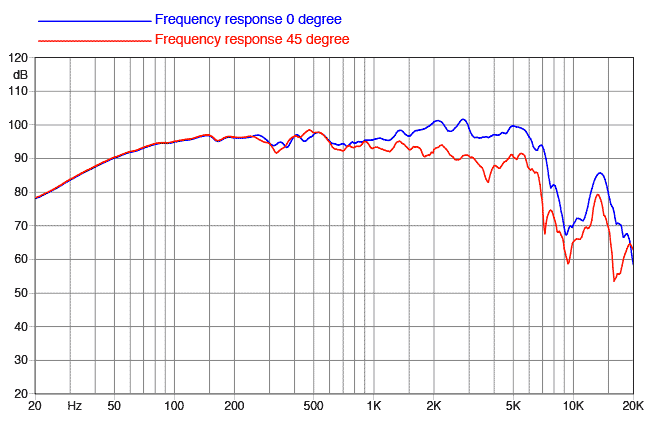

Technische Daten Faital PRO 10FE200 8 Ohm:Nominal Impedance 8 Ohm Minimum Impedance 6.2 Ohm AES Power Handling 150 W Sensitivity (1W/1m) 96 dB Frequency Range 50÷4500 Hz Flux Density 1 T Magnet Ferrite Ring Demodulation No Cone Surround Accordion (4 waves) Fs 55 Hz Re 5.9 Ohm Qes 0.74 Qms 11.3 Qts 0.69 Vas 61.7 dm^3 (2.18 ft^3) Sd 359.7 cm^2 (55.75 in^2) Xmax 4.67 mm Xdamage 10.4 mm Mms 24.5 g Bl 8.2 N/A Le 0.42 mH Mmd 16.8 g Cms 0.34 mm/N Rms 0.7 kg/s Eta Zero 1.34 % EBP 74 Hz Mechanische Daten:Nominal Diameter 250 mm (10 in) Overall Diameter 256.8 mm (10.11 in) Bolt Circle Diameter 243.8 mm (9.60 in) Baffle Cutout Diameter 233.8 mm (9.20 in) Depth 102 mm (4.02 in) Flange and Gasket Thickness 8 mm (0.31 in) Net Weight 2.2 kg (4.9 lb) Shipping Box(Single Carton Box) 282 x 280 x 140 mm (11.0 x 11.0 x 5.5 in) Shipping Weight 2.6 kg (5.7 lb) Faital Pro 10FE200 DATENBLATT

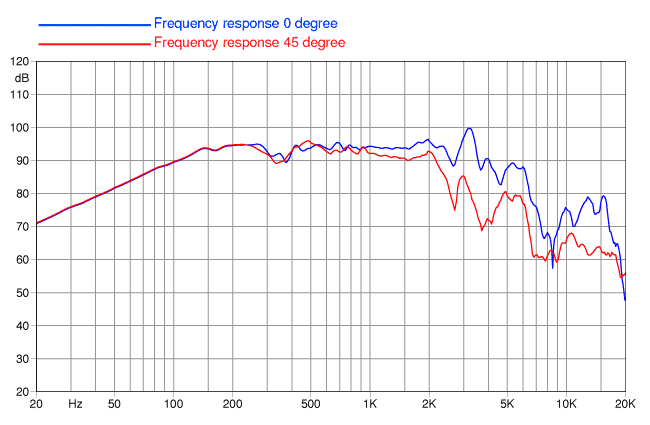

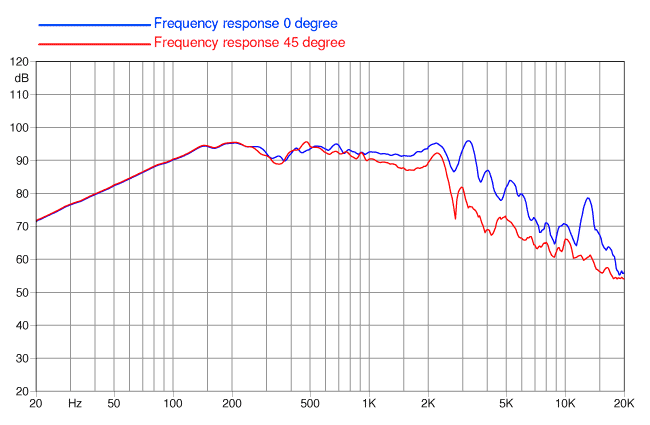

Technische Daten Faital PRO 10FH500 16 Ohm:Nominal Impedance 16 Ohm Minimum Impedance 14.4 Ohm AES Power Handling 500 W Sensitivity (1W/1m) 95 dB Frequency Range 60÷4000 Hz Flux Density 1.2 T Magnet Neodymium Slug Demodulation No Cone Surround Triple Roll Fs 65 Hz Re 12.8 Ohm Qes 0.43 Qms 5.7 Qts 0.42 Vas 19.2 dm^3 (0.68 ft^3) Sd 328 cm^2 (50.84 in^2) Xmax  7.25 mm Xdamage  12.5 mm Mms 47.5 g Bl 23.8 N/A Le 1.37 mH Mmd 44.1 g Cms 0.12 mm/N Rms 3.4 kg/s Eta Zero 1.17 % EBP 151 Hz Mechanische Daten:Nominal Diameter 250 mm (10 in) Overall Diameter 261 mm (10.28 in) Bolt Circle Diameter 246 mm (9.69 in) Baffle Cutout Diameter 232 mm (9.13 in) Depth 141.3 mm (5.56 in) Flange and Gasket Thickness 12.5 mm (0.49 in) Net Weight 3.4 kg (7.5 lb) Shipping Box(Single Carton Box) 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in) Shipping Weight 4 kg (8.8 lb) Faital Pro 10FH500 DATENBLATT

Technische Daten Faital PRO 10FH500 4 Ohm:Nominal Impedance 4 Ohm Minimum Impedance 4 Ohm AES Power Handling 500 W Sensitivity (1W/1m) 96 dB Frequency Range 60÷4000 Hz Flux Density 1.2 T Magnet Neodymium Slug Demodulation No Cone Surround Triple Roll Fs 60 Hz Re 3.3 Ohm Qes 0.26 Qms 6.2 Qts 0.25 Vas 24.2 dm^3 (0.85 ft^3) Sd 351 cm^2 (54.41 in^2) Xmax 7.25 mm Xdamage 12.5 mm Mms 50.1 g Bl 15.5 N/A Le 0.64 mH Mmd 42.7 g Cms 0.14 mm/N Rms 3.0 kg/s Eta Zero 1.95 % EBP 231 Hz Mechanische Daten:Nominal Diameter 250 mm (10 in) Overall Diameter 261 mm (10.28 in) Bolt Circle Diameter 246 mm (9.69 in) Baffle Cutout Diameter 232 mm (9.13 in) Depth 141.3 mm (5.56 in) Flange and Gasket Thickness 12.5 mm (0.49 in) Net Weight 3.4 kg (7.5 lb) Shipping Box(Single Carton Box) 294 x 290 x 203 mm (11.6 x 11.4 x 7.8 in) Shipping Weight 4 kg (8.8 lb) Faital Pro 10FH500 DATENBLATT

Technische Daten Faital PRO 10FH500 8 Ohm:Nominal Impedance 8 Ohm Minimum Impedance 6.4 Ohm AES Power Handling 500 W Sensitivity (1W/1m) 96 dB Frequency Range 60÷4000 Hz Flux Density 1.2 T Magnet Neodymium Slug Demodulation No Cone Surround Triple Roll Fs 60 Hz Re 5.1 Ohm Qes 0.28 Qms 3.3 Qts 0.26 Vas 25.8 dm^3 (0.91 ft^3) Sd 351 cm^2 (54.41 in^2) Xmax 7.50 mm Xdamage 12.5 mm Mms 47.0 g Bl 17.9 N/A Le 0.85 mH Mmd 39.6 g Cms 0.15 mm/N Rms 5.4 kg/s Eta Zero 1.91 % EBP 214 Hz Mechanische Daten:Nominal Diameter 250 mm (10 in) Overall Diameter 261 mm (10.28 in) Bolt Circle Diameter 246 mm (9.69 in) Baffle Cutout Diameter 232 mm (9.13 in) Depth 141.3 mm (5.56 in) Flange and Gasket Thickness 12.5 mm (0.49 in) Net Weight 3.4 kg (7.5 lb) Shipping Box(Single Carton Box) 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in) Shipping Weight 4 kg (8.8 lb) Faital Pro 10FH500 DATENBLATT

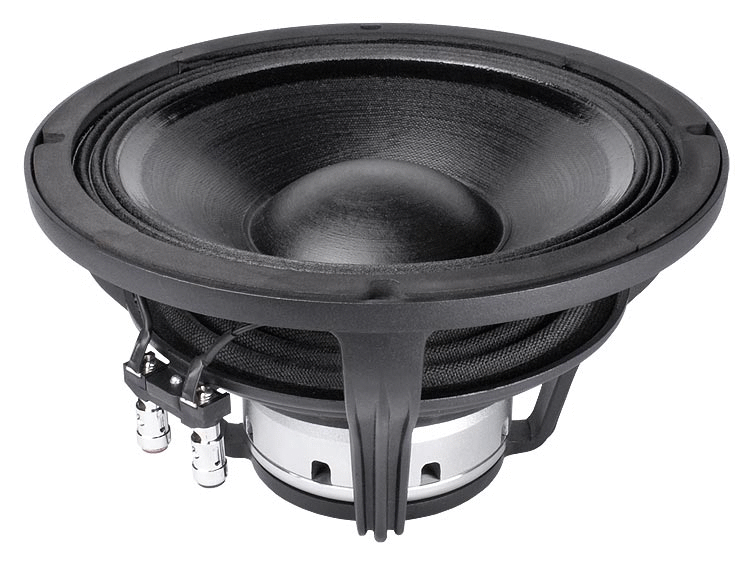

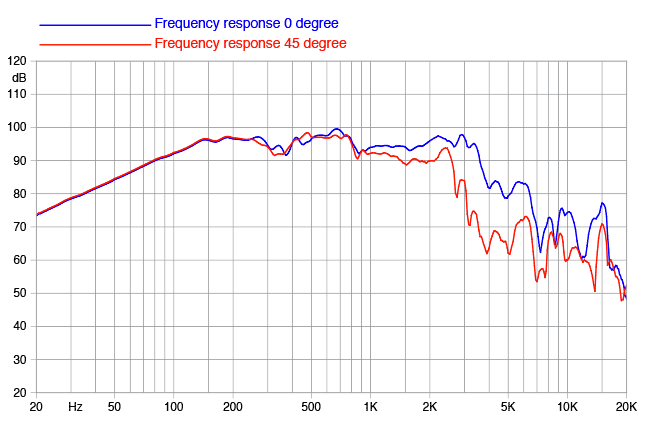

Technische Daten Faital PRO 10FH520 8 Ohm:Nominal Impedance 8 Ohm Minimum Impedance 6 Ohm AES Power Handling 600 W Sensitivity (1W/1m) 97 dB Frequency Range 60÷4000 Hz Flux Density 1.1 T Magnet Neodymium Slug Demodulation Aluminum Ring Cone Surround Triple Roll Fs 60 Hz Re 5.1 Ohm Qes 0.30 Qms 11.1 Qts 0.29 Vas 23.5 dm^3 (0.83 ft^3) Sd 347 cm^2 (53.79 in^2) Xmax 7.25 mm Xdamage 19.5 mm Mms 50.3 g Bl 18 N/A Le 0.9 mH Mmd 43.0 g Cms 0.14 mm/N Rms 1.7 kg/s Eta Zero 1.65 % EBP 200 Hz Mechanische Daten:Nominal Diameter 250 mm (10 in) Overall Diameter 261 mm (10.28 in) Bolt Circle Diameter 246 mm (9.69 in) Baffle Cutout Diameter 232 mm (9.13 in) Depth 141.3 mm (5.56 in) Flange and Gasket Thickness 12.5 mm (0.49 in) Net Weight 3.7 kg (8.2 lb) Shipping Box(Single Carton Box) 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in) Shipping Weight 4.3 kg (9.5 lb) Faital Pro 10FH520 DATENBLATT

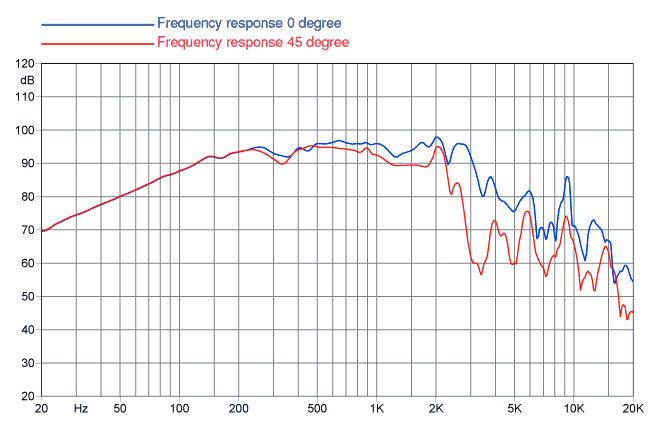

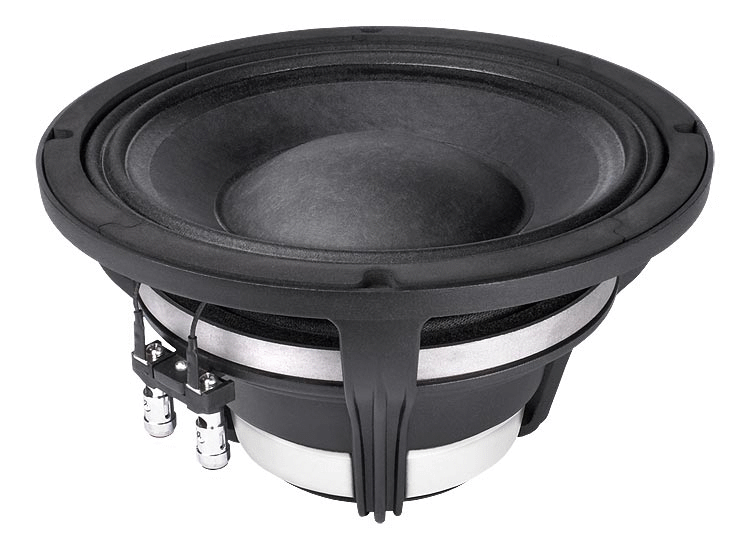

Technische Daten Faital PRO 10HP1020 8 Ohm:Nominal Impedance 8 Ohm Minimum Impedance 7.3 Ohm AES Power Handling 700 W Sensitivity (1W/1m) 96 dB Frequency Range 60÷2500 Hz Flux Density 1.3 T Magnet Neodymium Slug Demodulation No Cone Surround M-Roll Fs 60 Hz Re 5.5 Ohm Qes 0.25 Qms 6.5 Qts 0.24 Vas 16.1 dm^3 (0.57 ft^3) Sd 345 cm^2 (53.48 in^2) Xmax 9.00 mm Xdamage  18.2 mm Mms 72.5 g Bl 24.5 N/A Le 0.85 mH Mmd 65.3 g Cms 0.10 mm/N Rms 4.2 kg/s Eta Zero 1.35 % EBP 240 Hz Mechanische Daten:Nominal Diameter 250 mm (10 in) Overall Diameter 261 mm (10.28 in) Bolt Circle Diameter 246 mm (9.69 in) Baffle Cutout Diameter 232 mm (9.13 in) Depth 141.3 mm (5.56 in) Flange and Gasket Thickness 12.5 mm (0.49 in) Net Weight 5.2 kg (11.5 lb) Shipping Box(Single Carton Box) 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in) Shipping Weight 5.8 kg (12.8 lb) Faital Pro 10HP1020 DATENBLATT

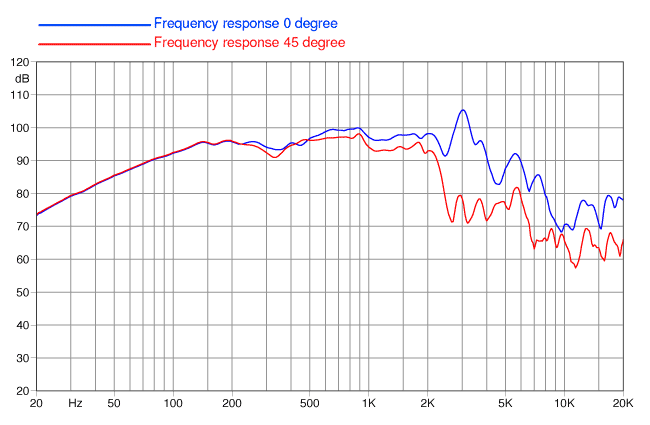

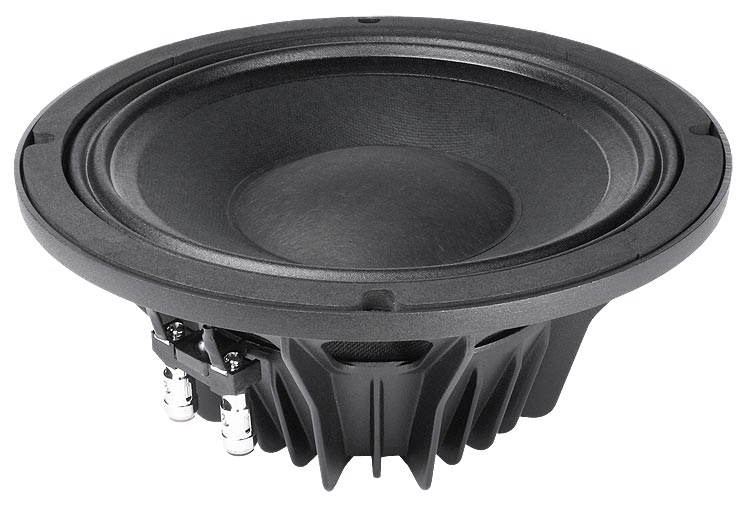

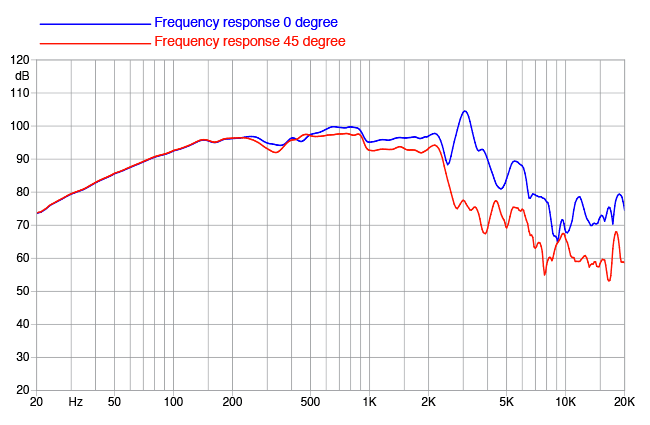

Technische Daten Faital PRO 10PR300 16 Ohm:Nominal Impedance 16 Ohm Minimum Impedance 13 Ohm AES Power Handling300 W Sensitivity (1W/1m) 97 dB Frequency Range 65÷5000 Hz Flux Density 1.25 T Magnet Neodymium Slug Demodulation No Cone Surround M-Roll Fs 65 Hz Re 12.1 Ohm Qes 0.52 Qms 5.8 Qts 0.48 Vas 30.6 dm^3 (1.08 ft^3) Sd 348 cm^2 (53.94 in^2) Xmax 4.92 mm Xdamage 14 mm Mms 33.1 g Bl 18 N/A Le 0.85 mH Mmd 25.8 g Cms 0.18 mm/N Rms 2.3 kg/s Eta Zero 1.62 % EBP 125 Hz Mechanische Daten:Nominal Diameter 250 mm (10 in) Overall Diameter 261 mm (10.28 in) Bolt Circle Diameter 246 mm (9.69 in) Baffle Cutout Diameter 232 mm (9.13 in) Depth 115.3 mm (4.54 in) Flange and Gasket Thickness 12.2 mm (0.48 in) Net Weight 2.3 kg (5.1 lb) Shipping Box(Single Carton Box) 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in) Shipping Weight 2.8 kg (6.2 lb) Faital Pro 10PR300 DATENBLATT

Technische Daten Faital PRO 10PR300 8 Ohm:Nominal Impedance 8 Ohm Minimum Impedance 6.4 Ohm AES Power Handling 300 W Sensitivity (1W/1m) 98 dB Frequency Range 60÷5000 Hz Flux Density 1.25 T Magnet Neodymium Slug Demodulation No Cone Surround M-Roll Fs 60 Hz Re 5.4 Ohm Qes 0.29 Qms 5.8 Qts 0.28 Vas 42.2 dm^3 (1.49 ft^3) Sd 348 cm^2 (53.94 in^2) Xmax 4.92 mm Xdamage 14 mm Mms 28.2 g Bl 14.1 N/A Le 0.6 mH Mmd 20.0 g Cms 0.25 mm/N Rms 1.8 kg/s Eta Zero 3.06 % EBP 207 Hz Mechanische Daten:Nominal Diameter 250 mm (10 in) Overall Diameter 261 mm (10.28 in) Bolt Circle Diameter 246 mm (9.69 in) Baffle Cutout Diameter 232 mm (9.13 in) Depth 115.3 mm (4.54 in) Flange and Gasket Thickness 12.2 mm (0.48 in) Net Weight 2.3 kg (5.1 lb) Shipping Box(Single Carton Box) 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in) Shipping Weight 2.8 kg (6.16 lb) Faital Pro 10PR300 DATENBLATT

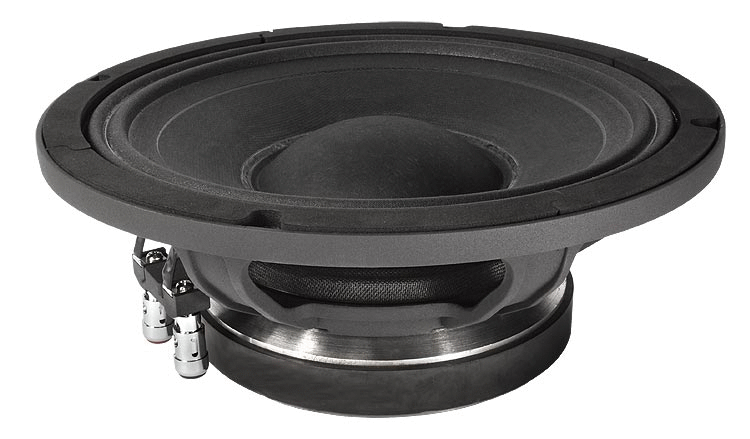

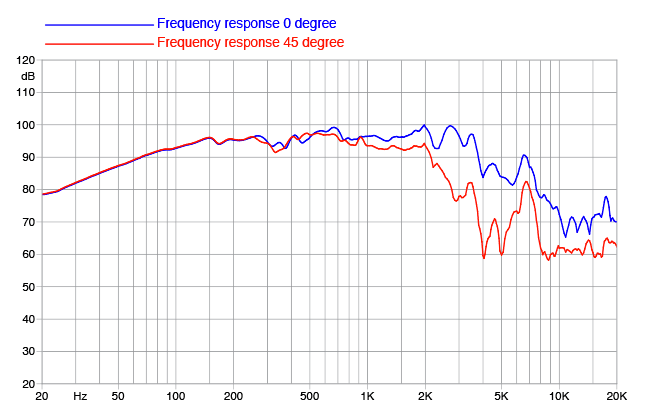

Technische Daten Faital PRO 10PR310 8 Ohm:Nominal Impedance 8 Ohm Minimum Impedance 6.6 Ohm AES Power Handling300 W Sensitivity (1W/1m) 98 dB Frequency Range 60÷4000 Hz Flux Density 1.2 T Magnet Ferrite Ring Demodulation No Cone Surround M-Roll Fs 60 Hz Re 5.4 Ohm Qes 0.36 Qms 5.7 Qts 0.34 Vas 32.2 dm^3 (1.14 ft^3) Sd 348 cm^2 (53.94 in^2) Xmax 4.92 mm Xdamage 15.25 mm Mms 36.9 g Bl 14.4 N/A Le 0.64 mH Mmd 29.6 g Cms 0.19 mm/N Rms 2.4 kg/s Eta Zero 1.86 % EBP 167 Hz Mechanische Daten:Nominal Diameter 250 mm (10 in) Overall Diameter 261 mm (10.28 in) Bolt Circle Diameter 246 mm (9.69 in) Baffle Cutout Diameter 230 mm (9.06 in) Depth 109 mm (4.29 in) Flange and Gasket Thickness 12 mm (0.47 in) Net Weight 4.1 kg (9.0 lb) Shipping Box(Single Carton Box) 282 x 280 x 140 mm (11.1 x 11.0 x 5.5 in) Shipping Weight 4.7 kg (10.4 lb) Faital Pro 10PR310 DATENBLATT

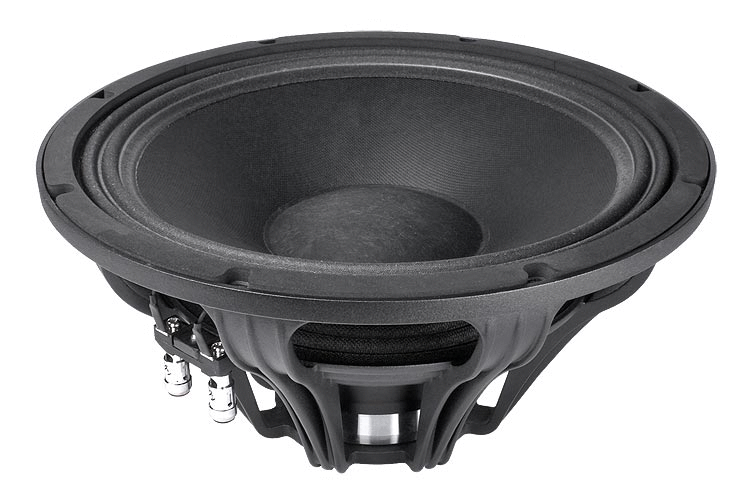

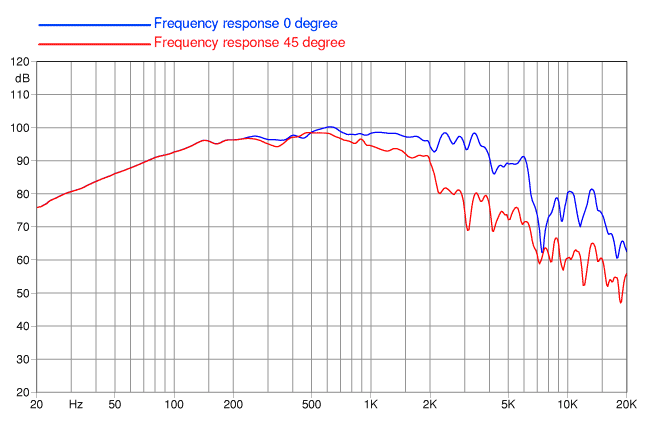

Technische Daten Faital PRO 12FH500 8 Ohm:Nominal Impedance 8 Ohm Minimum Impedance 6.4 Ohm AES Power Handling 500 W Sensitivity (1W/1m) 97 dB Frequency Range 45÷4000 Hz Flux Density 1.2 T Magnet Neodymium Slug Demodulation No Cone Surround M-Roll Fs 45 Hz Re 5.1 Ohm Qes 0.26 Qms 6.9 Qts 0.25 Vas 87.3 dm^3 (3.08 ft^3) Sd 529 cm^2 (82.00 in^2) Xmax 7.50 mm Xdamage 21.55 mm Mms 56.0 g Bl 17.5 N/A Le 0.83 mH Mmd 42.2 g Cms 0.22 mm/N Rms 2.3 kg/s Eta Zero 2.93 % EBP 173 Hz Mechanische Daten:Nominal Diameter 300 mm (12 in) Overall Diameter 316 mm (12.44 in) Bolt Circle Diameter 298.5 mm (11.75 in) Baffle Cutout Diameter 284 mm (11.18 in) Depth 155.75 mm (6.13 in) Flange and Gasket Thickness 12.45 mm (0.49 in) Net Weight 3.9 kg (8.6 lb) Shipping Box(Single Carton Box) 350 x 346 x 216 mm (13.8 x 13.6 x 8.5 in) Shipping Weight 5 kg (11.0 lb) Faital Pro 12FH500 DATENBLATT

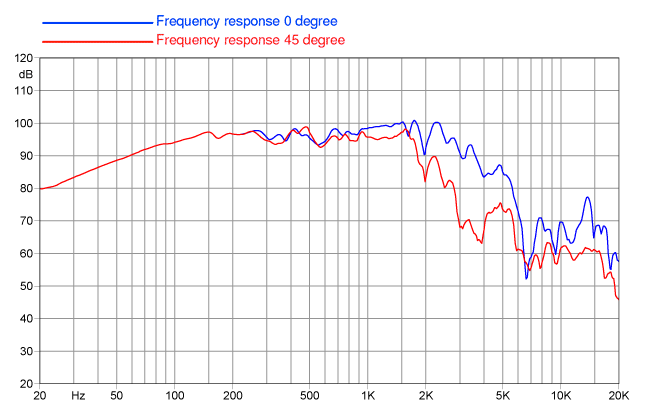

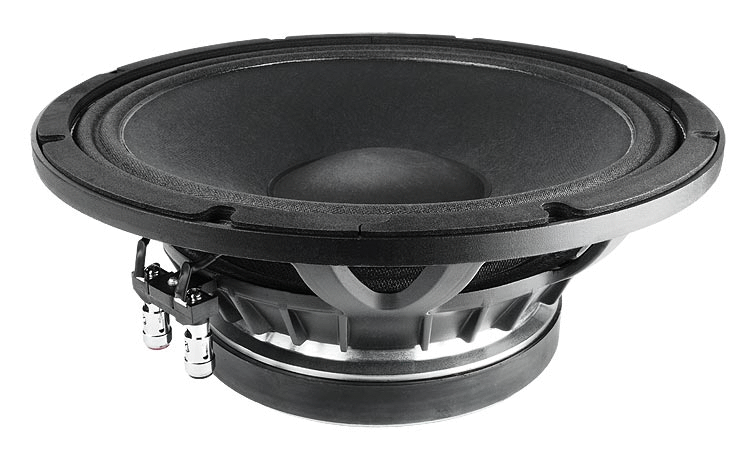

Technische Daten Faital PRO 12FH510 8 Ohm:Nominal Impedance 8 Ohm Minimum Impedance 6.4 Ohm AES Power Handling 500 W Sensitivity (1W/1m) 98 dB Frequency Range 45÷3150 Hz Flux Density 1.2 T Magnet Ferrite Ring Demodulation No Cone Surround M-Roll Fs 45 Hz Re 5.1 Ohm Qes 0.25 Qms 10.9 Qts 0.24 Vas 81.3 dm^3 (2.87 ft^3) Sd 533 cm^2 (82.62 in^2) Xmax 7.50 mm Xdamage 21.5 mm Mms 61.0 g Bl 18.9 N/A Le 0.9 mH Mmd 47.1 g Cms 0.21 mm/N Rms 1.6 kg/s Eta Zero 2.92 % EBP 180 Hz Mechanische Daten:Nominal Diameter 300 mm (12 in) Overall Diameter 316 mm (12.44 in) Bolt Circle Diameter 298.5 mm (11.75 in) Baffle Cutout Diameter 282 mm (11.10 in) Depth 140 mm (5.51 in) Flange and Gasket Thickness 12 mm (0.47 in) Net Weight 7.8 kg (17.2 lb) Shipping Box(Single Carton Box) 350 x 346 x 190 mm (13.8 x 13.6 x 7.5 in) Shipping Weight 8.7 kg (19.2 lb) Faital Pro 12FH510 DATENBLATT

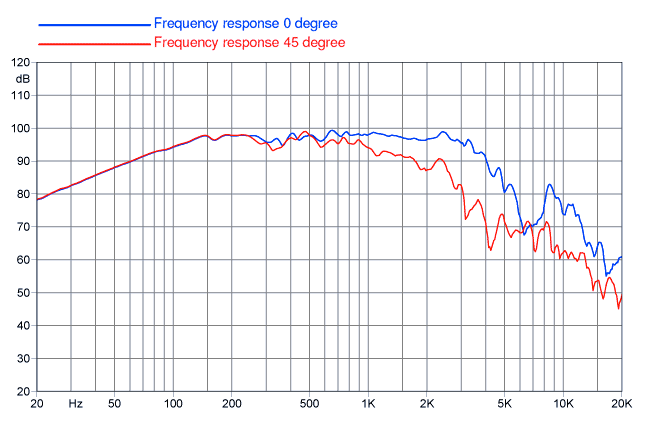

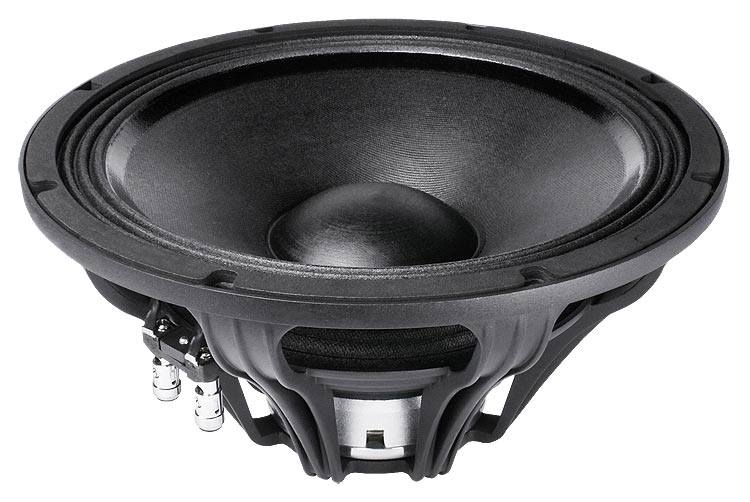

Technische Daten Faital PRO 12FH520 8 Ohm:Nominal Impedance 8 Ohm Minimum Impedance 6.3 Ohm AES Power Handling 600 W Sensitivity (1W/1m) 98 dB Frequency Range 50÷4000 Hz Flux Density 1.1 T Magnet Neodymium Slug Demodulation Aluminum Ring Cone Surround Triple Roll Fs 50 Hz Re 5.1 Ohm Qes 0.30 Qms 11.1 Qts 0.29 Vas 73.7 dm^3 (2.60 ft^3) Sd 540 cm^2 (83.70 in^2) Xmax 7.25 mm Xdamage 19.5 mm Mms 56.0 g Bl 17.3 N/A Le 0.74 mH Mmd 41.8 g Cms 0.18 mm/N Rms 1.6 kg/s Eta Zero 2.98 % EBP 167 Hz Mechanische Daten:Nominal Diameter 300 mm (12 in) Overall Diameter 316 mm (12.44 in) Bolt Circle Diameter 298.5 mm (11.75 in) Baffle Cutout Diameter 284 mm (11.18 in) Depth 155.75 mm (6.13 in) Flange and Gasket Thickness 12.5 mm (0.49 in) Net Weight 4.2 kg (9.3 lb) Shipping Box(Single Carton Box) 350 x 346 x 216 mm (13.8 x 13.6 x 8.5 in) Shipping Weight 5 kg (11.0 lb) Faital Pro 12FH520 DATENBLATT

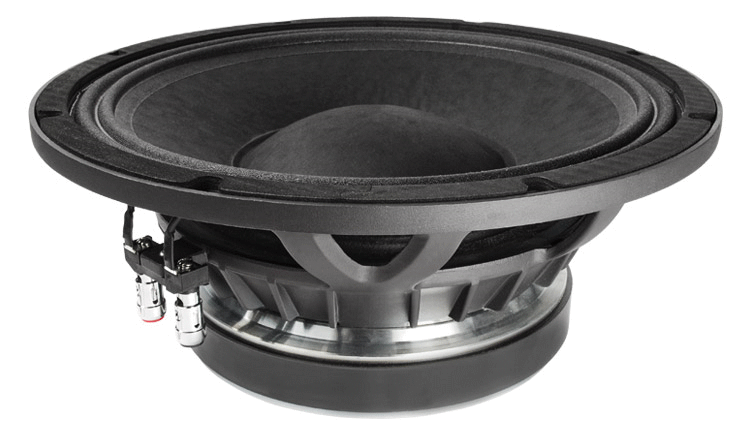

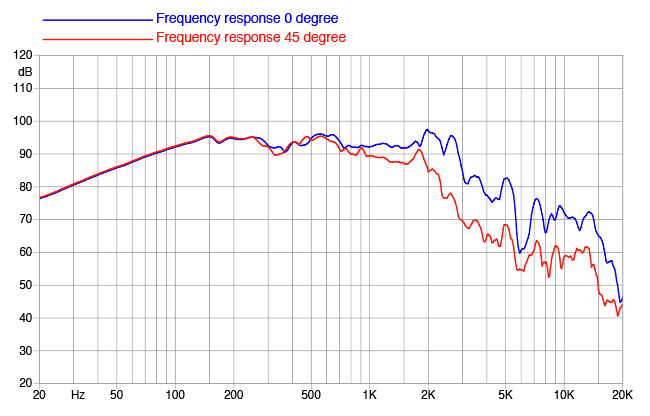

Technische Daten Faital PRO 12HP1010 8 Ohm:Nominal Impedance 8 Ohm Minimum Impedance 7 Ohm AES Power Handling 700 W Sensitivity (1W/1m) 96 dB Frequency Range 45÷3150 Hz Flux Density 1.05 T Magnet Ferrite Ring Demodulation No Cone Surround M-Roll Fs 45 Hz Re 5.5 Ohm Qes 0.35 Qms 9.4 Qts 0.34 Vas 56.5 dm^3 (1.99 ft^3) Sd 531 cm^2 (82.31 in^2) Xmax 9.25 mm Xdamage 21.9 mm Mms 87.2 g Bl 19.8 N/A Le 1.33 mH Mmd 73.4 g Cms 0.14 mm/N Rms 2.6 kg/s Eta Zero 1.44 % EBP 129 Hz Mechanische Daten:Nominal Diameter 300 mm (12 in) Overall Diameter 316 mm (12.44 in) Bolt Circle Diameter 298.5 mm (11.75 in) Baffle Cutout Diameter 282 mm (11.10 in) Depth 142 mm (5.59 in) Flange and Gasket Thickness 12 mm (0.47 in) Net Weight 9.2 kg (20.3 lb) Shipping Box(Single Carton Box) 350 x 346 x 190 mm (13.8 x 13.6 x 7.5 in) Shipping Weight 10 kg (22.0 lb) Faital Pro 12HP1010 DATENBLATT

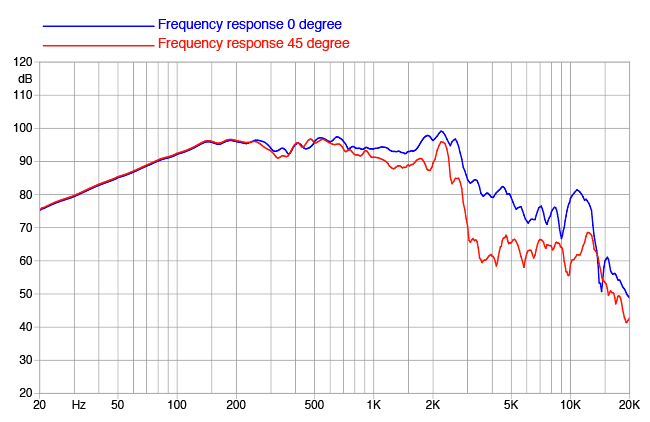

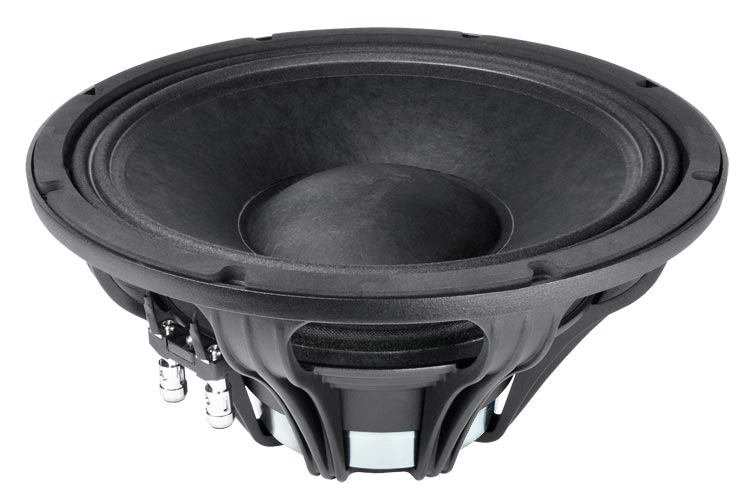

Technische Daten Faital PRO 12HP1020 8 Ohm:Nominal Impedance 8 Ohm Minimum Impedance 7.1 Ohm AES Power Handling 700 W Sensitivity (1W/1m) 97 dB Frequency Range 55÷3150 Hz Flux Density 1.3 T Magnet Neodymium Slug Demodulation No Cone Surround M-Roll Fs 55 Hz Re 5.5 Ohm Qes 0.28 Qms 9.4 Qts 0.27 Vas 38.6 dm^3 (1.36 ft^3) Sd 533 cm^2 (82.62 in^2) Xmax 9.00 mm Xdamage 16 mm Mms 86.0 g Bl 24.3 N/A Le 1.1 mH Mmd 72.1 g Cms 0.10 mm/N Rms 3.2 kg/s Eta Zero 2.25 % EBP 196 Hz Mechanische Daten:Nominal Diameter 300 mm (12 in) Overall Diameter 316 mm (12.44 in) Bolt Circle Diameter 298.5 mm (11.75 in) Baffle Cutout Diameter 284 mm (11.18 in) Depth 155.75 mm (6.13 in) Flange and Gasket Thickness 12.45 mm (0.49 in) Net Weight 5.8 kg (12.8 lb) Shipping Box(Single Carton Box) 350 x 346 x 216 mm (13.8 x 13.6 x 8.5 in) Shipping Weight 6.5 kg (14.3 lb) Faital Pro 12HP1020 DATENBLATT

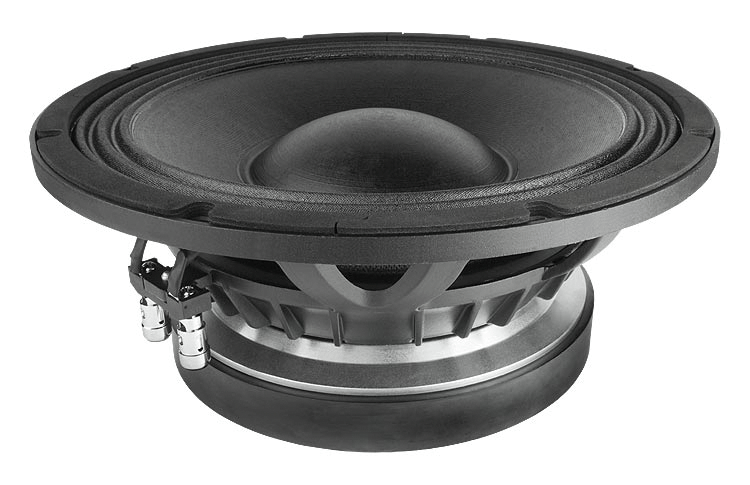

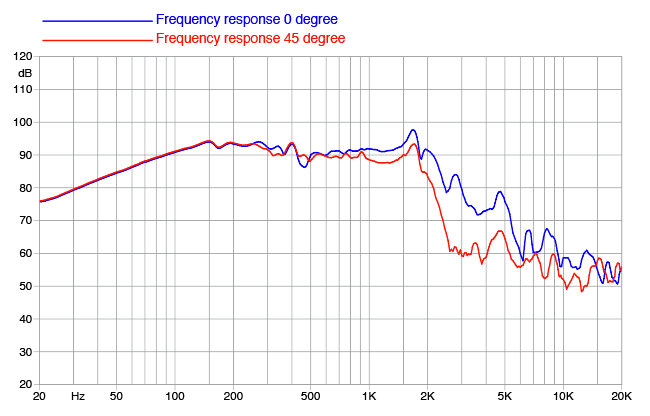

Technische Daten Faital PRO 12HP1030 8 Ohm:Nominal Impedance 8 Ohm Minimum Impedance 6.7 Ohm AES Power Handling 1000 W Sensitivity (1W/1m) 95 dB Frequency Range 45÷1600 Hz Flux Density 1.1 T Magnet Ferrite Ring Demodulation Aluminum Ring Cone Surround Triple Roll Fs 45 Hz Re 5 Ohm Qes 0.31 Qms 13.8 Qts 0.30 Vas 35.9 dm^3 (1.27 ft^3) Sd 518 cm^2 (80.29 in^2) Xmax 12.45 mm Xdamage 20.5 mm Mms 130.5 g Bl 24.3 N/A Le 1.35 mH Mmd 117.2 g Cms 0.10 mm/N Rms 2.7 kg/s Eta Zero 1.02 % EBP 145 Hz Mechanische Daten:Nominal Diameter 300 mm (12 in) Overall Diameter 316 mm (12.44 in) Bolt Circle Diameter 298.5 mm (11.75 in) Baffle Cutout Diameter 282 mm (11.10 in) Depth 147 mm (5.79 in) Flange and Gasket Thickness 12 mm (0.47 in) Net Weight 11.1 kg (24.5 lb) Shipping Box(Single Carton Box) 350 x 346 x 190 mm (13.8 x 13.6 x 7.5 in) Shipping Weight 11.8 kg (26.0 lb) Faital Pro 12HP1030 DATENBLATT
