Schallführung für Vifa-Peerless XT19TD00 04 Hochtöner
Zur Montage des Vifa-Peerless-Hochtöners (oder anderer geeigneter
Hochtöner mit einem wirksamen Durchmesser von 30 mm) muß die
Originalfrontplatte entfernt werden, was
unproblematisch zu bewerkstelligen ist, jedoch zum Verlust der
Herstellergarantie führen kann. Mit den Originalschrauben wird die neue
Front aus HDF montiert, diese wiederum mit zwei M4 Schrauben an
die Schallführung. Dadurch ergibt sich -von der Seite zu erkennen- ein
offener Bereich um jede Schraube der mit je einem Tropfen Heißkleber
o.ä. abgedichtet werden sollte.

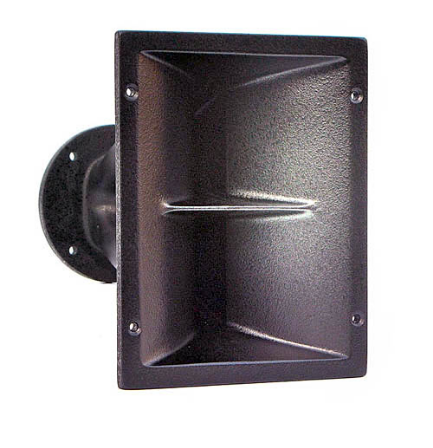

870qx high frequency-horn
Directivity 70° x 40°
Material PU
w x h x d 156 x 160 x 151 mm
weight 0,5 kg
driver mounting: two 6,5 mm holes on 76 mm diameter
and 2 holes on 57 mm diameter
4 M4 threads for mounting in a tube or 870qx-phase plug

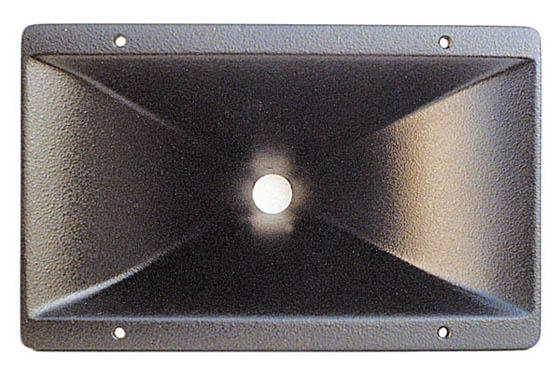

Wide dispersion horn for large 2-way setups
Directivity constant 110° x 50°
Material GfK / GRP
throat diameter 1.4", 1.5" or 2"
w x h x d 39 x 28 x 23 cm
2"-version 39 x 28 x 22 cm
weight circa 1.6 kg
Wide dispersion horn for large 2-way setups
Directivity constant 110° x 50°
Material GfK / GRP
throat diameter 1.4", 1.5" or 2"
w x h x d 39 x 28 x 23 cm
2"-version 39 x 28 x 22 cm
weight circa 1.6 kg
Wide dispersion horn for large 2-way setups
Directivity constant 110° x 50°
Material GfK / GRP
throat diameter 1.4", 1.5" or 2"
w x h x d 39 x 28 x 23 cm
2"-version 39 x 28 x 22 cm
weight circa 1.6 kg

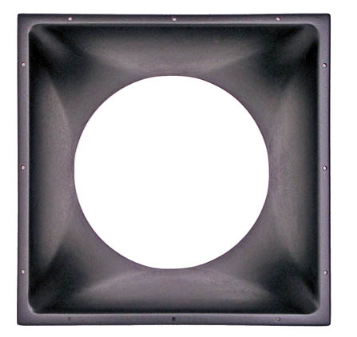

60° x 40° Constant directivity horn
available with 2", 1.5" or 1.4"-throat
Material: GFK / GRP
w x h x d: 278 x 278 x 235 mm
1.5“, 1.4": 278 x 278 x 245 mm
Einbaumaß / Baffle cutout: 240 x 240 mm
60° x 40° Constant directivity horn
available with 2", 1.5" or 1.4"-throat
Material: GFK / GRP
w x h x d: 278 x 278 x 235 mm
1.5“, 1.4": 278 x 278 x 245 mm
Einbaumaß / Baffle cutout: 240 x 240 mm
60° x 40° Constant directivity horn
available with 2", 1.5" or 1.4"-throat
Material: GFK / GRP
w x h x d: 278 x 278 x 235 mm
1.5“, 1.4": 278 x 278 x 245 mm
Einbaumaß / Baffle cutout: 240 x 240 mm

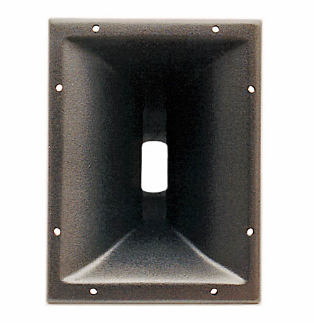

75° x 45° Constant directivity horn
available with 2", 1.5" or 1.4"-throat
Material: GFK / GRP
b x h x t / w x h x d: 180 x 240 x 190 mm
1.5“, 1.4": 180 x 240 x 200 mm
Einbaumaß / Baffle cutout: 140 x 200 mm
75° x 45° Constant directivity horn
available with 2", 1.5" or 1.4"-throat
Material: GFK / GRP
b x h x t / w x h x d: 180 x 240 x 190 mm
1.5“, 1.4": 180 x 240 x 200 mm
Einbaumaß / Baffle cutout: 140 x 200 mm
75° x 45° Constant directivity horn
available with 2", 1.5" or 1.4"-throat
Material: GFK / GRP
b x h x t / w x h x d: 180 x 240 x 190 mm
1.5“, 1.4": 180 x 240 x 200 mm
Einbaumaß / Baffle cutout: 140 x 200 mm
90° x 40° Constant directivity horn
available with 2", 1.5" or 1.4"-throat
Material: GFK / GRP
w x h x d: 278 x 278 x 235 mm
1.5“, 1.4": 278 x 278 x 245 mm
Einbaumaß / Baffle cutout: 240 x 240 mm
90° x 40° Constant directivity horn
available with 2", 1.5" or 1.4"-throat
Material: GFK / GRP
w x h x d: 278 x 278 x 235 mm
1.5“, 1.4": 278 x 278 x 245 mm
Einbaumaß / Baffle cutout: 240 x 240 mm
90° x 40° Constant directivity horn
available with 2", 1.5" or 1.4"-throat
Material: GFK / GRP
w x h x d: 278 x 278 x 235 mm
1.5“, 1.4": 278 x 278 x 245 mm
Einbaumaß / Baffle cutout: 240 x 240 mm
