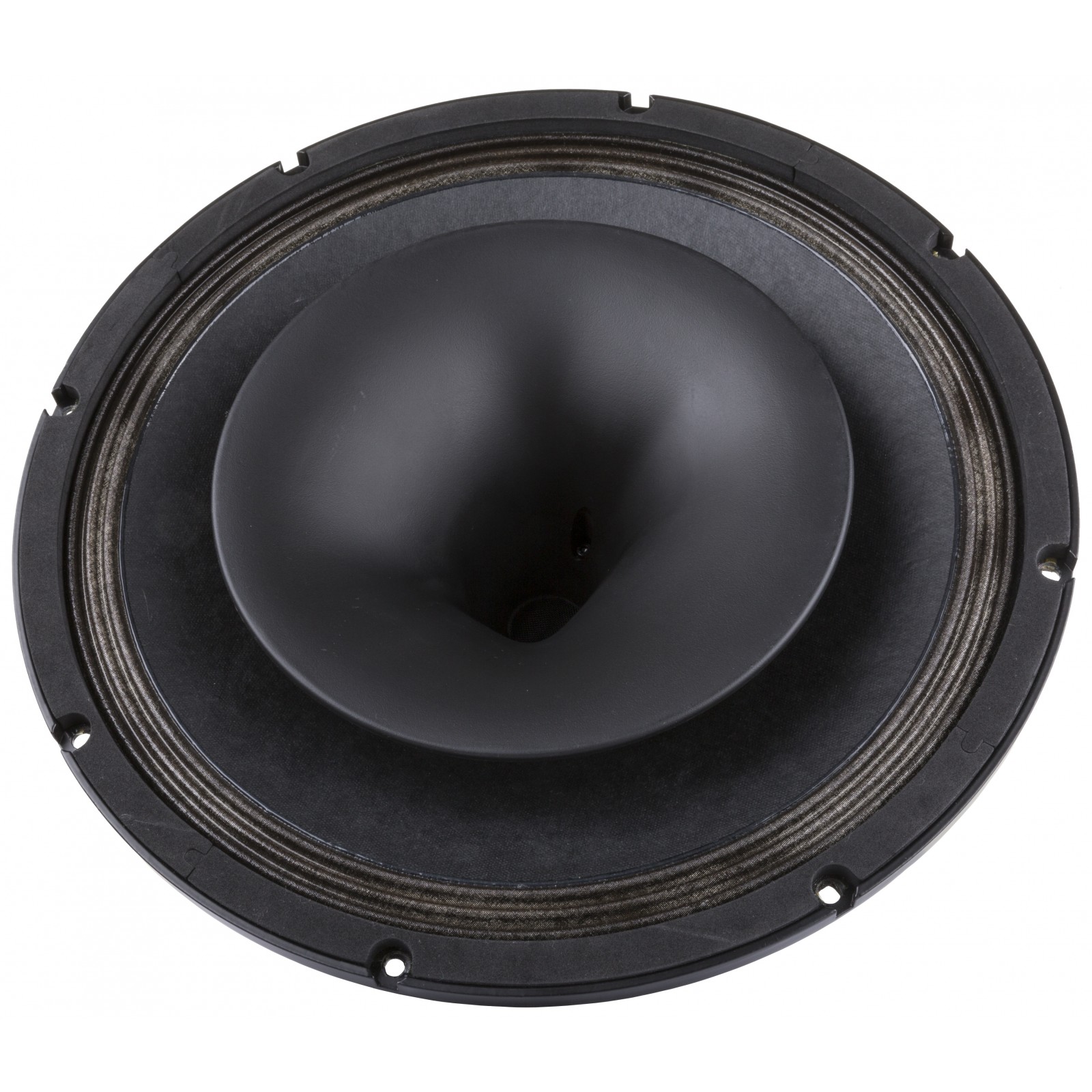

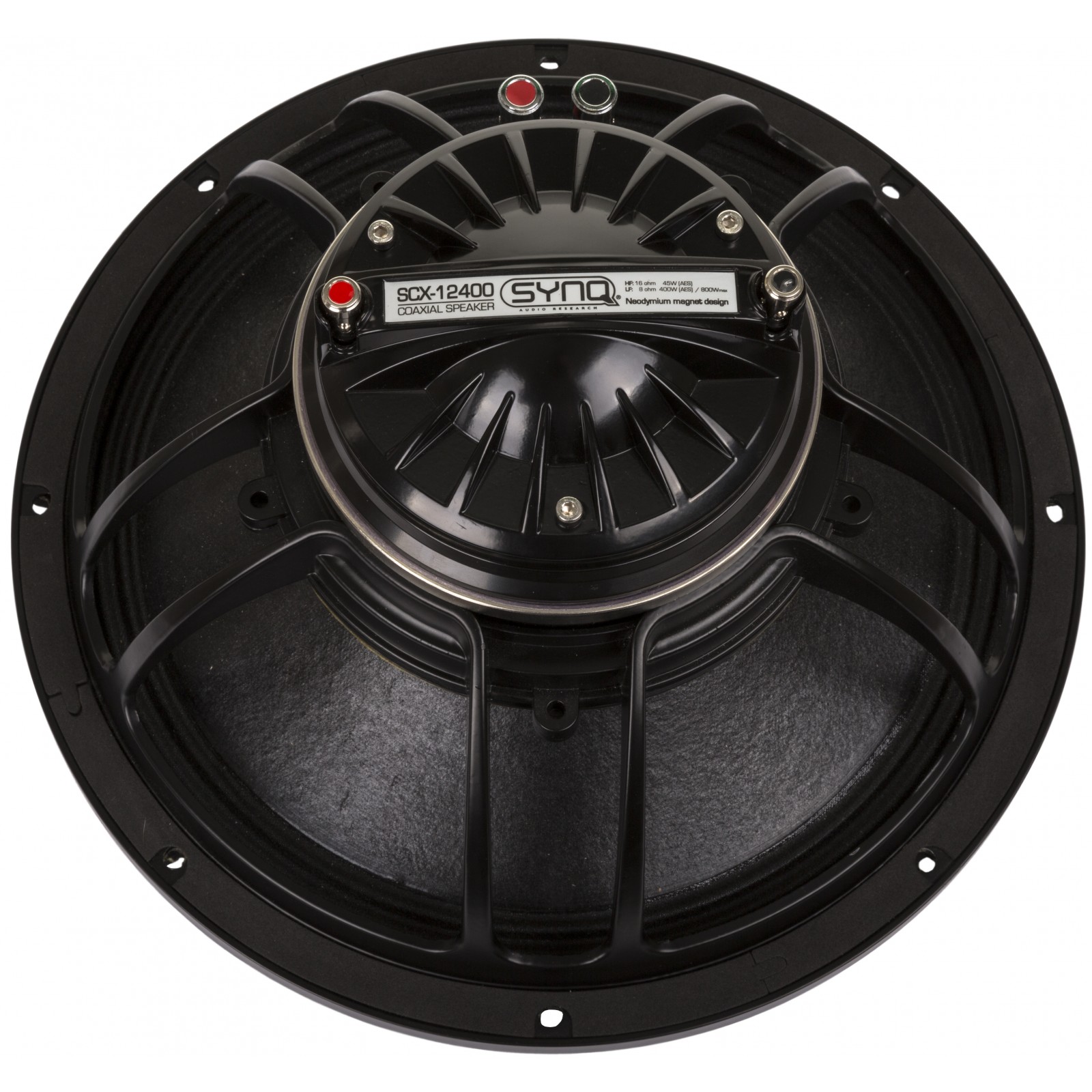

Synq SCX-12400 8 Ohm
Leistungsstarker 60° x 40° koaxialer 30 cm Lautsprecher 400 W und 45 W
Dieser leistungsstarke koaxiale 30 cm Lautsprecher ist die perfekte
Punktschallquelle, wenn Sie auf ein ausgezeichnetes Lautsprecherdesign
Wert legen.
Er erzeugt ein konstantes 60° x 40° Abstrahlverhalten mit einem weichen Klang.
Als eine perfekte Punktschallquelle können Sie mit ihm Lautsprecherboxen ohne unerwünschte Phasenprobleme bauen.
Leichtes Design dank der Neodym-Magnetstruktur.
30 cm LF-Neodym-Lautsprecher und 4,5 cm Treiber (2,5 cm Schwingspule)
Power handling capacity W(AES): 400
Max power Watts: 800
Nominal impedance LF/HF Ω: 8/16
Frequency range Hz: 65-20K
LF :
Sensitivity (1W/1m) dB: 98.5
Voice coil diameter mm/in: 75.5/3
Fs Hz: 70
Re Ω: 6
Qms : 5.12
Qes : 0.38
Qts : 0.36
Vas L: 35
Mms gr: 55
Cms mm/N: 0.09
BL Tm: 19.8
Xmax mm: 5.0
HF :
Throat diameter mm/in.: 25/1
Power handling capacity W(AES): 45
Nominal impedance Ω: 16
Sensitivity (2.83V/1m) dB: 102
Frequency range Hz: 1.5K-20K
Voice coil diameter mm/in: 44.4/1.75
Re Ω: 12
Notes :
AES power is measured with 6dB crest factor continuous pink noise in 2 hours duration.
Max power is defined as 3dB higher than the nominal rating.
Sensitivity is measured at one meter at 2.83V and 8 ohm nominal impedance.
All measurement of the speaker is done after a sufficient high level of 20Hz sine wave test.
Xmas is defined at the BL drops by 18% of the original figure.DATENBLATT
Synq

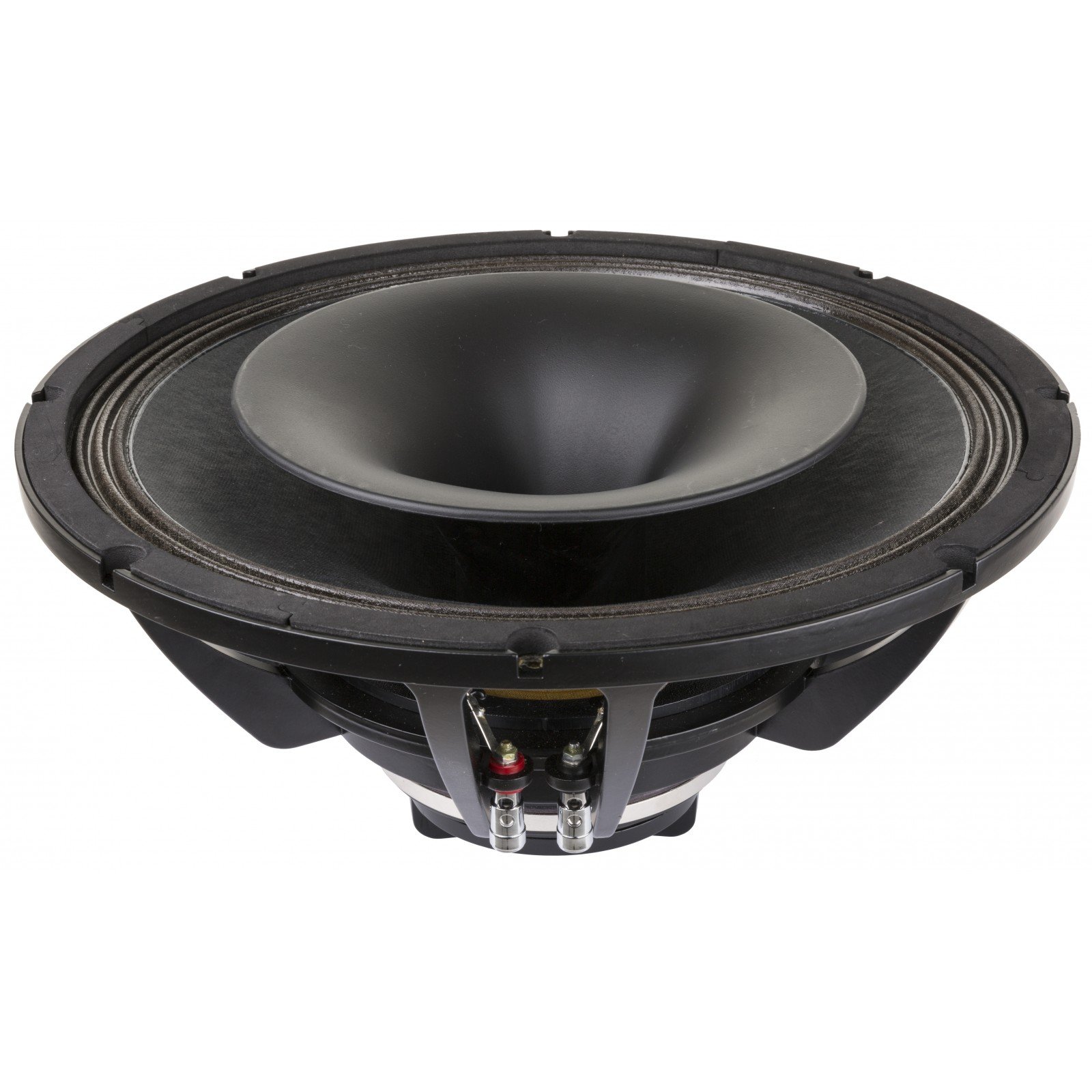

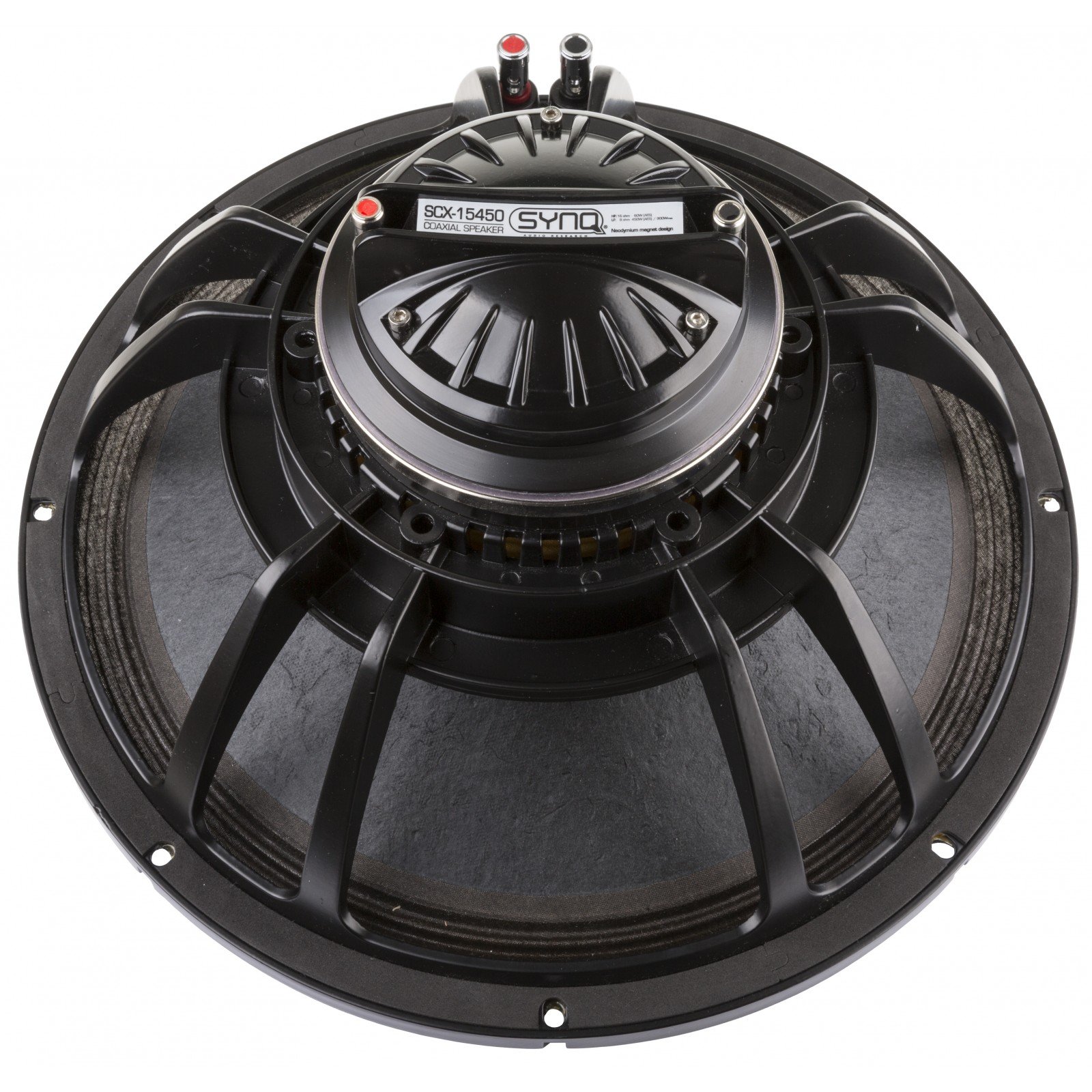

Synq SCX-15450 8 Ohm
Dieser leistungsstarke koaxiale 15" Lautsprecher ist die perfekte
Punktschallquelle, wenn Sie auf ein ausgezeichnetes Lautsprecherdesign
Wert legen.
Er erzeugt ein konstantes 60° x 40° Abstrahlverhalten mit einem weichen Klang.
Als eine perfekte Punktschallquelle können Sie mit ihm Lautsprecherboxen ohne unerwünschte Phasenprobleme bauen.
Leichtes Design dank der Neodym-Magnetstruktur.
15" LF-Neodym-Lautsprecher und 1.75" Treiber (1" Schwingspule)
Power handling capacity W(AES): 450
Max power Watts: 900
Nominal impedance LF/HF Ω: 8/16
Frequency range Hz: 50-19K
LF :
Sensitivity (1W/1m) dB: 99.5
Voice coil diameter mm/in: 75.5/3
Fs Hz: 50
Re Ω: 5.5
Qms : 4.50
Qes : 0.41
Qts : 0.38
Vas L: 119
Mms gr: 88
Cms mm/N: 0.11
BL Tm: 19.2
Xmax mm: 5.0
HF :
Throat diameter mm/in.: 35/1.4
Power handling capacity W(AES): 60
Nominal impedance Ω: 16
Sensitivity (2.83V/1m) dB: 106
Frequency range Hz: 1K-18K
Voice coil diameter mm/in: 63.5/2.5
Re Ω: 11
Notes :
AES power is measured with 6dB crest factor continuous pink noise in 2 hours duration.
Max power is defined as 3dB higher than the nominal rating.
Sensitivity is measured at one meter at 2.83V and 8 ohm nominal impedance.
All measurement of the speaker is done after a sufficient high level of 20Hz sine wave test.
Xmas is defined at the BL drops by 18% of the original figure.DATENBLATT
