Beyma HF Treiber 1"

Beyma - High End Lautsprecherchassis aus Spanien

Beyma HF Treiber 1"

Beyma CD-10Fe/N 8 Ohm

Beyma

Beyma CD-10Fe/N 8 Ohm

● 1” (25,4 mm) high frequency compression driver ● Sensitivity 109 dB (1W / 1m) ● Ultra lightweight edgewound aluminium ribbon voice coil ● Aluminium cover● Ferrite magnet ● Improved moving assembly mechanical coupling for excellent power handling capabilities ● PM-4 polymer diaphragm for natural sound reproductionDATENBLATT

Ab 84,00 €*

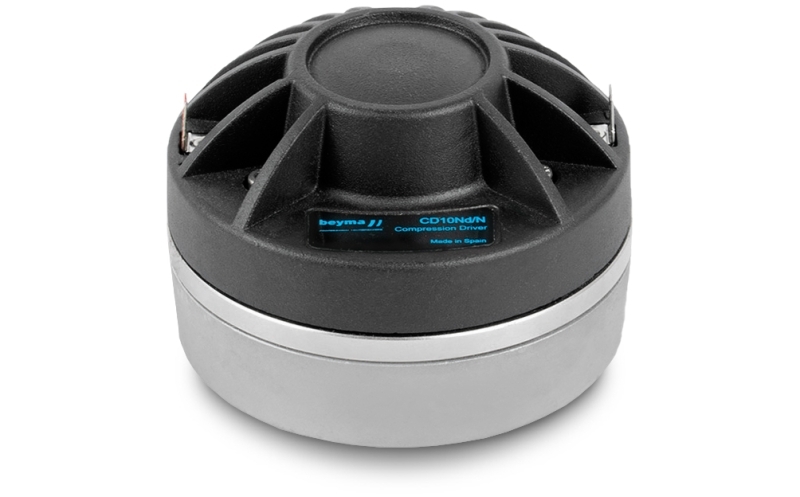

Beyma CD-10Nd/N 8 Ohm

Beyma

Beyma CD-10Nd/N 8 Ohm

● 1” (25,4 mm) high frequency compression driver ● High sensitivity: 111 dB (1W / 1m) ● Ultra lightweight edgewound aluminium ribbon voice coil ● Aluminium cover ● Neodymium magnet● Improved moving assembly mechanical coupling for excellent power handling capabilities ● PM-4 polymer diaphragm with higher surface tension energyDATENBLATT

Ab 187,00 €*

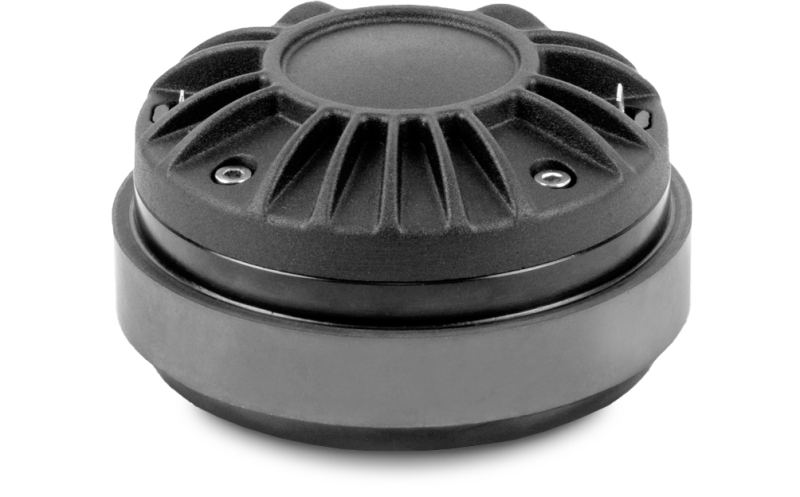

Beyma CD-11Fe 8 Ohm

Beyma

Beyma CD-11Fe 8 Ohm

● 1” (25,4 mm) exit high frequency compression driver ● 1,75” (44,4) DUO double layer in/out aluminium voice coil ● Sensitivity: 109 dB (1W / 1m) ● 140 W program power above 1,7 kHz● PM4 polymer diaphragm for natural sound reproduction ● Aluminium cover ● FEA optimized ferrite motor structureDATENBLATT

Ab 102,00 €*

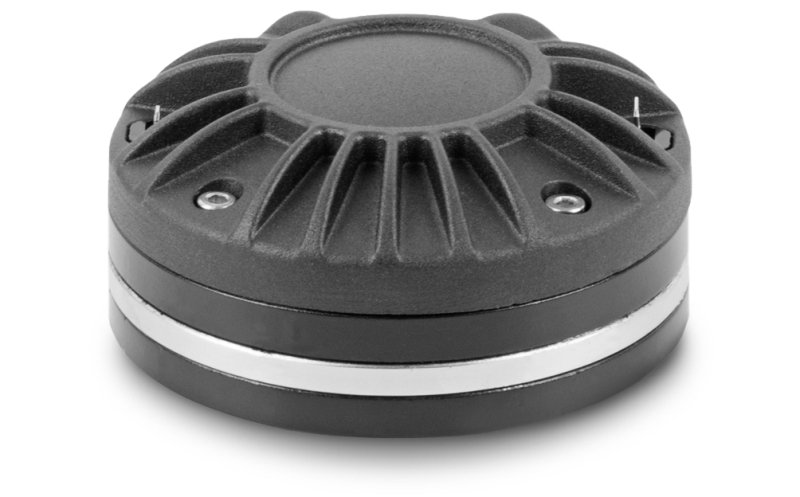

Beyma CD-11Nd 8 Ohm

Beyma

Beyma CD-11Nd 8 Ohm

● 1” (25,4 mm) exit high frequency compression driver ● 1,75” (44,4) DUO double layer in/out aluminium voice coil ● Sensitivity 111 dB (1W / 1m) ● 140 W program power above 1,5 kHz● PM4 polymer diaphragm for natural sound reproduction ● Aluminium cover ● FEA optimized neodymium motor structureDATENBLATT

Ab 193,00 €*

Beyma CD-151Fe/PK 8 Ohm

Beyma

Beyma CD-151Fe/PK 8 Ohm

● Next generation high performance 1” (25,4 mm) exit compression driver ● Deplocex® Patent Pending Technology for improved thermal disipation, low power compression losses and high power handling ● 1,5” (38,1 mm) Copper Clad Aluminum voice coil with Kapton former ● 140 W program power above 1,8 kHz ● Sensitivity: 110 dB (1W / 1m)● VPEQ® Patent Pending Technology for linear frequency response ● Exclusive High Temperature Polymer annular ring desing optimized with F.E.M for linear and extended response with minimized resonances ● Copper shorting cap for reduced distortion, linear inductance and increased output ● F.E.M. optimized ceramic magnetic circuitDATENBLATT

Ab 102,00 €*

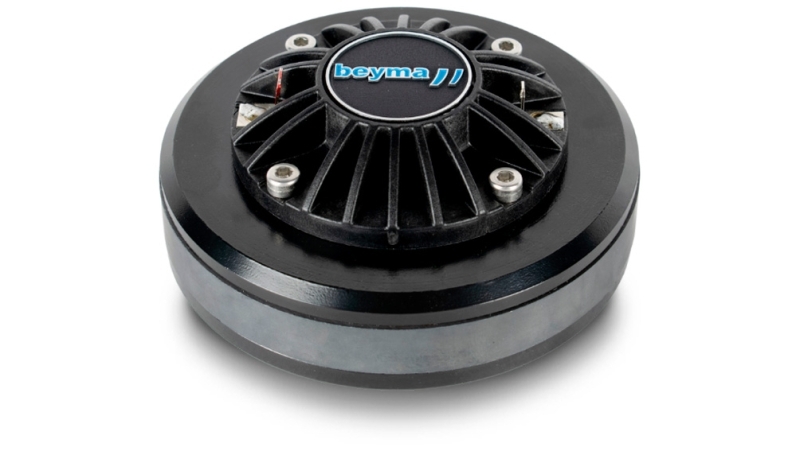

Beyma CD-151Fe/PT 8 Ohm

Beyma

Beyma CD-151Fe/PT 8 Ohm

● Next generation high performance 1” (25,4 mm) exit compression driver ● Deplocex® Patent Pending Technology for improved thermal disipation, low power compression losses and high power handling ● 1,5” (38,1 mm) Copper Clad Aluminum voice coil with Kapton former ● 140 W program power above 1,8 kHz ● Sensitivity: 110 dB (1W / 1m)● VPEQ® Patent Pending Technology for linear frequency response ● Exclusive Advanced Polyester annular ring desing optimized with F.E.M for linear and extended response with minimized resonances ● Copper shorting cap for reduced distortion, linear inductance and increased output ● F.E.M. optimized ceramic magnetic circuitDATENBLATT

Ab 102,00 €*

Beyma CD-171Fe/PK 8 Ohm

Beyma

Beyma CD-171Fe/PK 8 Ohm

● Next generation high performance 1” (25,4 mm) exit compression driver ● Deplocex® Patent Pending Technology for improved thermal disipation, low power compression losses and high power handling ● 1,75” (44,4 mm) Copper Clad Aluminum voice coil with Kapton former ● 160 W program power above 1,4 kHz ● Sensitivity: 109 dB (1W / 1m)● Exclusive High Temperature Polymer dome and surround desing optimized with F.E.M for linear and extended response with minimized resonances ● Copper shorting cap for reduced distortion, linear inductance and increased output ● F.E.M. optimized ceramic magnetic circuit ● Aluminium coverDATENBLATT

Ab 118,00 €*

Beyma CD-171Fe/PT 8 Ohm

Beyma

Beyma CD-171Fe/PT 8 Ohm

● Next generation high performance 1” (25,4 mm) exit compression driver ● Deplocex® Patent Pending Technology for improved thermal disipation, low power compression losses and high power handling ● 1,75” (44,4 mm) Copper Clad Aluminum voice coil with Kapton former ● 160 W program power above 1,2 kHz ● Sensitivity: 108 dB (1W / 1m)● Exclusive Advanced Polyester dome and surround desing optimized with F.E.M for linear and extended response with minimized resonances ● Copper shorting cap for reduced distortion, linear inductance and increased output ● F.E.M. optimized ceramic magnetic circuit ● Aluminium coverDATENBLATT

Ab 118,00 €*

Beyma CD1S 8 Ohm

Beyma

Beyma CD1S 8 Ohm

● 1” exit (25,4 mm) high frequency compression driver ● 1” (25,4 mm) voice coil diameter ● 60 W program power above 2,5 kHz ● Sensitivity: 106 dB (1W / 1m) ● PM-4 polymer diaphragm ● Ultra lightweight edgewound aluminium voice coil ● Cover with standard 1” 3/8 threadDATENBLATT

Ab 56,00 €*

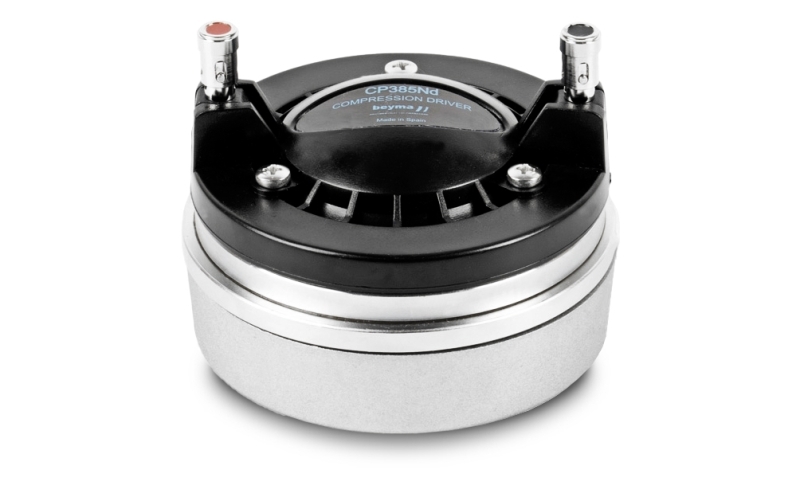

Beyma CP-385Nd 8 Ohm

Beyma

Beyma CP-385Nd 8 Ohm

● 1” (25,4 mm) high frequency compression driver ● Sensitivity 109 dB (1W / 1m) ● Power handling: 70 WAES above 1,5 kHz ● Extended frequency range: 0,8 - 20 kHz● Polyester diaphragm ● 1,75” aluminium voice coil ● Neodymium magnet ● Low harmonic distortionDATENBLATT

Ab 270,00 €*

Beyma SMC-225Nd 8 Ohm

Beyma

Beyma SMC-225Nd 8 Ohm

● 1” (25,4 mm) high frequency compression driver ● 80 W program power above 1,5 kHz ● Sensitivity 108 dB (1W / 1m)● Lightweight edgewound aluminium ribbon voice coil ● Neodymium magnet ● Polyester diaphragmDATENBLATT

Ab 149,00 €*

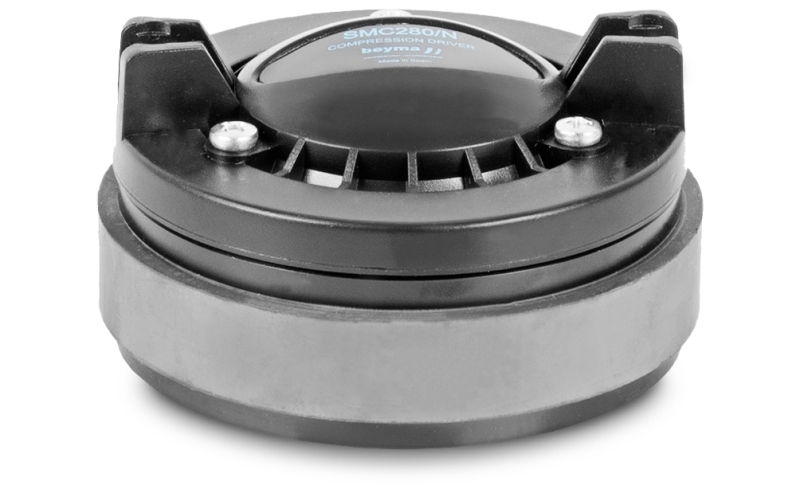

Beyma SMC-280/N 8 Ohm

Beyma

Beyma SMC-280/N 8 Ohm

● 1 in. (25 mm) compression driver ● Power handling: 50 WAES above 1,5 kHz ● High sensitivity: 105 dB (1W / 1m) ● Extended frequency range: 0,8 - 18 kHz ● Low harmonic distortion ● 1,75” edgewound aluminum voice coil ● Lightweight polyester diaphragm ● Ferrite magnetDATENBLATT

Ab 90,00 €*

Beyma SMC-8060/N 8 Ohm

Beyma

Beyma SMC-8060/N 8 Ohm

● 100 W program power above 1,5 kHz ● High sensitivity: 107 dB (1W / 1m) ● Extended frequency range: 0,8 - 18 kHz ● Low harmonic distortion ● 1,75” edgewound aluminium ribbon voice coil● Polyester diaphragm ● 80º x 60º horn ● Ferrite magnet ● Designed for compact cabinetsDATENBLATT

Ab 111,00 €*

Beyma WL3/Fe 8 Ohm

Beyma

Beyma WL3/Fe 8 Ohm

● 1,75” (44,4 mm) edgewound aluminium ribbon voice coil ● Improved moving assembly mechanical coupling for excellent power handling capabilities ● 70 WAES power above 1,8 kHz ● 140 W program power above 1,8 kHz● PM-4 polymer diaphragm ● Sensitivity 102 dB (1W / 1m) coupled to a 90º x 5º horn ● Ferrite magnet ● Excellent for line array applications (weight 1,7 kg)DATENBLATT

Ab 194,00 €*

Beyma WL4 8 Ohm

Beyma

Beyma WL4 8 Ohm

Wave guide fulfilling requirements for Line Array applications.4’’ x 0.5’’ rectangular exit Neodymium magnetic circuit for high efficiency.  Effective acoustical coupling up to 18 kHz. True 105 dB sensitivity 1w @ 1m (averaged 1-7 kHz). Extended frequency range: 0.7 - 20 kHz. 1.75” voice coil for excellent power handling (40 w AES)DATENBLATT

Ab 477,00 €*

Beyma WL4Fe/N 8 Ohm

Beyma

Beyma WL4Fe/N 8 Ohm

● 1,75” (44,4 mm) edgewound aluminium ribbon voice coil ● Improved moving assembly mechanical coupling for excellent power handling capabilities ● PM-4 polymer diaphragm ● 70 WAES power above 1,2 kHz ● 140 W program power above 1,2 kHz ● 104 dB, 1W @ 1 m sensitivity coupled to 90º x 5º horn ● Excellent for line array applications (weight 1,8 kg) ● Ferrite magnetDATENBLATT

Ab 256,00 €*
