Beyma CD-151Fe/PK 8 Ohm COMPRESSION DRIVER● Next generation high performance 1” (25,4 mm) exit
compression driver ● Deplocex® Patent Pending Technology for improved
thermal disipation, low power compression losses and
high power handling ● 1,5” (38,1 mm) Copper Clad Aluminum voice coil with
Kapton former ● 140 W program power above 1,8 kHz ● Sensitivity: 110 dB (1W / 1m)● CD-151Fe/PK VPEQ® Patent Pending Technology for linear frequency
response ● Exclusive High Temperature Polymer annular ring desing
optimized with F.E.M for linear and extended response with
minimized resonances ● Copper shorting cap for reduced distortion, linear inductance
and increased output ● F.E.M. optimized ceramic magnetic circuitBeyma CD-151Fe/PKDATENBLATT
Beyma CD-151Fe/PT 8 Ohm COMPRESSION DRIVER● Next generation high performance 1” (25,4 mm) exit
compression driver ● Deplocex® Patent Pending Technology for improved
thermal disipation, low power compression losses and
high power handling ● 1,5” (38,1 mm) Copper Clad Aluminum voice coil with
Kapton former ● 140 W program power above 1,8 kHz ● Sensitivity: 110 dB (1W / 1m)● CD-151Fe/PT VPEQ® Patent Pending Technology for linear frequency
response ● Exclusive Advanced Polyester annular ring desing optimized
with F.E.M for linear and extended response with minimized
resonances ● Copper shorting cap for reduced distortion, linear inductance
and increased output ● F.E.M. optimized ceramic magnetic circuitBeyma CD-151Fe/PTDATENBLATT
Beyma CD-171Fe/PK 8 Ohm COMPRESSION DRIVER● Next generation high performance 1” (25,4 mm) exit
compression driver ● Deplocex® Patent Pending Technology for improved
thermal disipation, low power compression losses and
high power handling ● 1,75” (44,4 mm) Copper Clad Aluminum voice coil with
Kapton former ● 160 W program power above 1,4 kHz ● Sensitivity: 109 dB (1W / 1m)● CD-171Fe/PK Exclusive High Temperature Polymer dome and surround
desing optimized with F.E.M for linear and extended response
with minimized resonances ● Copper shorting cap for reduced distortion, linear inductance
and increased output ● F.E.M. optimized ceramic magnetic circuit ● Aluminium coverBeyma CD-171Fe/PKDATENBLATT
Beyma CD-171Fe/PT 8 Ohm COMPRESSION DRIVER● Next generation high performance 1” (25,4 mm) exit
compression driver ● Deplocex® Patent Pending Technology for improved
thermal disipation, low power compression losses and
high power handling ● 1,75” (44,4 mm) Copper Clad Aluminum voice coil with
Kapton former ● 160 W program power above 1,2 kHz ● Sensitivity: 108 dB (1W / 1m)● Exclusive Advanced Polyester dome and surround desing
optimized with F.E.M for linear and extended response with
minimized resonances ● CD-171Fe/PT Copper shorting cap for reduced distortion, linear inductance
and increased output ● F.E.M. optimized ceramic magnetic circuit ● Aluminium coverBeyma CD-171Fe/PTDATENBLATT

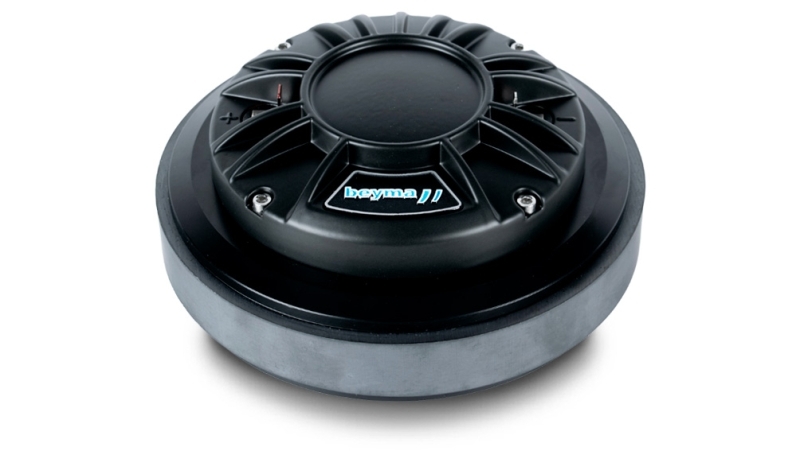

● Beyma CD-2514Fe/PK Next generation high performance 1,4” (36 mm) exit
compression driver ● Deplocex® Patent Pending Technology for improved
thermal disipation, low power compression losses and
high power handling ● 2,5” (63,5 mm) Copper Clad Aluminum voice coil with
Nomex former ● 200 W program power above 1,2 kHz ● Sensitivity: 109 dB (1W / 1m)● Exclusive High Temperature Polymer dome and surround
desing optimized with F.E.M for linear and extended response
with minimized resonances ● CD-2514Fe/PK Copper shorting cap for reduced distortion, linear inductance
and increased output ● Propietary design of metal alloy phase plug with F.E.M
optimized geometry and improved assembly design ● F.E.M. optimized ceramic magnetic circuit ● Aluminium coverBeyma CD-2514Fe/PKDATENBLATT
● Beyma CD-2514Fe/PT Next generation high performance 1,4” (36 mm) exit
compression driver ● Deplocex® Patent Pending Technology for improved
thermal disipation, low power compression losses and
high power handling ● 2,5” (63,5 mm) Copper Clad Aluminum voice coil with
Nomex former ● 200 W program power above 1,2 kHz ● Sensitivity: 108,5 dB (1W / 1m)● Exclusive Advanced Polyester dome and surround desing
optimized with F.E.M for linear and extended response with
minimized resonances ● CD-2514Fe/PT Copper shorting cap for reduced distortion, linear inductance
and increased output ● Propietary design of metal alloy phase plug with F.E.M
optimized geometry and improved assembly design ● F.E.M. optimized ceramic magnetic circuit ● Aluminium coverBeyma CD-2514Fe/PTDATENBLATT
● Beyma CD-2514Fe/Ti Next generation high performance 1,4” (36 mm) exit
compression driver ● Deplocex® Patent Pending Technology for improved
thermal disipation, low power compression losses and
high power handling ● 2,5” (63,5 mm) Copper Clad Aluminum voice coil with
Nomex former ● 200 W program power above 1,2 kHz ● Sensitivity: 108 dB (1W / 1m)● Exclusive Titanium dome and surround desing optimized with
F.E.M for linear and extended response with minimized
resonances ● CD-2514Fe/Ti Copper shorting cap for reduced distortion, linear inductance
and increased output ● Propietary design of metal alloy phase plug with F.E.M
optimized geometry and improved assembly design ● F.E.M. optimized ceramic magnetic circuit ● Aluminium coverBeyma CD-2514Fe/TiDATENBLATT
