2000 W continuous program power capacity 100 mm (4 in) copper voice coil 35 - 1000 Hz response 94.5 dB sensitivity FEA optimized Neodymium magnet assembly Aluminium demodulating ring for very low
distortion Double silicone spider with optimized
compliance Ventilated voice coil gap for reduced power
compressionDATENBLATT

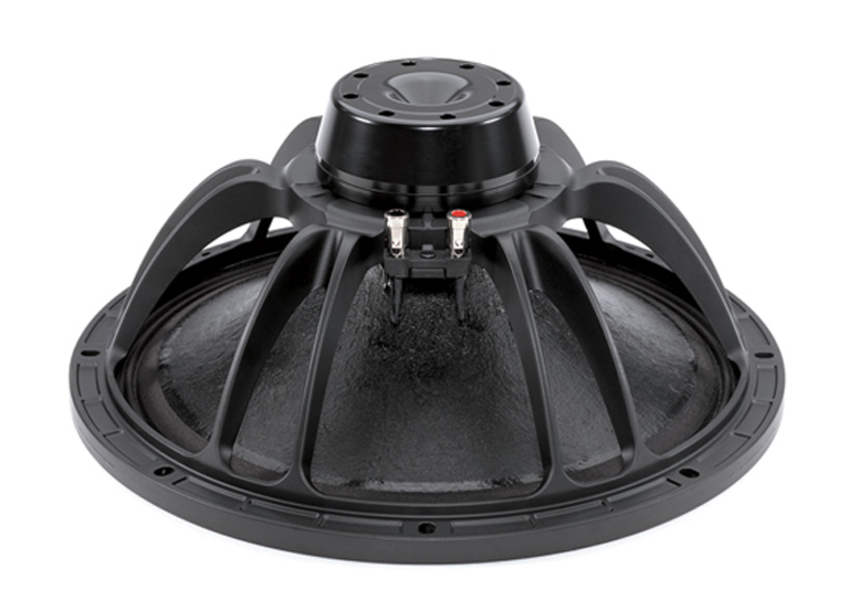

1000 W continuous program power capacity 76 mm (3 in) copper voice coil 44 - 1000 Hz response 93.4 dB sensitivity FEA optimized Neodymium magnet assembly Aluminium demodulating ring for very low
distortion Double silicone spider with optimized
complianceDATENBLATT
800 W continuous program power capacity 76 mm (3 in) copper voice coil 40 - 3000 Hz response 98.5 dB sensitivity Ventilated voice coil gap for reduced power
compressionDATENBLATT
Careful optimization of our lightest woofer series, now offered with a
high temperature copper-clad aluminum voice coil, is rewarded with
higher sensitivity and smoother high frequency response. An efficiently
designed motor makes these a good fit for many more applications,
especially where flown, and manufacturing design means the CLA series
can be price competitive with ferrite motor designs offering similar
performance.
DATENBLATT
800 W continuous program power capacity 80° nominal coverage 40 - 18000 Hz response 99 dB sensitivity Single Neodymium magnet assembly Compatible with FB15CX40 crossover networkDATENBLATT
Continuing our never-ending quest for higher output, we now offer our
popular single neodymium magnet coaxials with larger voice coils for
increased power handling. A significant increase in magnet mass also
improves sensitivity and cone control, while integrating our latest
compression driver technologies improves sound quality and durability in
the HF as well. For high output applications where fidelity at maximum
SPL is the primary concern, consider the 15CXN88, with 3.5” LF and 3” HF
voice coils. Power handling has increased to 1000W, while also
improving nearly every other parameter (including Xvar) relative to our
established 3” coil CXN76 series. DATENBLATT
This next evolution subwoofer uses a new, longer, four layer aluminum
voice coil. The result is less heat, more energy in the gap, higher
sensitivity, higher power handling, lower distortion and better overall
performance. The 15DS100 features a 37mm long, 4 inch diameter
(100mm) Copper Clad Aluminum Wire voice coil. With a 1500watt AES power
rating, 96.8 dB sensitivity, and over 14.0mm of Xvar, this high energy
subwoofer is a significant step forward from similar models in the
B&C range. DATENBLATT
This next evolution subwoofer uses a new, longer, four layer aluminum
voice coil. The result is less heat, more energy in the gap, higher
sensitivity, higher power handling, lower distortion and better overall
performance. The 15DS100 features a 37mm long, 4 inch diameter
(100mm) Copper Clad Aluminum Wire voice coil. With a 1500watt AES power
rating, 96.8 dB sensitivity, and over 14.0mm of Xvar, this high energy
subwoofer is a significant step forward from similar models in the
B&C range. DATENBLATT
This next evolution subwoofer uses a new, longer, four layer aluminum
voice coil. The result is more energy in the gap, higher sensitivity,
lower distortion and better overall performance. The 15DS115 features
a 40mm long, 4.5 inch diameter (116mm) Copper Clad Aluminum Wire voice
coil. With a 1600watt AES power rating, 96 dB sensitivity, and over 14
mm of Xvar, this high energy subwoofer is a significant step forward
from similar models in the B&C range. DATENBLATT
This next evolution subwoofer uses a new, longer, four layer aluminum
voice coil. The result is more energy in the gap, higher sensitivity,
lower distortion and better overall performance. The 15DS115 features
a 40mm long, 4.5 inch diameter (116mm) Copper Clad Aluminum Wire voice
coil. With a 1600watt AES power rating, 96 dB sensitivity, and over 14
mm of Xvar, this high energy subwoofer is a significant step forward
from similar models in the B&C range. DATENBLATT
800 W continuous program power capacity 80° nominal coverage 40 - 18000 Hz response 98 dB sensitivity 50.5 mm (2”) HF unit exit diameter Single Ferrite magnet assembly Aluminium demodulating ring allows a very low
distortion figureDATENBLATT
98 dB sensitivity 800 W continuous program power capacity 60°x40° nominal coverage 40 - 18000 Hz response Modified exponential horn flare for improved
acoustic loading and controlled coverage 33 mm (1.3”) HF unit exit diameter Single Ferrite magnet assembly Aluminium demodulating ring allows a very low
distortion figureDATENBLATT
1000 W continuous program power capacity 76 mm (3 in) copper voice coil 40 - 2000 Hz response 100 dB sensitivity Aluminium demodulating ring allows a very low
distortion figure Double silicone spider and ventilated voice coil
gapDATENBLATT
1000 W continuous program power capacity 76 mm (3 in) copper voice coil 40 - 2000 Hz response 100 dB sensitivity Aluminium demodulating ring allows a very low
distortion figure Double silicone spider and ventilated voice coil
gapDATENBLATT
99 dB sensitivity Single Neodymium magnet assembly 800 W continuous program power capacity 60°x40° nominal coverage 40 - 18000 Hz response Modified exponential horn flare for improved
acoustic loading and controlled coverage 33 mm (1.3”) HF unit exit diameter Aluminium demodulating ring for very low
distortionDATENBLATT
1600 W continuous program power capacity 100 mm (4 in) aluminium voice coil 45 - 2000 Hz response 98 dB sensitivity FEA optimized Neodymium magnet assembly Double silicone spider with optimized
compliance Ventilated voice coil gap for reduced power
compression Aluminum demodulating rings allows a very low
distortion figureDATENBLATT
2000 W continuous program power capacity 100 mm (4 in) copper voice coil 35 - 1500 Hz response 95 dB sensitivity Aluminium demodulating ring allows a very low
distortion figure Double silicone spider with optimized
compliance Ventilated voice coil gap for reduced power
compressionDATENBLATT
2000 W continuous program power capacity 100 mm (4 in) copper voice coil 35 - 1500 Hz response 97 dB sensitivity Aluminium demodulating ring allows a very low
distortion figure Double silicone spider with optimized
compliance Ventilated voice coil gap for reduced power
compressionDATENBLATT
1000 W continuous program power capacity 76 mm (3 in) copper voice coil 40 - 2000 Hz response 99.5 dB sensitivity Neodymium magnet allows a very light yet
powerful motor assembly Ventilated voice coil gap for reduced power
compressionDATENBLATT
The NDL88 series is perfectly balanced for the loudspeaker systems of
today. Incorporating a high temperature neodymium magnet inside the 3.5”
(88mm) voice coil reduces the amount of steel needed in the motor
structure, saving cost and weight. Unexpected low frequency output and
midrange extension to meet with almost any driver for two way
applications is the hallmark of this new performance-oriented woofer
line from B&C Speakers. Do more, with less, with the NDL88 series. DATENBLATT
The NDL88 series is perfectly balanced for the loudspeaker systems of
today. Incorporating a high temperature neodymium magnet inside the 3.5”
(88mm) voice coil reduces the amount of steel needed in the motor
structure, saving cost and weight. Unexpected low frequency output and
midrange extension to meet with almost any driver for two way
applications is the hallmark of this new performance-oriented woofer
line from B&C Speakers. Do more, with less, with the NDL88 series. DATENBLATT
2000 W continuous program power capacity 100 mm (4 in) copper voice coil 35 - 1500 Hz response 95 dB sensitivity FEA optimized Neodymium magnet assembly Double silicone spider with optimized
compliance Ventilated voice coil gap for reduced power
compressionDATENBLATT
2000 W continuous program power capacity 100 mm (4 in) copper voice coil 35 - 1500 Hz response 97 dB sensitivity FEA optimized Neodymium magnet assembly Double silicone spider with optimized
compliance Ventilated voice coil gap for reduced power
compressionDATENBLATT
1200 W continuous program power capacity 76 mm (3 in) copper voice coil 40 - 2000 Hz response 99 dB sensitivity Aluminium demodulating ring allows a very low
distortion figure Neodymium ring magnet assembly Double silicone spider and ventilated voice coil
gapDATENBLATT
1200 W continuous program power capacity 76 mm (3 in) copper voice coil 40 - 2000 Hz response 100.5 dB sensitivity Aluminium demodulating ring allows a very low
distortion figure Neodymium ring magnet assembly Double silicone spider and ventilated voice coil
gapDATENBLATT
1400 W continuous program power capacity 100 mm (4 in) copper voice coil 35 - 1500 Hz response 95 dB sensitivity Double silicone spider with optimized
complianceDATENBLATT
1400 W continuous program power capacity 100 mm (4 in) copper voice coil 40- 2000 Hz response 97 dB sensitivity Double silicone spider with optimized
complianceDATENBLATT
3000 W continuous program power capacity 100 mm (4 in) split winding copper voice coil 40 - 1500 Hz response 95 dB sensitivity Double silicone spider with optimized
compliance Ventilated voice coil gap for reduced power
compression Aluminium demodulating ring for very low
distortionDATENBLATT
3000 W continuous program power capacity 100 mm (4 in) split winding copper voice coil 40 - 1500 Hz response 95 dB sensitivity Double silicone spider with optimized
compliance Ventilated voice coil gap for reduced power
compression Aluminium demodulating ring for very low
distortionDATENBLATT
3400 W continuous program power capacity 116 mm (4.5 in) split winding copper voice coil 35 - 1500 Hz response 96 dB sensitivity Double silicone spider with optimized
compliance Ventilated voice coil gap for reduced power
compression 286Aluminium demodulating ring for very low
distortionDATENBLATT
3400 W continuous program power capacity 116 mm (4.5 in) split winding copper voice coil 35 - 1500 Hz response 96 dB sensitivity Double silicone spider with optimized
compliance Ventilated voice coil gap for reduced power
compression Aluminium demodulating ring for very low
distortion
DATENBLATT
3000 W continuous program power capacity 100 mm (4 in) split winding copper voice coil 40 - 1500 Hz response 95 dB sensitivity Double silicone spider with optimized
compliance Ventilated voice coil gap for reduced power
compression Aluminium demodulating ring for very low
distortion
DATENBLATT
3000 W continuous program power capacity 100 mm (4 in) split winding copper voice coil 40 - 1500 Hz response 96 dB sensitivity Double silicone spider with optimized
compliance Ventilated voice coil gap for reduced power
compression Aluminium demodulating ring for very low
distortionDATENBLATT
2000 W continuous program power capacity 100 mm (4 in) copper voice coil 35 - 1500 Hz response 93 dB sensitivity Aluminium demodulating ring allows a very low
distortion figure Double silicone spider with optimized
compliance Ventilated voice coil gap for reduced power
compressionDATENBLATT
