Unique to B&C, a complete lineup of high sensitivity and power
handling 4”, 5" and 6.5" frame transducers. These high technology
products are made with our famously critical quality control, allowing
new compact loudspeaker designs with appropriately scaled performance.

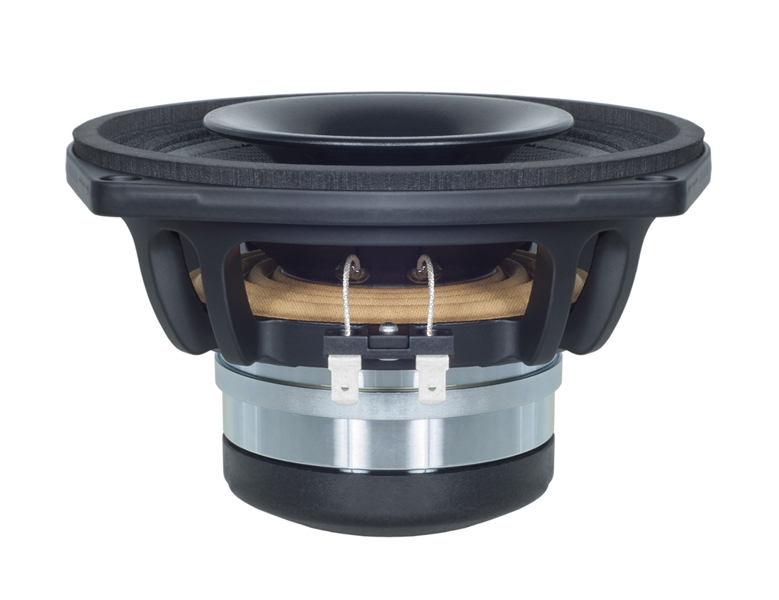

Combined with a 1.4” dome compression driver, our 6CXN36 coaxial is one
of the most compact and cost effective full range transducers that we
have ever built, offering 90 - 18000Hz frequency response and a 90°
conical coverage pattern. DATENBLATT
300 W continuous program power capacity 70° nominal coverage 90 - 18000 Hz response 92 dB sensitivity Single Neodymium magnet assembly 20.1 mm (0.79”) HF unit exit diameterDATENBLATT

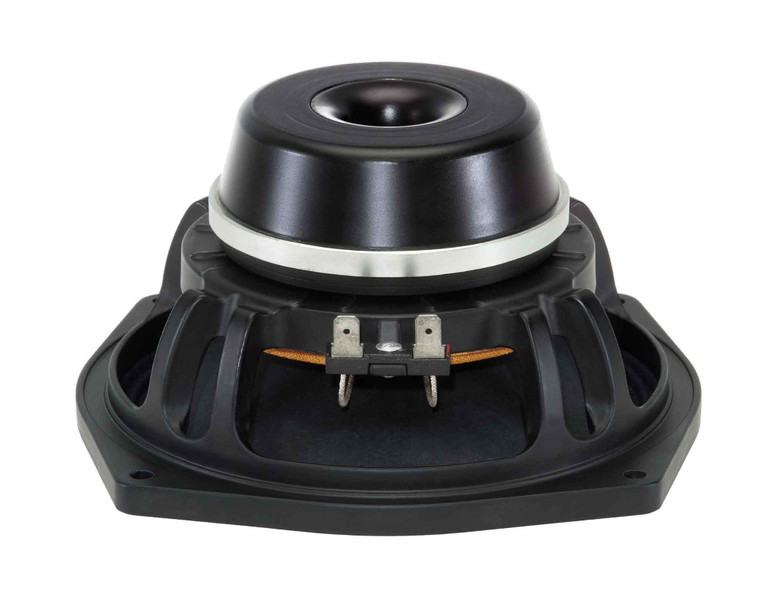

The MBX series mid-bass woofers from B&C Speakers offer acoustic
designers a new range of high efficiency, wide bandwidth alternatives
that are not currently available in the B&C range. These
full-featured transducers incorporate lightweight neodymium motors,
inside/outside wound copper clad aluminum wire voice coils, weatherproof
impregnated paper cones, and a symmetrical inductance profile. The MBX
Series is especially well suited for two-way loudspeaker enclosures. DATENBLATT
The MBX series mid-bass woofers from B&C Speakers offer acoustic
designers a new range of high efficiency, wide bandwidth alternatives
that are not currently available in the B&C range. These
full-featured transducers incorporate lightweight neodymium motors,
inside/outside wound copper clad aluminum wire voice coils, weatherproof
impregnated paper cones, and a symmetrical inductance profile. The MBX
Series is especially well suited for two-way loudspeaker enclosures. DATENBLATT
400 W continuous program power capacity 44 mm (1.7 in) aluminium voice coil 150 - 6000 Hz response 97 dB sensitivity Neodymium magnet allows a very light yet
powerful motor assembly Aluminium demodulating ring for very low
distortion Ventilated voice coil gap for reduced power
compressionDATENBLATT
400 W continuous program power capacity 44 mm (1.7 in) aluminium voice coil 150 - 6000 Hz response 96.5 dB sensitivity Neodymium magnet allows a very light yet
powerful motor assembly Aluminium demodulating ring for very low
distortion Ventilated voice coil gap for reduced power
compressionDATENBLATT
38 mm (1.5 in) copper voice coil 70 - 6000 Hz response 93 dB sensitivity Neodymium magnet allows a very light yet
powerful motor assembly Aluminium demodulating ring allows a very low
distortion figure 300 W continuous program power capacityDATENBLATT
38 mm (1.5 in) copper voice coil 70 - 6000 Hz response 91 dB sensitivity Neodymium magnet allows a very light yet
powerful motor assembly Aluminium demodulating ring allows a very low
distortion figure 300 W continuous program power capacityDATENBLATT
38 mm (1.5 in) copper voice coil 70 - 6000 Hz response 91 dB sensitivity Neodymium magnet allows a very light yet
powerful motor assembly Aluminium demodulating ring allows a very low
distortion figure 300 W continuous program power capacity
DATENBLATT

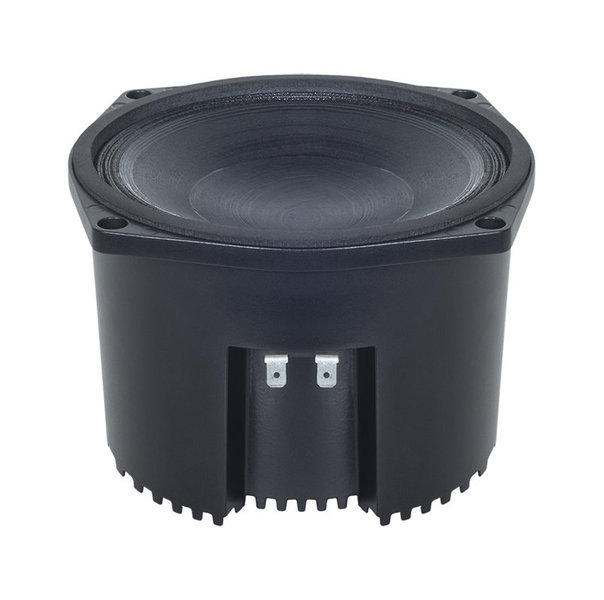

For simplified cabinet assembly and efficient thermal transfer to the
air, our NSM series of sealed back midranges feature a cast aluminum
sealed chassis, high strength neodymium motor, and large internal volume
for good low frequency performance. Large voice coils provide power
handling, while careful selection of suspension and cone components
results in exceptional sensitivity. These dedicated narrow-bandwidth
midranges offer the lowest distortion at given output of any midrange
available.DATENBLATT
