500 W continuous program power capacity 51 mm (2 in) copper voice coil 50 - 4000 Hz response 92 dB sensitivity Neodymium magnet allows a very light yet
powerful motor assembly Shorting copper cap for extended HF response Ventilated voice coil gap for reduced power
compressionDATENBLATT
400 W continuous program power capacity 51 mm (2 in) copper voice coil 70 - 5000 Hz response 94 dB sensitivity Neodymium magnet allows a very light yet
powerful motor assembly Shorting copper cap for extended HF responseDATENBLATT
400 W continuous program power capacity 51 mm (2 in) copper voice coil 70 - 5000 Hz response 94 dB sensitivity Neodymium magnet allows a very light yet
powerful motor assembly Shorting copper cap for extended HF responseDATENBLATT
400 W continuous program power capacity 100° nominal coverage 75 - 20000 Hz response 94 dB sensitivity 34.5 mm (1.35”) HF unit exit diameter FB08CX21 dedicated crossover networkDATENBLATT
500 W continuous program power capacity 51 mm (2 in) copper voice coil 50 - 4000 Hz response 93 dB sensitivity Shorting copper cap for extended HF response Ventilated voice coil gap for reduced power
compressionDATENBLATT
600 W continuous program power capacity 64 mm (2.5 in) copper voice coil 50 - 3000 Hz response 92 dB sensitivity Aluminium demodulating ring allows a very low
distortion figureDATENBLATT
600 W continuous program power capacity 64 mm (2.5 in) copper voice coil 50 - 3000 Hz response 92 dB sensitivity Aluminium demodulating ring allows a very low
distortion figureDATENBLATT
The FMB series mid-bass woofers from B&C Speakers offer acoustic
designers a new range of high efficiency, wide bandwidth alternatives
that are not currently available in the B&C range. These
full-featured transducers incorporate lower cost ferrite motors,
inside/outside wound copper clad aluminum wire voice coils, weatherproof
impregnated paper cones, and a symmetrical inductance profile. The FMB
Series is especially well suited for two-way loudspeaker enclosures. DATENBLATT
400 W continuous program power capacity 51 mm (2 in) copper voice coil 70 - 5000 Hz response 97 dB sensitivity Shorting copper cap for extended HF response Ventilated voice coil gap for reduced power
compression
DATENBLATT
The MBX series mid-bass woofers from B&C Speakers offer acoustic
designers a new range of high efficiency, wide bandwidth alternatives
that are not currently available in the B&C range. These
full-featured transducers incorporate lightweight neodymium motors,
inside/outside wound copper clad aluminum wire voice coils, weatherproof
impregnated paper cones, and a symmetrical inductance profile. The MBX
Series is especially well suited for two-way loudspeaker enclosures. DATENBLATT
The MBX series mid-bass woofers from B&C Speakers offer acoustic
designers a new range of high efficiency, wide bandwidth alternatives
that are not currently available in the B&C range. These
full-featured transducers incorporate lightweight neodymium motors,
inside/outside wound copper clad aluminum wire voice coils, weatherproof
impregnated paper cones, and a symmetrical inductance profile. The MBX
Series is especially well suited for two-way loudspeaker enclosures. DATENBLATT
400 W continuous program power capacity 51 mm (2 in) aluminium voice coil 70 - 4000 Hz response 97 dB sensitivity Neodymium ring magnet assembly Ventilated voice coil gap for reduced power
compressionDATENBLATT
400 W continuous program power capacity 51 mm (2 in) aluminium voice coil 70 - 4000 Hz response 97 dB sensitivity Neodymium ring magnet assembly Ventilated voice coil gap for reduced power
compressionDATENBLATT
51 mm (2 in) copper voice coil 75 - 3000 Hz response 94 dB sensitivity Neodymium magnet allows a very light yet
powerful motor assembly Shorting copper cap for extended HF response 400 W continuous program power capacity Ventilated voice coil gap for reduced power
compressionDATENBLATT
51 mm (2 in) copper voice coil 75 - 3000 Hz response 94 dB sensitivity Neodymium magnet allows a very light yet
powerful motor assembly Shorting copper cap for extended HF response 400 W continuous program power capacity Ventilated voice coil gap for reduced power
compressionDATENBLATT
51 mm (2 in) copper voice coil 75 - 3000 Hz response 94 dB sensitivity Neodymium magnet allows a very light yet
powerful motor assembly Shorting copper cap for extended HF response 400 W continuous program power capacity Ventilated voice coil gap for reduced power
compressionDATENBLATT
700 W continuous program power capacity 64 mm (2.5 in) copper voice coil 80 - 4000 Hz response
97 dB sensitivity Neodymium inside slug magnet assembly Shorting copper cap for extended HF response Ventilated voice coil gap for reduced power
compressionDATENBLATT
700 W continuous program power capacity 64 mm (2.5 in) copper voice coil 80 - 4000 Hz response
97 dB sensitivity Neodymium inside slug magnet assembly Shorting copper cap for extended HF response Ventilated voice coil gap for reduced power
compressionDATENBLATT

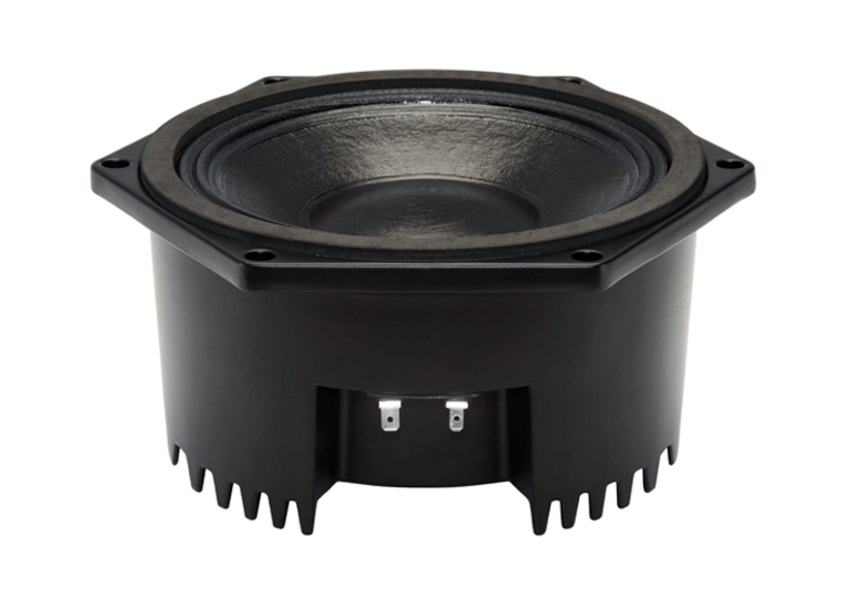

For simplified cabinet assembly and efficient thermal transfer to the
air, our NSM series of sealed back midranges feature a cast aluminum
sealed chassis, high strength neodymium motor, and large internal volume
for good low frequency performance. Large voice coils provide power
handling, while careful selection of suspension and cone components
results in exceptional sensitivity. These dedicated narrow-bandwidth
midranges offer the lowest distortion at given output of any midrange
available. Available exclusively with 6.3+4.8 mm fast-on terminal tab DATENBLATT
For simplified cabinet assembly and efficient thermal transfer to the
air, our NSM series of sealed back midranges feature a cast aluminum
sealed chassis, high strength neodymium motor, and large internal volume
for good low frequency performance. Large voice coils provide power
handling, while careful selection of suspension and cone components
results in exceptional sensitivity. These dedicated narrow-bandwidth
midranges offer the lowest distortion at given output of any midrange
available. Available exclusively with 6.3+4.8 mm fast-on terminal tab DATENBLATT
400 W continuous program power capacity 51 mm (2 in) copper voice coil 70 - 3000 Hz response 97 dB sensitivity Neodymium ring magnet assembly Shorting copper cap for extended HF response Ventilated voice coil gap for reduced power
compressionDATENBLATT
400 W continuous program power capacity 51 mm (2 in) copper voice coil 70 - 3000 Hz response 97 dB sensitivity Neodymium ring magnet assembly Shorting copper cap for extended HF response Ventilated voice coil gap for reduced power
compressionDATENBLATT
400 W continuous program power capacity 51 mm (2 in) copper voice coil 70 - 3000 Hz response 97 dB sensitivity Neodymium ring magnet assembly Shorting copper cap for extended HF response Ventilated voice coil gap for reduced power
compressionDATENBLATT
400 W continuous program power capacity 51 mm (2 in) copper voice coil 70 - 3000 Hz response 94 dB sensitivity Shorting copper cap for extended HF responseDATENBLATT
