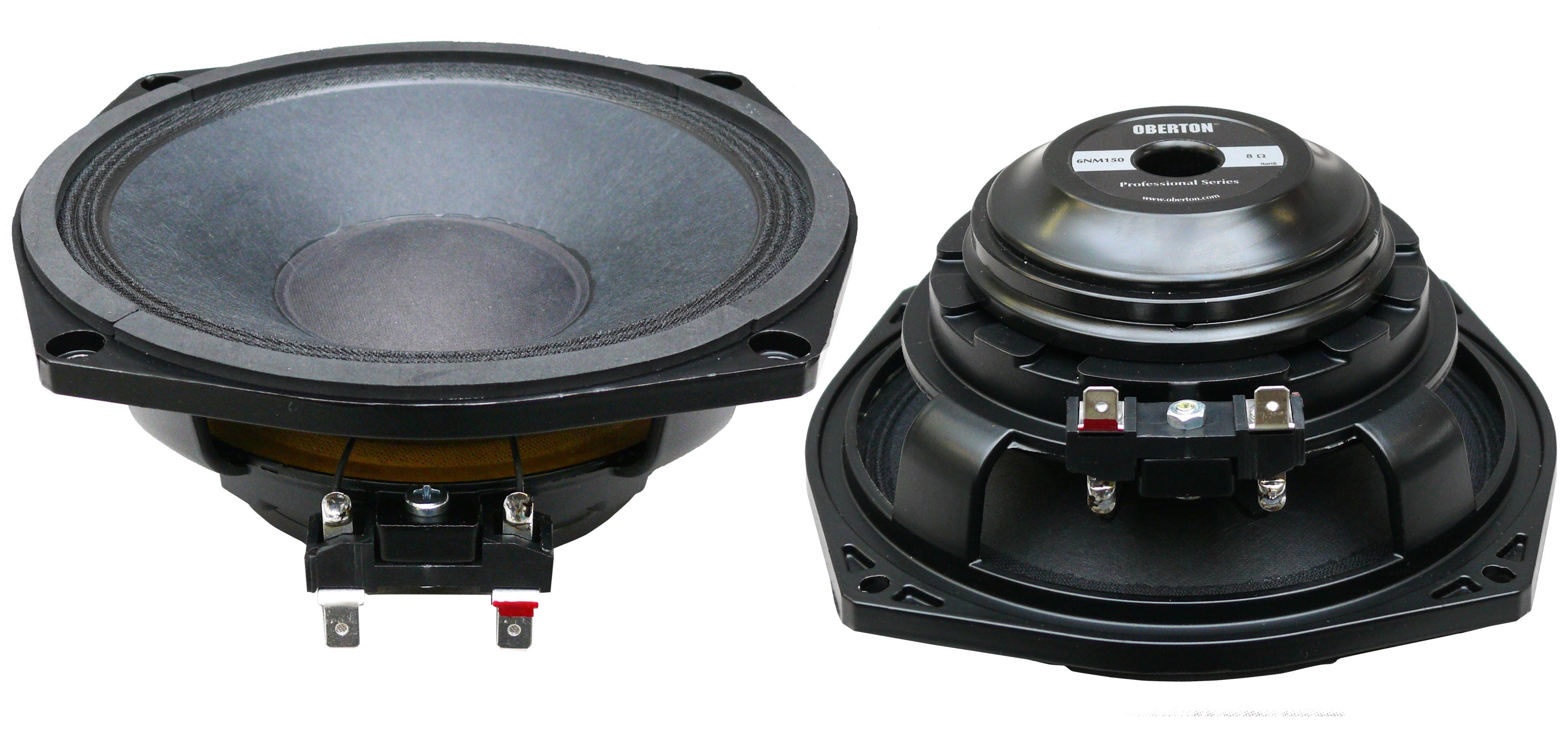

Oberton 6NM150 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
132,00 €*
|
| Bis 4 |
131,00 €*
|
| Bis 6 |
130,00 €*
|
| Ab 7 |
129,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11479
Produktinformationen "Oberton 6NM150 8 Ohm"
- Oberton 6NM150
- 97 db 1W / 1m average sensitivity
- 44 mm high temperature voice coil
- 300 W AES program power
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 6NM150 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
6.5"/170 inch/mm 8 Ohm 7.22 Ohm 150 W 300 W (500-5000 Hz) 97 dB/W/m 200 – 5000 Hz 44 mm Aluminium Kapton™ 8 mm 7 mm Paper Die cast aluminium Neodymium 1.42 T |
THIELE-SMALL PARAMETERS
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
124 Hz 5.96 0.403 0.377 4.00 Litres 11.08 grams 6.25 Ohms 139 cm2 ± 2.25 mm 0.148 mm/N 11.58 T.m 0.30 mH |

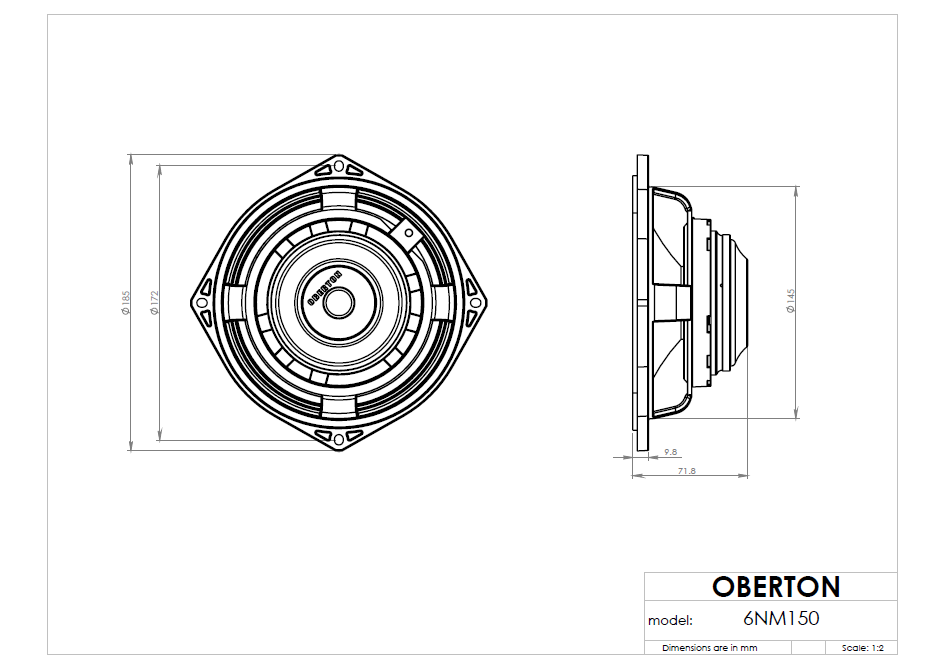

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
185 mm 145 mm 4 elliptic 5.5 / 6.5 mm 172 mm 71.8 mm 1.07 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 6" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,36 - 0,40 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
