Oberton 6NCX 8 Ohm

Produktinformationen "Oberton 6NCX 8 Ohm"
  • Oberton 6NCX

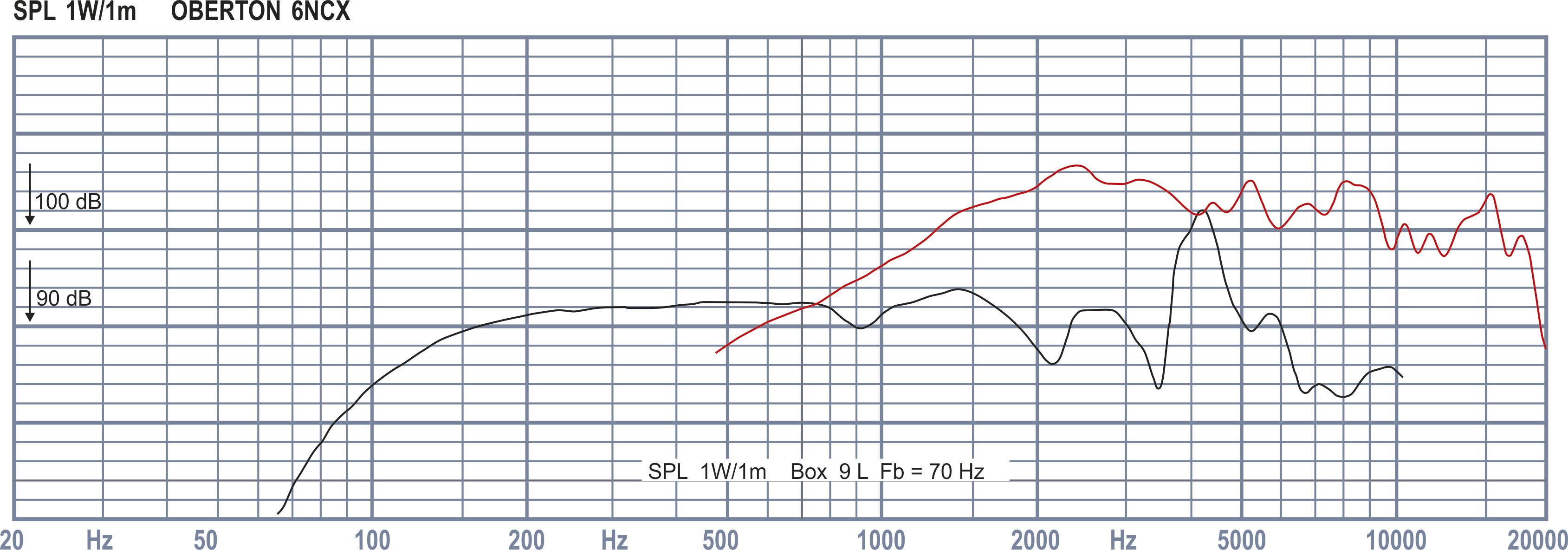

  • 92 db SPL 1W / 1m ( LF ) average sensitivity
  • 44 mm ( 1.75”) high temperature voice coil ( LF )
  • 300 W AES program power ( LF )
  • Double aluminium demodulating rings
  • Single neodymium magnet assembly
  • Water protected cone
  • 1” exit HF neodymium compression driver
  • 38 mm (1.5”) HF high temperature voice coil
  • 80 degrees nominal dispersion
  • Epoxy anti-corrosion coating of top and back plates of magnet structure
  • Very light weight

Oberton 6NCX 8 Ohm SPECIFICATIONS

Nominal diameter
Impedance
Minimum impedance LF
Frequency range
Dispersion angle

LF unit
Sensitivity (200-1000 Hz)
Power Capacity AES ¹
Program Power ²
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V. C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

HF unit
Minimum impedance HF
DC resistance
Sensitivity (2-15 kHz)
Power capacity (1-20 kHz)
Program power
Voice coil diameter
Winding material
Diaphragm material
Flux density

170 mm (6.5 in)
LF 8 Ohm /HF 16 Ohm
6.17 Ohm
75 - 18000 Hz
80 deg


92 dB
150 W
300 W
44 mm (1.75 in)
Copper Clad Aluminium
lassfiber
13 mm
7 mm.
Paper with glassfiber
Die Cast Aluminium
Neodymium
0.97 T


10.12 Ohms
8.93 Ohms
103 dB

30 W
60 W
38 mm (1.5 in)

Copper Clad Aluminium
Sandwich polyester
1.84 T



THIELE-SMALL PARAMETERS 6NCX

Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
89.11 Hz
6.48
0.386
0.364
7.01 L
10.91 g
5.4 Ohms
131 cm2
± 4.75 mm
0.268 mm/N
9,66 T.m
0.349 mH

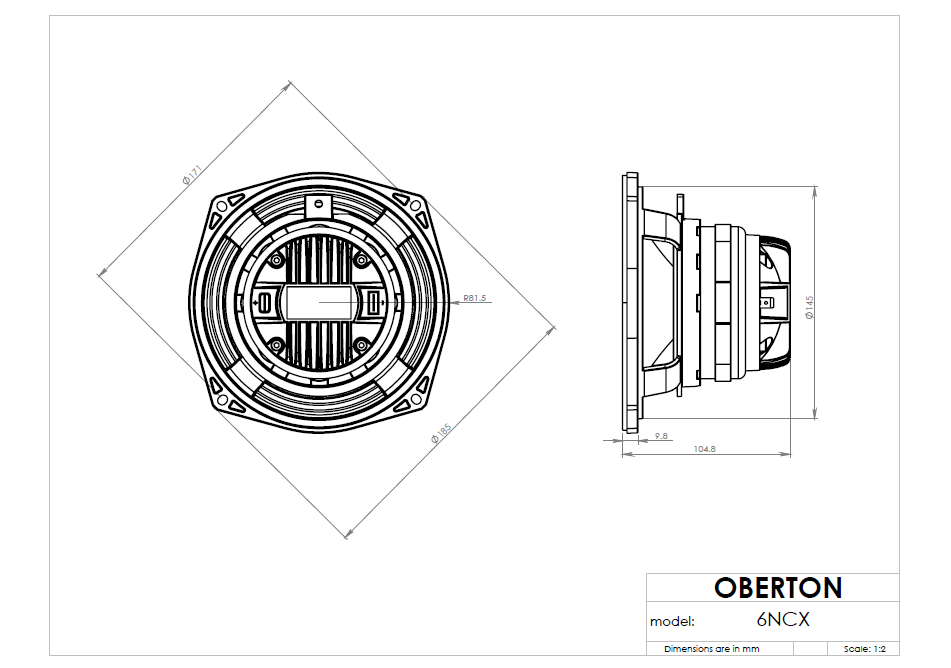

MOUNTING INFORMATION

Overall diameter
Depth
Baffle hole diameter
Bolt circle diameter
Mounting holes
Net weight
185 mm (7.28 in)
104.8 mm
145 mm
171 mm
4 x elliptic 5.5 mm/6.5 mm
1.6 kg
Coaxial: JA
Diaphragma / Dome: Mylar / Polyester / Polyethylen / Kunststoffe
Größe: 6,5"
Impedanz: 8 Ohm
Magnet: Neodym
Qts: 0,36 - 0,40
Sperrgut: NEIN
X-MAX: 0,1 - 5,0 mm
