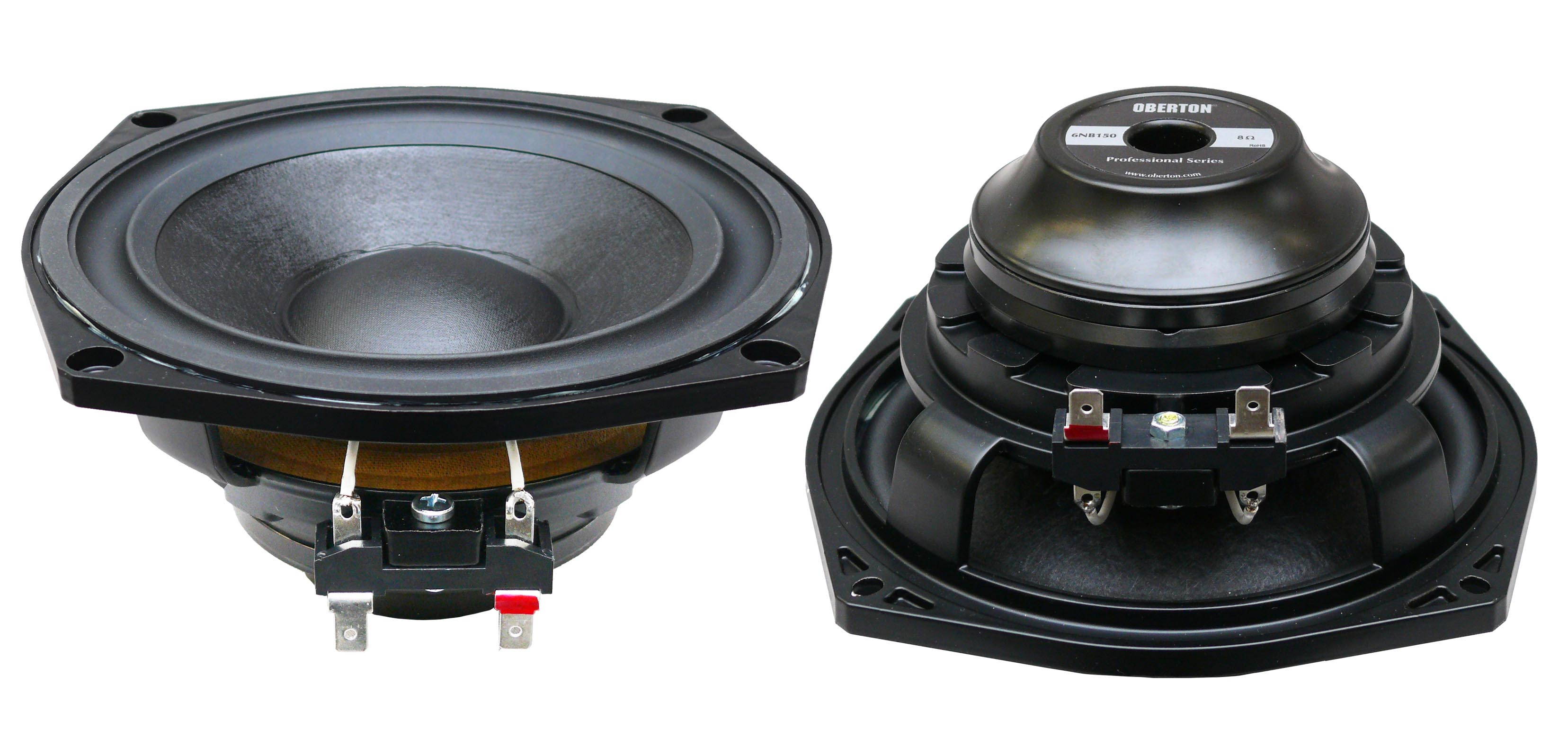

Oberton 6NB150 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
132,00 €*
|
| Bis 4 |
131,00 €*
|
| Bis 6 |
130,00 €*
|
| Ab 7 |
129,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11478
Produktinformationen "Oberton 6NB150 8 Ohm"
- Oberton 6NB150
- 92 db 1W / 1m average sensitivity
- 38 mm high temperature voice coil
- 300 W AES program power
- Water protected cone (front)
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 6NB150 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |

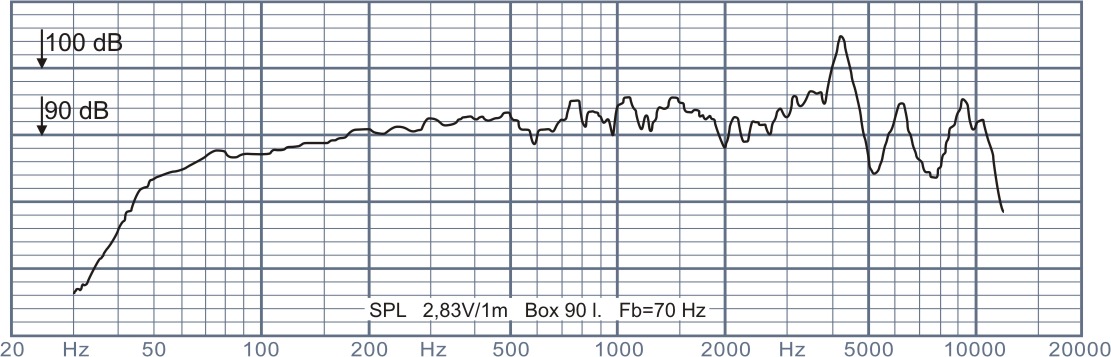

6.5"/170 inch/mm 8 Ohm 6.35 Ohm 150 W 300 W (200-2000 Hz) 92 dB/W/m 60 – 3000 Hz 38 mm Cooper Kapton™ 14 mm 6 mm Paper with glassfiber Die cast aluminium Neodymium 1.37 T |
THIELE-SMALL PARAMETERS 6NB150
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
62.32 Hz 5.22 0.296 0.28 9.3 Litres 15.72 grams 5.57 Ohms 127 cm2 ±5.5 mm 0.415 mm/N 10.77 T.m 0.65 mH |

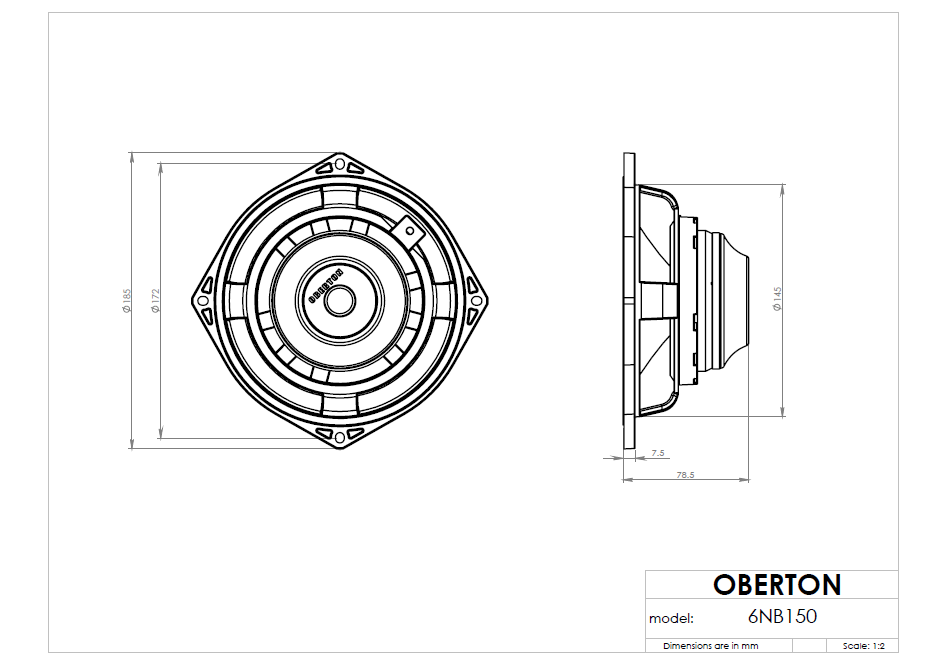

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
185 mm 145 mm 4 elliptic 5.5 / 6.5 mm 172 mm 78.5 mm 1.29 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 6" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
