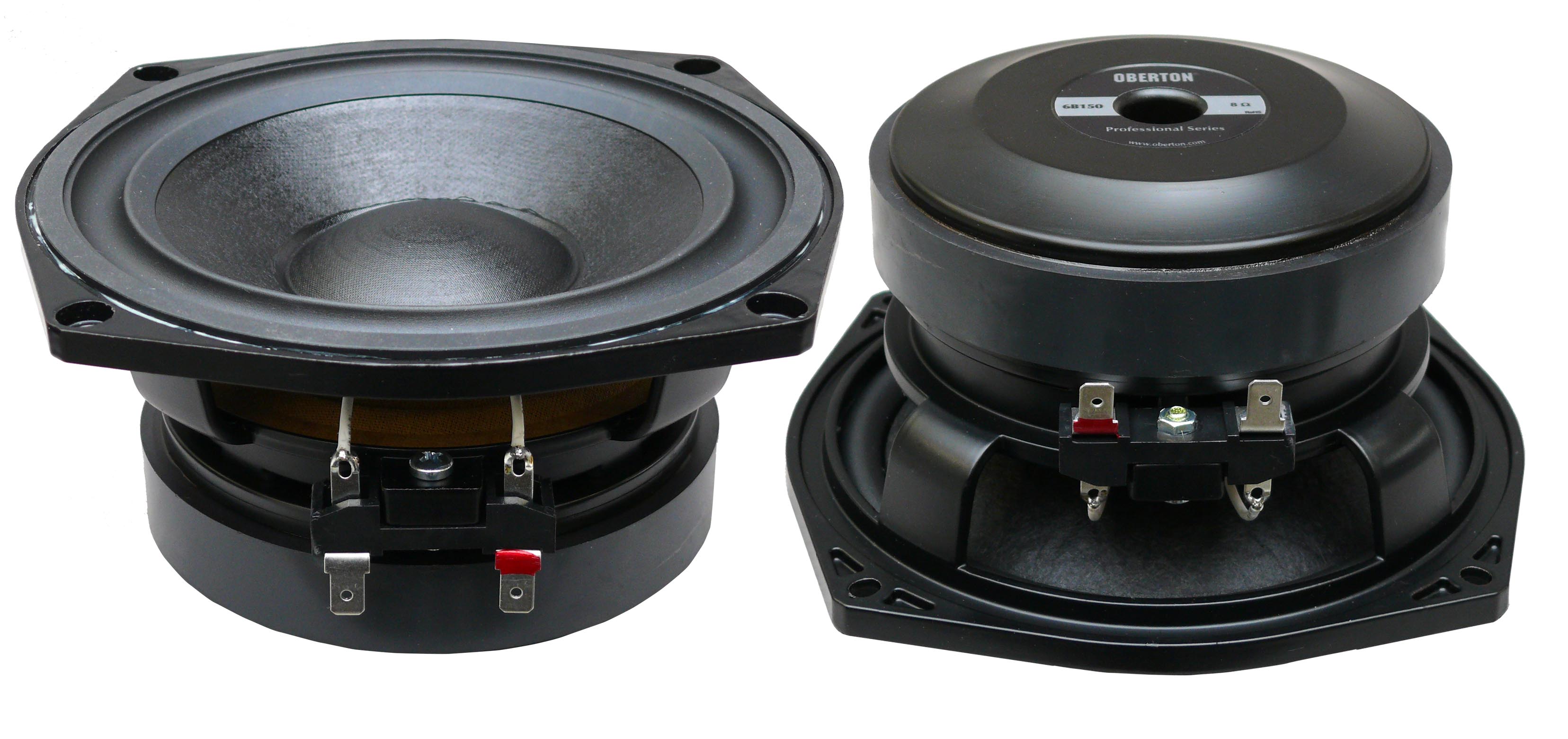

Oberton 6B150 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
93,00 €*
|
| Bis 4 |
92,50 €*
|
| Bis 6 |
92,00 €*
|
| Ab 7 |
91,00 €*
|
Versandfertig in 90 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11510
Produktinformationen "Oberton 6B150 8 Ohm"
- Oberton 6B150
- 92 db 1W / 1m average sensitivity
- 38 mm high temperature cooper voice coil
- 300 W AES program power
- Ferrite 121 mm magnet structure
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 6B150 8 Ohm SPECIFICATIONS
|

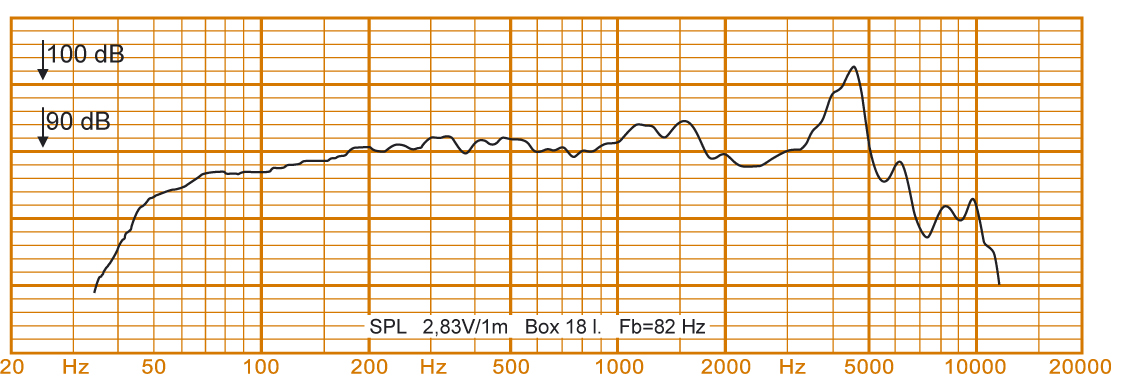

Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
6.5"/170 mm 8 Ohm 6.4 Ohm 150 W 300 W (200-2000 Hz) 92 dB/W/m 60 - 3000 Hz 38 mm Cooper Kapton™ 14 mm 7 mm Paper with glassfiber Die cast aluminium Ferrite 1.2 T |
THIELE-SMALL PARAMETERS 6B150
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
55.04 Hz 4.72 0.311 0.292 14.61 Litres 16.38 grams 5.60 Ohms 127 cm2 ± 5.5 mm 0.51 mm/N 10.11 T.m 0.79 mH |

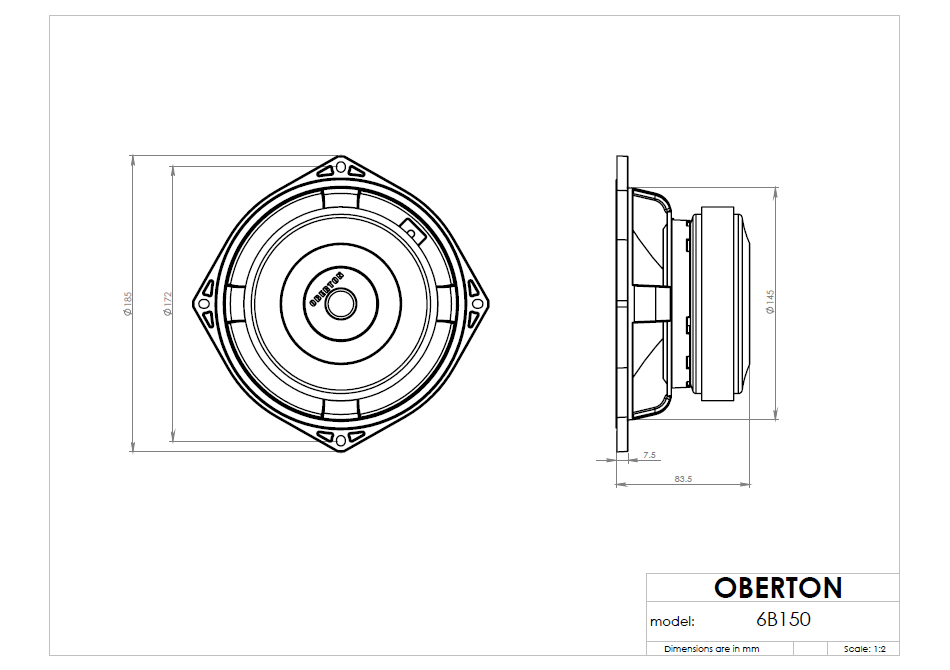

MOUNTING INFORMATION
| Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
185 mm 145 mm 4 eliptic 5.5/6.5 mm 170/172 mm 83.5 mm 2.41 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 6" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
