Oberton 6NMB200V 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
177,00 €*
|
| Bis 4 |
175,00 €*
|
| Bis 6 |
174,00 €*
|
| Ab 7 |
172,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11477
Produktinformationen "Oberton 6NMB200V 8 Ohm"
- Oberton 6NMB200V
- 96 db 1W / 1m average sensitivity
- 51 mm high temperature voice coil
- 400 W AES program power
- Double aluminium demodulating rings for lower distortion and inductance and improved transient response
- Water protected cone (front)
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 6NMB200V 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |

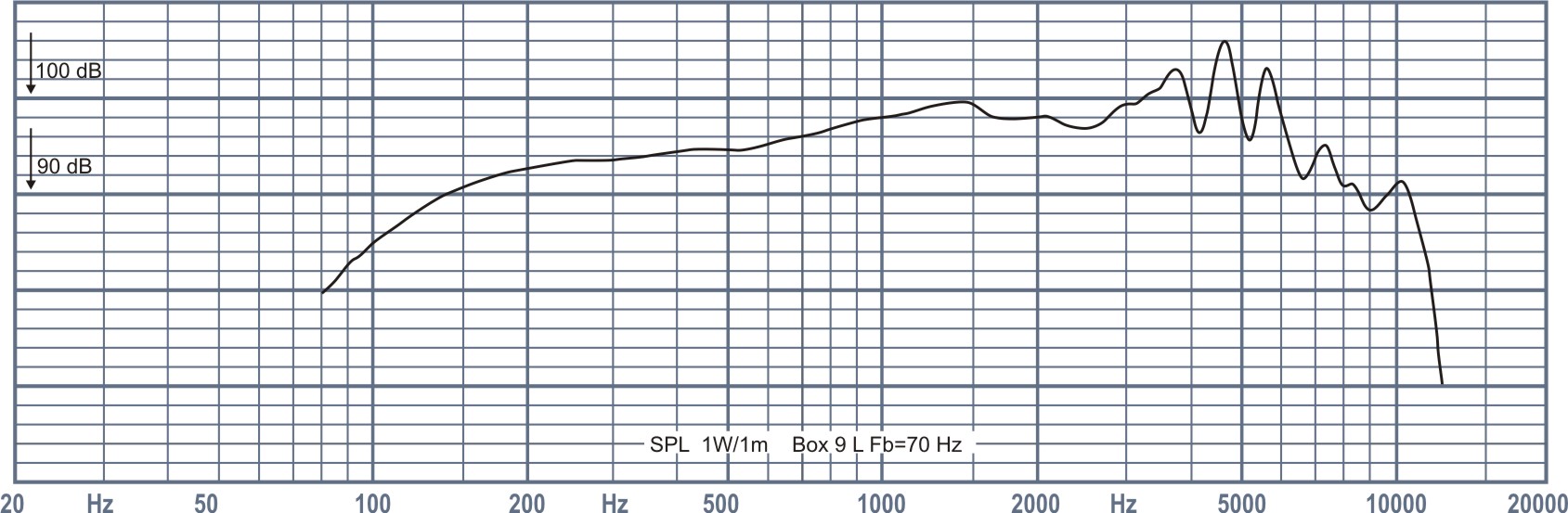

6.5"/170 inch/mm 16 Ohm 12.48 Ohm 200 W 400 W (200-3000 Hz) 96 dB/W/m 200 – 5000 Hz 51 mm Aluminium Glass fiber 12.5 mm 7 mm Paper with carbon fibers Die cast aluminium Neodymium 1.37 T |
THIELE-SMALL PARAMETERS 6NMB200V
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
79.00 Hz
5.82
0.279
0.267
9.53 Litres
12.19 grams
10.70 Ohms
139 cm2
± 4.5 mm
0.333 mm/N
15.22 T.m
0.383 mH
|

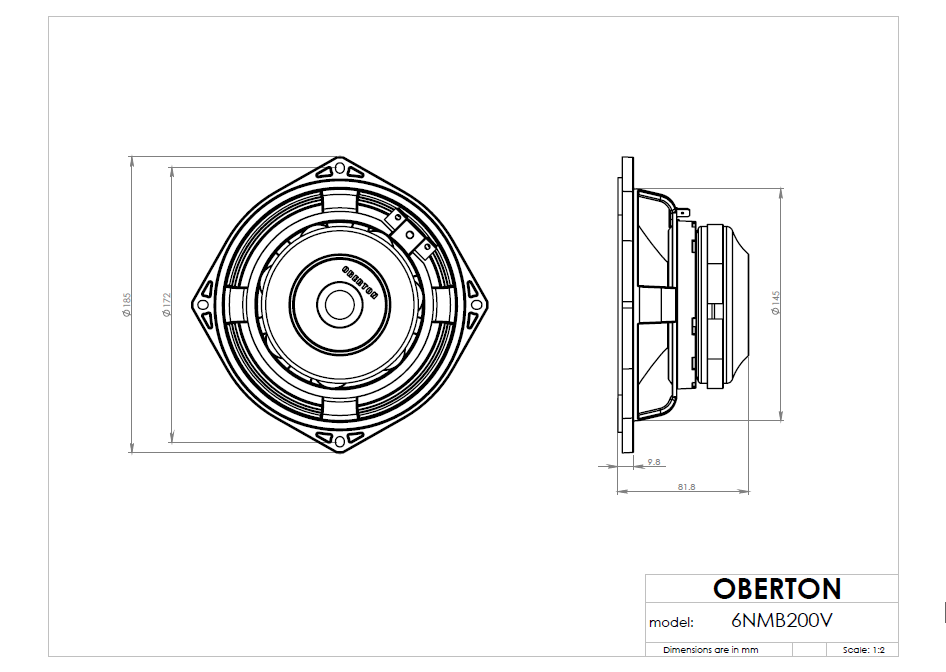

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
185 mm 145 mm 4 elliptic 5.5 / 6.5 mm 170/172 mm 81.8 mm 1.62 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 6" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
