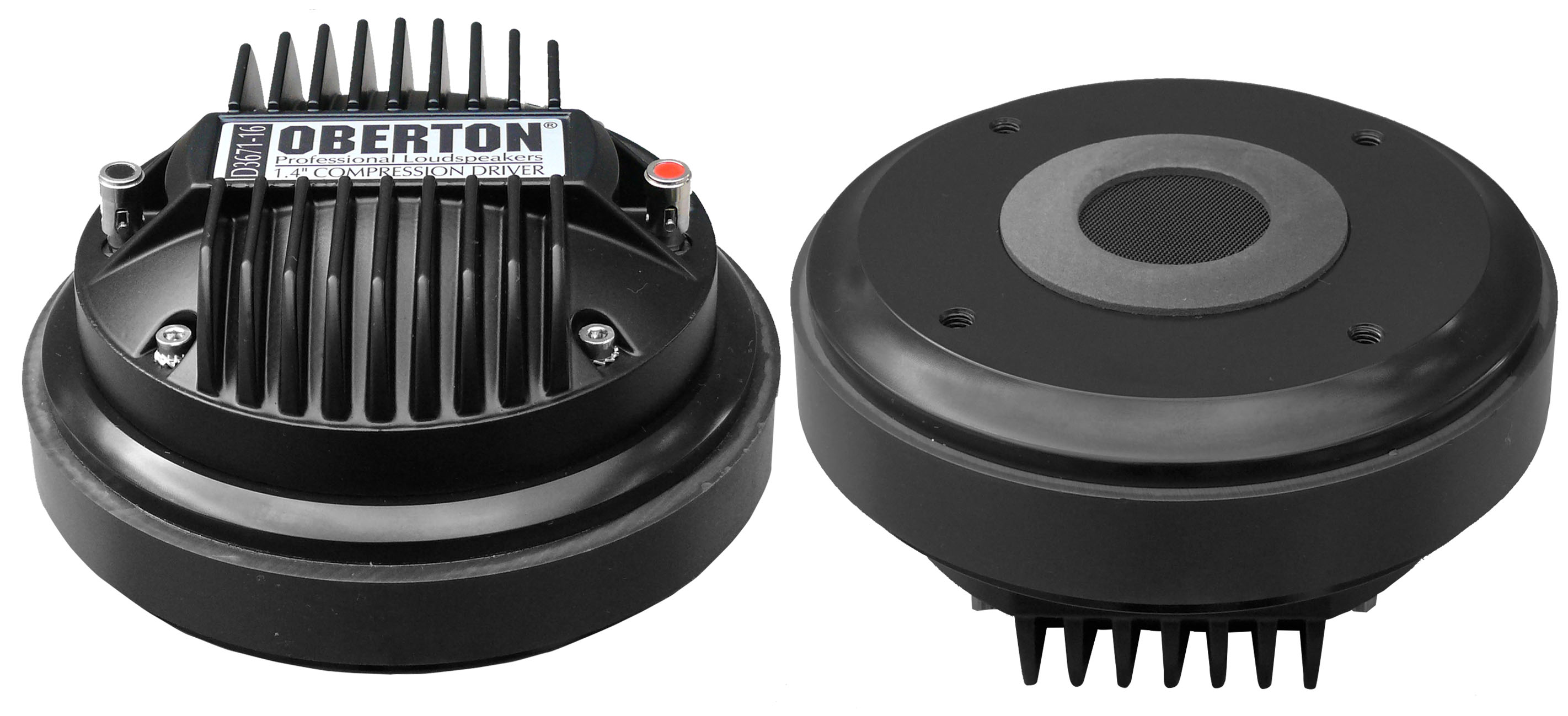

Oberton D3671 16 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
145,00 €*
|
| Bis 4 |
144,00 €*
|
| Bis 6 |
143,00 €*
|
| Ab 7 |
141,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11569
Produktinformationen "Oberton D3671 16 Ohm"
- Oberton D3671 16 Ohm
- 1.4" Throat diameter
- 72 mm (2,85 in.) voice coil
- 150 W Program Power Capacity (1-20 kHz)
- 109 dB Sensitivity (2-15 kHz)
- Frequency range 0,5 - 15 kHz
- Special anti-corrosion coating

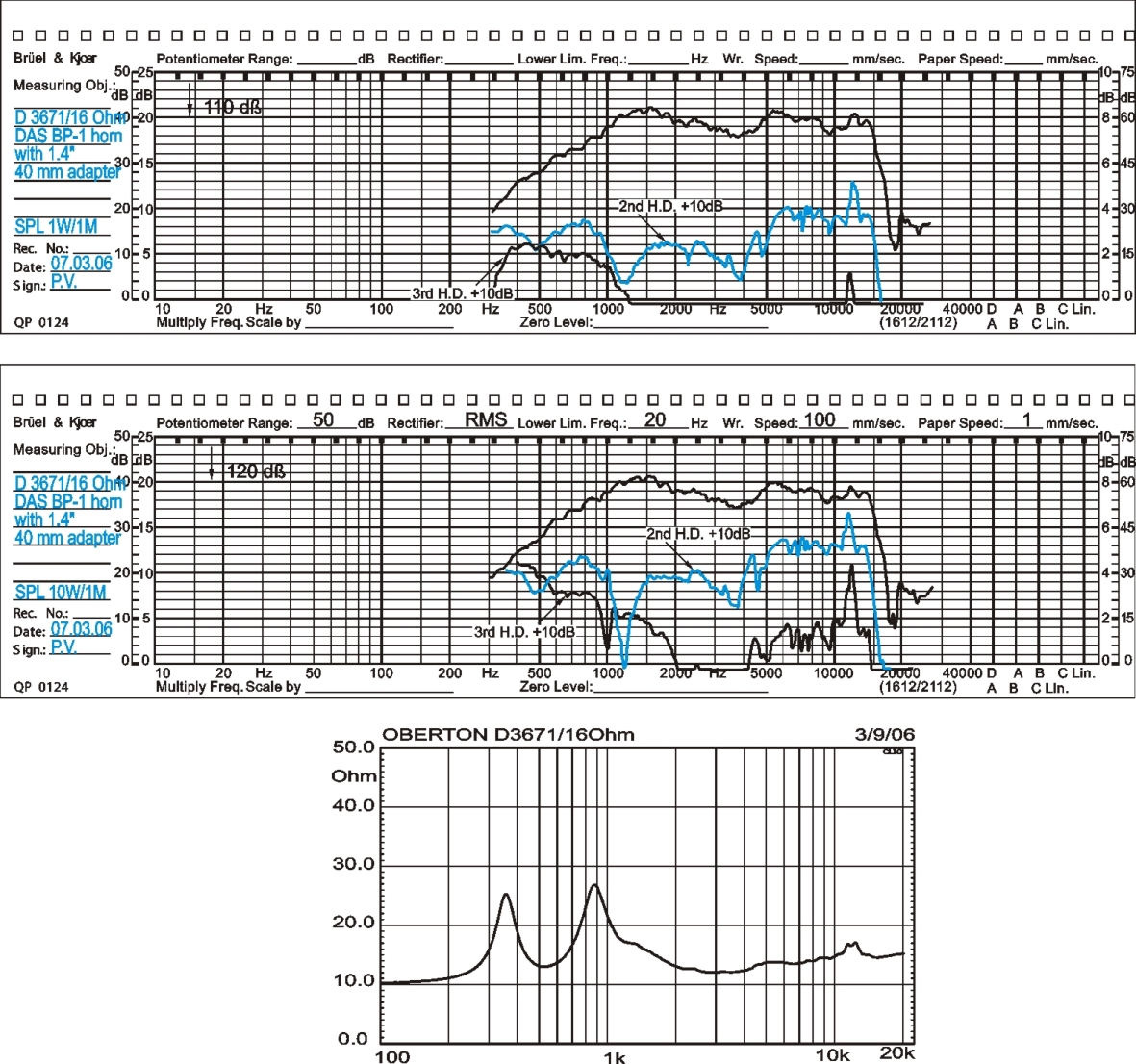

Oberton D3671 16 Ohm SPECIFICATIONS
|
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz) Sensitivity (2-15 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
36 mm (1.4 in.) 8/16 Ohms 7.8/12 Ohms 6.5/10 Ohms 75 W 150 W 109 dB 0,5 - 15 kHz 0,8 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 1,6 T |
MATERIALS OF CONSTRUCTON
|
Diaphragm Voice coil material Voice coil former |
sandwich polyester Aluminium Kapton™ |

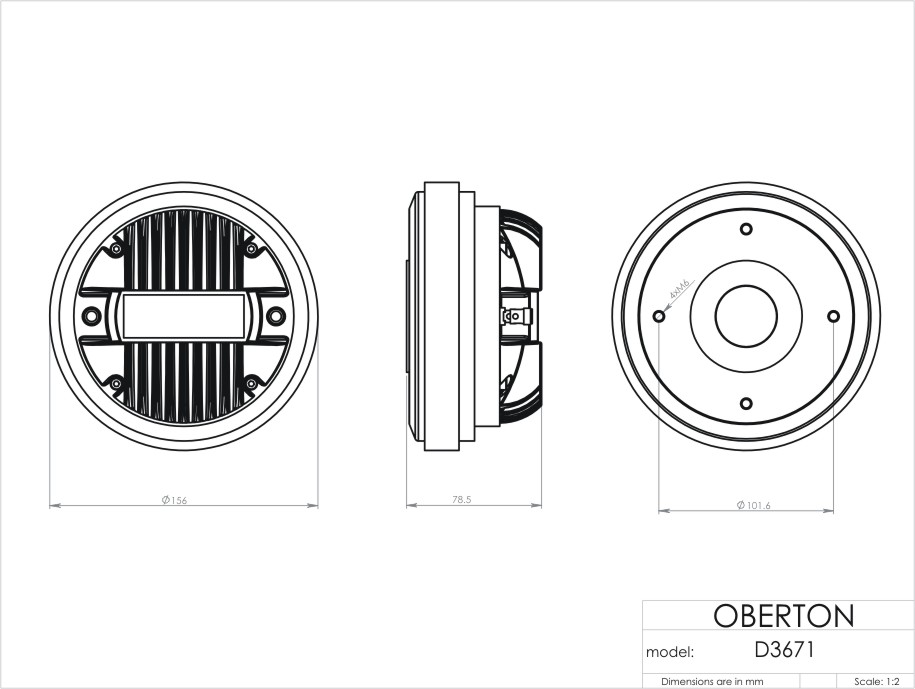

MOUNTING INFORMATION
|
Overall diameter |
156 mm |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1,4" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 16 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
