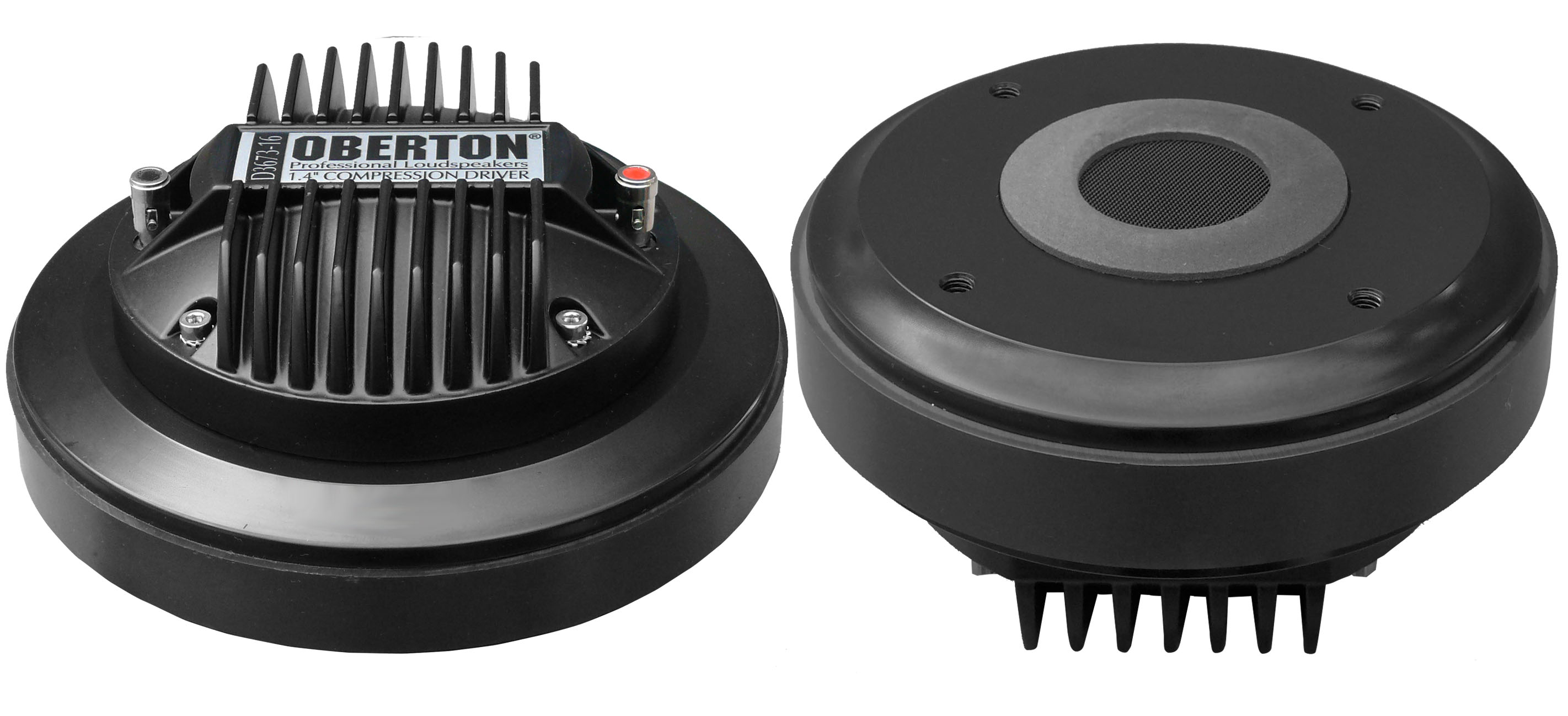

Oberton D3673 16 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
204,00 €*
|
| Bis 4 |
202,00 €*
|
| Bis 6 |
201,00 €*
|
| Ab 7 |
199,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11567
Produktinformationen "Oberton D3673 16 Ohm"
- Oberton D3673 16 Ohm
- 1.4" Throat diameter
- 72 mm (2,85 in.) voice coil
- 160 W Program Power Capacity (1-20 kHz)
- 110.5 dB Sensitivity (2-15 kHz)
- Frequency range 0,6 - 17 kHz
- Special anti-corrosion coating

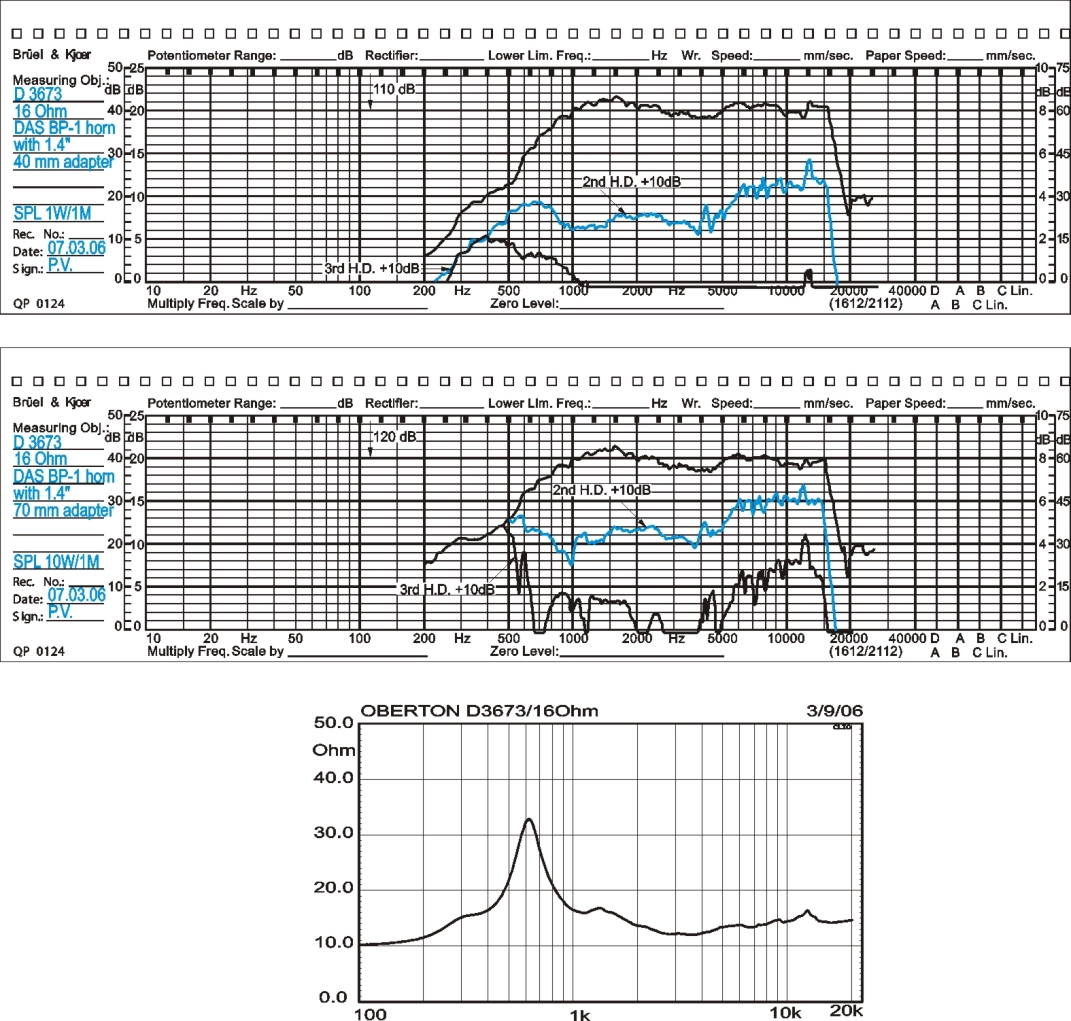

Oberton D3673 16 Ohm SPECIFICATIONS
|
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz) Sensitivity (2-15 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
36 mm (1.4 in.) 8/16 Ohms 7.8/12 Ohms 6.5/10 Ohms 80 W 160 W 110,5 dB 0,6 - 17 kHz 0,8 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 1,85 T |
MATERIALS OF CONSTRUCTON
|
Diaphragm Voice coil material Voice coil former |
sandwich polyester Aluminium Kapton™ |

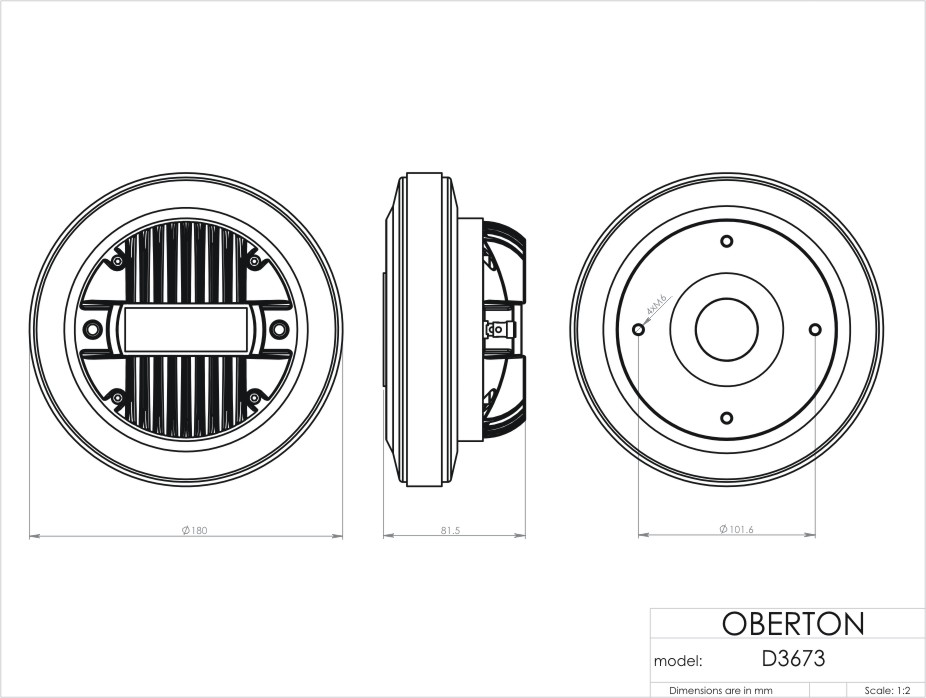

MOUNTING INFORMATION
|
Overall diameter Depth Mounting Net weight |
180 mm 83 mm 4 x M6 on 101,6 mm (4 in.) diameter 6,9 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1,4" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 16 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
