Oberton D3662 8 Ohm

Produktinformationen "Oberton D3662 8 Ohm"
  • Oberton D3662 8 Ohm
  • 1.4" Throat diameter
  • 62 mm (2,5 in.) voice coil
  • 130 W Program Power Capacity (1-20 kHz)
  • 109 dB Sensitivity (2-15 kHz)
  • Frequency range 0,8 - 18 kHz
  • Special anti-corrosion coating

Oberton D3662 8 Ohm SPECIFICATIONS

Throat diameter
Nominal impedance
Minimum impedance
D.C. resistance
Power capacity (1-20 kHz)
Program Power Capacity (1-20 kHz)
Sensitivity (2-15 kHz)
Frequency range
Recommended crossover
Voice coil diameter
Flux density
36 mm (1.4 in.)
8 / 16 Ohms
7.09 / 12,97 Ohms
5.37 / 10.56 Ohms
65 W
130 W
109 dB
0,8 - 18 kHz
1.2 kHz or higher 12 dB/oct.min
62 mm (2.5 in.)
1.7 T

MATERIALS OF CONSTRUCTON

Diaphragm
Voice coil material
Voice coil former
sandwich polyester
Aluminium
Kapton™

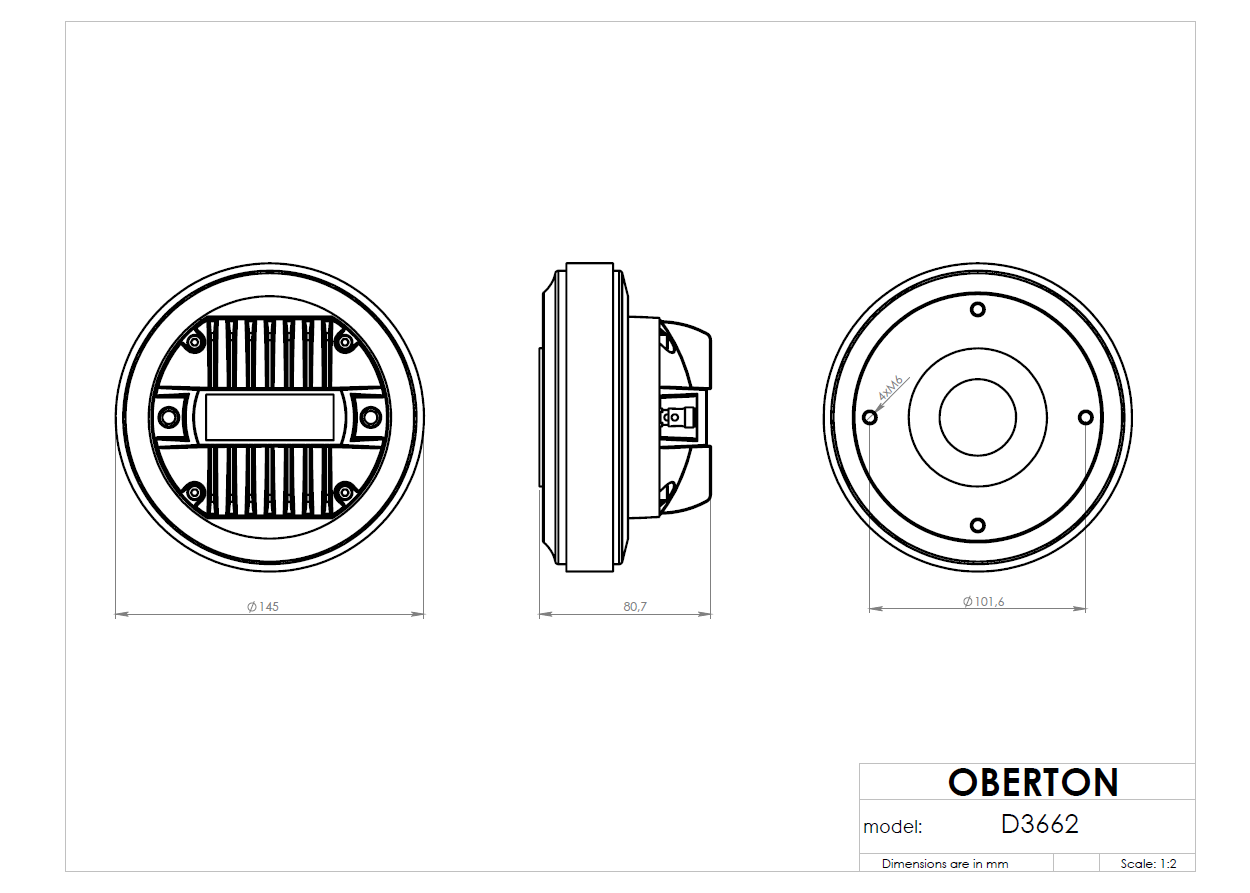

MOUNTING INFORMATION

Overall diameter
Depth
Mounting
Net weight
145 mm
80.7 mm
4 x M6 on 101,6 mm (4 in.) diameter
3,65 kg
Coaxial: NEIN
Diaphragma / Dome: Mylar / Polyester / Polyethylen / Kunststoffe
Größe: 1,4"
Hochtöner Bauform: Kompressionstreiber
Impedanz: 8 Ohm
Magnet: Ferrit
Sperrgut: NEIN
