Anzahl | Stückpreis |
---|---|
Bis 2 |
233,00 €*
|
Bis 4 |
231,00 €*
|
Bis 6 |
229,00 €*
|
Ab 7 |
227,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11558
Produktinformationen "Oberton D72CN 8 Ohm"
- Oberton D72CN 8 Ohm
- 1.4" Throat diameter
- 72 mm (2,85 in.) voice coil
- 200 W Program Power Capacity (1-20 kHz)
- 109 dB Sensitivity (1-10kHz)
- Frequency range 0,5 - 18 kHz
- Special anti-corrosion coating
Oberton D72CN 8 Ohm SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz) Sensitivity (1-10 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
36 mm (1.4 in.) 8 / 16 Ohms 8.48 / 11.7 Ohms 6.78 / 10 Ohms 100 W 200 W 109 dB 0,5 - 18 kHz 1 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 1,85 T |
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former |
Carbon composite CCAW Kapton™ |

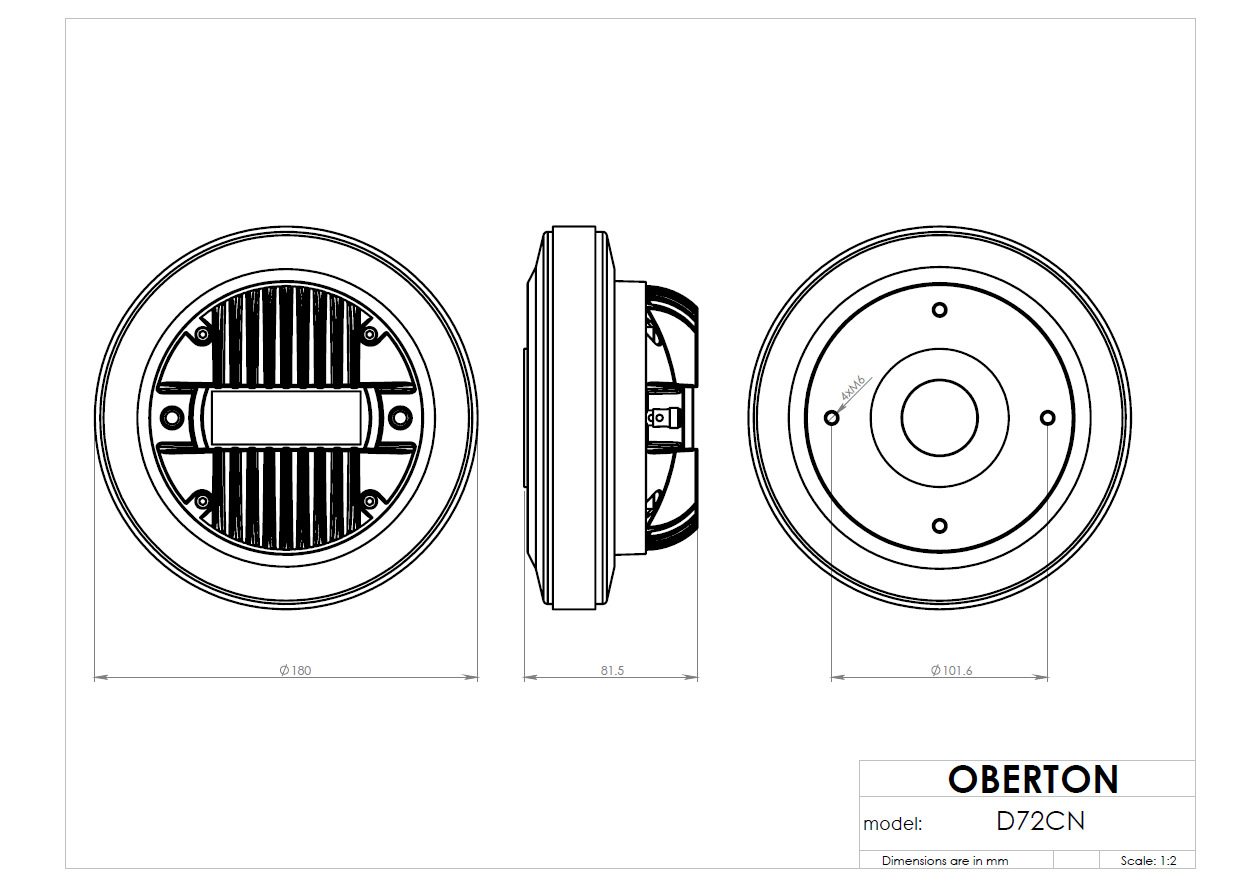

MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight |
180 mm 81.5 mm 4 x M6 on 101,6 mm (4 in.)diameter 6.9 kg |
Coaxial: | NEIN |
---|---|
Diaphragma / Dome: | Beryllium / Nitride coated / Carbon |
Größe: | 1,4" |
Hochtöner Bauform: | Kompressionstreiber |
Impedanz: | 8 Ohm |
Magnet: | Ferrit |
Sperrgut: | NEIN |
