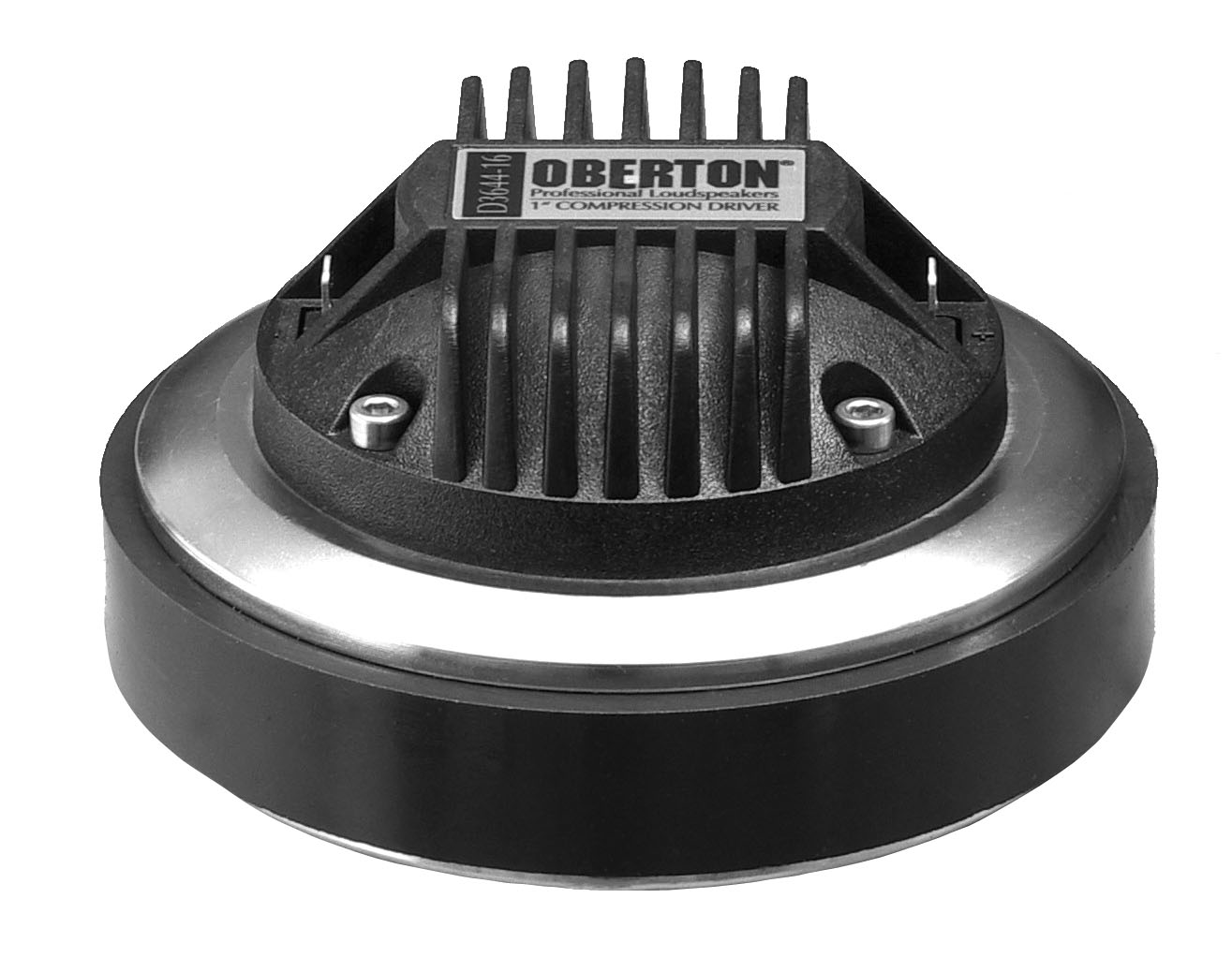

Oberton D3644 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
121,00 €*
|
| Bis 4 |
120,00 €*
|
| Bis 6 |
119,00 €*
|
| Ab 7 |
118,00 €*
|
Versandfertig in 40 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11572
Produktinformationen "Oberton D3644 8 Ohm"
- Oberton D3644 8 Ohm
- 1.4" Throat diameter
- 44 mm (1.75 in.) voice coil
- 80 W Program Power Capacity (2-20 kHz)
- 109 dB Sensitivity (1 -5 kHz)
- Frequency range 0.8 - 20 kHz
- New phase plug design
- Copper inductance ring for extended response
- Vented suspension
- Very low distortion
Oberton D3644 8 Ohm SPECIFICATIONS
|
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (2-20 kHz) Program Power Capacity (2-20 kHz) Sensitivity (1-5 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
36 mm (1.4 in.) 8/16 Ohms 7.46/12.45 Ohms 5.75/10.48 Ohms 40 W 80 W 109 dB 0.8 - 20 kHz 1.2 kHz or higher 12 dB/oct.min 44 mm (1.75 in.) 1.75 T |
MATERIALS OF CONSTRUCTON
|
Diaphragm Voice coil material Voice coil former |
sandwich polyester Aluminium Kapton™ |

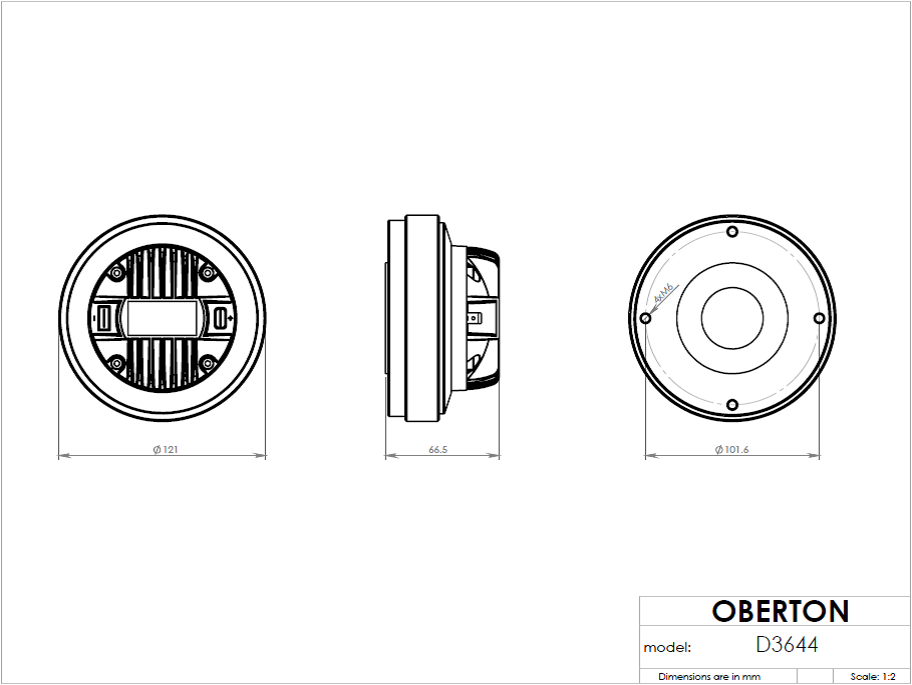

MOUNTING INFORMATION
|
Overall diameter Depth Mounting Net weight |
121 mm 66 mm 4 x M6 on 101,6 mm (4 in.) diameter 2.3 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1,4" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
