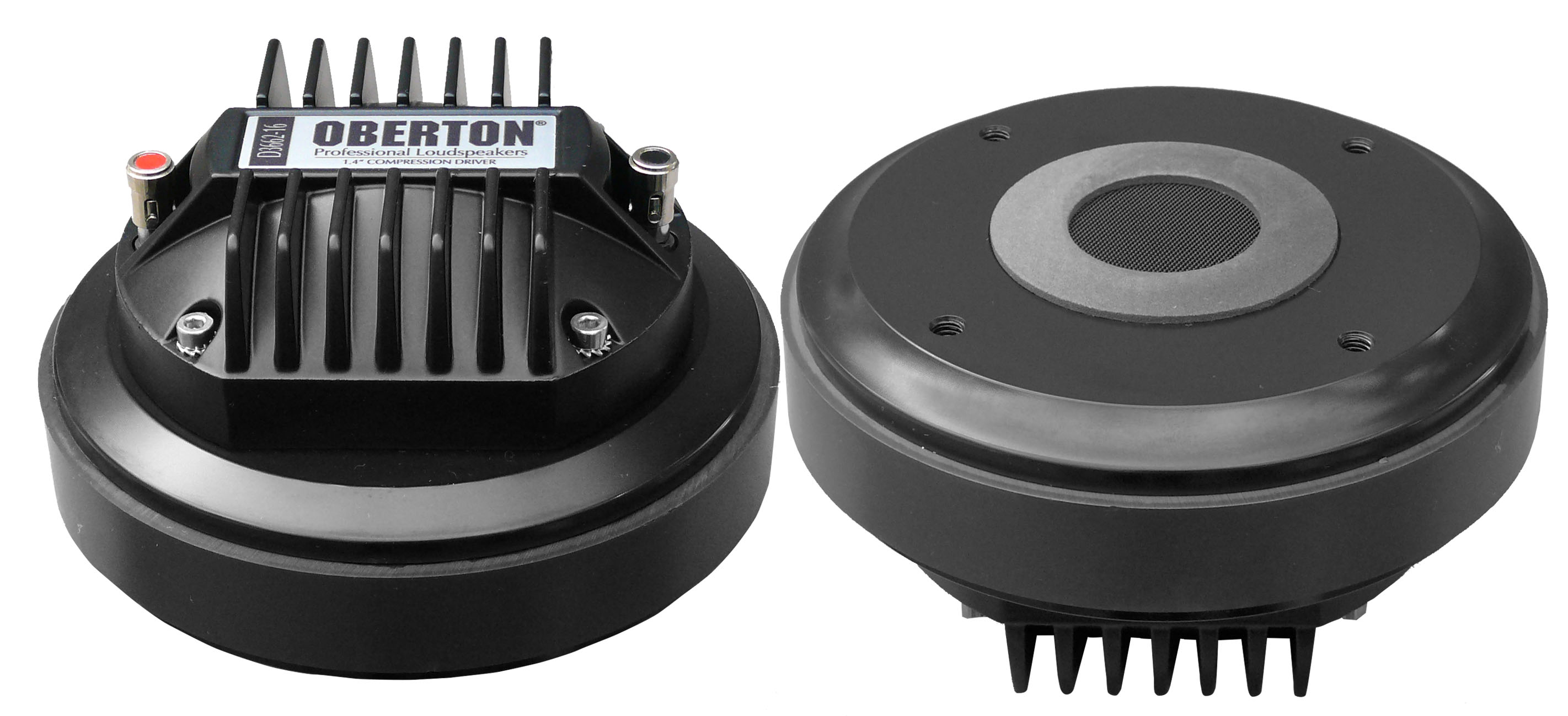

Oberton D3662 16 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
141,00 €*
|
| Bis 4 |
140,00 €*
|
| Bis 6 |
139,00 €*
|
| Ab 7 |
138,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11571
Produktinformationen "Oberton D3662 16 Ohm"
- Oberton D3662 16 Ohm
- 1.4" Throat diameter
- 62 mm (2,5 in.) voice coil
- 130 W Program Power Capacity (1-20 kHz)
- 109 dB Sensitivity (2-15 kHz)
- Frequency range 0,8 - 18 kHz
- Special anti-corrosion coating
Oberton D3662 16 Ohm SPECIFICATIONS
|
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz) Sensitivity (2-15 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
36 mm (1.4 in.) 8 / 16 Ohms 7.09 / 12,97 Ohms 5.37 / 10.56 Ohms 65 W 130 W 109 dB 0,8 - 18 kHz 1.2 kHz or higher 12 dB/oct.min 62 mm (2.5 in.) 1.7 T |
MATERIALS OF CONSTRUCTON
|
Diaphragm Voice coil material Voice coil former |
sandwich polyester Aluminium Kapton™ |

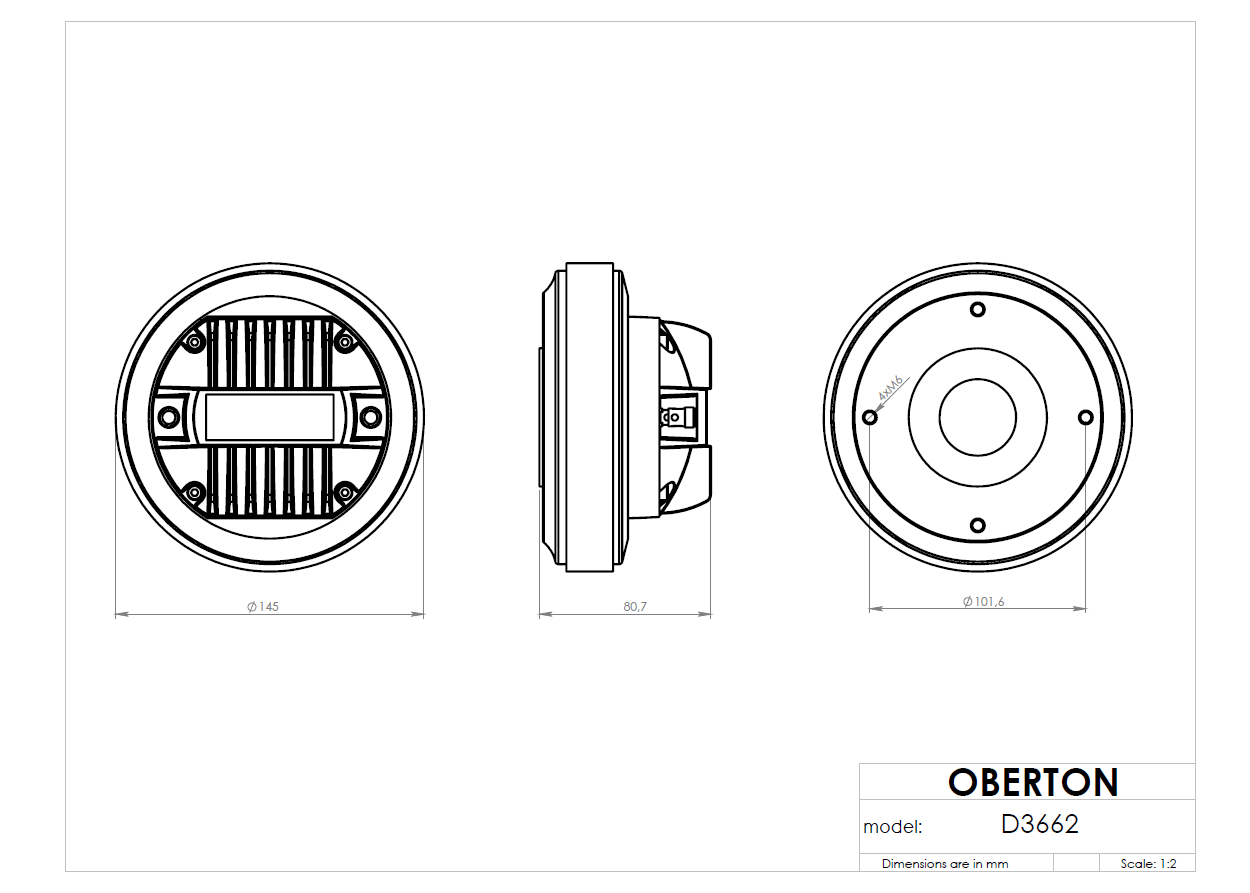

MOUNTING INFORMATION
|
Overall diameter Depth Mounting Net weight |
145 mm 80.7 mm 4 x M6 on 101,6 mm (4 in.) diameter 3,65 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1,4" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 16 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
