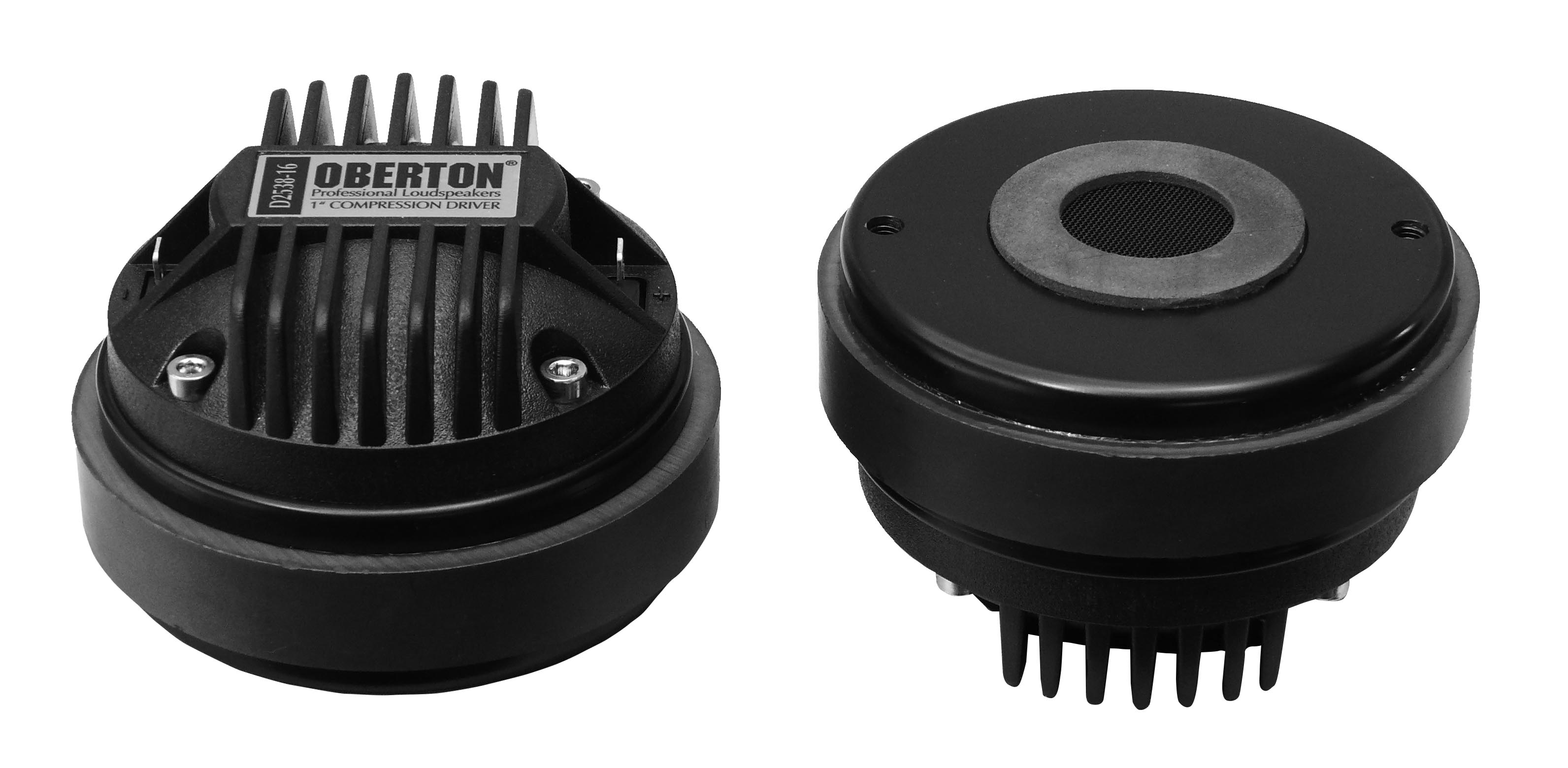

Oberton D2538 16 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
65,00 €*
|
| Bis 4 |
64,30 €*
|
| Bis 6 |
64,00 €*
|
| Ab 7 |
63,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11580
Produktinformationen "Oberton D2538 16 Ohm"
- Oberton D2538 16 Ohm
- 1" Throat diameter
- 38 mm (1.5 in.) voice coil
- 60 W Program Power Capacity (2-20 kHz)
- 105.5 dB Sensitivity (2-15 kHz)
- Frequency range 1.5 - 18 kHz
- Special anti-corrosion coating
Oberton D2538 16 Ohm SPECIFICATIONS
|
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (2-20 kHz) Program Power Capacity (2-20 kHz) Sensitivity (2-15 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
25.4 mm (1 in.) 8 / 16 Ohms 6.77 / 10.26 Ohms 5.43 / 8.93 Ohms 30 W 60 W 105.5 dB 1.5 - 18 kHz 2 kHz or higher 12 dB/oct.min 38 mm (1.5 in.) 1.50 T |
MATERIALS OF CONSTRUCTON
|
Diaphragm Voice coil material Voice coil former |
sandwich polyester Copper Clad Aluminium Kapton™ |

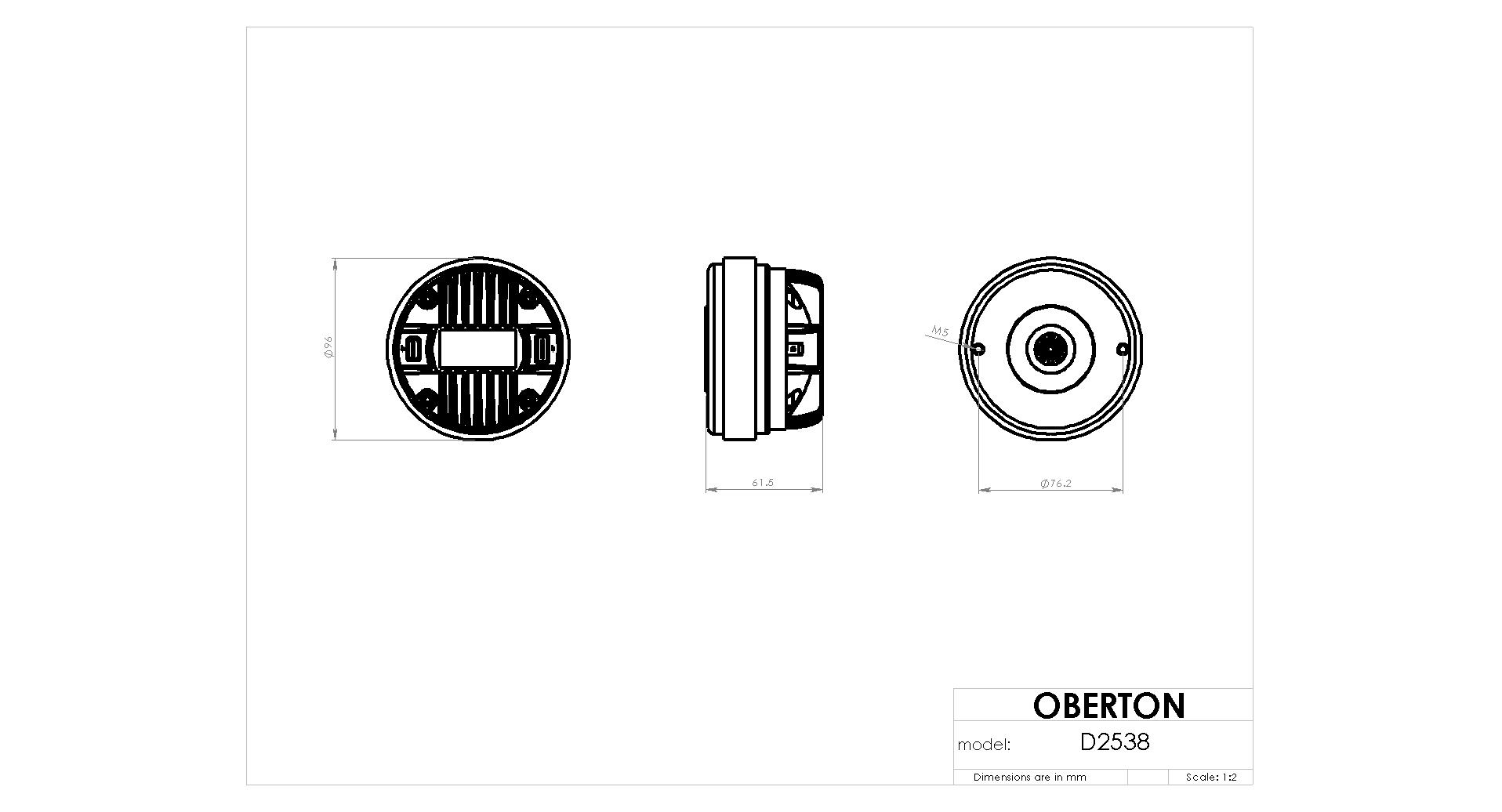

MOUNTING INFORMATION
|
Overall diameter Depth Mounting Net weight |
96 mm 66 mm 2 x M5 holes 180° on 76.2 mm (3 in.)diam 1.31 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 16 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
