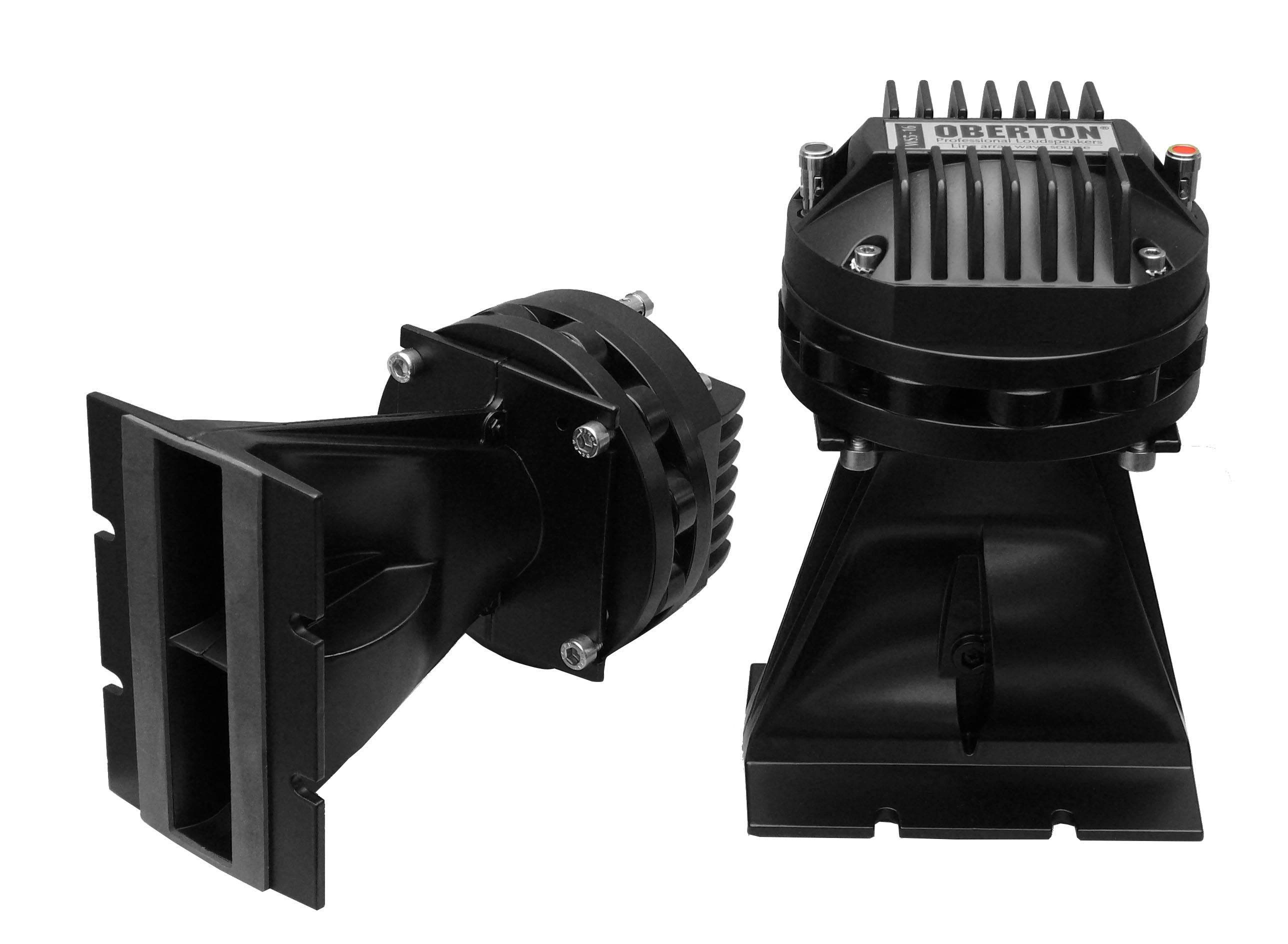

Oberton WS5 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
298,00 €*
|
| Bis 4 |
295,00 €*
|
| Bis 6 |
292,00 €*
|
| Ab 7 |
290,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11582
Produktinformationen "Oberton WS5 8 Ohm"
- Oberton WS5 8 Ohm
- Nominal exit 127 x 25,4 mm (5" x 1")
- 62 mm (2.5") voice coil diameter
- 130 W Program Power Capacity (1-20 kHz)

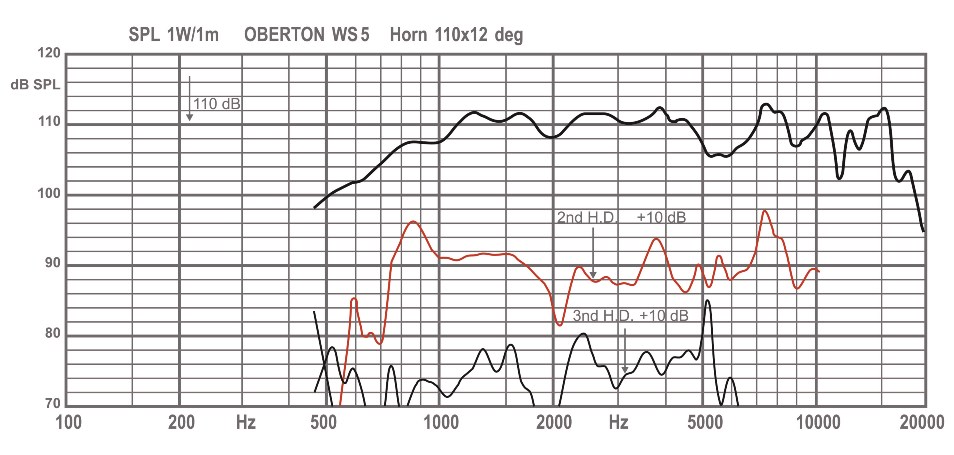

- 110 dB Sensitivity (1-15 kHz)
- Frequency range 0.8 - 18 kHz
- Neodymium magnetic structure
- Special anti-corrosion coating
Oberton WS5 8 Ohm SPECIFICATIONS
|

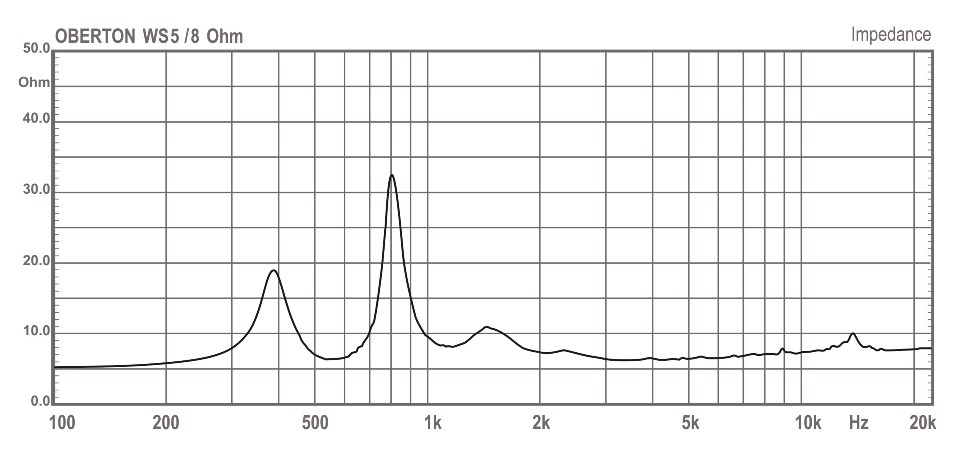

Nominal exit Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz) Sensitivity (1-15 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
127 x 25,4 mm (5 x 1 in) 8/16 Ohms 6,17 / 12.98 Ohms 5,04 / 10,12 Ohms 65 W 130 W 110 dB 0.8 - 18 kHz 1 kHz or higher 12 dB/oct.min 62 mm (2.5 in.) 1,94 T |
MATERIALS OF CONSTRUCTON
|
Diaphragm Voice coil material Voice coil former |
sandwich polyester Aluminium Kapton™ |

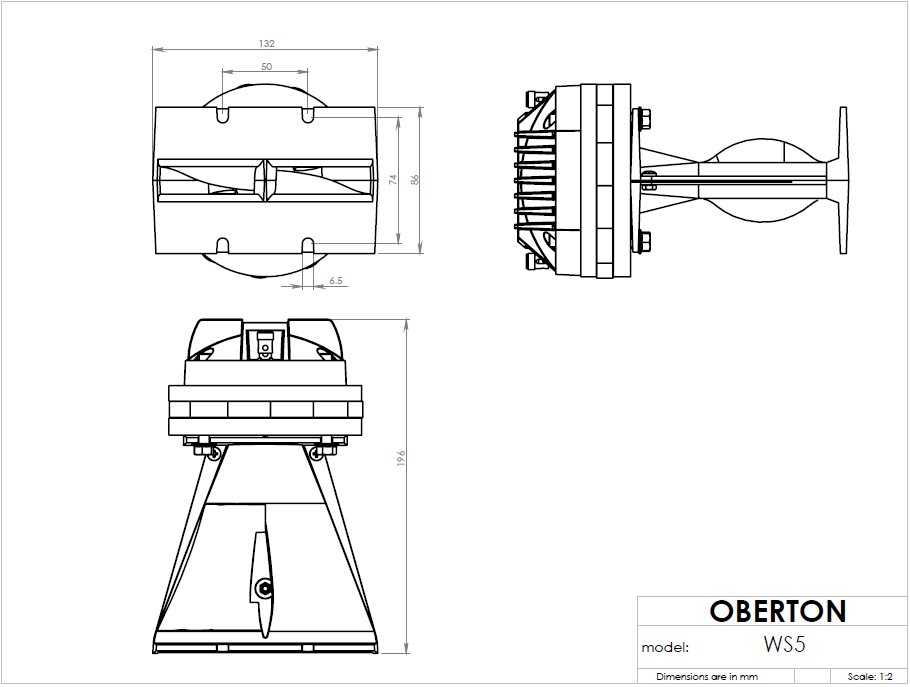

MOUNTING INFORMATION
|
Overall dimensions Depth Mounting Net weight |
115 x 132 mm 196 mm 4 x M6 on 74 x 50 mm 2.5 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
