Oberton WS4 16 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
149,00 €*
|
| Bis 4 |
147,00 €*
|
| Bis 6 |
146,00 €*
|
| Ab 7 |
145,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11585

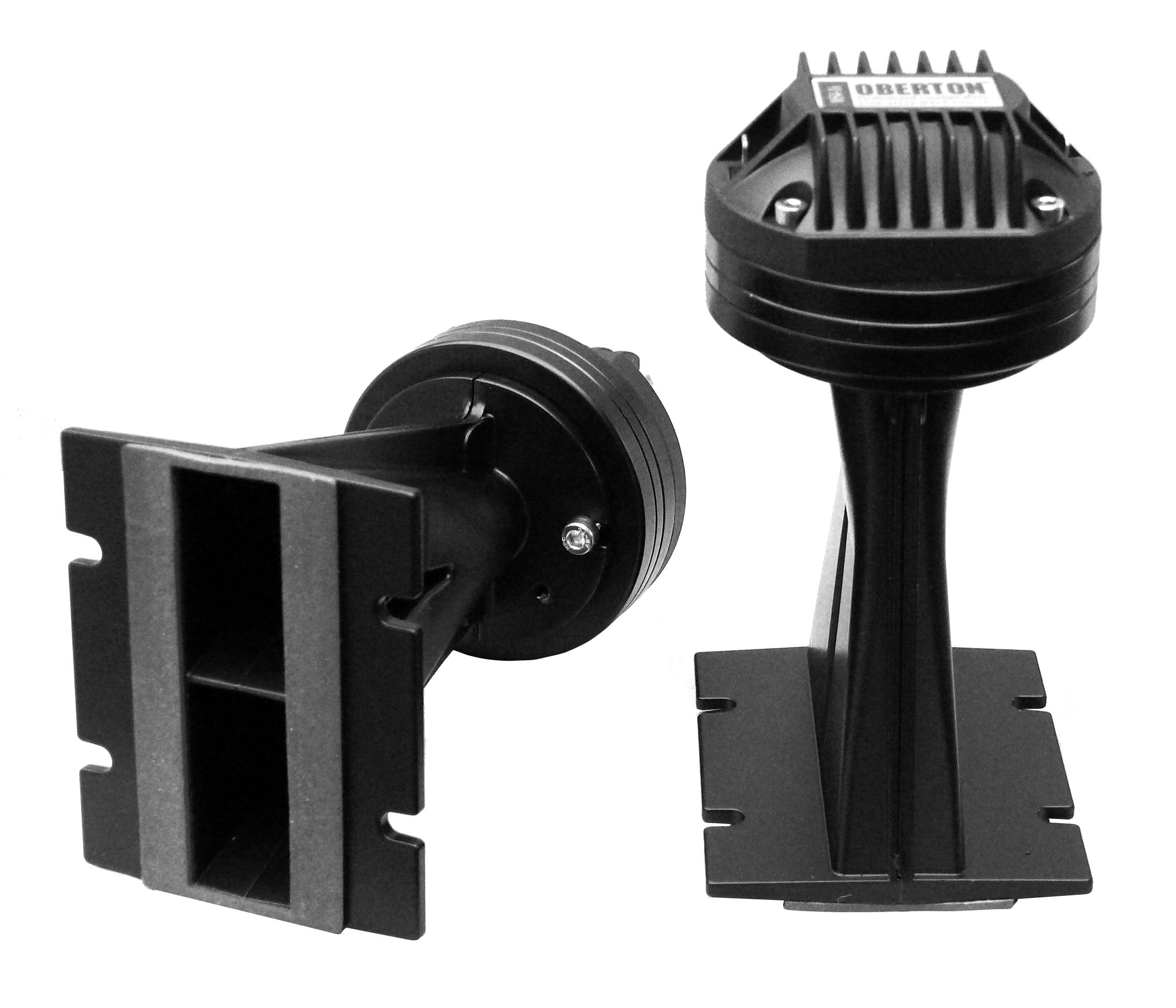

Produktinformationen "Oberton WS4 16 Ohm"
- Oberton WS4 16 Ohm
- Nominal exit 101.6 x 25,4 mm (4" x 1")
- 44 mm (1.75") voice coil diameter
- 80 W Program Power Capacity (1-20 kHz)
- 110 dB Sensitivity (2-15 kHz)
- Frequency range 1 - 18 kHz
- Neodymium magnetic structure
- Special anti-corrosion coating
Oberton WS4 16 Ohm SPECIFICATIONS
|
Nominal exit Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz) Sensitivity (2-15 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
101.6 x 25,4 mm (4 x 1 in) 8/16 Ohms 6,35/12,7 Ohms 5,15/10,8 Ohms 40W 80W 110 dB 1 - 18 kHz 1,5 kHz or higher 12 dB/oct.min 44 mm (1,75 in.) 1,95 T |
MATERIALS OF CONSTRUCTON
|
Diaphragm Voice coil material Voice coil former |
sandwich polyester Aluminium Kapton™ |

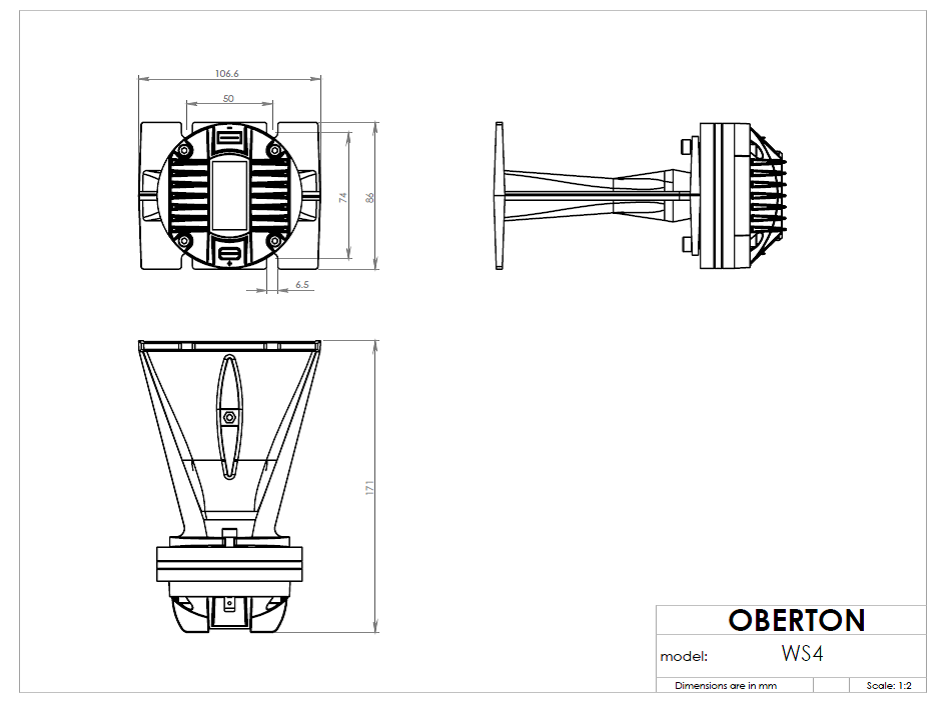

MOUNTING INFORMATION
|
Overall dimensions Depth Mounting Net weight |
87 x 107 mm 170 mm 4 x M5 on 74 x 50 mm 1,3 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 16 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
