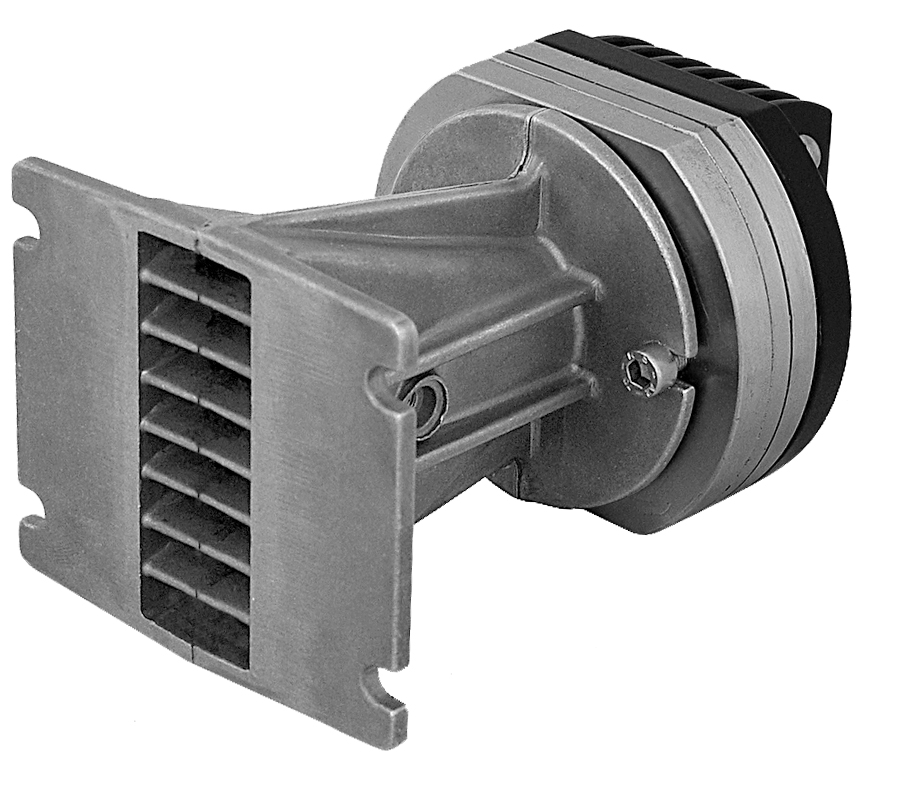

Oberton WS2544 16 Ohm

Produktinformationen "Oberton WS2544 16 Ohm"
  • Oberton WS2544 16 Ohm


    Nominal exit 70 x 25,4 mm (2,75 x 1 in) 44 mm (1.75 in.) voice coil diameter 80 W Program Power Capacity (1-20 kHz) 107.5 dB Sensitivity (2-15 kHz)Frequency range 1 - 20 kHz Neodymium magnetic structure


Oberton WS2544 SPECIFICATIONS

Nominal exit
Nominal impedance
Minimum impedance
D.C. resistance
Power capacity (1-20 kHz)
Program Power Capacity (1-20 kHz)
Sensitivity (2-15 kHz)
Frequency range
Recommended crossover
Voice coil diameter
Flux density
70 x 25,4 mm (2,75 x 1 in)
8/16 Ohms
6,35/12,62 Ohms
5,15/10,8 Ohms
40W
80W
107.5 dB
1 - 20 kHz
1,5 kHz or higher 12 dB/oct.min
44 mm (1,75 in.)
1,9 T


MATERIALS OF CONSTRUCTON

Diaphragm
Voice coil material
Voice coil former
sandwich polyester
Aluminium
Kapton™

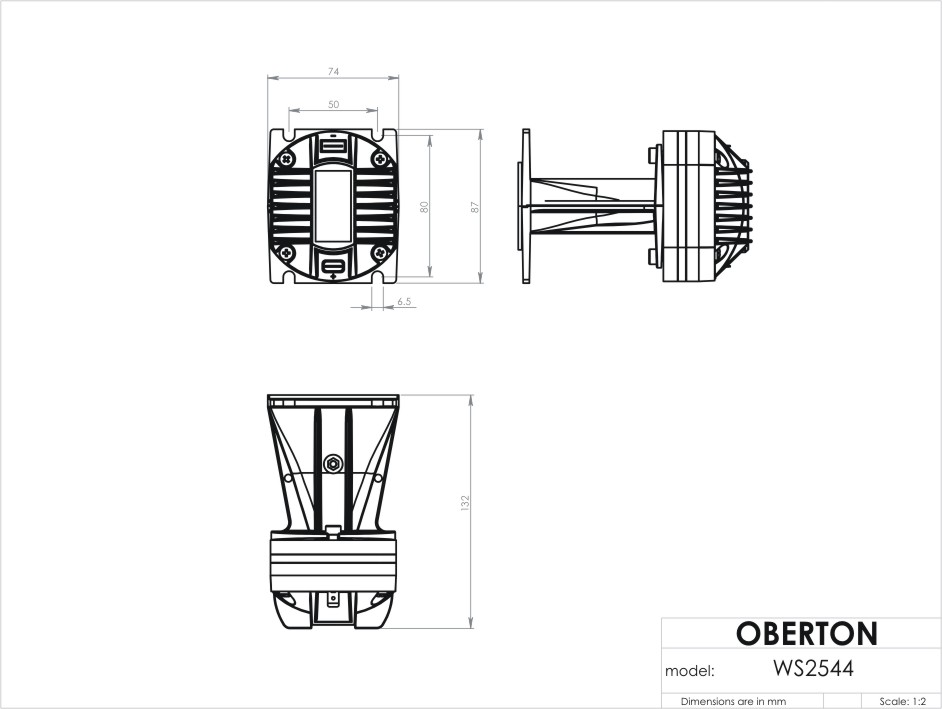

MOUNTING INFORMATION

Overall dimensions
Depth
Mounting
Net weight
87 x 74 mm
130 mm
4 x M5 on 80 x 50 mm
1,05 kg
Coaxial: NEIN
Diaphragma / Dome: Mylar / Polyester / Polyethylen / Kunststoffe
Hochtöner Bauform: Kompressionstreiber
Impedanz: 16 Ohm
Magnet: Neodym
Sperrgut: NEIN
