Oberton NDC72CN 16 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
293,00 €*
|
| Bis 4 |
290,00 €*
|
| Bis 6 |
288,00 €*
|
| Ab 7 |
285,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11557
Produktinformationen "Oberton NDC72CN 16 Ohm"

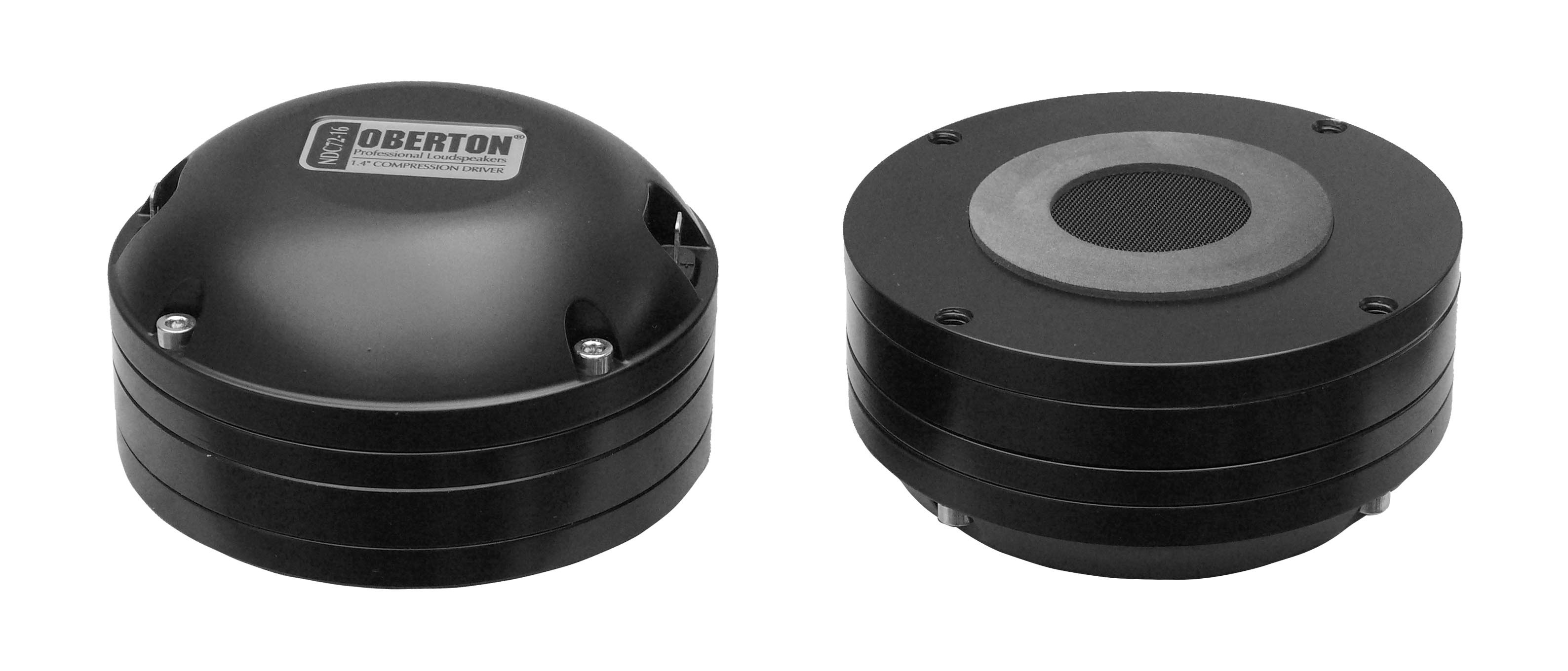

- Oberton NDC72CN
- 1.4" Throat diameter
- 72 mm (2.85 in.) voice coil
- 200 W Program Power Capacity (1-20 kHz)

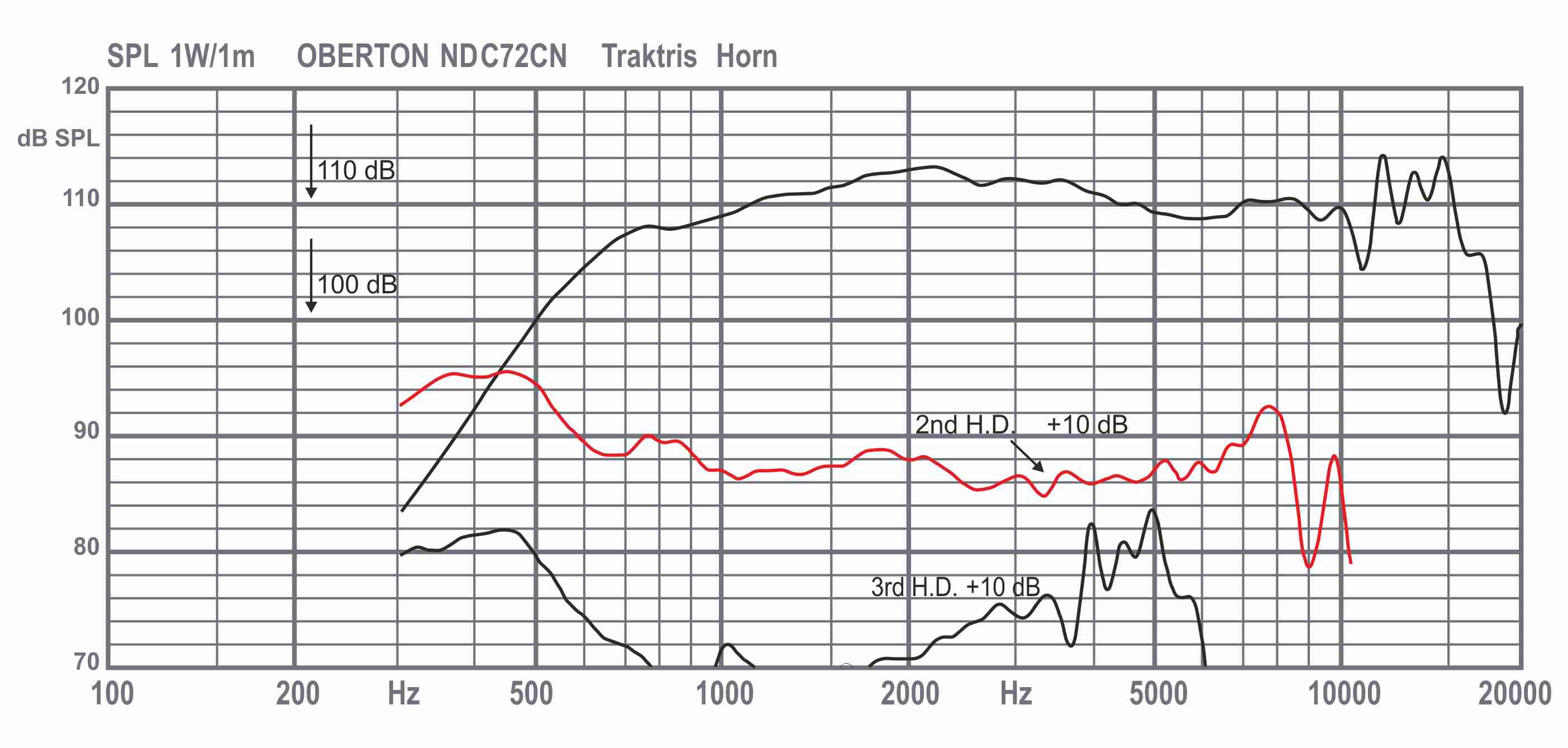

- 111 dB Sensitivity (1-10 kHz)
- Frequency range 0.8 - 18 kHz
- Neodymium magnetic structure
- Special anti-corrosion coating
- Ultra compact design - OD 110 mm
Oberton NDC72CN 16 Ohm SPECIFICATIONS
|

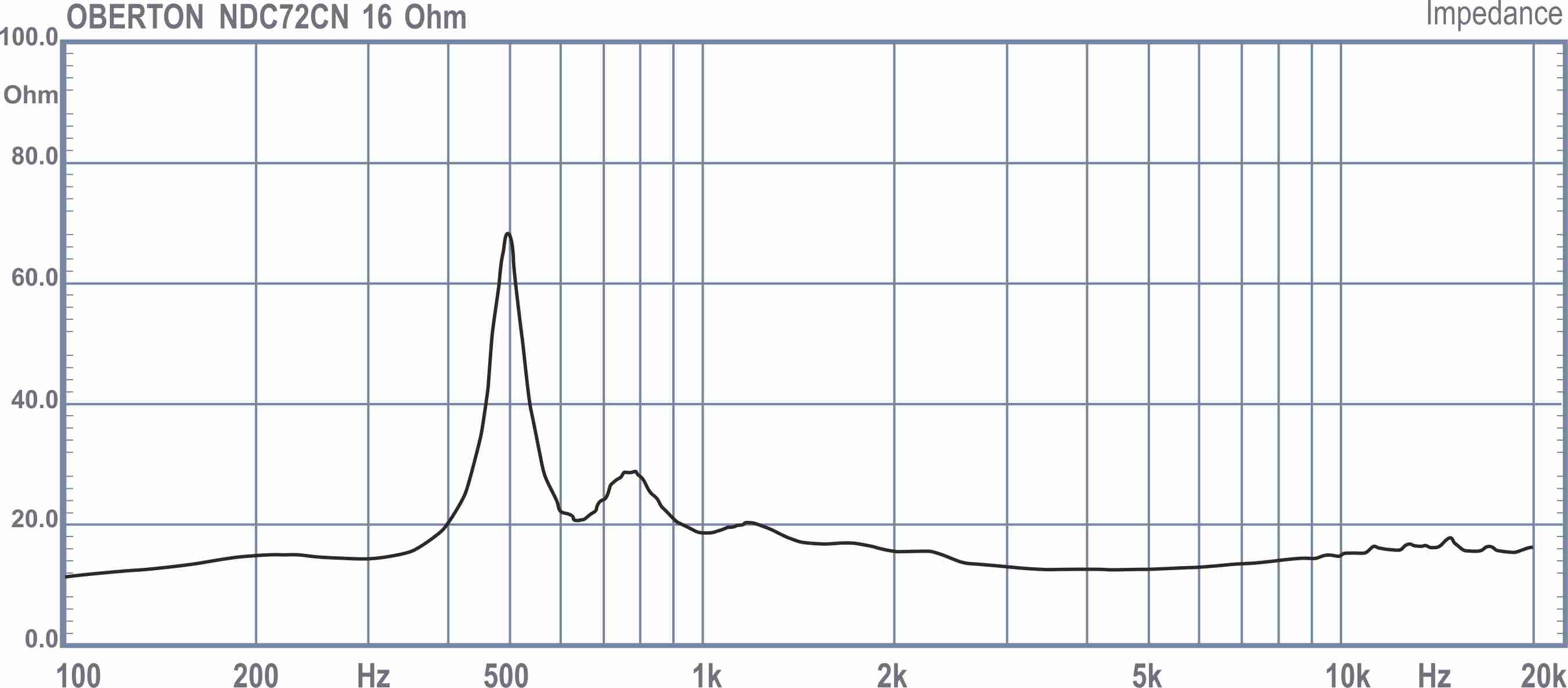

Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz) Sensitivity (1 - 10 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
36 mm (1.4 in.) 16 Ohms 12.7 Ohms 10 Ohms 100 W 200 W 111 dB 0,8 - 18 kHz 1 kHz or higher 12 dB/oct.min 72 mm (2,85 in.) 1.9 T |
THIELE-SMALL PARAMETERS
|
Diaphragm Voice coil material Voice coil former |
Carbon composite CCAW Kapton™ |

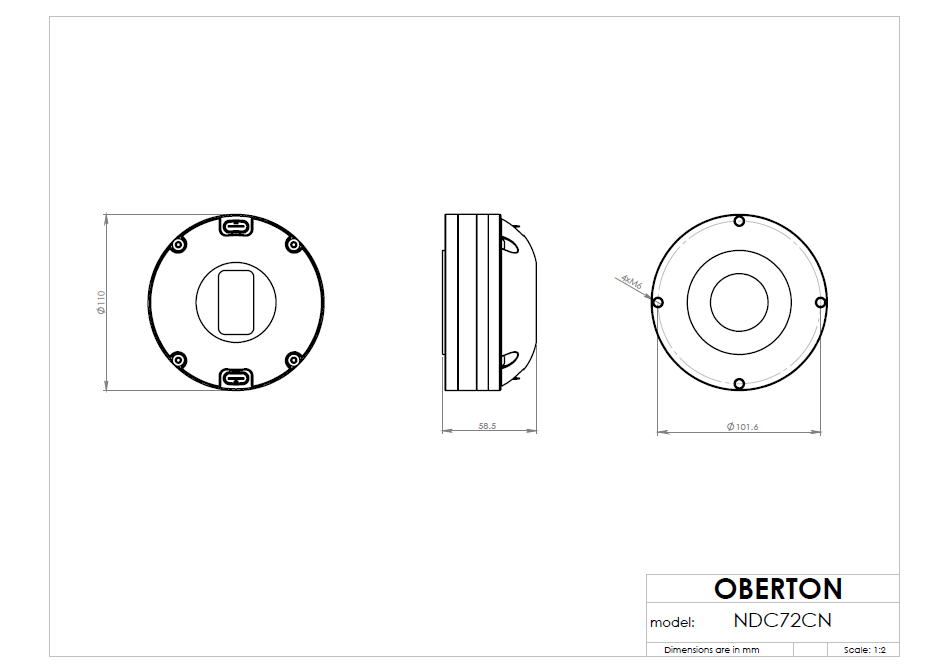

MOUNTING INFORMATION
|
Overall diameter Depth Mounting Net weight |
110 mm 58.5 mm 4 x M6 on 101,6 mm (4 in.) diameter 1.87 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Beryllium / Nitride coated / Carbon |
| Größe: | 1,4" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 16 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
