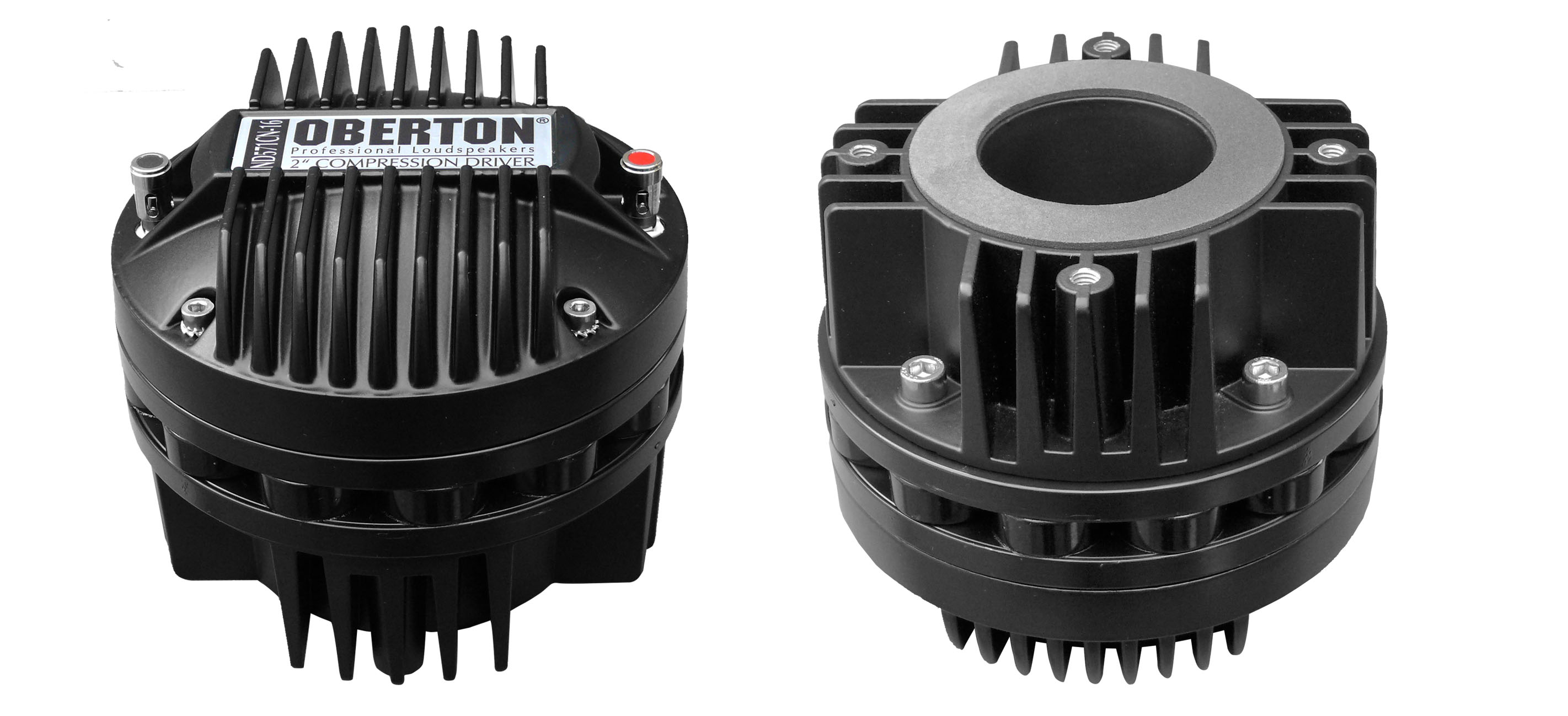

Oberton ND571CN 16 Ohm

Produktinformationen "Oberton ND571CN 16 Ohm"
  • Oberton ND571CN
  • 2" Throat diameter
  • 72 mm (2.85 in.) voice coil
  • 200 W Program Power Capacity (1-20 kHz)
  • 110 dB Sensitivity (1-10 kHz)
  • Frequency range 0.8 - 16 kHz
  • Neodymium magnetic structure
  • Special anti-corrosion coating

Oberton ND571CN 16 Ohm SPECIFICATIONS

Throat diameter

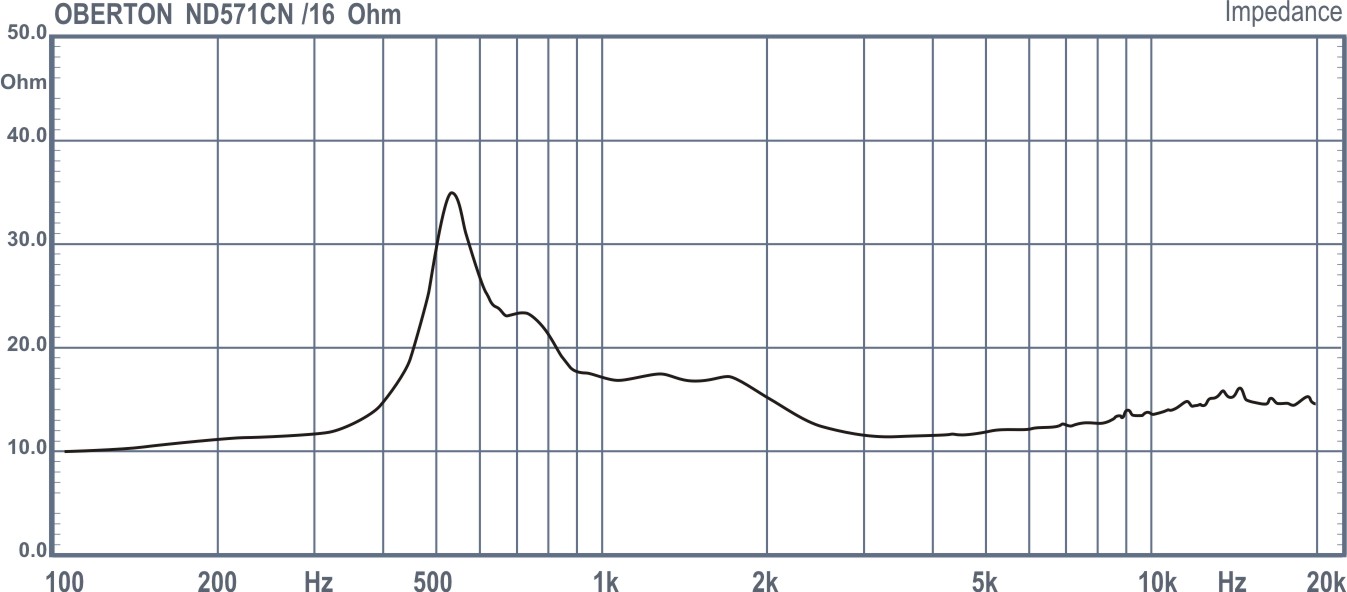

Nominal impedance
Minimum impedance
D.C. resistance
Power capacity (1-20 kHz)
Program Power Capacity (1-20 kHz)

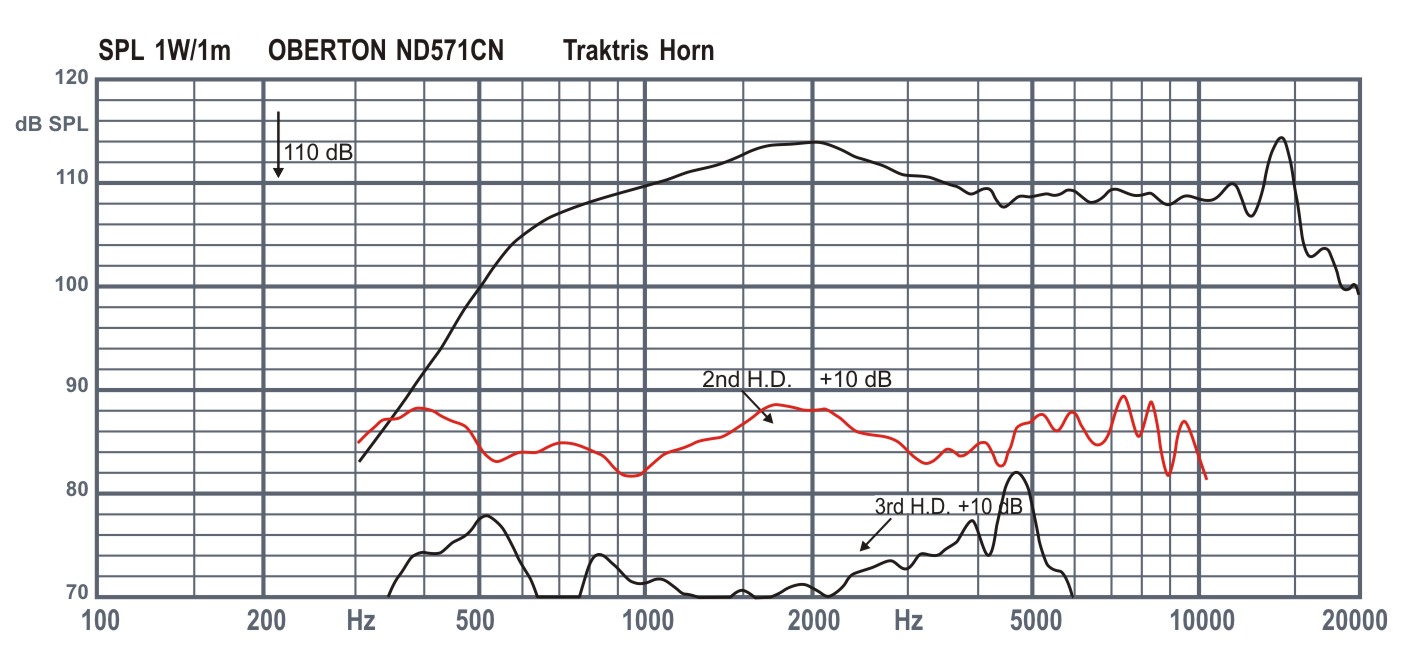

Sensitivity (1-10 kHz)
Frequency range
Recommended crossover
Voice coil diameter
Flux density
50.8 mm (2 in.)
8/16 Ohms
8.17 / 11.46 Ohms
6.8 / 9.4 Ohms
100 W
200 W
110 dB
0,8 - 16 kHz
1 kHz or higher 12 dB/oct.min
72 mm (2,85 in.)
1.95 T


MATERIALS OF CONSTRUCTON

Diaphragm
Voice coil material
Voice coil former
Carbon composite
Aluminium
Kapton™

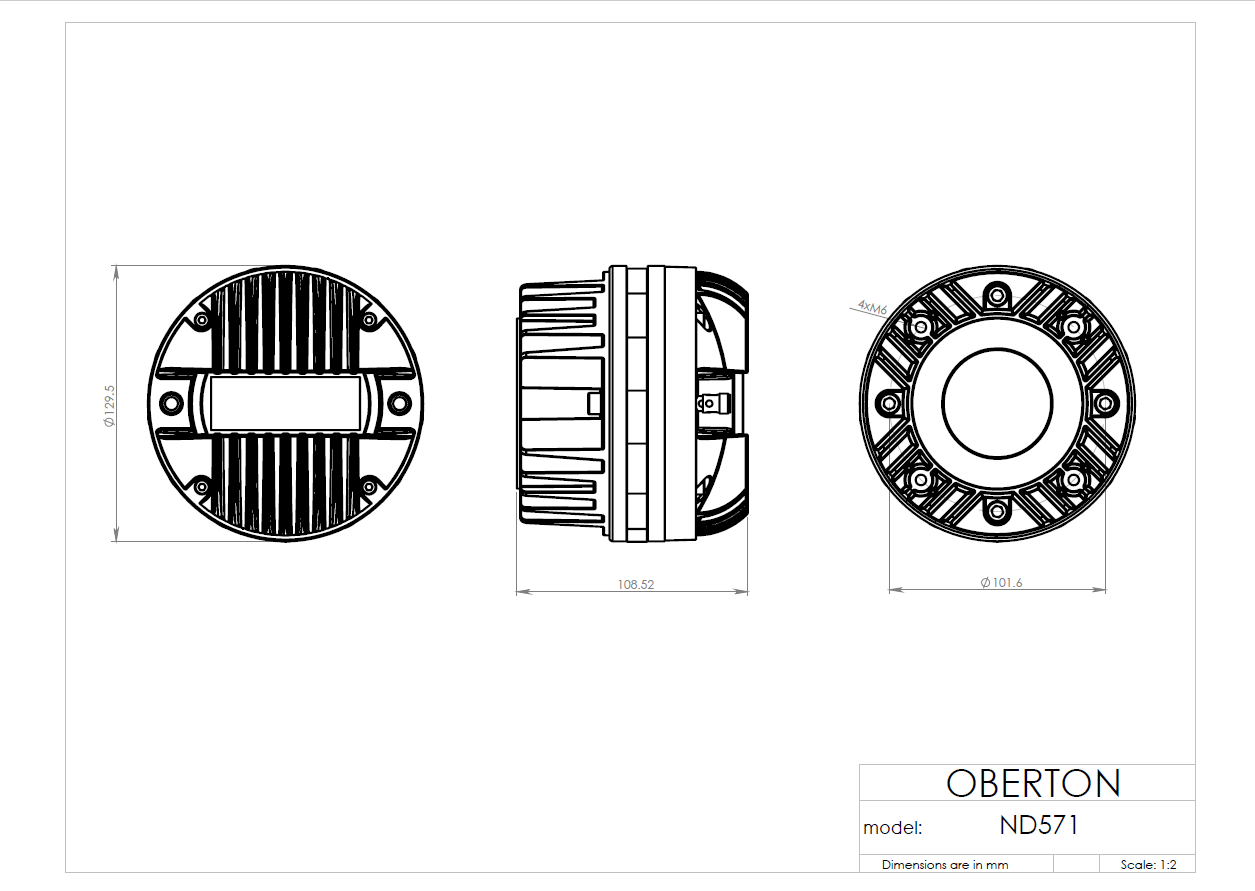

MOUNTING INFORMATION

Overall diameter
Depth
Mounting
Net weight
130 mm
112 mm
4 x M6 on 101,6 mm (4 in.) diameter
2.85 kg
Coaxial: NEIN
Diaphragma / Dome: Beryllium / Nitride coated / Carbon
Größe: 2"
Hochtöner Bauform: Kompressionstreiber
Impedanz: 16 Ohm
Magnet: Neodym
Sperrgut: NEIN
