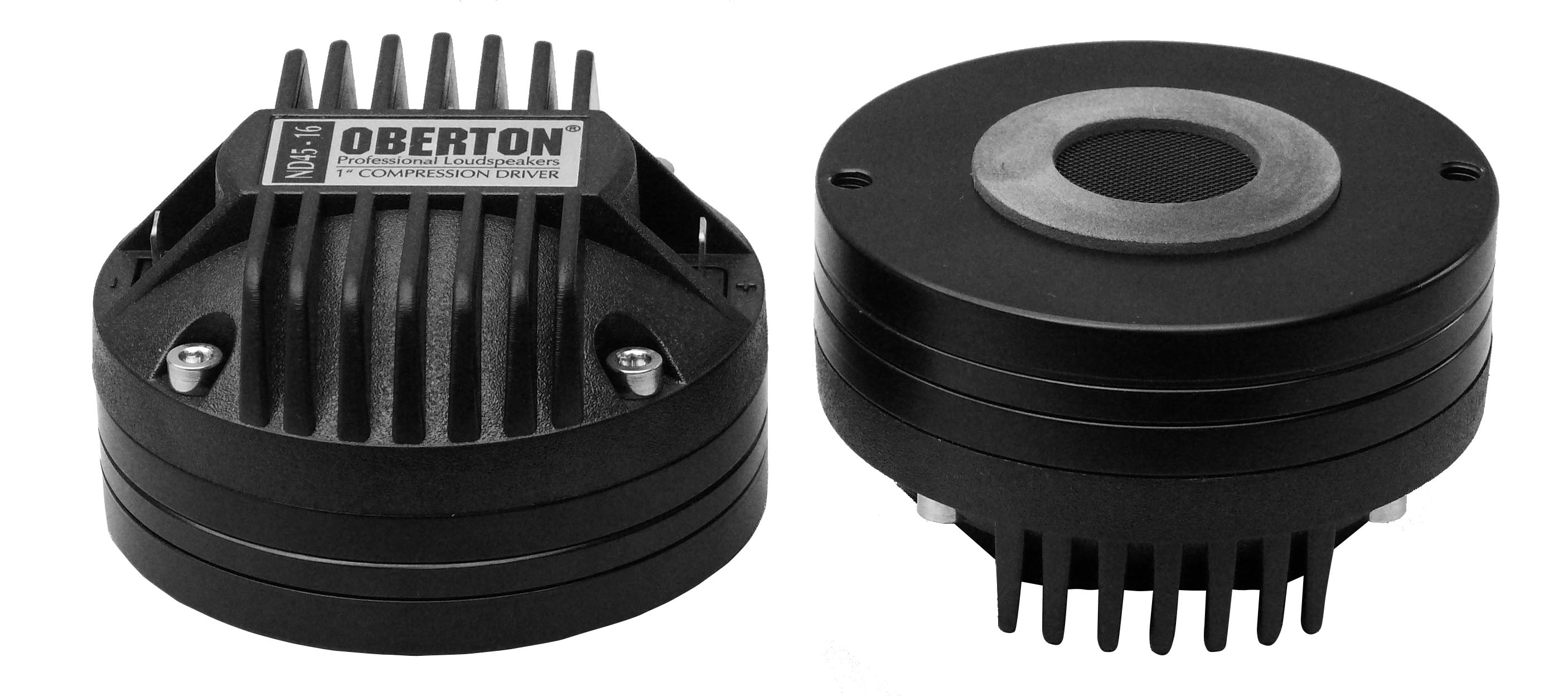

Oberton ND45 16 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
133,00 €*
|
| Bis 4 |
132,00 €*
|
| Bis 6 |
131,00 €*
|
| Ab 7 |
130,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11547
Produktinformationen "Oberton ND45 16 Ohm"
- Oberton ND45
- 1” Exit Throat
- 1.75” Diaphragm
- Neodymium magnet assembly
- 80 W continuous program power
- Frequency range: 1kHz - 20kHz
- New phase plug design
- Copper inductance ring for extended response
- Vented suspension
- Special anti-corrosion coating
Oberton ND45 16 Ohm SPECIFICATIONS
|
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (2-20 kHz) Program Power Capacity (2-20 kHz) Sensitivity (2-15 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
25,4 mm (1 in.) 8/16 Ohms 10.75/16.59 Ohms 5.72/10,62 Ohms 40 W 80 W 110 dB 1 - 20 kHz 1,5 kHz or higher 12 dB/oct.min 44 mm (1,75 in.) 1.84 T |
MATERIALS OF CONSTRUCTON
|
Diaphragm Voice coil material Voice coil former |
sandwich polyester Aluminium Kapton™ |

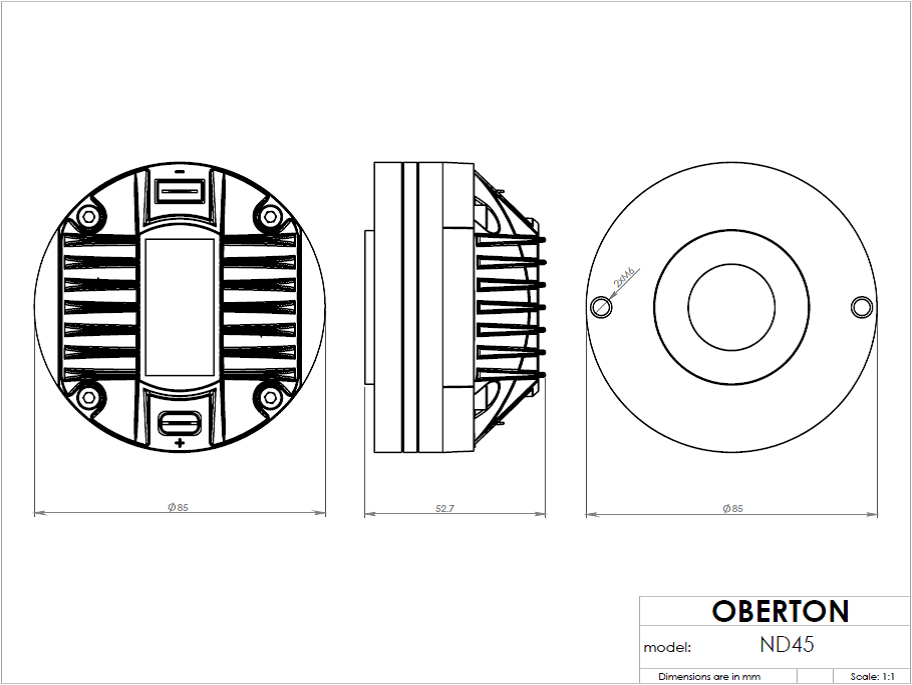

MOUNTING INFORMATION
|
Overall diameter Depth Mounting Net weight |
85 mm 52.7 mm 2 x M6 holes 180° on 76.2 mm 3”diameter 0.84 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 16 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
