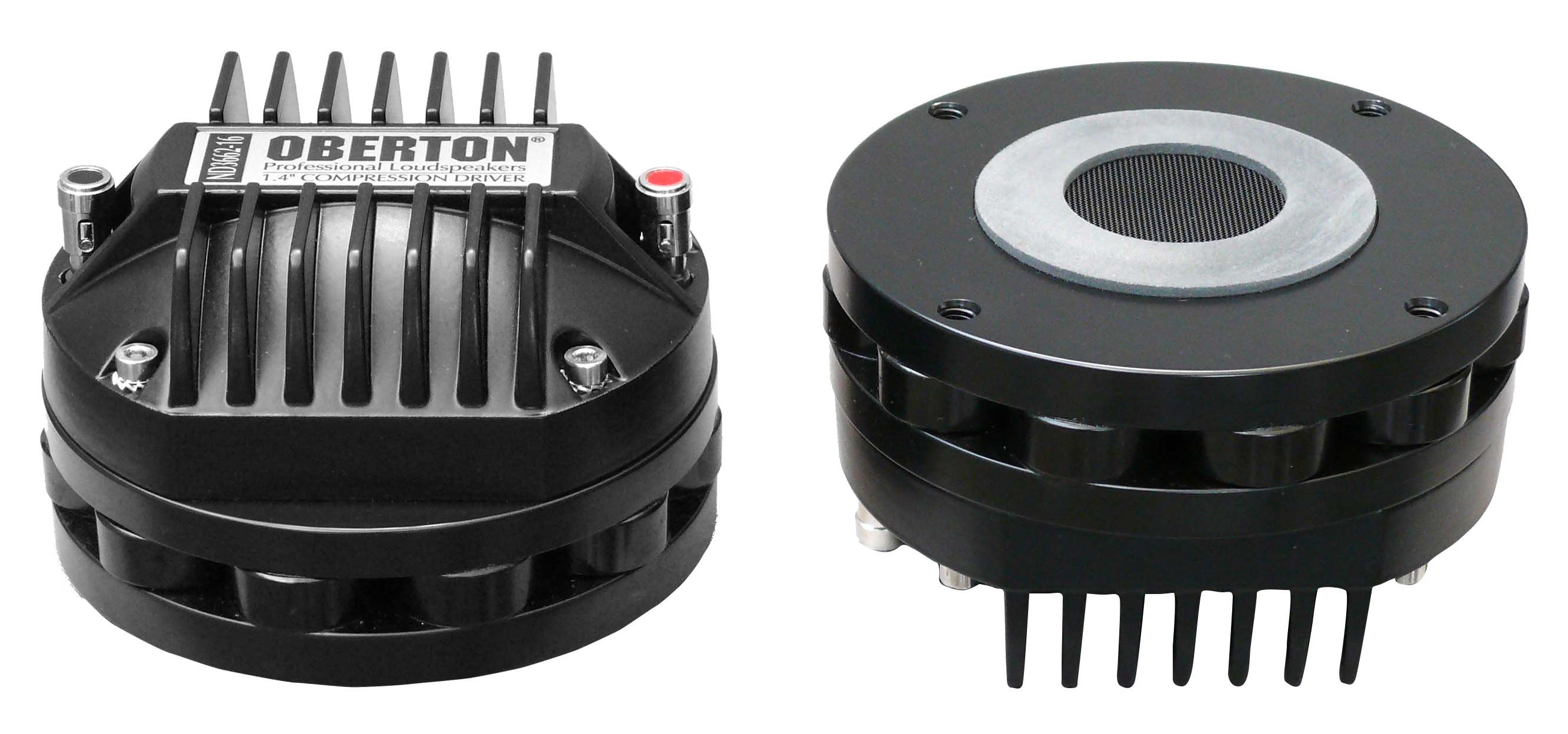

Oberton ND3662 16 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
226,00 €*
|
| Bis 4 |
224,00 €*
|
| Bis 6 |
222,00 €*
|
| Ab 7 |
220,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11541
Produktinformationen "Oberton ND3662 16 Ohm"
- Oberton ND3662
- 1.4" Throat diameter
- 62 mm (2.5 in.) voice coil
- 130 W Program Power Capacity (1-20 kHz)
- 109 dB Sensitivity (2-15 kHz)
- Frequency range 0.8 - 18 kHz
- Neodymium magnetic structure
Oberton ND3662 16 Ohm SPECIFICATIONS
|
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz) Sensitivity (2-15 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
36 mm (1.4 in.)
8 / 16 Ohms 7.06 / 14.10 Ohms 5.37 / 10.56 65 W 130 W 109 dB 0,8 - 18 kHz 1.2 kHz or higher 12 dB/oct.min 62 mm (2,5 in.) 1.9 T |
THIELE-SMALL PARAMETERS
|
Diaphragm Voice coil material Voice coil former |
sandwich polyester Aluminium Kapton™ |

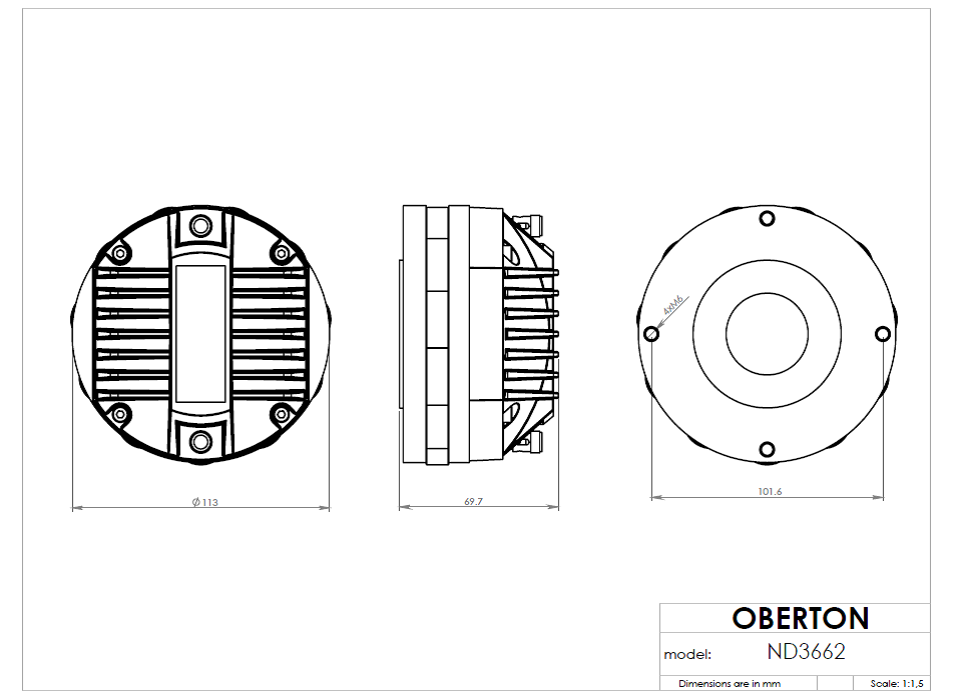

MOUNTING INFORMATION
|
Overall diameter Depth Mounting Net weight |
115 mm 70 mm 4 x M6 on 101,6 mm (4 in.) diameter 2,00 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1,4" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 16 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
