Oberton ND2539 16 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
118,00 €*
|
| Bis 4 |
117,00 €*
|
| Bis 6 |
116,00 €*
|
| Ab 7 |
115,00 €*
|
Versandfertig in 2 Arbeitstagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11537

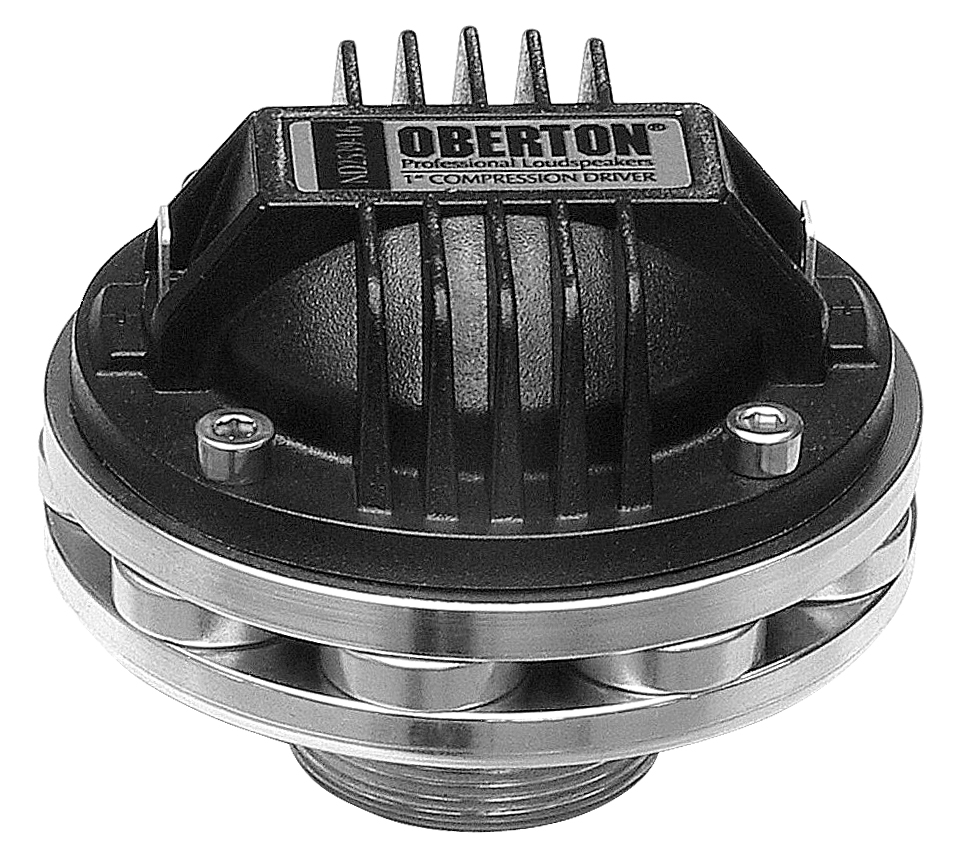

Produktinformationen "Oberton ND2539 16 Ohm"
- Oberton ND2539
- 1" Throat diameter
- 38 mm (1.5 in.) voice coil
- 60 W Program Power Capacity (2-20 kHz)
- 105 dB Sensitivity (2-15 kHz)
- Frequency range 1.5 - 20 kHz
- Neodymium magnetic structure
Oberton ND2539 16 Ohm SPECIFICATIONS
|
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (2-20 kHz) Program Power Capacity (2-20 kHz) Sensitivity (2-15 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
25,4 mm (1 in.) 8 / 16 Ohms 7.43 / 11.8 Ohms 5.47 / 10.7 Ohms 30 W 60 W 105 dB 1.5 - 20 kHz 2 kHz or higher 12 dB/oct.min 38 mm (1,5 in.) 1.56 T |
MATERIALS OF CONSTRUCTON
|
Diaphragm Voice coil material Voice coil former |
sandwich polyester Aluminium Kapton™ |

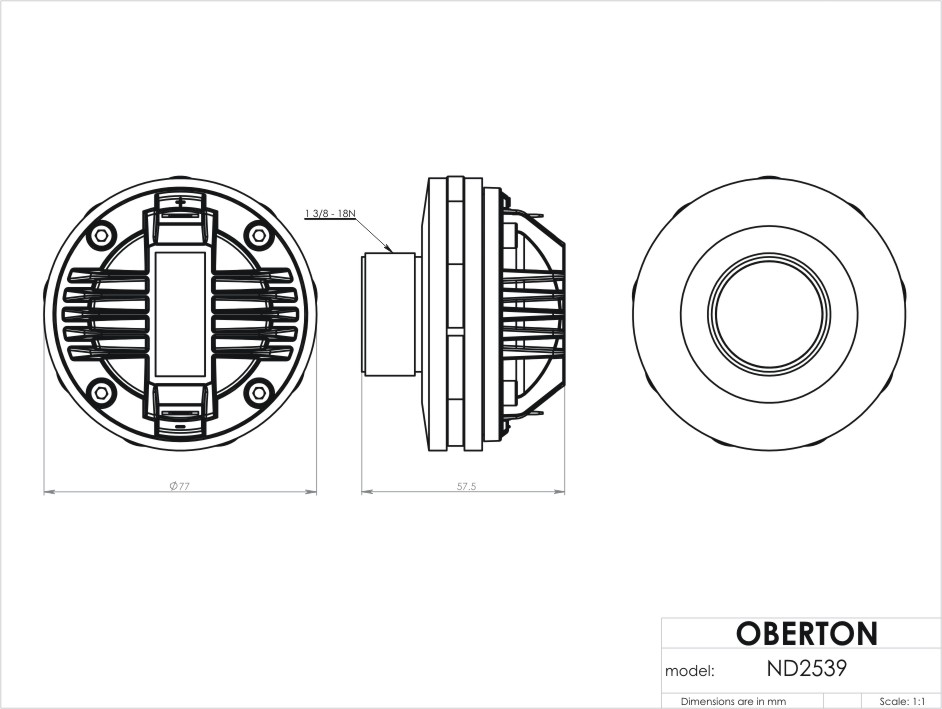

MOUNTING INFORMATION
|
Overall diameter Depth Mounting Net weight |
72 mm 56 mm 1"3/8; 18 N screw 0,67 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Größe: | 1" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 16 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
