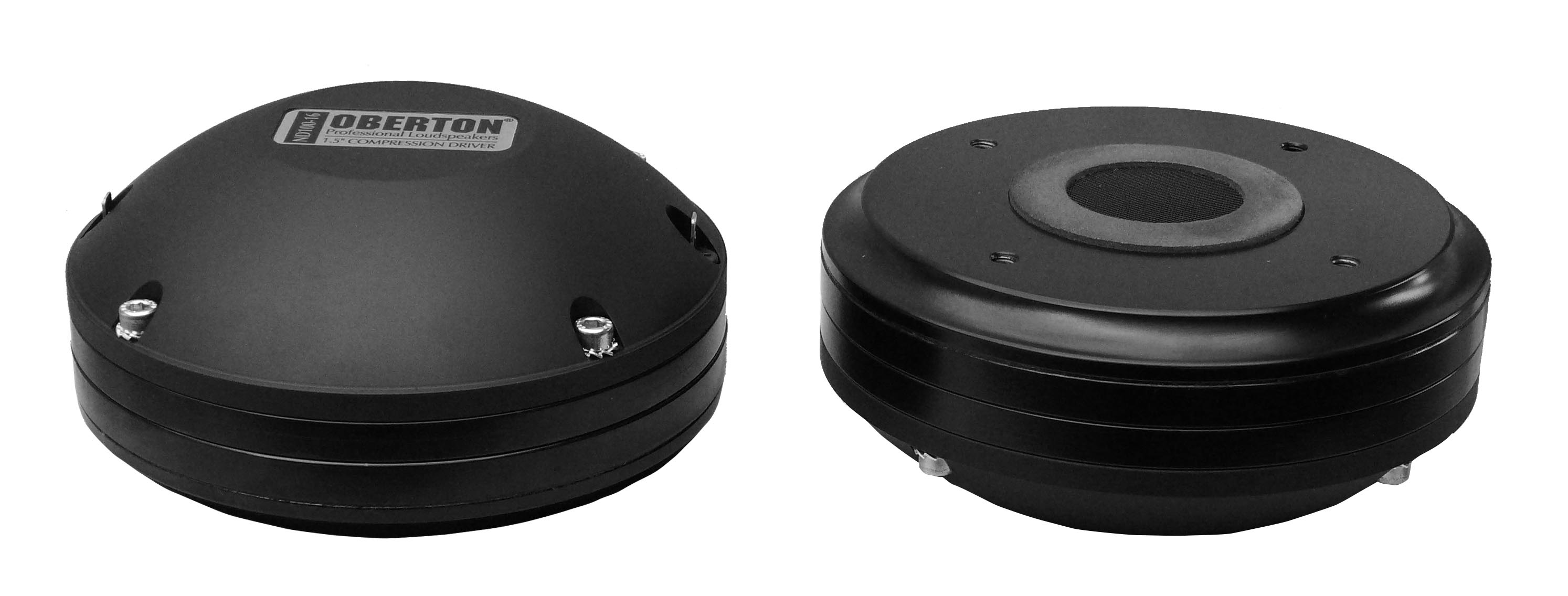

Oberton ND100-1.5 16 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
423,00 €*
|
| Bis 4 |
419,00 €*
|
| Bis 6 |
415,00 €*
|
| Ab 7 |
412,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11534
Produktinformationen "Oberton ND100-1.5 16 Ohm"
- Oberton ND100-1.5
- 1.5" Throat diameter
- 100 mm ( 4 in.) voice coil
- 250 W Program Power Capacity
- 112.5 dB Sensitivity
- Frequency range 0.6 - 15 kHz
- Neodymium magnetic structure
- Special anti-corrosion coating
Oberton ND100-1.5 16 Ohm SPECIFICATIONS
|
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz) Sensitivity (1-4 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
38 mm (1.5 in.) 8 / 16 Ohms 7.09 / 12.52 Ohms 4.6 / 9.5 Ohms 125 W 250 W 112.5 dB 0,6 - 15 kHz 0,8 kHz or higher 12 dB/oct.min 100 mm (4 in.) 1.95 T |
MATERIALS OF CONSTRUCTON
|
Diaphragm Voice coil material Voice coil former |
Carbon composite Copper Clad Aluminium Kapton™ |
MOUNTING INFORMATION
|
Overall diameter Depth Mounting Net weight |
148 mm 67 mm 4 x M6 on 101,6 mm (4 in.) diameter 3.89 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Beryllium / Nitride coated / Carbon |
| Größe: | 1,5" |
| Hochtöner Bauform: | Kompressionstreiber |
| Impedanz: | 16 Ohm |
| Magnet: | Neodym |
| Sperrgut: | NEIN |
