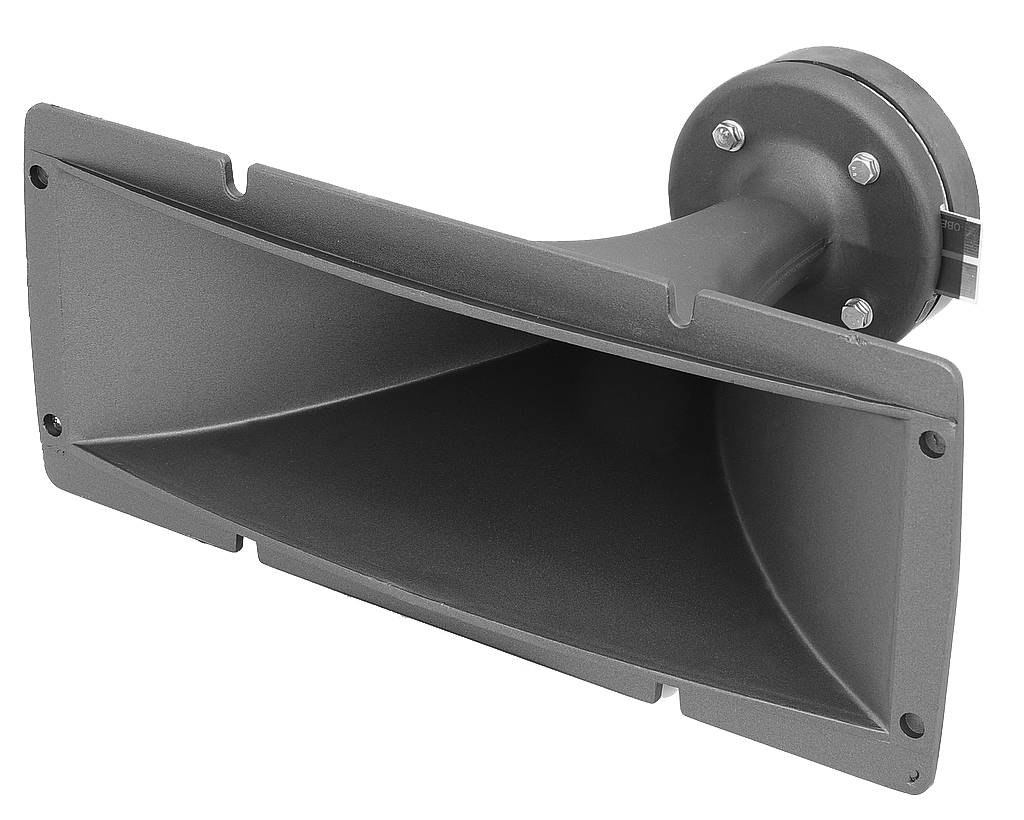

Oberton HL60 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
77,00 €*
|
| Bis 4 |
76,50 €*
|
| Bis 6 |
76,00 €*
|
| Ab 7 |
75,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11514
Produktinformationen "Oberton HL60 8 Ohm"
Oberton HL60 SPECIFICATIONS
|
System power * Frequency range Sensitivity Impedance Voice coil diameter |
100 W (* 4.5 kHz crossover) 3 - 14 kHz 106 dB/W/m 8 Ohm 25 mm |
Oberton HL60 8 Ohm MATERIALS OF CONSTRUCTION
|
Voice coil Voice coil former Diaphragm Magnet Horn |
Aluminium Kapton™ Sandwich polyester Ferrite ( with diam. 85 мм.) Die cast aluminium |
MOUNTING INFORMATION
|
Dimensions Baffle hole Weight |
270 x 110 x 203 mm 245 x 80 mm 1.35 kg |
| Coaxial: | NEIN |
|---|---|
| Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
| Hochtöner Bauform: | Tweeter / Ringstrahler |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
