Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11578

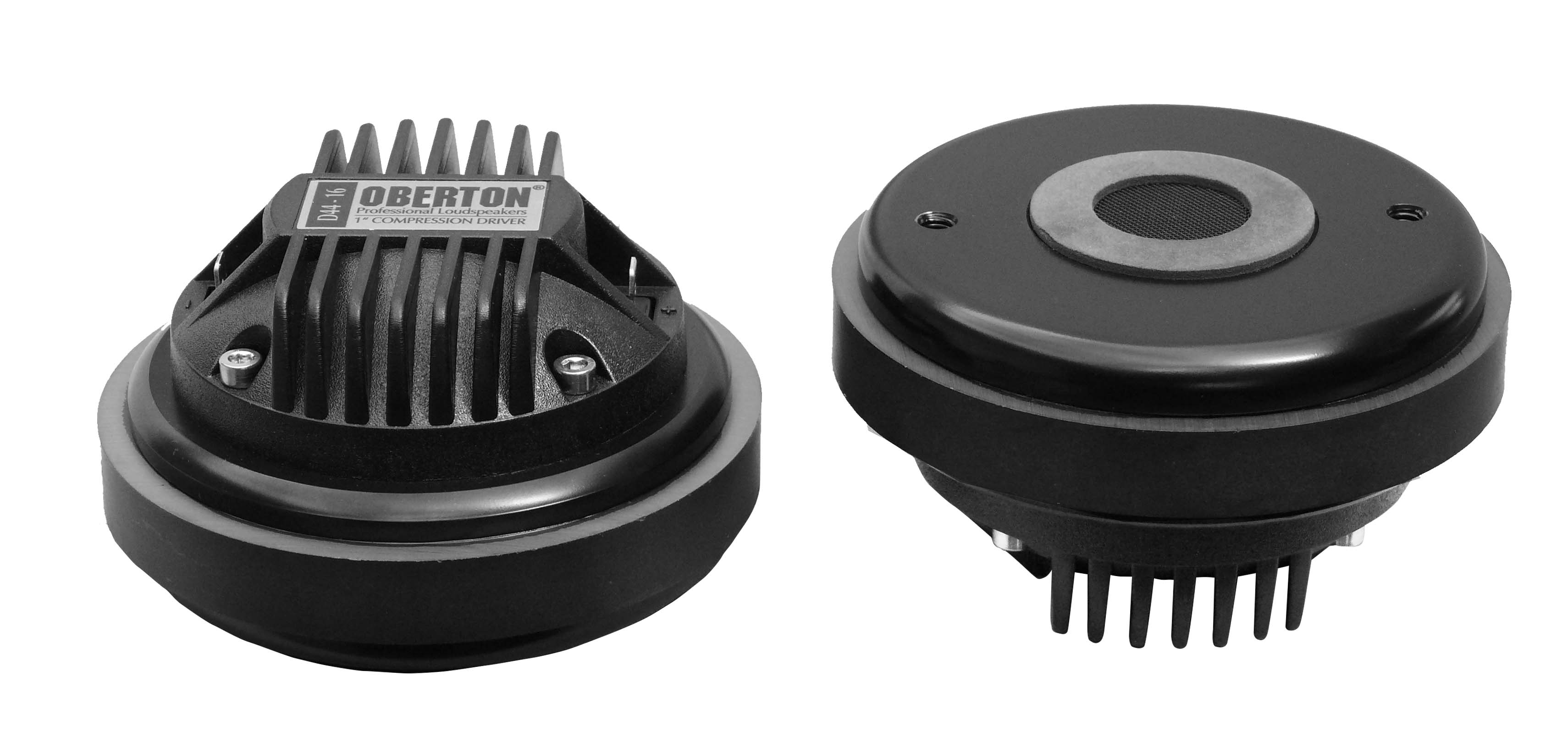

Produktinformationen "Oberton D44 8 Ohm"
- Oberton D44 8 Ohm
- 1" Exit Throat
- 1.75" Diaphragm
- 80 W continuous program power
- Frequency range: 1000Hz - 20kHz
- New phase plug design
- Copper inductance ring for extended response
- Vented suspension
- Special anti-corrosion coating
Oberton D44 8 Ohm SPECIFICATIONS
Throat diameter Nominal impedance Minimum impedance D.C. resistance Power capacity (2-20 kHz) Program Power Capacity (2-20 kHz) Sensitivity (2-15 kHz) Frequency range Recommended crossover Voice coil diameter Flux density |
25,4 mm (1 in.) 8/16 Ohms 9.08 /14.62 Ohms 5,70 /10,16 Ohms 40W 80W 108.5 dB 1 - 20 kHz 1,5 kHz or higher 12 dB/oct.min 44 mm (1,75 in.) 1.6 T |
MATERIALS OF CONSTRUCTON
Diaphragm Voice coil material Voice coil former |
sandwich polyester Aluminium Kapton™ |

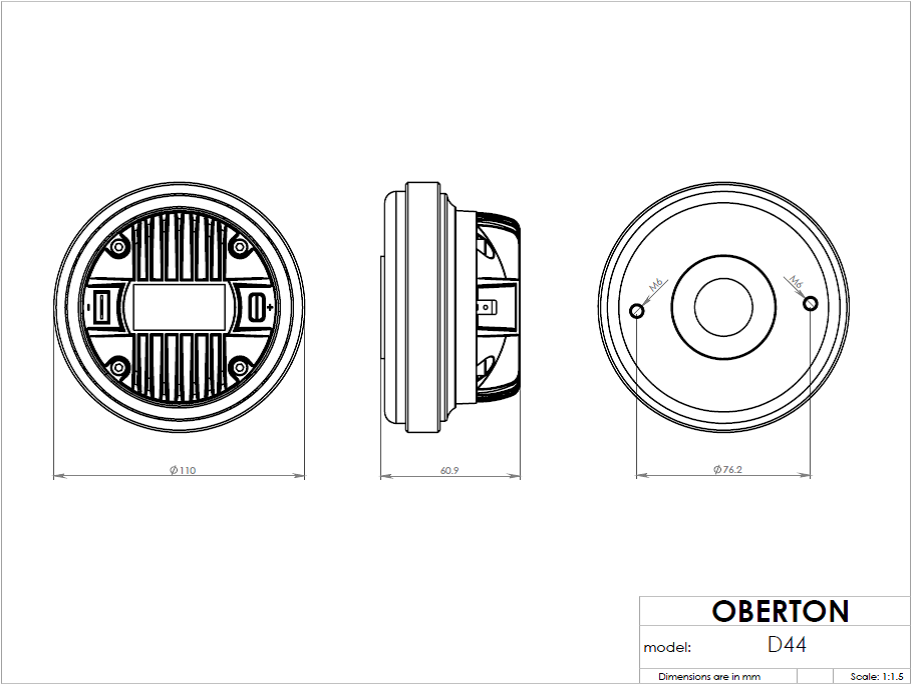

MOUNTING INFORMATION
Overall diameter Depth Mounting Net weight |
110 mm 60.9 mm 2 x M6 holes 180°/ 76.2 mm/3" diameter 1,7 kg |
Coaxial: | NEIN |
---|---|
Diaphragma / Dome: | Mylar / Polyester / Polyethylen / Kunststoffe |
Größe: | 1" |
Hochtöner Bauform: | Kompressionstreiber |
Impedanz: | 8 Ohm |
Magnet: | Ferrit |
Sperrgut: | NEIN |
