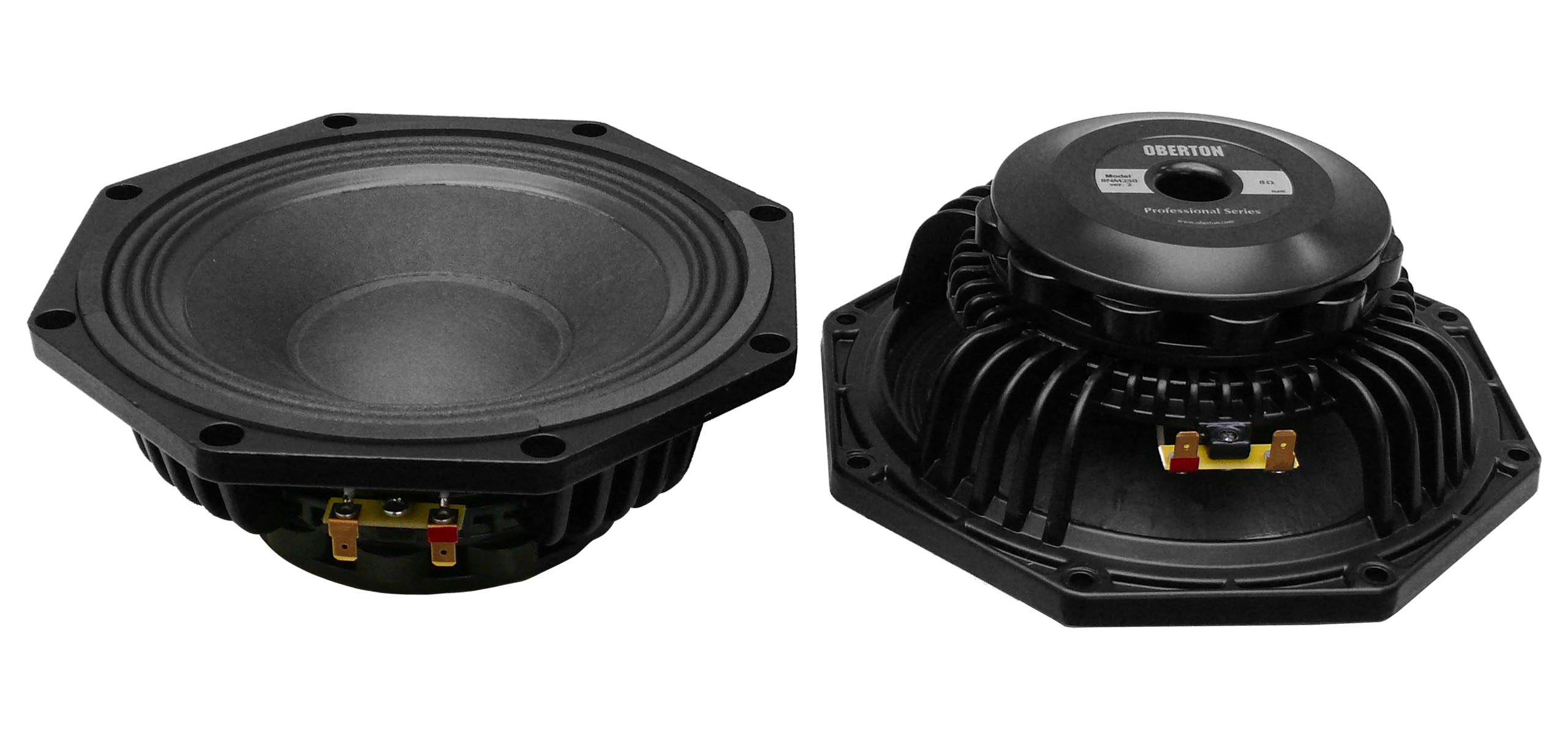

Oberton 8NM250v2 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
218,00 €*
|
| Bis 4 |
216,00 €*
|
| Bis 6 |
214,00 €*
|
| Ab 7 |
213,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11475
Produktinformationen "Oberton 8NM250v2 8 Ohm"
- Oberton 8NM250v2
- 100 db 1W / 1m average sensitivity
- 64 mm high temperature voice coil
- Two demodulating rings
- 500 W AES program power
- Ultra low distortion
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 8NM250v2 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
8"/210 inch/mm 16 Ohm 13.23 Ohm 250 W 500 W (500-5000 Hz) 100 dB/W/m 100 – 5000 Hz 64 mm Aluminium Glassfiber 10 mm 7 mm Paper with carbone fiber Die cast aluminium Neodymium 1.55 T |
THIELE-SMALL PARAMETERS 8NM250v2
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
67.7 Hz 13.94 0.257 0.252 8.39 Litres 16.83 grams 10.97 Ohms 202 cm2 ± 4 mm 0.1501 mm/N 21.26 T.m 0.27 mH |

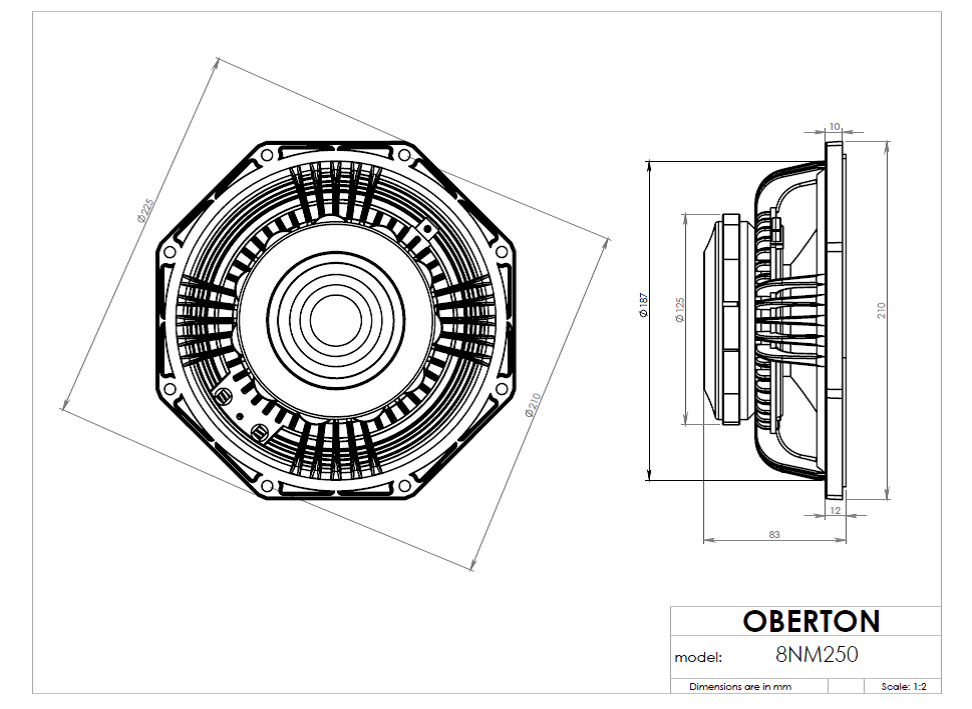

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
225 mm 187 mm 8 with dia. 6.5 mm 210 mm 84 mm 2.70 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 8" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,21 - 0,25 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
