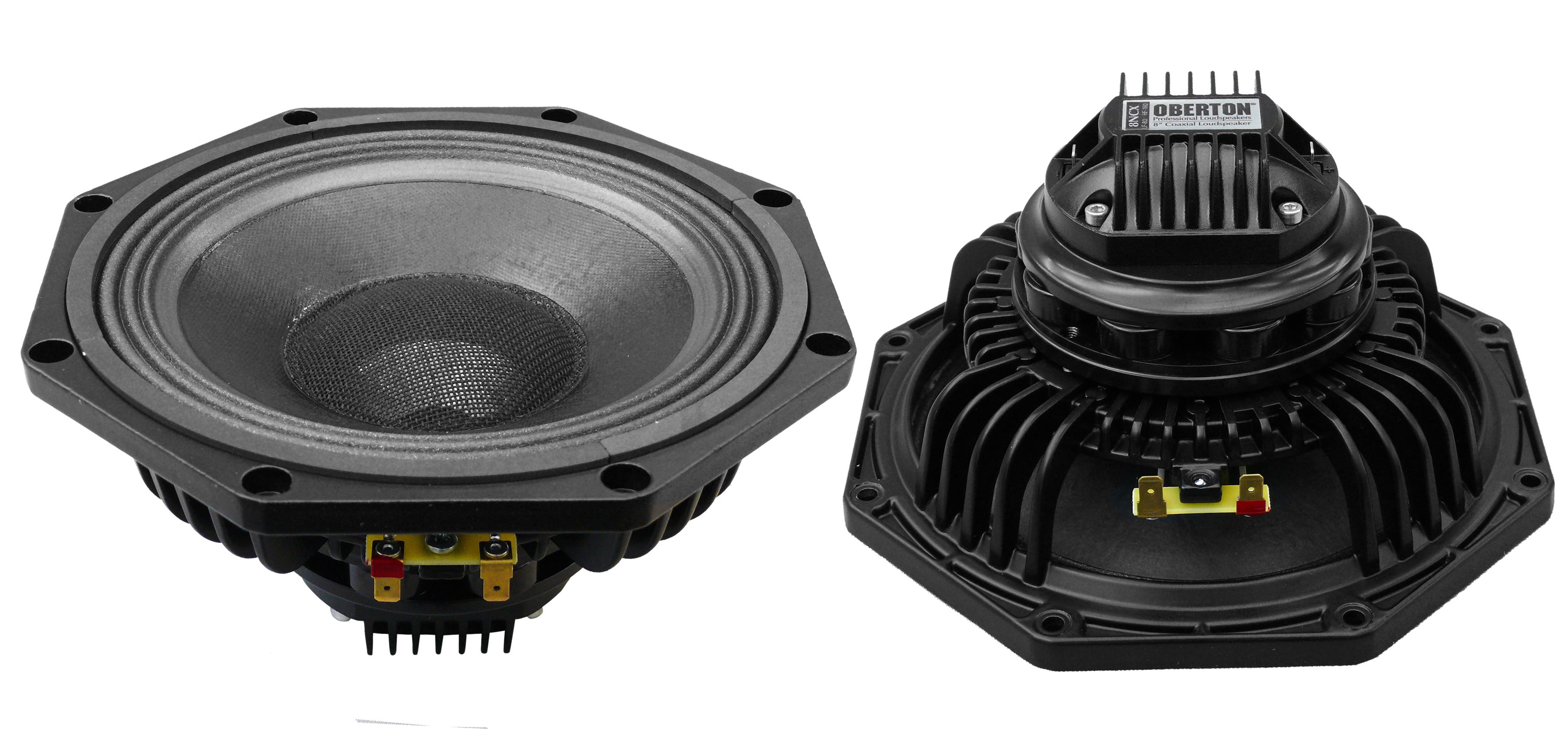

Oberton 8NCX 8 Ohm

Produktinformationen "Oberton 8NCX 8 Ohm"
  • Oberton 8NCX
  • 95 db SPL 1W / 1m ( LF ) average sensitivity
  • 51 mm ( 2”) high temperature voice coil ( LF )
  • 400 W AES program power ( LF )
  • Double aluminium demodulating rings
  • Single neodymium magnet assembly
  • Water protected cone
  • 1” exit HF neodymium compression driver
  • 44 mm (1.75”) HF high temperature voice coil

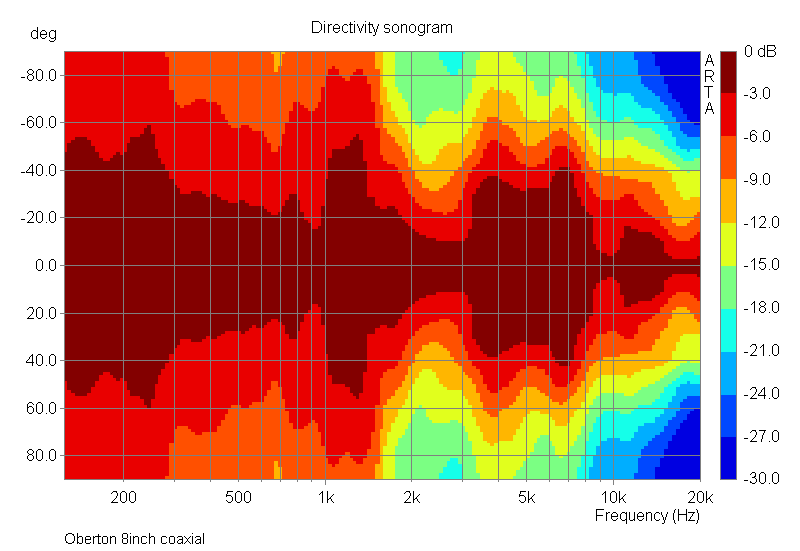

  • 100 degrees nominal dispersion
  • Epoxy anti-corrosion coating of top and back plates of magnet structure
  • Very light weight

Oberton 8NCX 8 Ohm SPECIFICATIONS

Nominal diameter
Impedance
Minimum impedance LF
Frequency range
Dispersion angle

LF unit
Sensitivity (200-2000 Hz)
Power Capacity AES ¹
Program Power ²
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V. C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

HF unit
Minimum impedance HF
DC resistance
Sensitivity (1-15 kHz)
Power capacity (1-20 kHz)
Program power
Voice coil diameter
Winding material
Diaphragm material
Flux density

210 mm (8 in)
LF 8 Ohm /HF 16 Ohm
6.42 Ohm

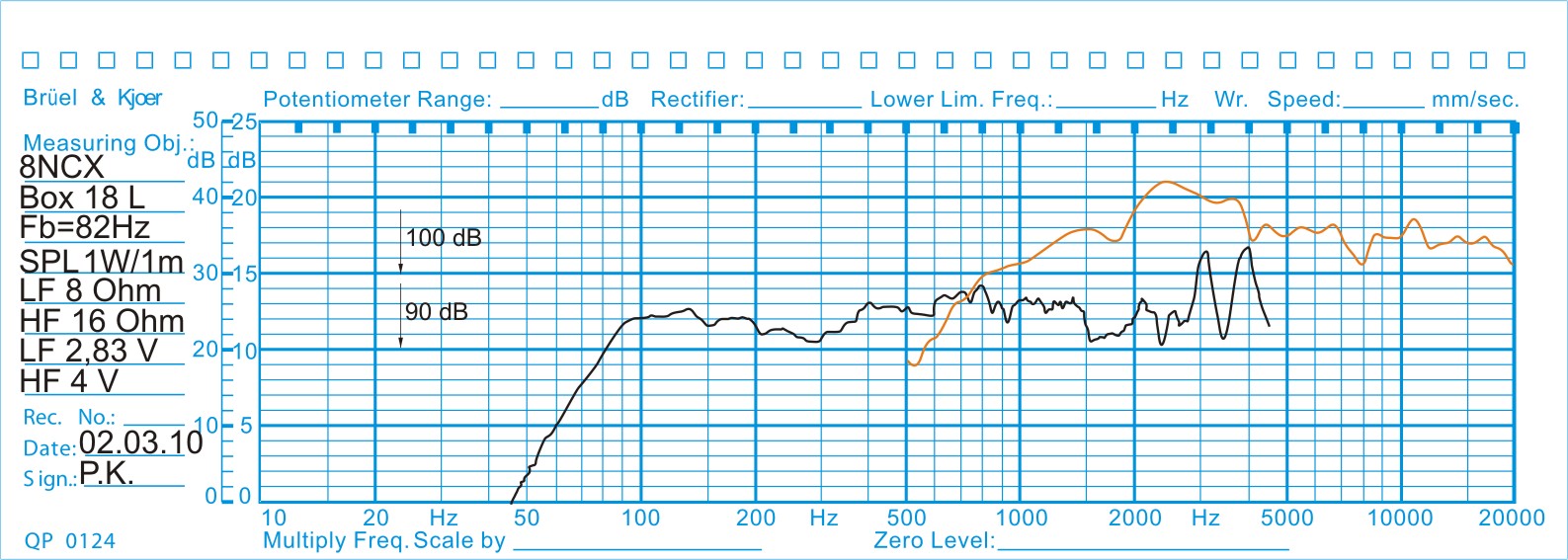

70 - 20000 Hz
100 deg



95 dB
200 W
400 W
51 mm (2 in)
Aluminium
Glassfiber
15 mm
9 mm.
Paper with carbon fibers
Die Cast Aluminium
Neodymium
0.9 T


12.37 Ohms
10.6 Ohms
106 dB
40 W
80 W
44 mm (1.75 in)
Aluminium
sandwich polyester
1.9 T



THIELE-SMALL PARAMETERS 8NCX

Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
77.23 Hz
4.66
0.44
0.40
14.89 L
15.94 g
5.80 Ohms
202 cm2
± 5.25 mm
0.267 mm/N
10.10 T.m
0.648 mH

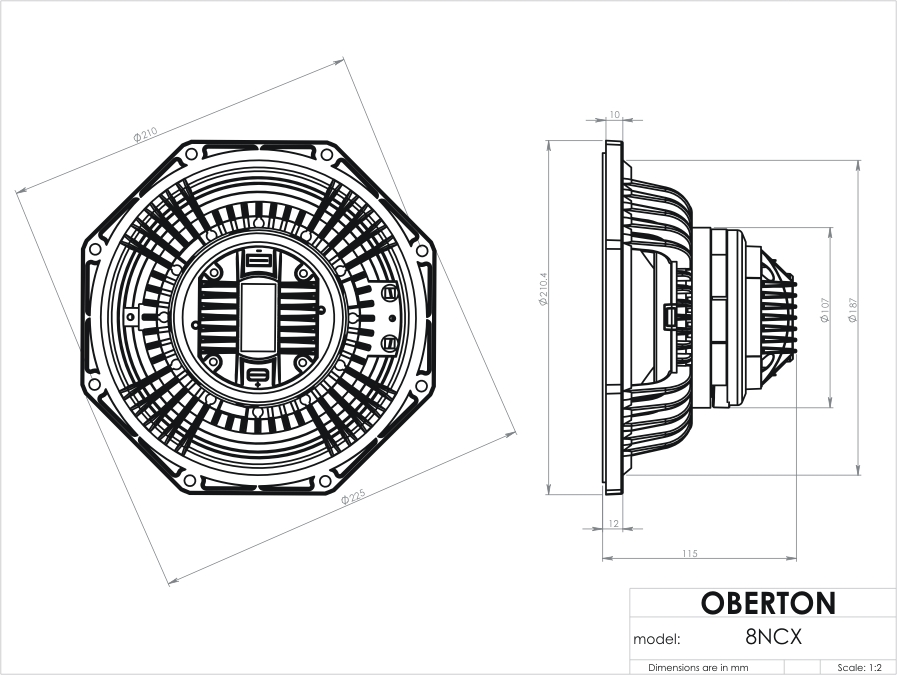

MOUNTING INFORMATION

Overall diameter
Depth
Baffle hole diameter
Bolt circle diameter
Mounting holes
Net weight
225 mm (8 in)
115 mm
187 mm
210 mm
8 with dia 6.5 mm
2.6 kg
Coaxial: JA
Diaphragma / Dome: Mylar / Polyester / Polyethylen / Kunststoffe
Größe: 8"
Impedanz: 8 Ohm
Magnet: Neodym
Qts: 0,36 - 0,40
Sperrgut: NEIN
X-MAX: 5,1 - 10,0 mm
