Anzahl | Stückpreis |
---|---|
Bis 2 |
101,00 €*
|
Bis 4 |
100,50 €*
|
Bis 6 |
100,00 €*
|
Ab 7 |
99,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11507
Produktinformationen "Oberton 8MB201 8 Ohm"
- Oberton 8MB201
- 93 db 1W / 1m average sensitivity
- 51 mm high temperature voice coil
- 400 W AES program power
- Powerful, ferrite 134 mm magnet structure
- Water protected cone (front)
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 8MB201 8 Ohm SPECIFICATIONS
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
8"/203mm 8 Ohm 6.72 Ohm 200 W 400 W (200-2000 Hz) 93 dB/W/m 65 - 3000 Hz 51 mm Aluminium Kapton™ 17.5 mm 7 mm Paper with glassfiber Die cast aluminium Ferrite 1.35 T |
THIELE-SMALL PARAMETERS
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
67.7 Hz 6,24 0.33 0.314 14.74 Liters 21 Grams 5.8 Ohms 200 cm² +/- 7 mm 0.264 mm/N 12.54 T.m 0.80 mH |

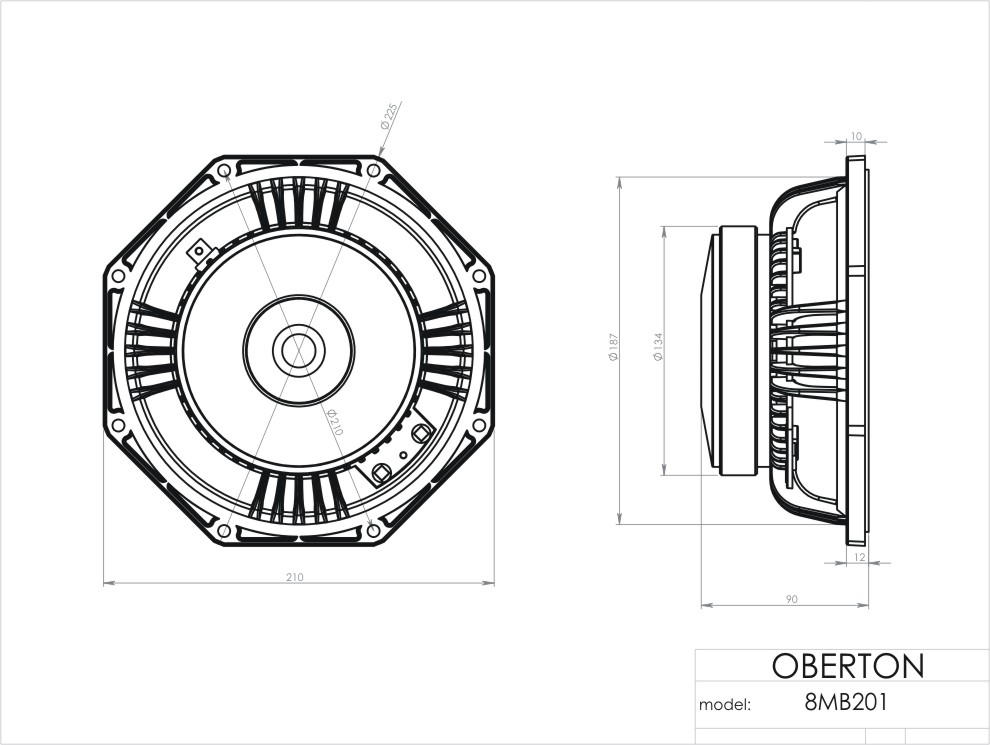

MOUNTING INFORMATION
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
225 mm 187 mm 8 with dia. 6.5 mm 210 mm 90 mm 3.22 kg |
Coaxial: | NEIN |
---|---|
Größe: | 8" |
Impedanz: | 8 Ohm |
Magnet: | Ferrit |
Qts: | 0,31 - 0,35 |
Sperrgut: | NEIN |
X-MAX: | 5,1 - 10,0 mm |
