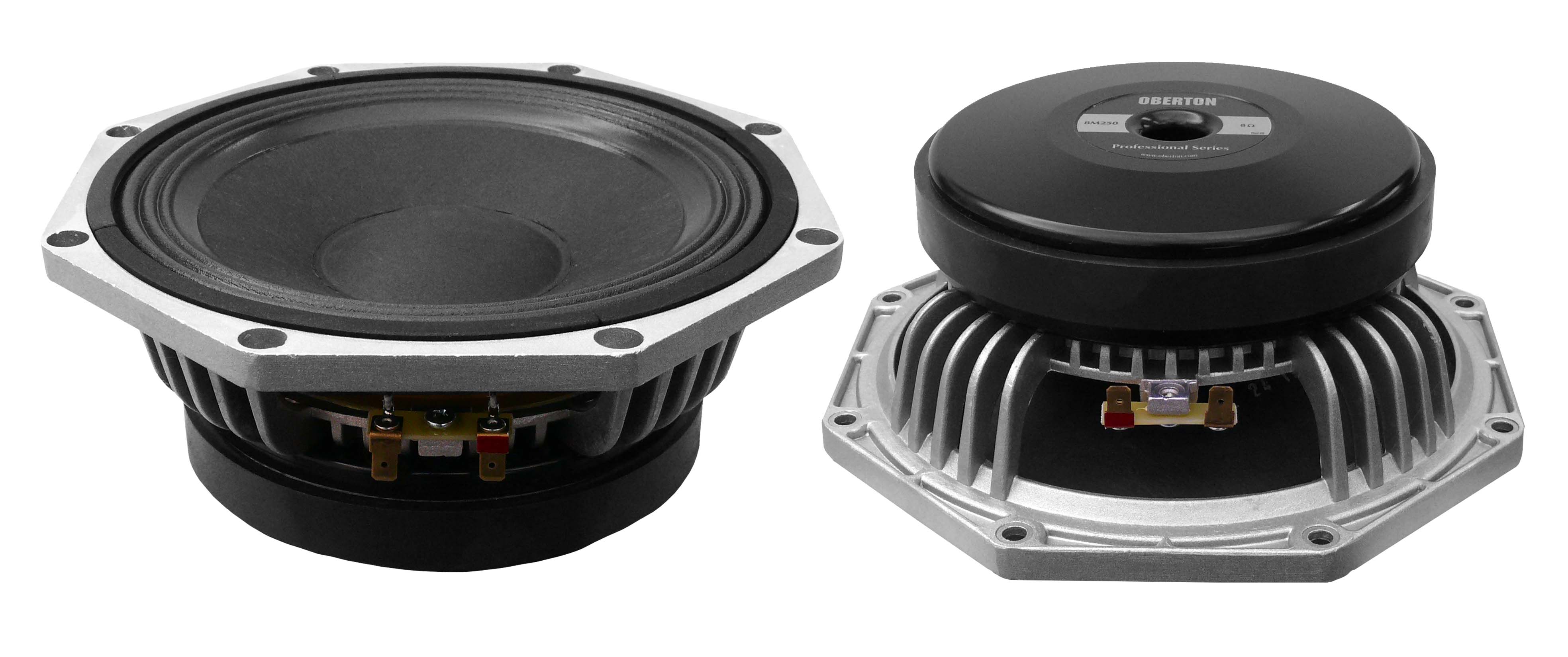

Oberton 8M250 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
112,00 €*
|
| Bis 4 |
111,00 €*
|
| Bis 6 |
110,00 €*
|
| Ab 7 |
109,00 €*
|
Versandfertig in 2 Arbeitstagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11508
Produktinformationen "Oberton 8M250 8 Ohm"
- Oberton 8M250
- 99.5 db 1W / 1m average sensitivity
- 51 mm high temperature aluminium voice coil
- 500 W AES program power
- Powerful, ferrite 156 mm magnet structure
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 8M250 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
8"/203mm 8 Ohm 6.20 Ohm 250 W 500 W (500-5000 Hz) 99.5 dB/W/m 90 - 5000 Hz 51 mm Aluminium Kapton™ 10 mm 9 mm Paper with glassfiber Die cast aluminium Strontium ferrite 1.43 T |
THIELE-SMALL PARAMETERS 8M250
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
74.37 Hz 14.01 0.204 0.201 15.63 Liters 16.38 Grams 5.00 Ohms 202 cm² +/- 2.75 mm 0.280mm/N 13.70 T.m 0.42 mH |

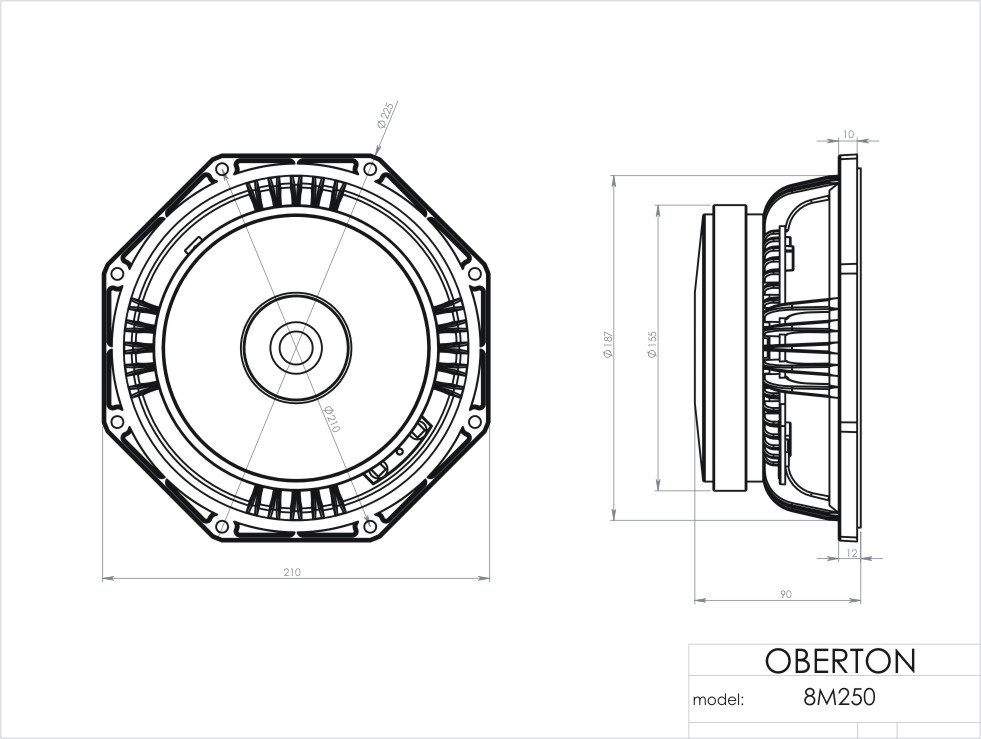

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
225 mm 187 mm 8 with dia. 6.5 mm 210 mm 90 mm 4.3 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 8" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Sperrgut: | NEIN |
| TSP Qts: | 0,01 - 0,209 |
| TSP X-MAX (mm): | 0,1 - 5,0 mm |
