Oberton 8M150 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
101,00 €*
|
| Bis 4 |
100,00 €*
|
| Bis 6 |
99,00 €*
|
| Ab 7 |
98,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11509
Produktinformationen "Oberton 8M150 8 Ohm"
- Oberton 8M150
- 98 db 1W / 1m average sensitivity
- 51 mm high temperature aluminium voice coil
- 300 W AES program power
- Ferrite 134 mm magnet structure
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 8M150 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
8"/203mm 8 Ohm 5.83 Ohm 150 W 300 W (200-4000 Hz) 98 dB/W/m 80 - 5000 Hz 51 mm Aluminium Kapton™ 10 mm 7 mm Paper Die cast aluminium Ferrite 1.35 T |
THIELE-SMALL PARAMETERS 8M150
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
68.2 Hz 6.07 0.225 0.217 21.62 Litres 14.07 Grams 5.05 Ohms 202 cm² +/- 3.25 mm 0.387 mm/N 11.62 T.m 0.74 mH |

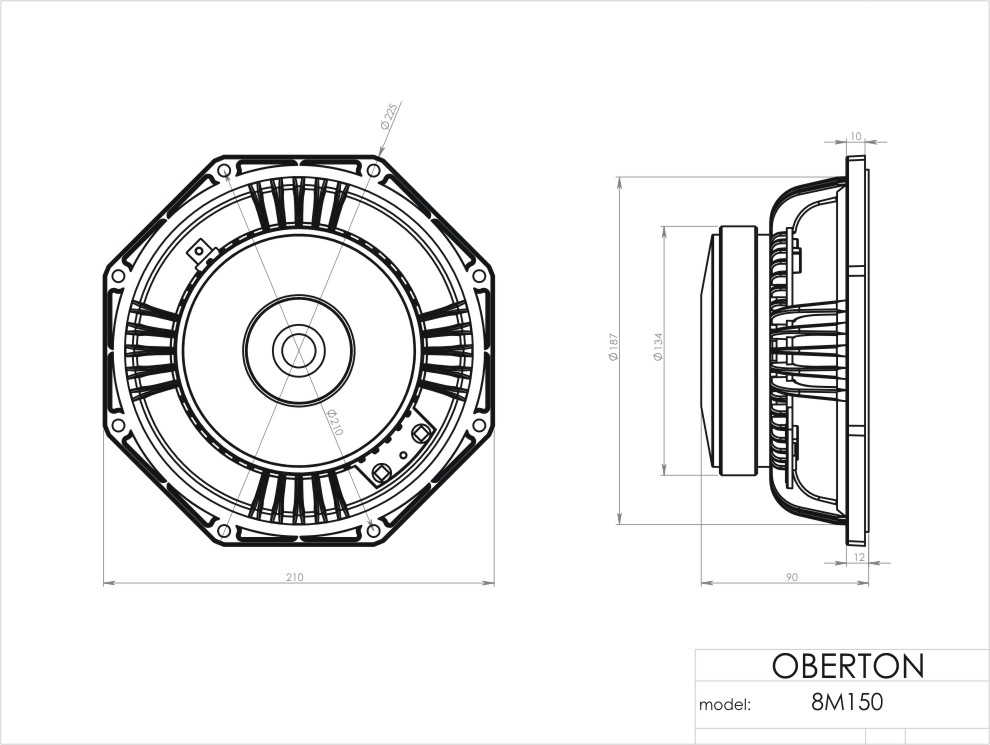

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
225 mm 187 mm 8 with dia. 6.5 mm 210 mm 90 mm 3.25 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 8" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,21 - 0,25 |
| Sperrgut: | NEIN |
| X-MAX: | 0,1 - 5,0 mm |
