Oberton 8CX 8 Ohm

Produktinformationen "Oberton 8CX 8 Ohm"
  • Oberton 8CX
  • 95.5 db SPL 1W / 1m ( LF ) average sensitivity
  • 51 mm ( 2”) high temperature voice coil ( LF )
  • 400 W AES program power ( LF )
  • Double aluminium demodulating rings
  • Single magnet assembly
  • Silicone spider
  • Water protected cone (front)
  • 1” exit HF compression driver
  • 44 mm (1.75”) HF high temperature voice coil
  • 100 degrees nominal dispersion
  • Epoxy anti-corrosion coating of top and back plates of magnet structure

Oberton 8CX 8 Ohm SPECIFICATIONS

Nominal diameter
Impedance
Minimum impedance LF
Frequency range
Dispersion angle

LF unit
Sensitivity (200-2000 Hz)
Power Capacity AES ¹
Program Power ²
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V. C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

HF unit
Minimum impedance HF
DC resistance
Sensitivity (1 - 15 kHz)
Power capacity (1-20 kHz)
Program power
Voice coil diameter
Winding material
Diaphragm material
Flux density
210 mm (8 in)
LF 8 Ohm /HF 16 Ohm
6.25 Ohm
70 - 20000 Hz
100 deg


95.5 dB
200 W
400 W
51 mm (2 in
Aluminium
Kapton
14 mm
9 mm
Paper with carbon fibers
Die Cast Aluminium
Ferrite
0.91 T


12.37 Ohms
10.6 Ohms
107 dB
40 W
80 W
44 mm (1.75 in
Aluminium
sandwich polyester
1.9 T


THIELE-SMALL PARAMETERS

Fs

Qms

Qes

Qts

Vas

Mms

Re

Sd

Xmax*

Cms

BL

Le at 1kHz

76.07 Hz
4.28
0.44
0.40
16.84 L
14.52 g
5.68 Ohms
202 cm2
+/- 5.25 mm
0.301 mm/N
9.43 T.m
0.638 mH

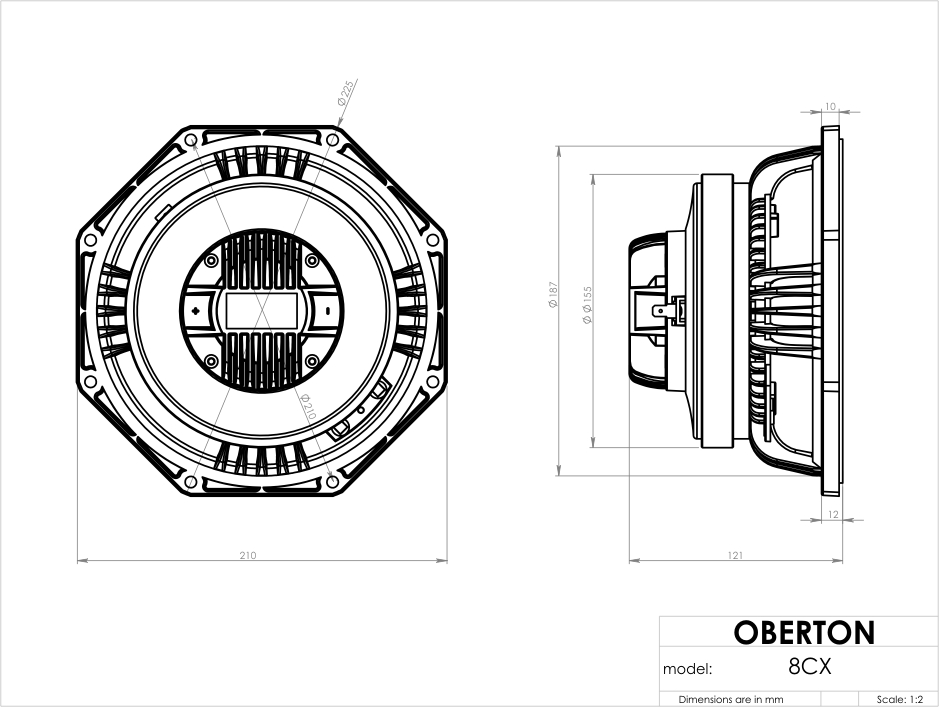

MOUNTING INFORMATION

Overall diameter
Depth
Baffle hole diameter
Bolt circle diameter
Mounting holes
Net weight
225 mm (8 in)
121 mm
187 mm
210 mm
8 with dia 6.5 mm
4.5 kg
Coaxial: JA
Diaphragma / Dome: Mylar / Polyester / Polyethylen / Kunststoffe
Größe: 8"
Impedanz: 8 Ohm
Magnet: Ferrit
Qts: 0,36 - 0,40
Sperrgut: NEIN
X-MAX: 5,1 - 10,0 mm
