Oberton 18XB700 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
317,00 €*
|
| Bis 4 |
314,00 €*
|
| Bis 6 |
312,00 €*
|
| Ab 7 |
309,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11483
Produktinformationen "Oberton 18XB700 8 Ohm"

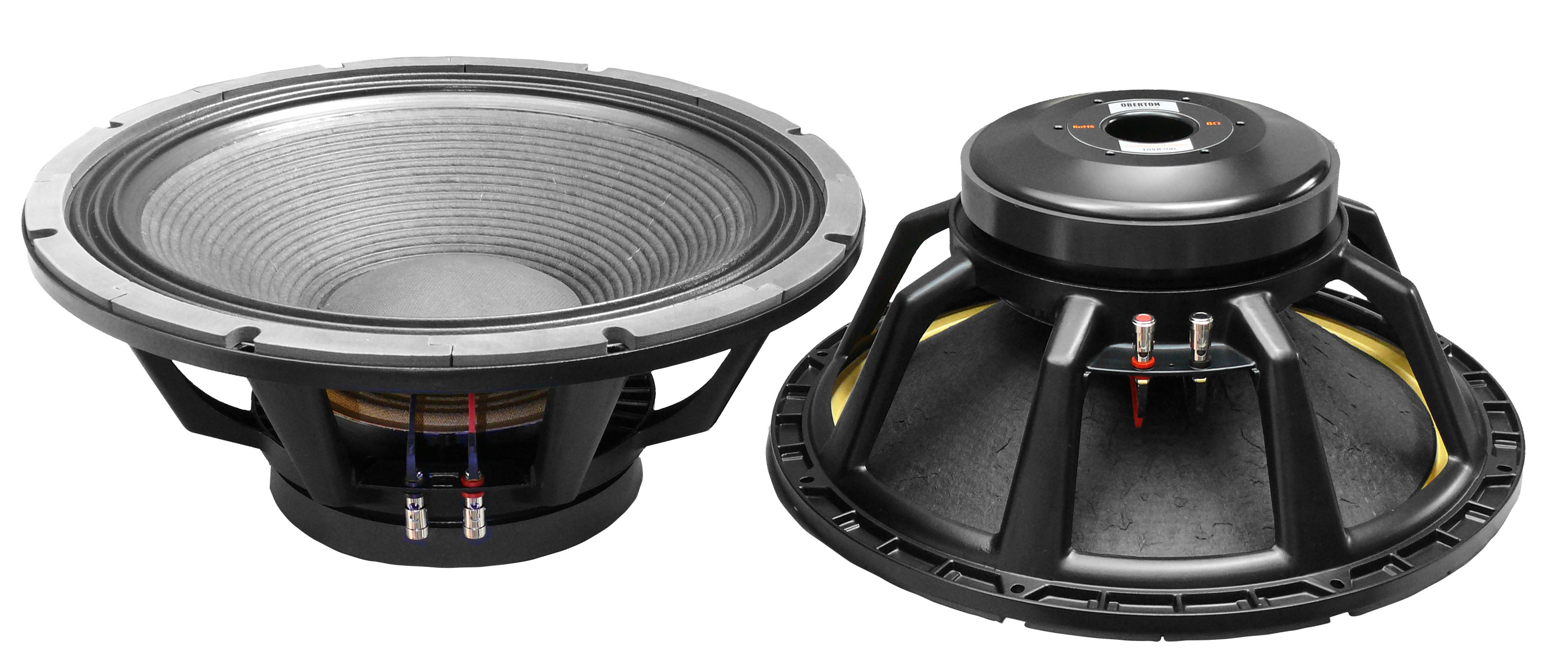

Oberton 18XB700
98 db 1W / 1m average sensitivity
100 mm high temperature sandwich voice coil
2000 W AES program power
Powerful, vented 220 mm magnet structure
Aluminium demodulating ring for lower distortion and improved heat dissipation
Double silicone spider for improved excursion control and linearity
Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 18XB700 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
18"/461 inch/mm 8 Ohm 7.00 Ohm 1000 W 2000 W (50-200 Hz) 98 dB/W/m 35 - 1000 Hz 100 mm Cooper Glassfiber 25 mm 14 mm Kevlar paper Die cast aluminium Ferrite 0.97 T |
THIELE-SMALL PARAMETERS 18XB700
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
36.10 Hz 9.26 0.314 0.304 183.22 Litres 182.62 grams 5.17 Ohms 1110 cm2 ± 9 mm 0.1064 mm/N 26.10 T.m 1.83 mH |

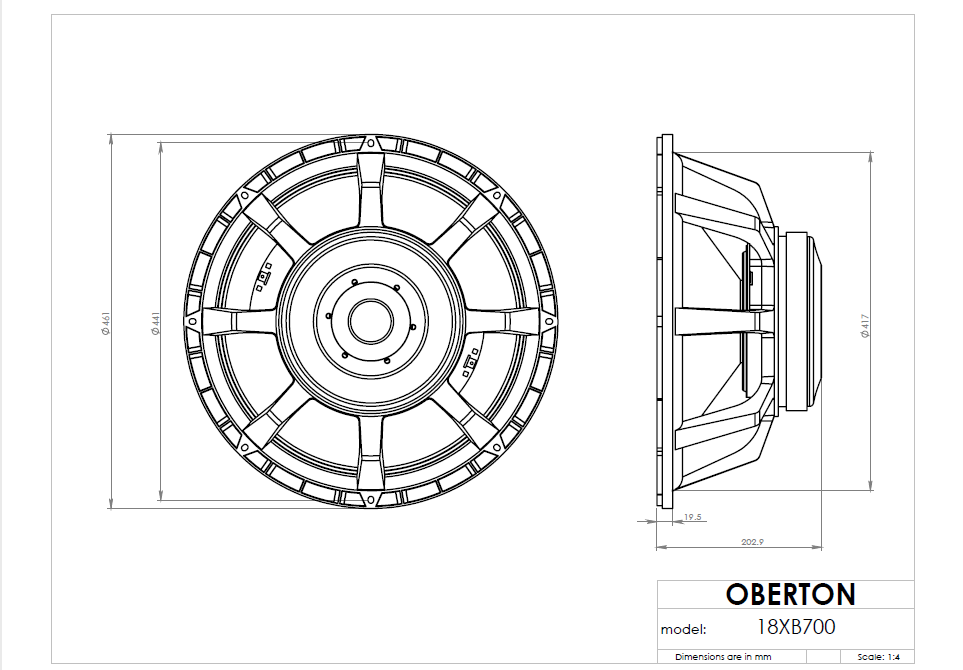

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
461 mm 417 mm 8 eliptic 7 x 8,5 mm 438/441 mm 203 mm 12.55 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 18" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
