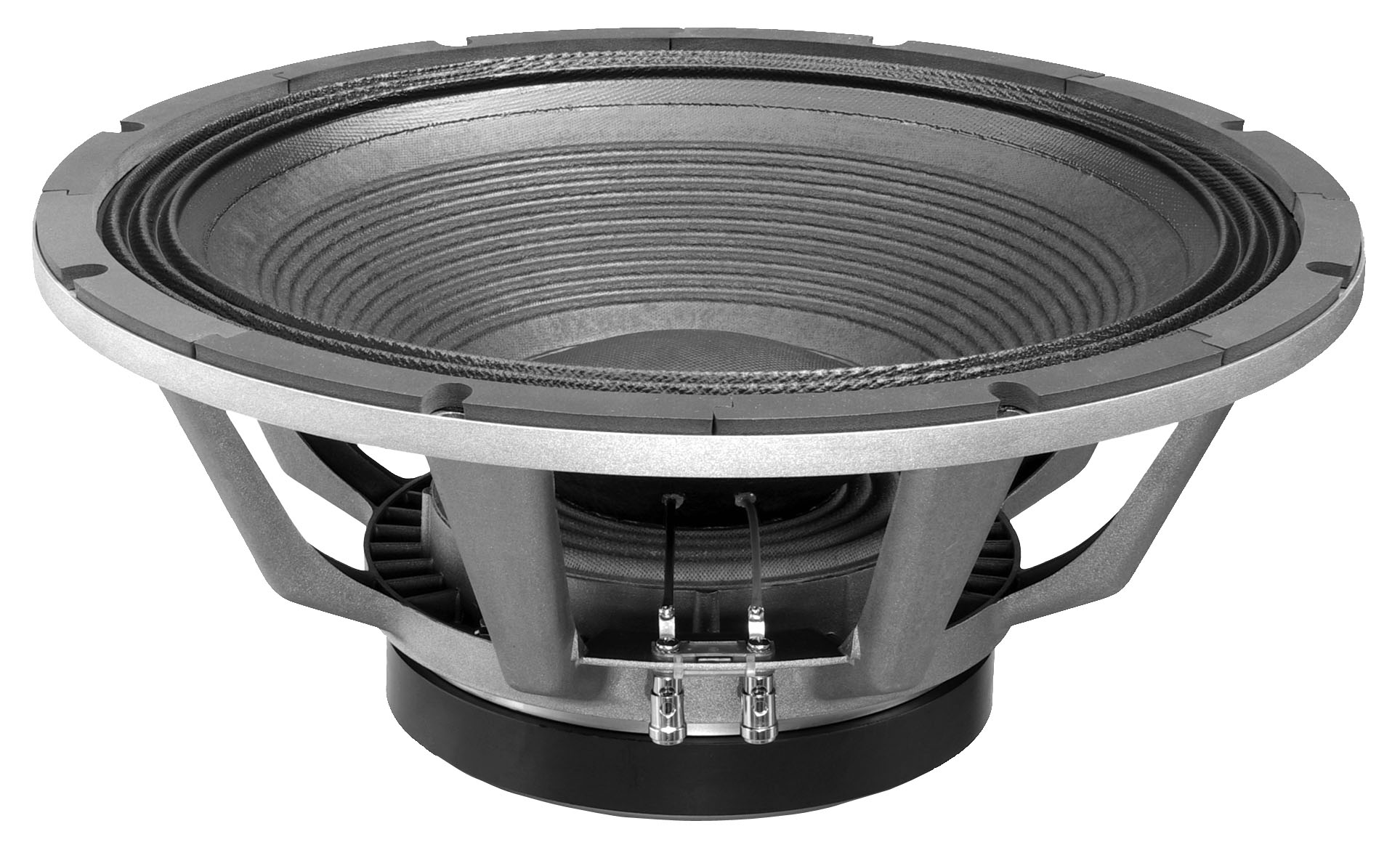

Oberton 18XB1301DS 8 Ohm

Produktinformationen "Oberton 18XB1301DS 8 Ohm"
  • Oberton 18XB1301DS
  • 97.5 db 1W / 1m average sensitivity
  • 100 mm high temperature sandwich voice coil
  • 2600 W AES program power
  • Powerful, vented ferrite magnet structure
  • Triple aluminium demodulating rings for ultra low THD and improved heat dissipation
  • Double silicone spider for improved excursion control and linearity
  • Water protected cone (front)

Oberton 18XB1301DS 8 Ohm SPECIFICATIONS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V.C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density
18"/461 inch/mm
8 Ohm
6,6 Ohm
1300 W
2600 W
(50-200 Hz) 97.5 dB/W/m
35 - 1000 Hz
100 mm
Copper
Glassfiber
31 mm
14 mm
Carbone paper
Die cast aluminium
Ferrite
1.00 T



THIELE-SMALL PARAMETERS 18XB1301DS

Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
35.7 Hz
6.79
0.316
0.302
172.9 Litres
197.95 grams
5.13 Ohms
1158 cm2
± 12 mm
0.1004 mm/N
26.86 T.m
1.419 mH



MOUNTING INFORMATION

Overall Diameter
Baffle Hole Diameter
Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight
461 mm
417 mm
8 eliptic 7 x 8,5 mm
438/441 mm
210 mm
15.95 kg
Coaxial: NEIN
Größe: 18"
Impedanz: 8 Ohm
Magnet: Ferrit
Qts: 0,31 - 0,35
Sperrgut: NEIN
X-MAX: 10,1 - 15,0 mm
