Oberton 18XB1201 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
341,00 €*
|
| Bis 4 |
338,00 €*
|
| Bis 6 |
335,00 €*
|
| Ab 7 |
332,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11481
Produktinformationen "Oberton 18XB1201 8 Ohm"
- Oberton 18XB1201
- 98.5 db 1W / 1m average sensitivity
- 100 mm high temperature sandwich voice coil
- 2400 W AES program power
- Powerful, vented ferrite magnet structure
- Triple aluminium demodulating rings for ultra low THD and improved heat dissipation
- Double silicone spider for improved excursion control and linearity
- Water protected cone (front)
Oberton 18XB1201 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V.C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |

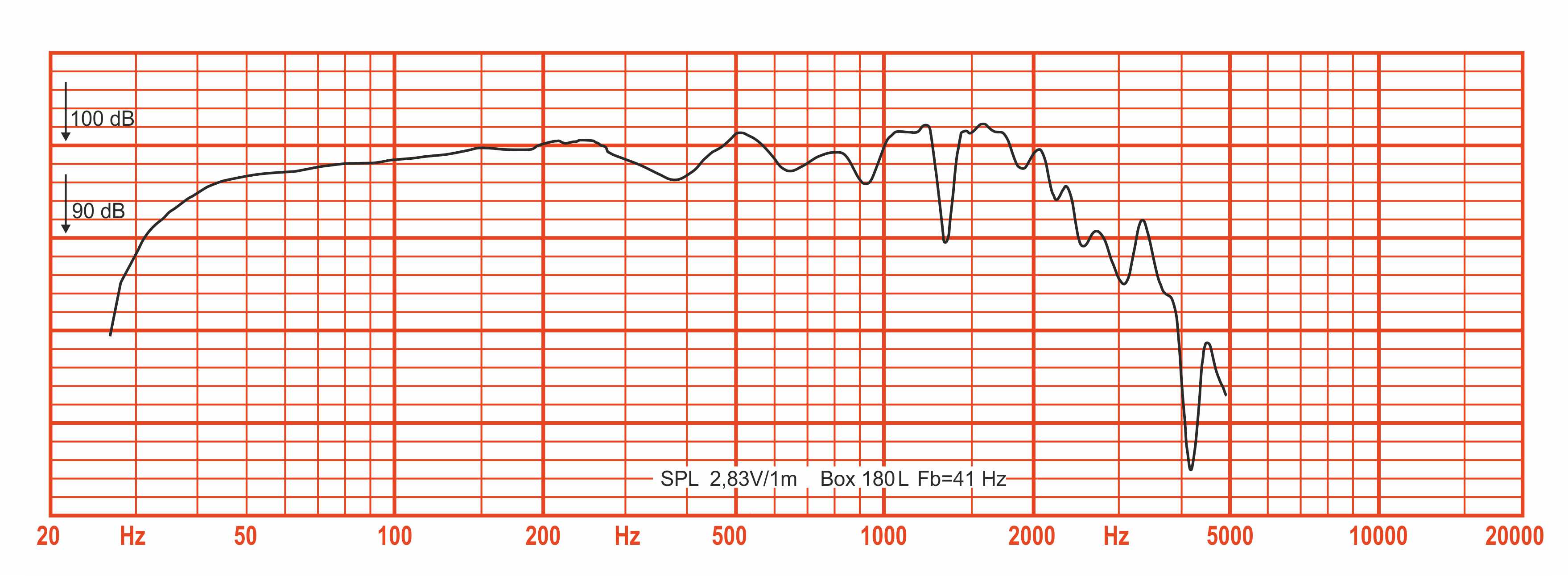

18"/461 inch/mm 8 Ohm 6,55 Ohm 1200 W 2400 W (50-200 Hz) 98.5 dB/W/m 35 - 1000 Hz 100 mm Copper Glassfiber 28 mm 14 mm Carbone paper Die cast aluminium Ferrite 1.00 T |
THIELE-SMALL PARAMETERS 18XB1201
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
38.05 Hz 6.92 0.332 0.317 159.37 Litres 188.94 grams 5.25 Ohms 1158 cm2 ± 10.5 mm 0.0926 mm/N 26.71 T.m 1.22 mH |

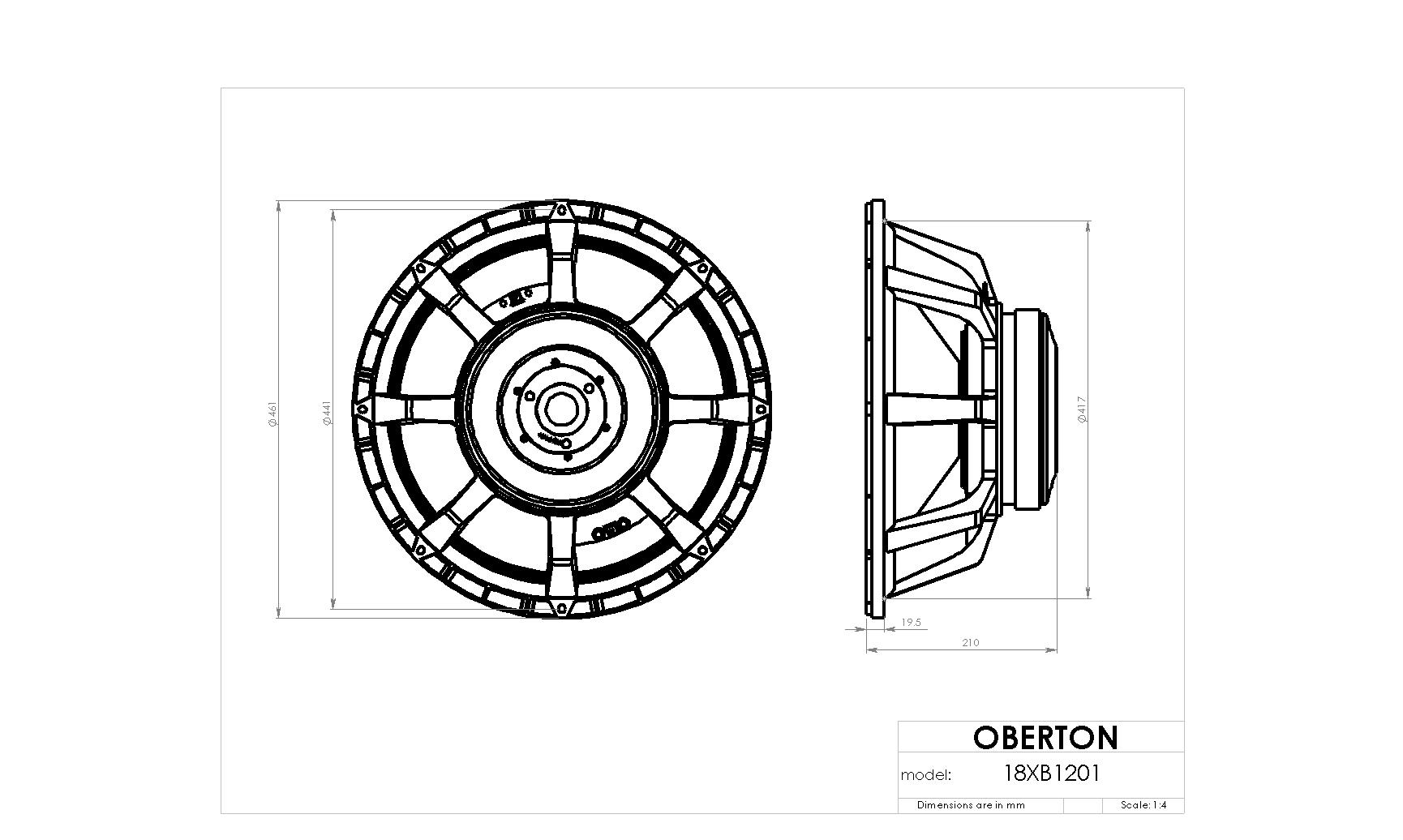

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
461 mm 417 mm 8 eliptic 7 x 8,5 mm 438/441 mm 210 mm 15.95 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 18" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 10,1 - 15,0 mm |
