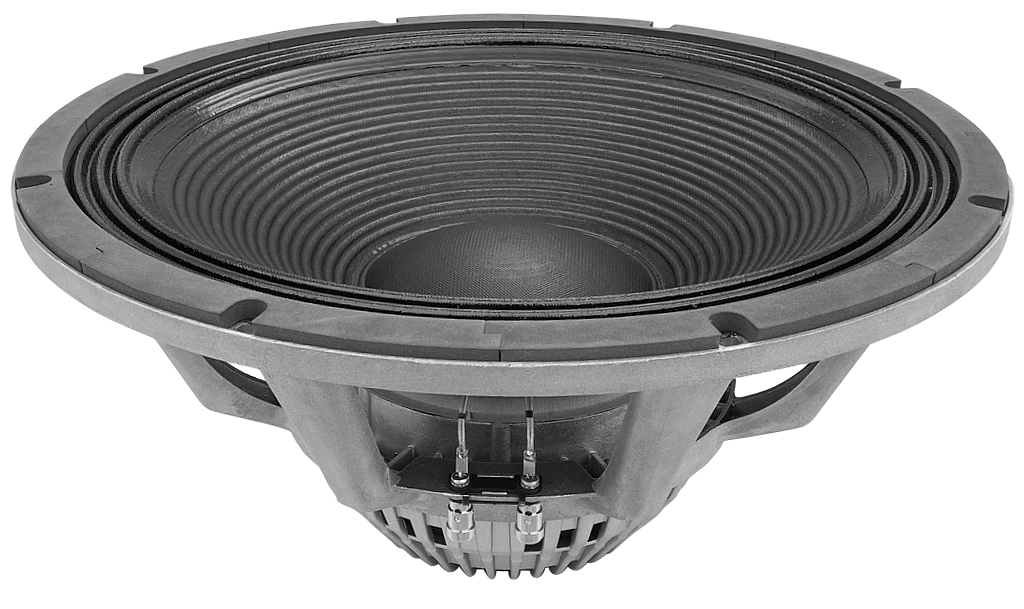

Oberton 18NXB700 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
522,00 €*
|
| Bis 4 |
518,00 €*
|
| Bis 6 |
513,00 €*
|
| Ab 7 |
508,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11460
Produktinformationen "Oberton 18NXB700 8 Ohm"
- Oberton 18NXB700
- 98 db 1W / 1m average sensitivity
- 100 mm high temperature sandwich voice coil
- 2000 W AES program power
- Vented neodymium magnet assembly with massive heatsink
- Triple aluminium demodulating rings for lower distortion and improved heat dissipation
- Double silicone spider for improved excursion control and linearity
- Water protected cone (front)
Oberton 18NXB700 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
18"/461 inch/mm 8 Ohm 6.98 Ohm 1000 W 2000 W (50-200 Hz) 98 dB/W/m 36 - 1000 Hz 100 mm Copper Glassfiber 25 mm 14 mm Kevlar paper Die cast aluminium Neodymium 1.0 T |
THIELE-SMALL PARAMETERS 18NXB700
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
36.24 Hz 7.94 0.325 0.312 155.46 Litres 213.6 grams 5.17 Ohms 1110 cm2 ± 9 mm 0.09 mm/N 27.82 T.m 1.97 mH |

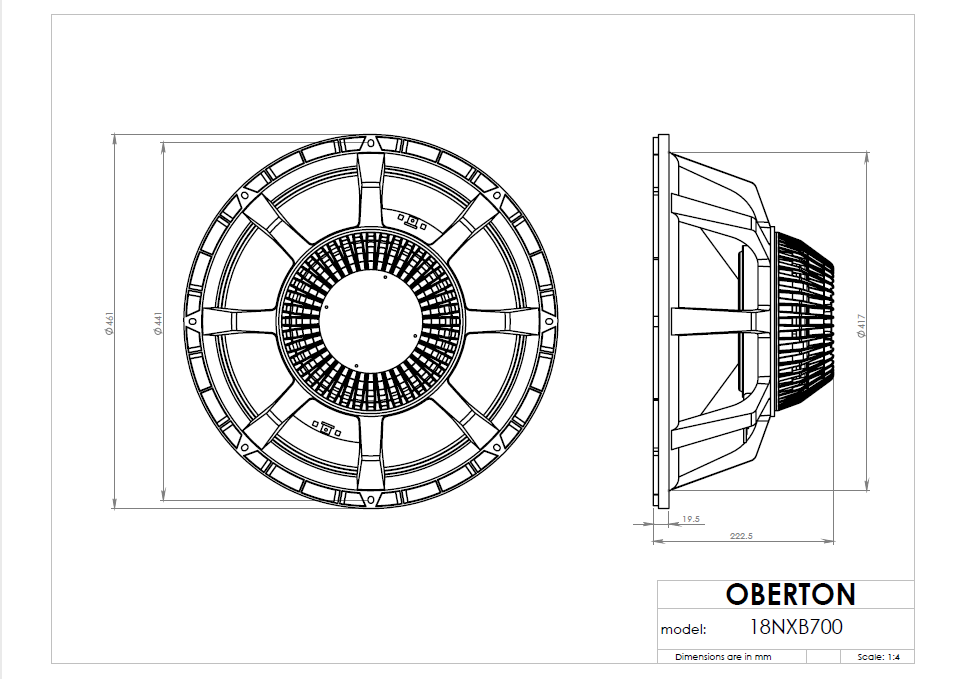

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
461 mm 417 mm 8 eliptic 7 x 8,5 mm 438/441 mm 222.5 mm 8.95 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 18" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
