Oberton 18NXB1600 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
636,00 €*
|
| Bis 4 |
630,00 €*
|
| Bis 6 |
625,00 €*
|
| Ab 7 |
619,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11457
Produktinformationen "Oberton 18NXB1600 8 Ohm"
- Oberton 18NXB1600
- 97 db 1W / 1m average sensitivity
- 115 mm ( 4.5”) high temperature sandwich voice coil
- 3200 W AES program power
- Vented neodymium magnet assembly with massive heatsink
- Double aluminium demodulating rings for lower distortion and improved heat dissipation
- Double silicone spiders for improved excursion control and linearity
- Water protected cone
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 18NXB1600 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V.C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
18"/461 inch/mm 8 Ohm 6.8 Ohm 1600 W 3200 W (50-200 Hz) 97 dB/W/m 30 - 1000 Hz 115 mm (4.5”) Copper Glassfiber 32 mm 14 mm Kevlar paper Die cast aluminium Neodymium 1.1 T |
THIELE-SMALL PARAMETERS 18NXB1600
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
32.37 Hz 5.11 0.332 0.303 173.11 Litres 261.56 grams 5.30 Ohms 1158 cm2 ± 13.5 mm 0.0924 mm/N 29.58 T.m 1.20 mH |

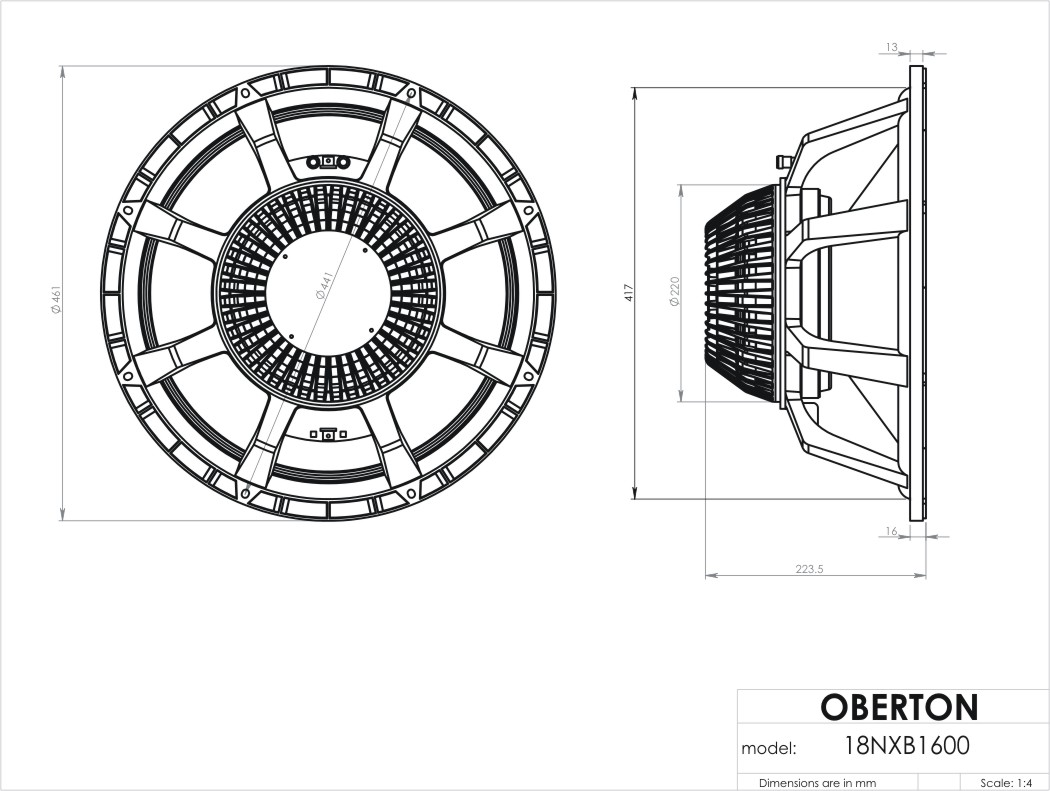

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
461 mm 417 mm 8 eliptic 7 x 8,5 mm 438/441 mm 224 mm 11.7 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 18" |
| Impedanz: | 8 Ohm |
| Magnet: | Neodym |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 10,1 - 15,0 mm |
