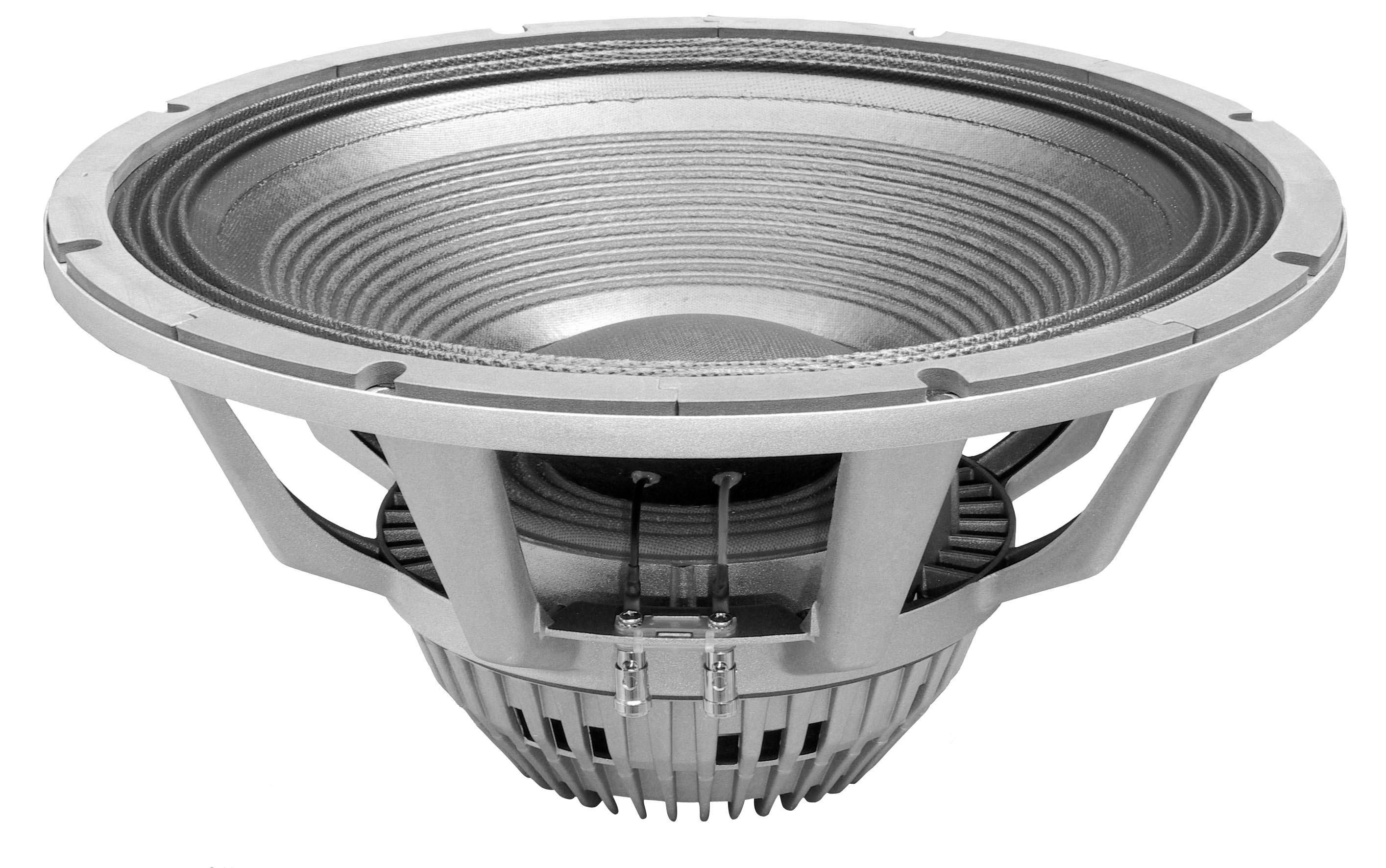

Oberton 18NXB1200 8 Ohm

Produktinformationen "Oberton 18NXB1200 8 Ohm"

  • Oberton 18NXB1200
  • 97.5 db 1W / 1m average sensitivity
  • 100 mm high temperature sandwich voice coil
  • 2400 W AES program power
  • Vented neodymium magnet assembly with massive heatsink
  • Triple aluminium demodulating rings for lower THD and improved heat dissipation
  • Double silicone spider for improved excursion control and linearity
  • Water protected cone (front)

Oberton 18NXB1200 8 Ohm SPECIFICATIONS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity

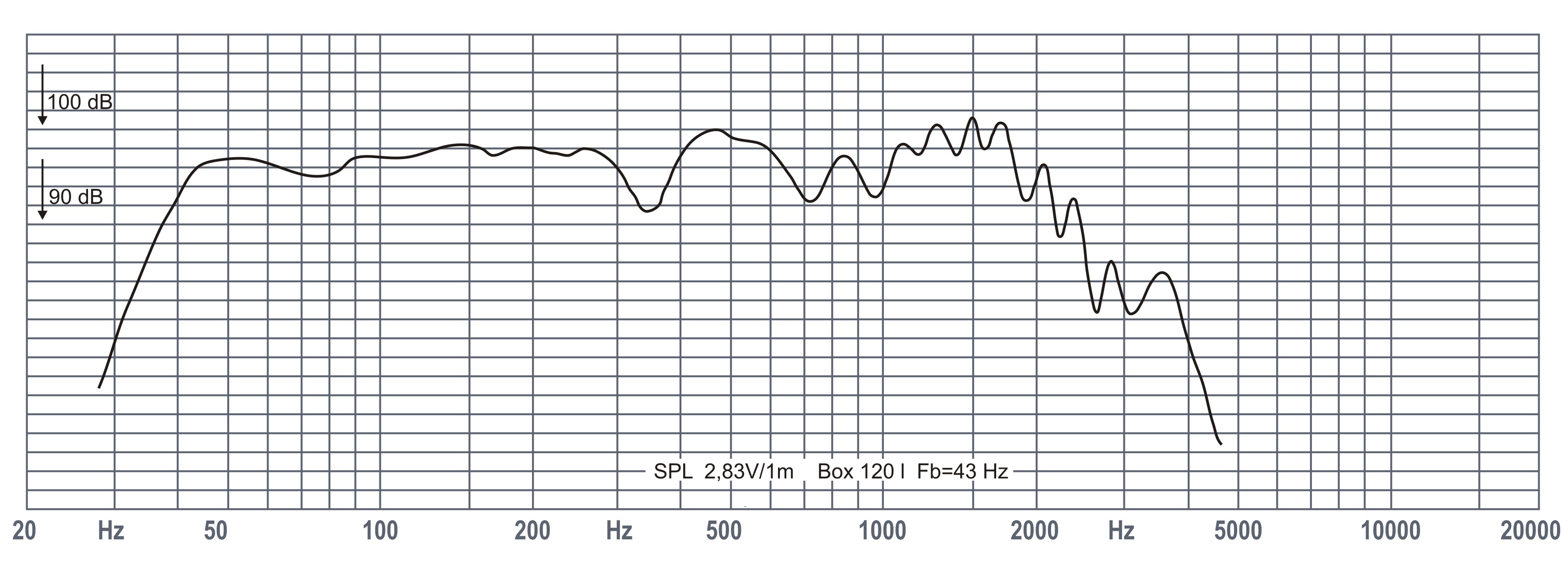

Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V.C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density
18"/461 inch/mm
8 Ohm
6.88 Ohm
1200 W
2400 W
(50-200 Hz) 97.5 dB/W/m
35 - 1000 Hz
100 mm
Copper
Glassfiber
31 mm
14 mm
Carbone paper
Die cast aluminium
Neodymium
1.05 T


THIELE-SMALL PARAMETERS

Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
35.83 Hz
9.24
0.291
0.282
159.61 Litres
212.81 grams
5.30 Ohms
1158 cm2
± 11.5 mm
0.0927 mm/N
29.35 T.m
1.29 mH

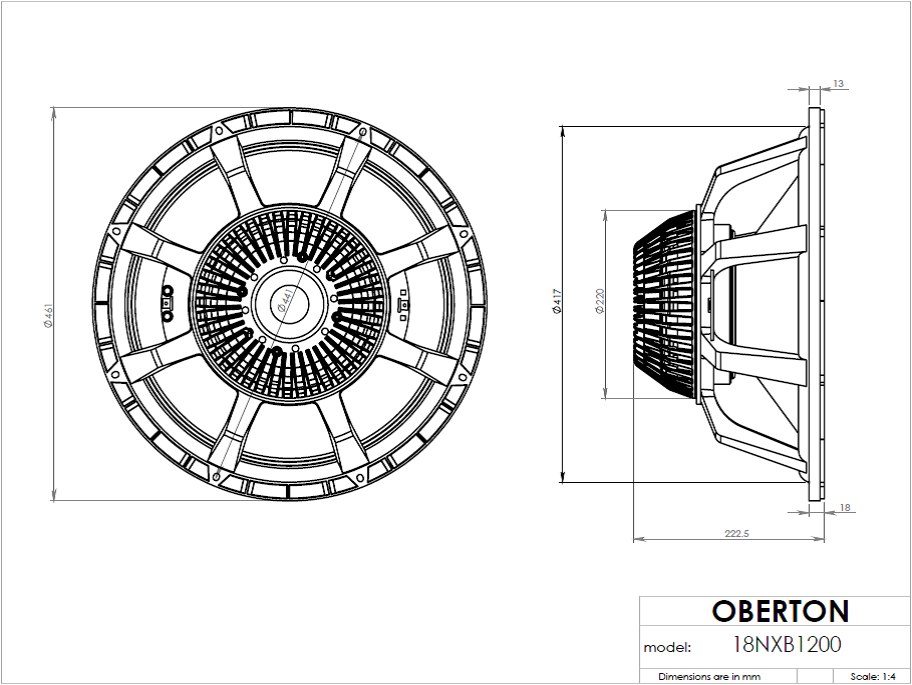

MOUNTING INFORMATION

Overall Diameter
Baffle Hole Diameter
Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight
461 mm
417 mm
8 eliptic 7 x 8,5 mm
438/441 mm
222.5 mm
8.95 kg
Coaxial: NEIN
Größe: 18"
Impedanz: 8 Ohm
Magnet: Neodym
Qts: 0,26 - 0,30
Sperrgut: NEIN
X-MAX: 10,1 - 15,0 mm
