Oberton 18FBR700 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
326,00 €*
|
| Bis 4 |
323,00 €*
|
| Bis 6 |
320,00 €*
|
| Ab 7 |
317,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11482
Produktinformationen "Oberton 18FBR700 8 Ohm"
- Oberton 18FBR700
- 98 db 1W / 1m average sensitivity
- 100 mm high temperature sandwich voice coil
- 1400 W AES program power
- Powerful, vented 220 mm magnet structure
- Double aluminium demodulating ring for lower distortion and improved heat dissipation
- Double silicone spider for improved excursion control and linearity
Oberton 18FBR700 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |

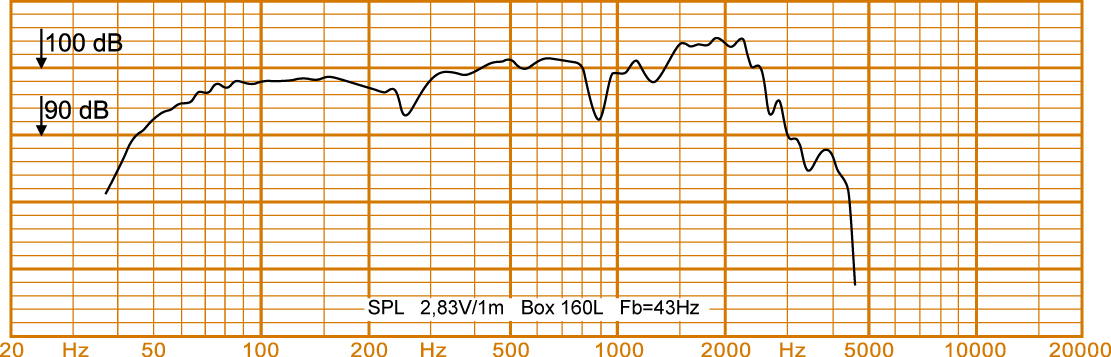

18"/461 inch/mm 8 Ohm 7.00 Ohm 700 W 1400 W (50-200 Hz) 98 dB/W/m 40 - 2000 Hz 100 mm Aluminium Glassfiber 23 mm 14 mm Paper with carbone fibers Die cast aluminium Ferrite 1.03 T |
THIELE-SMALL PARAMETERS 18FBR700
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
35.56 Hz 12.63 0.277 0.271 231.30 Litres 149.08 grams 5.26 Ohms 1110 cm2 ± 8 mm 0.134 mm/N 25.17 T.m 1.50 mH |

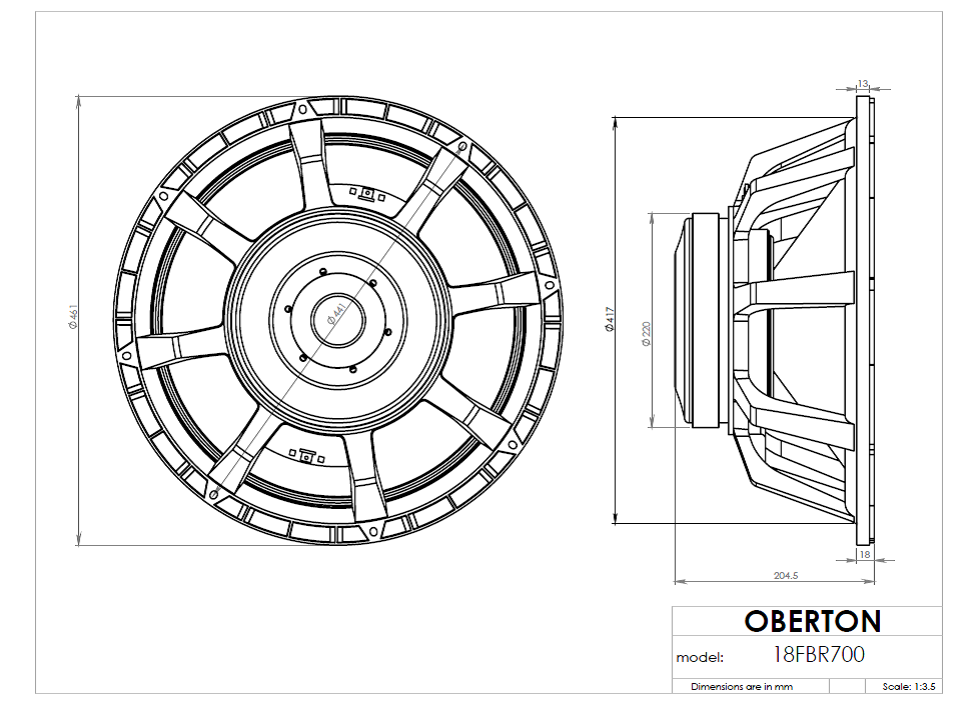

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
461 mm 417 mm 8 eliptic 7 x 8,5 mm 438/441 mm 204.5 mm 12.9 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 18" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
