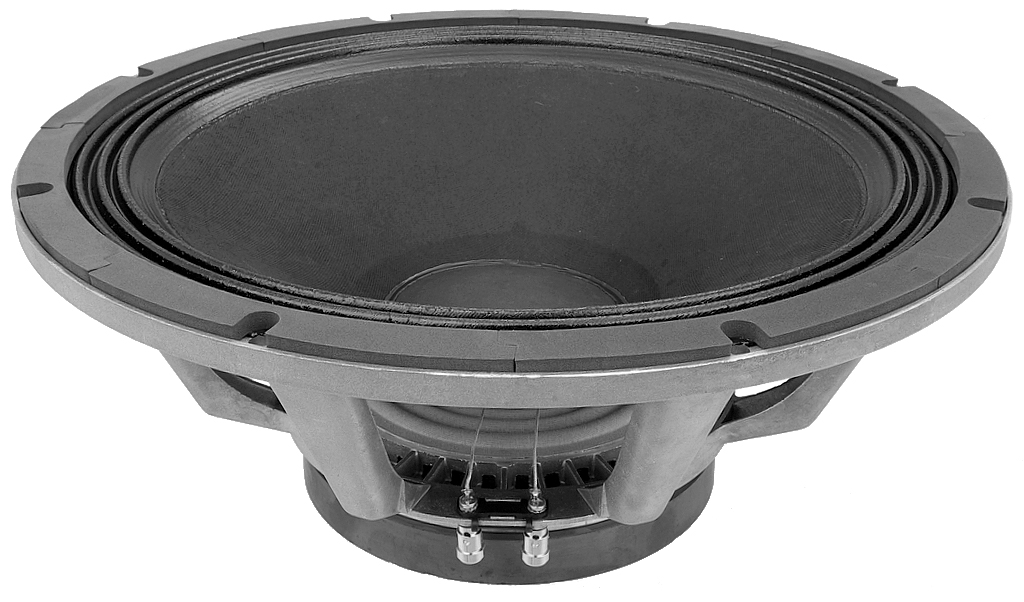

Oberton 18B500 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
293,00 €*
|
| Bis 4 |
290,00 €*
|
| Bis 6 |
288,00 €*
|
| Ab 7 |
285,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11485
Produktinformationen "Oberton 18B500 8 Ohm"
- Oberton 18B500
- 99 db 1W / 1m average sensitivity
- 77 mm high temperature sandwich voice coil
- 1200 W AES program power
- Powerful, vented 220 mm magnet structure
- Silicone spider
Oberton 18B500 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
18"/461 inch/mm 8 Ohm 6.38 Ohm 600 W 1200 W (50 - 200 Hz) 99 dB/W/m 35 - 1000 Hz 77 mm Copper Glassfiber 23 mm 11 mm Paper Die cast aluminium Ferrite 1.27 T |
THIELE-SMALL PARAMETERS 18B500
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
34.90 Hz 9.24 0.284 0.275 243.91 Litress 146.79 grams 5.10 Ohms 1110 cm2 ± 8.75 mm 0.142 mm/N 24.06 T.m 1.37 mH |
MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
461 mm 417 mm 8 eliptic 7 x 8,5 mm 438/441 mm 202.4 mm 12.30 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 18" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,26 - 0,30 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
