Oberton 18B450 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
229,00 €*
|
| Bis 4 |
227,00 €*
|
| Bis 6 |
226,00 €*
|
| Ab 7 |
224,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11486

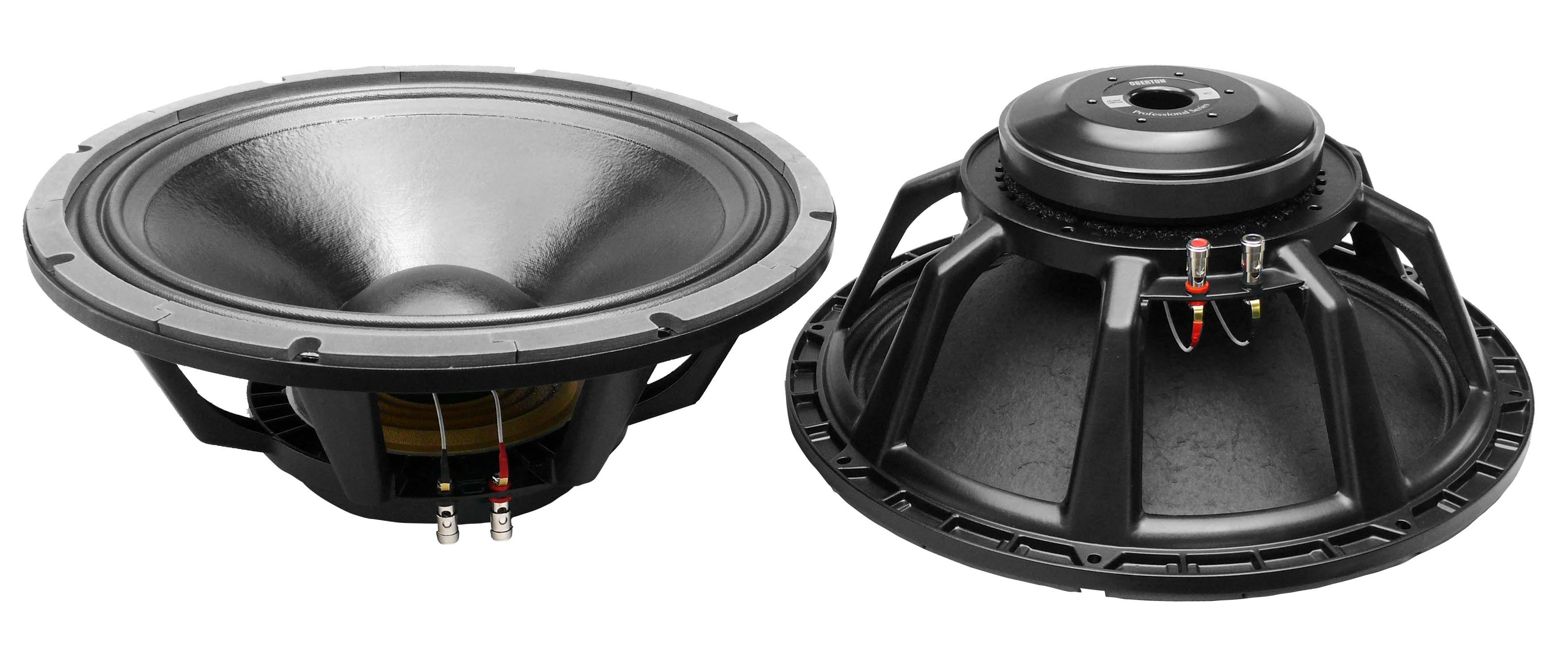

Produktinformationen "Oberton 18B450 8 Ohm"
- Oberton 18B450
- 98 db 1W / 1m average sensitivity
- 77 mm high temperature sandwich voice coil
- 1000 W AES program power
- Powerful, vented 180 mm magnet structure
- Aluminium demodulating ring for lower distortion and improved heat dissipation
- Silicone spider
- Epoxy anti-corrosion coating of top and back plates of magnet structure
Oberton 18B450 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
18"/461 inch/mm 8 Ohm 6.40 Ohm 500 W 1000 W (50 - 200 Hz) 98 dB/W/m 35 – 1000 Hz 77 mm Copper Glassfiber 20 mm 11 mm Paper Die cast aluminium Ferrite 1.2 T |
THIELE-SMALL PARAMETERS 18B450
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
34.38 Hz 8.03 0.357 0.342 241.55 Litres 152.76 grams 5.29 Ohms 1110 cm2 ± 7.25 mm 0.140 mm/N 22.12 T.m 1.49 mH |

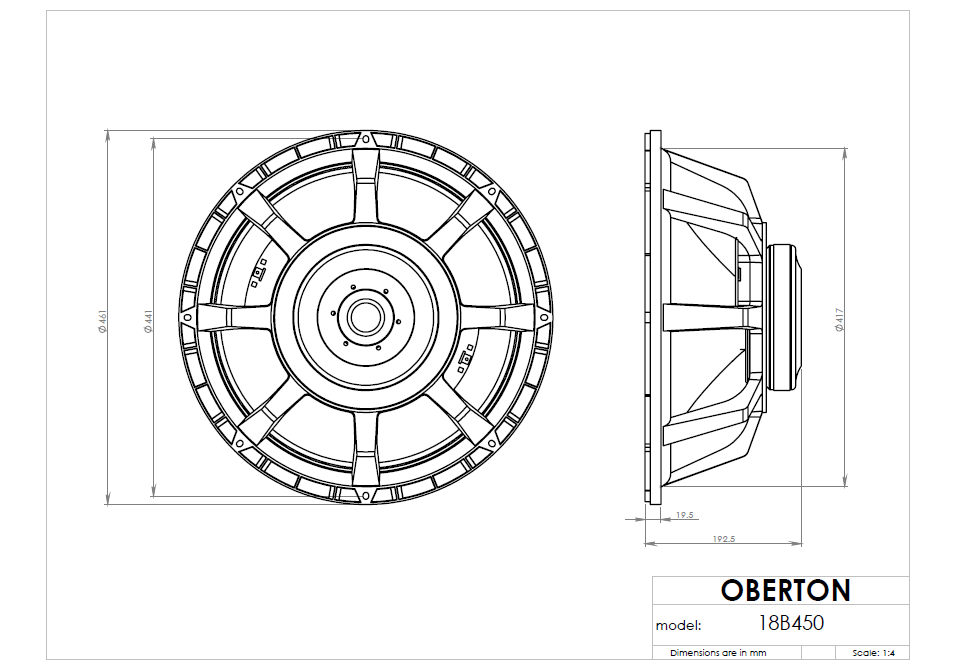

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
461 mm 417 mm 8 eliptic 7 x 8,5 mm 438/441 mm 192.5 mm 8.55 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 18" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
