Oberton 18B35 8 Ohm
| Anzahl | Stückpreis |
|---|---|
| Bis 2 |
315,00 €*
|
| Bis 4 |
312,00 €*
|
| Bis 6 |
310,00 €*
|
| Ab 7 |
307,00 €*
|
Versandfertig in 2 Tagen, Lieferzeit 2-5 Arbeitstage
Produktnummer:
SW11484
Produktinformationen "Oberton 18B35 8 Ohm"
- Oberton 18B35
- 99 db 1W / 1m average sensitivity
- 88 mm high temperature sandwich voice coil
- 1400 W AES program power
- Powerful, vented 200 mm magnet structure
- Double aluminium demodulating ring for lower distortion and improved heat dissipation
- Water protected cone (front)
Oberton 18B35 8 Ohm SPECIFICATIONS
|
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former V. C. Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density |
18"/461 inch/mm 8 Ohm 5.72 Ohm 700 W 1400 W (50-200 Hz) 99 dB/W/m 32 - 1000 Hz 88 mm Cooper Clad Aluminium Glassfiber 24 mm 12 mm paper Die cast aluminium Ferrite 1.06 T |
THIELE-SMALL PARAMETERS 18B35
|
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
|
31.76 Hz
8.05
0.337
0.324
333.62 Litres
129.55 grams
4.88 Ohms
1110 cm2
± 9 mm
0.194 mm/N
19.34 T.m
0.61 mH
|

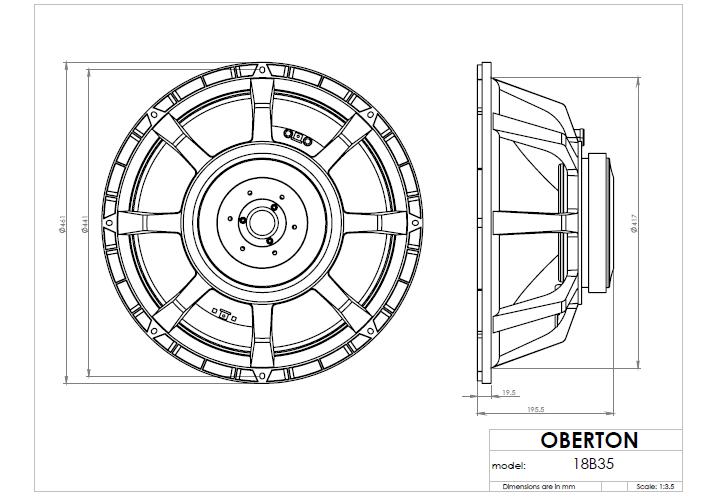

MOUNTING INFORMATION
|
Overall Diameter Baffle Hole Diameter Mounting Holes Bolt Circle Diameter Overall Depth Net Weight |
461 mm 417 mm 8 eliptic 7 x 8,5 mm 438/441 mm 195.5 mm 10 kg |
| Coaxial: | NEIN |
|---|---|
| Größe: | 18" |
| Impedanz: | 8 Ohm |
| Magnet: | Ferrit |
| Qts: | 0,31 - 0,35 |
| Sperrgut: | NEIN |
| X-MAX: | 5,1 - 10,0 mm |
